New standards by advanced and patented drive system
Our product has an extremely high number of cycles (> 400,000 cycles). The system enables contacting within five seconds and ensures that there is no loss of contact during the loading process. The combination of spring and drive system guarantees a constant contact force over the entire working range of the pantograph during the loading process. A built-in fail-safe function automatically returns the pantograph to the rest position in the event of a power failure or fault.

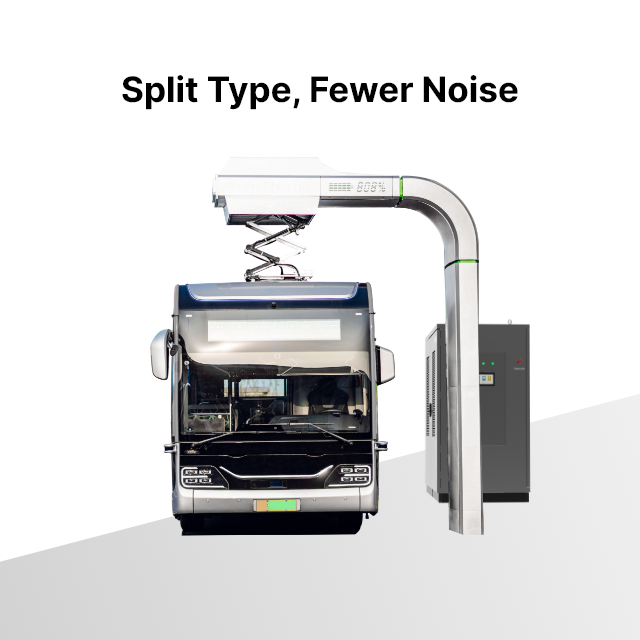

Product Introduction for 600kW E-BUS Pantograph Charger

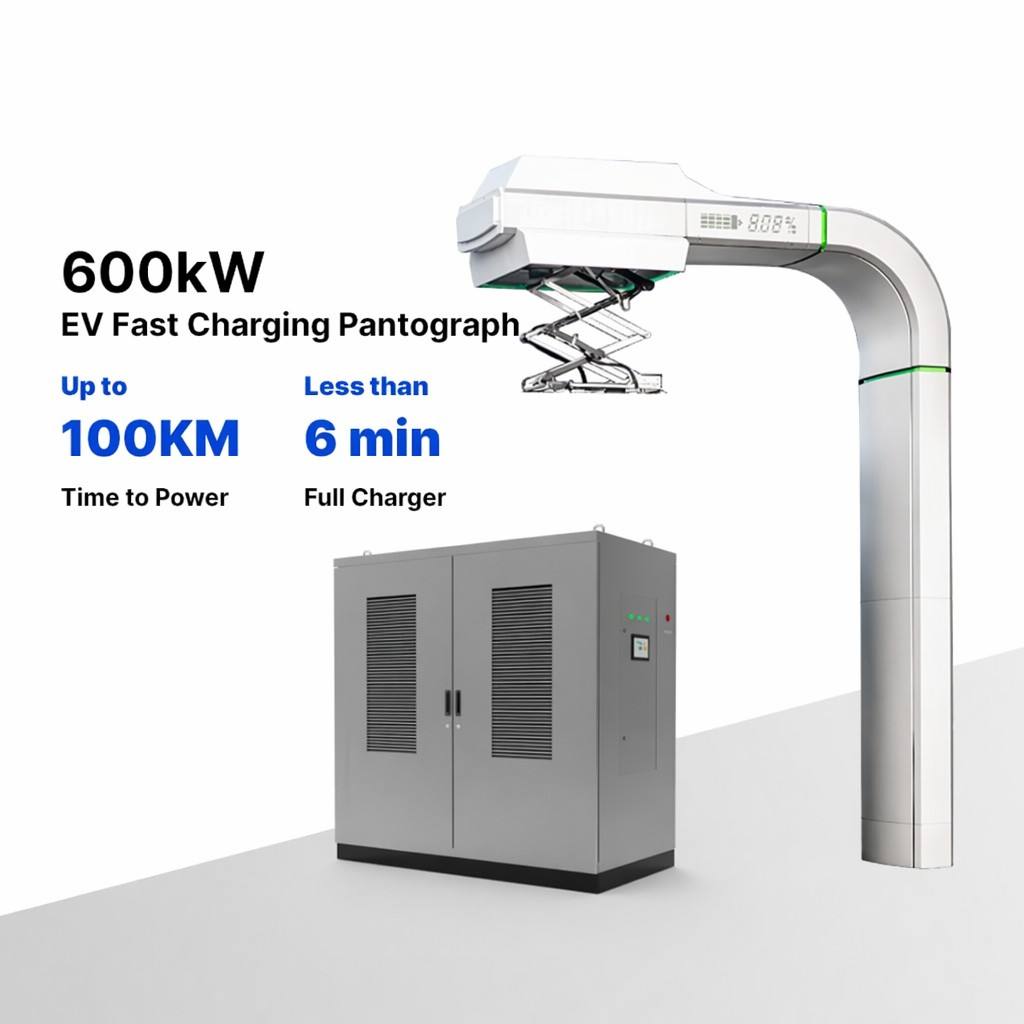

This series of 300kW 600kW fast charging pantographs integrates the main body of the charger and pantograph Electric Bus, which is more beautiful and generous. The charging system has three main functional modules, gun charging, bow charging, and return network inversion. It is suitable for setting up a fast-charging station at the beginning and end of the line.

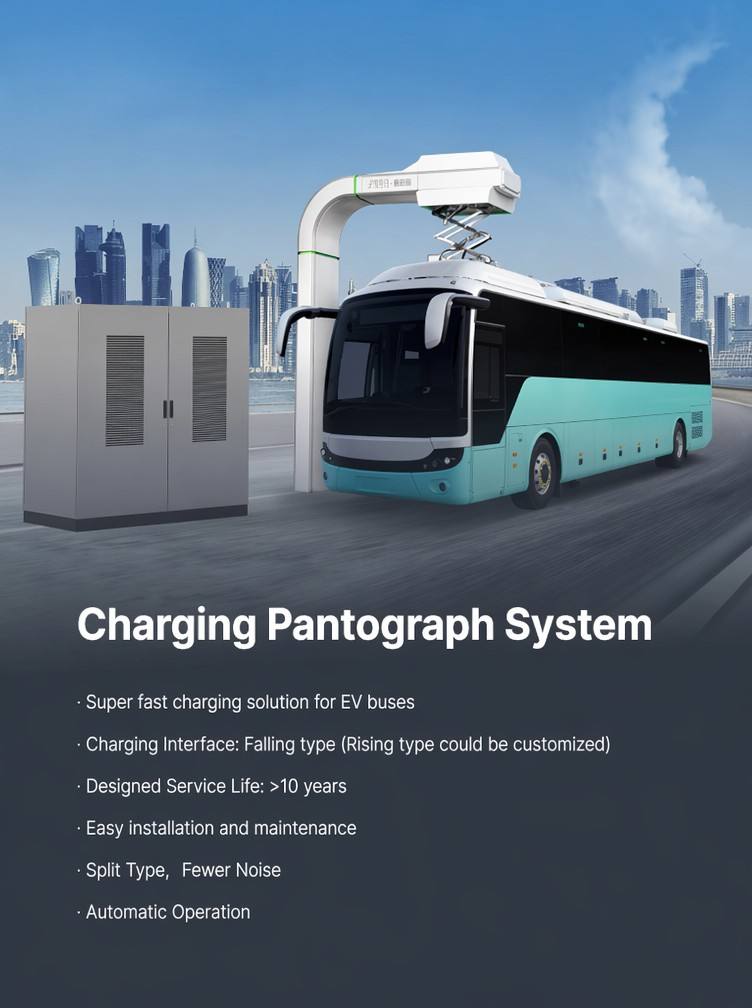

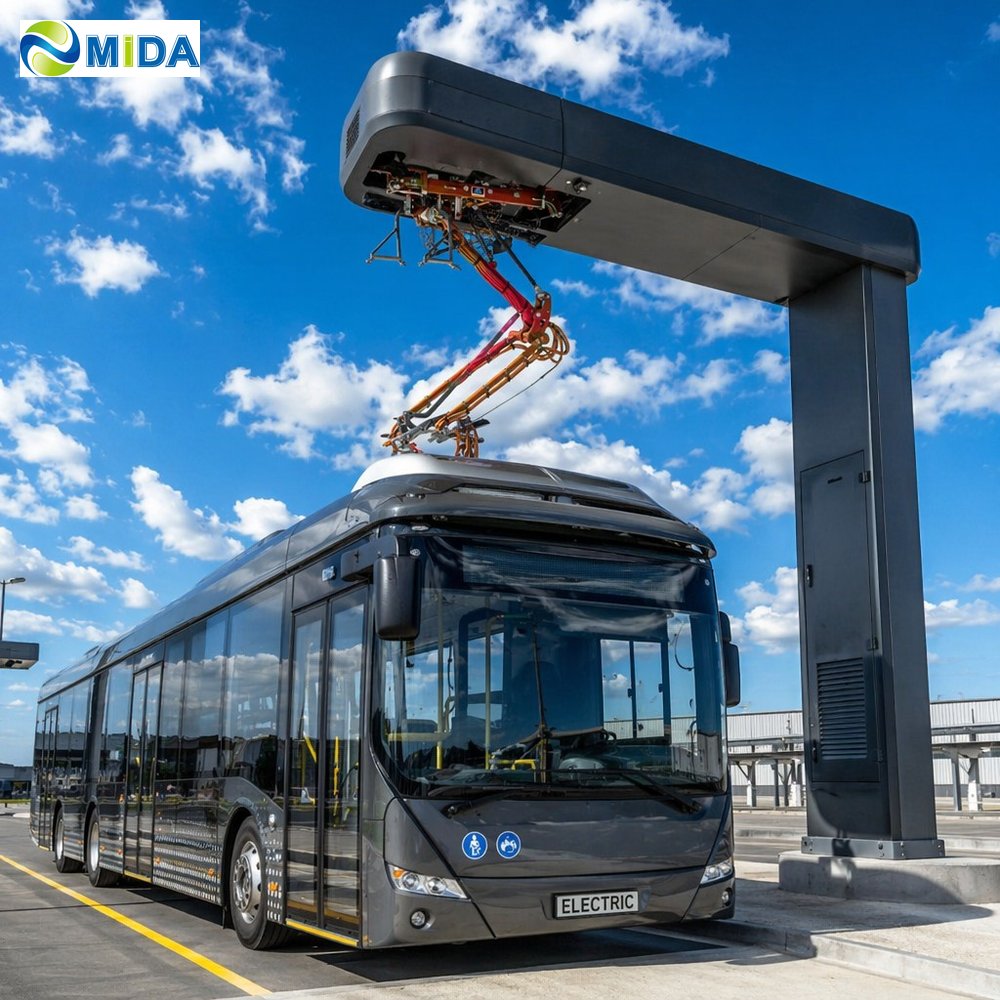

Our ideal electric bus pantograph solution is equipped with a roof-mounted pantograph. This allows you to charge larger fleets of electric buses overnight in a range of 50-150 kW per vehicle and during the day with 150 kW up to 600 kW for opportunity charging.
The system supports opportunity charging with a power range of 150 kW up to 600 kW, and overnight charging ranging from 50 kW to 150 kW.
The system enables contact within five seconds and ensures that there is no loss of contact during the entire loading process.
A built-in fail-safe function automatically returns the pantograph to its rest position to ensure safety in the event of a power failure or fault.
The system uses PLC carrier communication that meets the ISO15118 standard, ensuring accurate positioning, highly stable connection, and prevention of charging connection errors.

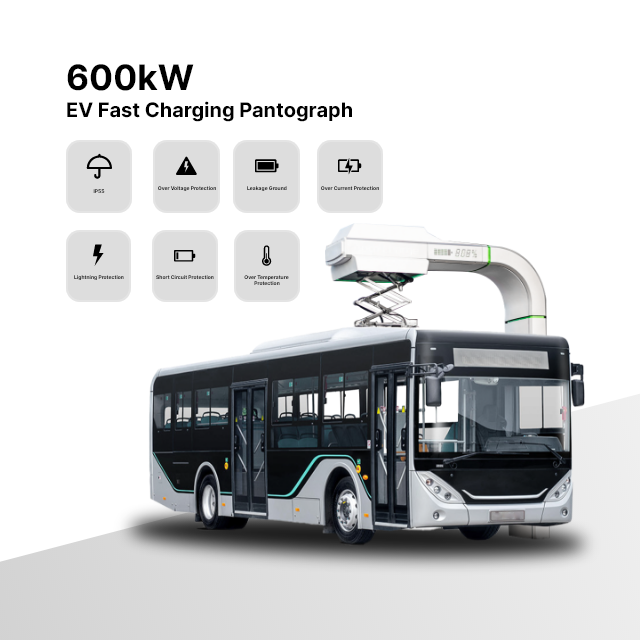

The charger includes comprehensive safety features such as input/output overvoltage, undervoltage, overcurrent, abnormal frequency, output overflow voltage, short circuit, emergency stop, access control, leakage current, lightning surge protection, and hot insertion/extraction capabilities.
