1 / 5
| Item | 120kW DC Charger | 150kW DC Charger | 160kW DC Charger |
|---|---|---|---|
| Input | Input Voltage | 3-phase 400V ±15% AC | |
| Input Voltage Type | TN-S (Three Phase Five Wire) | ||
| Working Frequency | 45~65Hz | ||
| Power Factor | ≥0.99 | ||
| Efficiency | ≥94% | ||
| Output | Rated Voltage | DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC - Type-2 400V; GBT 400V | |
| Max. Output Current | DC - CHAdeMO 125A; CCS 200A; GBT 250A; | AC - Type-2 63A; GBT 32A | |
| Interface | Display | 8'' LCD Touchscreen | |
| Language | Chinese, English, French, German, Spanish, Russian, etc. | ||
| Payment | Mobile APP/RFID/POS | ||
| Communication | Network Connection | 4G(GSM or CDMA)/Ethernet | |
| Communication Protocols | OCPP1.6J or OCPP2.0 | ||
| Working Environment | Working Temperature | -30°C ~ +55°C | |
| Storage Temperature | -35°C ~ +55°C | ||
| Operating Humidity | ≤95% Non-Condensing | ||
| Protection | IP54 | ||
| Acoustic Noise | <60dB | ||
| Cooling Method | Forced Air-Cooling | ||
| Mechanical | Dimension(W x D x H) | 700*1900*650mm | |
| No. of Charging Cable | Single | Dual | |
| Cable Length | 5m or 7m | ||
| Regulation | Certificate | CE/IEC61851-1/IEC61851-23/IEC61851-21-2 | |

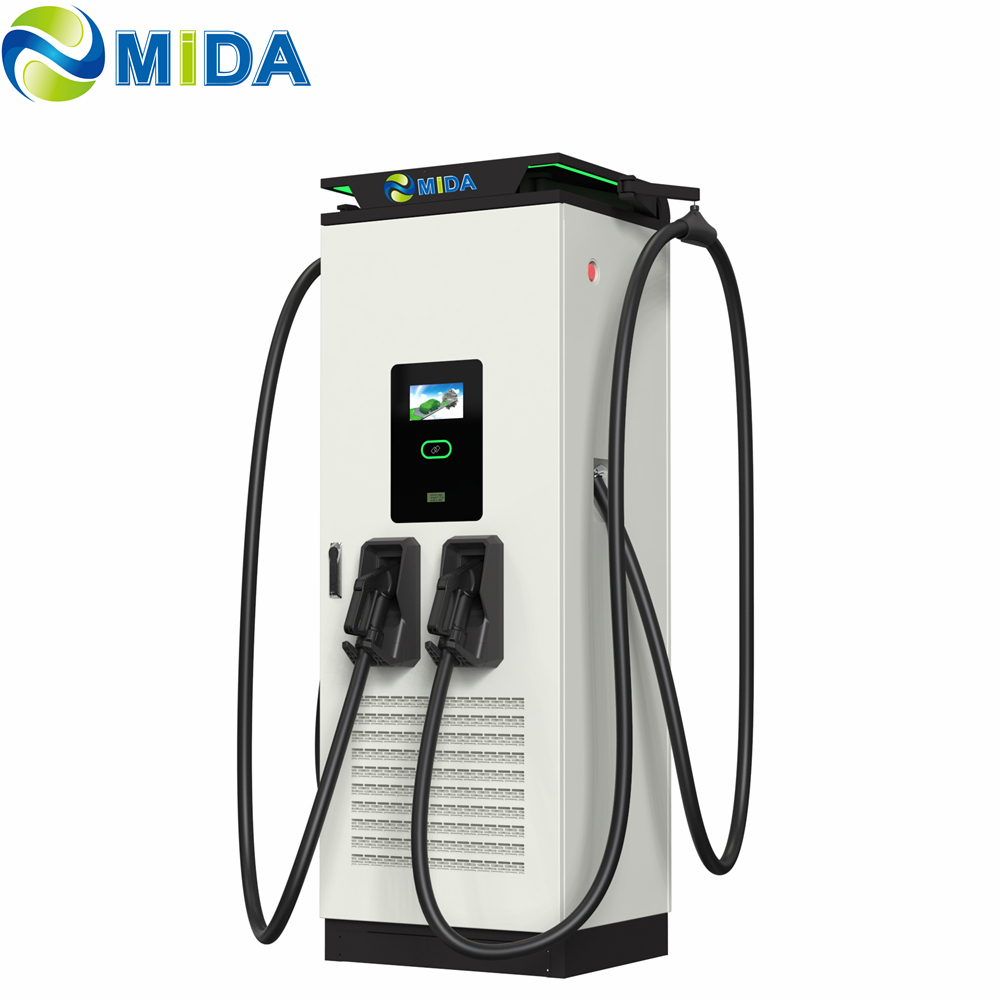

The whole machine is equipped with 2 CCS2 charging connectors, and other standard charging connectors such as GB/T standard and CHAdeMO standard can be selected. In addition, an AC charging connector can be added to flexibly meet the diverse demands of markets. The charger can be equipped with a cable management system, ensuring the charging cable does not fall to the ground, making it more labor-saving and durable.
The European standard 240/320kW integrated charger is mainly used for charging commercial vehicles such as electric heavy-duty trucks and electric buses, as well as special vehicles.
1. DC Charger Station 120kW 160kW is a well-received electric vehicle DC charger qualified for CCS, CHAdeMO and GBT charging standards.
2. The 120kW 160kW EV charging station features a perfect combination of classic design, IP54 protection, user-friendly 8" LCD touch screen display, multiple charging modes, and power distribution modes as well as LAN and optional LTE wireless communication.
3. Technically, the 120kW fast EV DC charger supports a maximum DC output power capacity of 120kW and a wide output voltage range from 150Vdc to 1000Vdc.
4. Complete kit for fast charging of battery systems with a voltage range between 250 – 500 VDC according to the standard CCS DC fast charge protocol.
