480kw 600kw 720kw DC Charging Station
Multi-standard DC Charging Station
Simultaneously charging up to 3 EVs
- Flexible configurations 360kw 480kw 600kw 720kw liquid Cooling DC Charging Station.
- Supporting CCS, CHAdeMO, GB/T, and Type 2 AC charging.
- Ethernet, Wi-Fi, 4G connection.
- OCPP 1.6J & OCPP 2.0.
- Smart charging supports dynamic load balancing.
Introducing 600kW and 720kW DC Fast Chargers
New DC fast charger models offer peak outputs of 600kW and 720kW, respectively. They comply with all major standards, including NACS (SAE J3400), CCS1, and CCS2. They support high-voltage battery systems.
DC fast chargers provide high-power, fast charging for all electric vehicles, ensuring efficiency and convenience. DC EV chargers convert AC power from the grid to DC, delivering it directly to the EV battery for faster and more efficient charging. Both pole-mounted and wall-mounted DC charging stations are available for vehicles ranging from 20kW to 720kW, equipped with one to three charging connectors to meet various application needs.
The 600kW DC charger is a "fast" charger that significantly reduces EV charging times, typically achieving an 80% charge in 20-30 minutes, depending on the vehicle's battery and performance. These chargers are designed for high-demand applications such as long-haul trucks, heavy-duty vehicles, and high-performance EVs capable of accepting high power input. They bypass the onboard charger and provide high-voltage DC power directly to the battery.

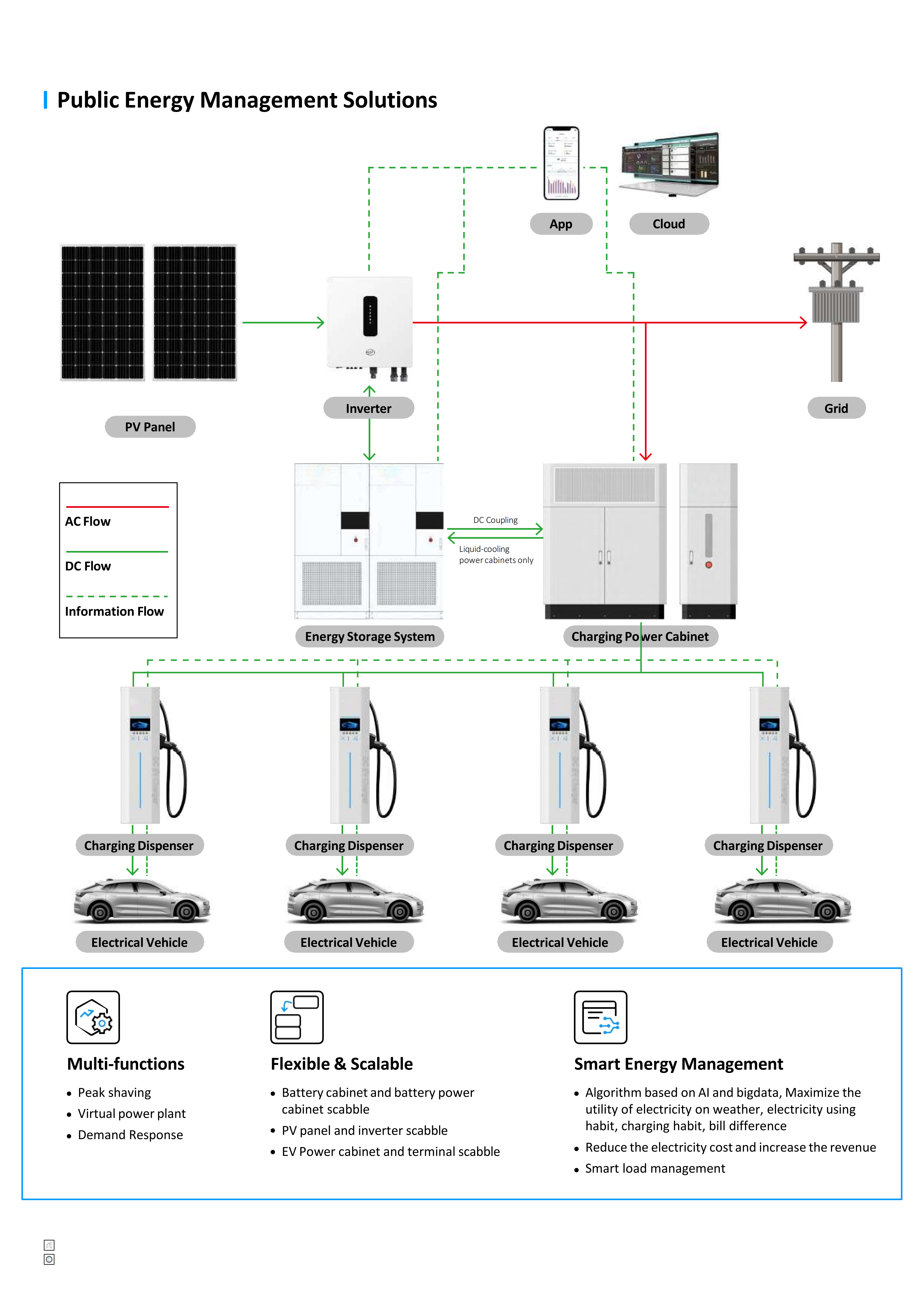

A 720kW DC fast charger can charge an electric vehicle's battery from 20% to 80% in just 30 minutes, depending on the vehicle's battery capacity and charging capabilities. These chargers bypass the onboard charger using direct current (DC), providing extremely fast charging speeds and rapidly increasing range. The system utilizes a power unit and distributor, can be liquid-cooled for high power efficiency, and has multiple output channels to support multiple vehicles simultaneously.
Frequently Asked Questions (FAQ)
Q1: Which charging standards do the 600kW and 720kW DC Fast Chargers support?
A1: These chargers support all major global standards, including CCS1, CCS2, NACS (SAE J3400), CHAdeMO, GB/T, and Type 2 AC charging, ensuring compatibility with almost all electric vehicles.
Q2: How many vehicles can charge at these stations at the same time?
A2: The multi-standard DC charging stations support dynamic load balancing and can simultaneously charge up to 3 electric vehicles via multiple output channels.
Q3: How fast can a 720kW DC fast charger charge an EV?
A3: A 720kW DC fast charger can charge an electric vehicle's battery from 20% to 80% in approximately 30 minutes, depending on the specific vehicle's battery capacity and maximum charging rate.
Q4: Are these high-power charging stations liquid-cooled?
A4: Yes, these systems offer liquid-cooled CCS2 connector configurations to maintain optimal thermal management and safety during high-current, ultra-fast charging operations.
Q5: Do these chargers support smart network management?
A5: Yes, they support smart charging with dynamic load balancing, and they are equipped with Ethernet, Wi-Fi, and 4G connectivity using OCPP 1.6J and OCPP 2.0 protocols for remote monitoring and management.
Q6: What mounting and power configurations are available?
A6: Charging systems are available in flexible configurations ranging from 20kW up to 720kW, offering both pole-mounted and wall-mounted setups to fit different site requirements.
