Authentication speed is essential at public and semi-public charging sites. The 160kW, 180kW, and 240kW DC Fast Chargers are fitted with high-performance RFID and NFC readers, so drivers can authorize charging sessions with member cards, smartphone wallets, or contactless bank cards. Rapid authentication reduces dwell times and improves throughput at busy commercial hubs.
Managed over OCPP 1.6J, the station gives network operators full visibility into every transaction and user interaction. This connectivity supports tiered pricing for members and visitors, and real-time monitoring of energy consumption across the network. The hardware runs continuously and delivers stable DC current across a wide 150V-1000V range, covering current 400V and future high-voltage vehicles.

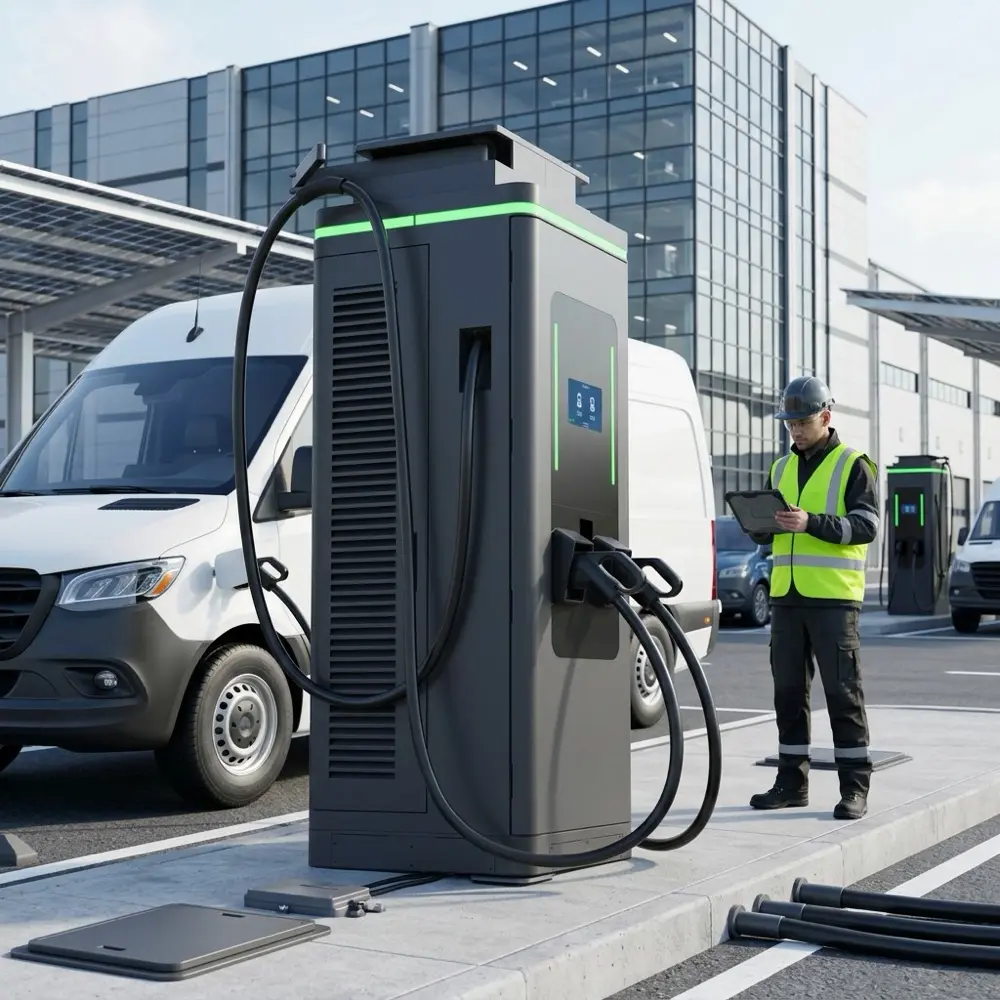

The unit is housed in a galvanized steel enclosure rated for IP54 outdoor protection and IK10 impact resistance. The internal split-duct cooling system keeps environmental contaminants away from sensitive electronics, supporting long-term reliability in urban environments. An intuitive touchscreen interface and modular internal components simplify servicing.
| Category | 160kW Model | 180kW Model | 240kW Model |
|---|---|---|---|
| Authentication | RFID / NFC / App | RFID / NFC / App | RFID / NFC / App |
| Output Voltage | 150V - 1000V DC | 150V - 1000V DC | 150V - 1000V DC |
| Max Output Current | 250A | 250A | 300A |
| Efficiency | ≥ 95.5% | ≥ 95.5% | ≥ 95.5% |
| Protection | IP54 / IK10 | IP54 / IK10 | IP54 / IK10 |
| Operating Temp | -30°C to +55°C | -30°C to +55°C | -30°C to +55°C |
| Communication | OCPP 1.6J | OCPP 1.6J | OCPP 1.6J |
These DC chargers have a wide output voltage range of 150V to 1000V DC. This ensures compatibility with standard 400V electric vehicles as well as modern high-voltage 800V/1000V electric vehicles.
The high-performance integrated reader allows users to quickly swipe membership RFID cards, contactless bank cards, or smartphone wallets (via NFC) to securely authorize and start a charging session instantly.
Yes, fully compliant with OCPP 1.6J, these chargers can connect to any central charging management platform, allowing operators to monitor charging status, view transactions, and set prices remotely.
Absolutely. The chargers are built with galvanized steel enclosures featuring IP54 dust- and water-resistance and IK10 impact resistance, coupled with split-duct cooling to keep contaminants away from electronic components.
The hardware features comprehensive electrical protections including over-voltage, under-voltage, over-current, short-circuit, over-temperature, leakage protection, and emergency stop functionality.
The charger units are available in three main power configurations: 160kW, 180kW, and 240kW, allowing operators to choose the model that best fits their site power capacity and charging speed requirements.
