Best Liquid Cooled Split EV Charger 1000KW 1200KW DC Charging Piles Supercharger Stack Factory, Factories

High power 1000kW 1200kW 1440kW split liquid cooled DC fast charger, 1500A 1500V output , ideal for heavy duty logistics trucks and Fleet Charging. The DC charging station with liquid-cooled charging.1200kW Commercial Rectifier Stack ,4000A Fast Charging Center,DC Split Charging Systems Commercial Electric Vehicle Charging Stations

Send Inquiry

Product Description

Multi-standard DC Fast Charging Station

Supports CCS, CHAdeMO, GB/T, and AC connectors. Charging up to 3 vehicles at the same time.
Dual CCS2, GB/T, CHAdeMO DC Connector with Split Rapid Charger Station.
480kw, 600kw, 800kw, 1200kw, and 1440kw DC Charging Station with CCS2, GB/T, CHAdeMO, NACS Plug options.
Split DC Charger Station configurations: 360kw, 480kw, 600kw, 720kw, 1000KW, 1200KW, 1440KW DC Ultra Fast Electric Vehicle Charger Station.

Smart Control & Interface

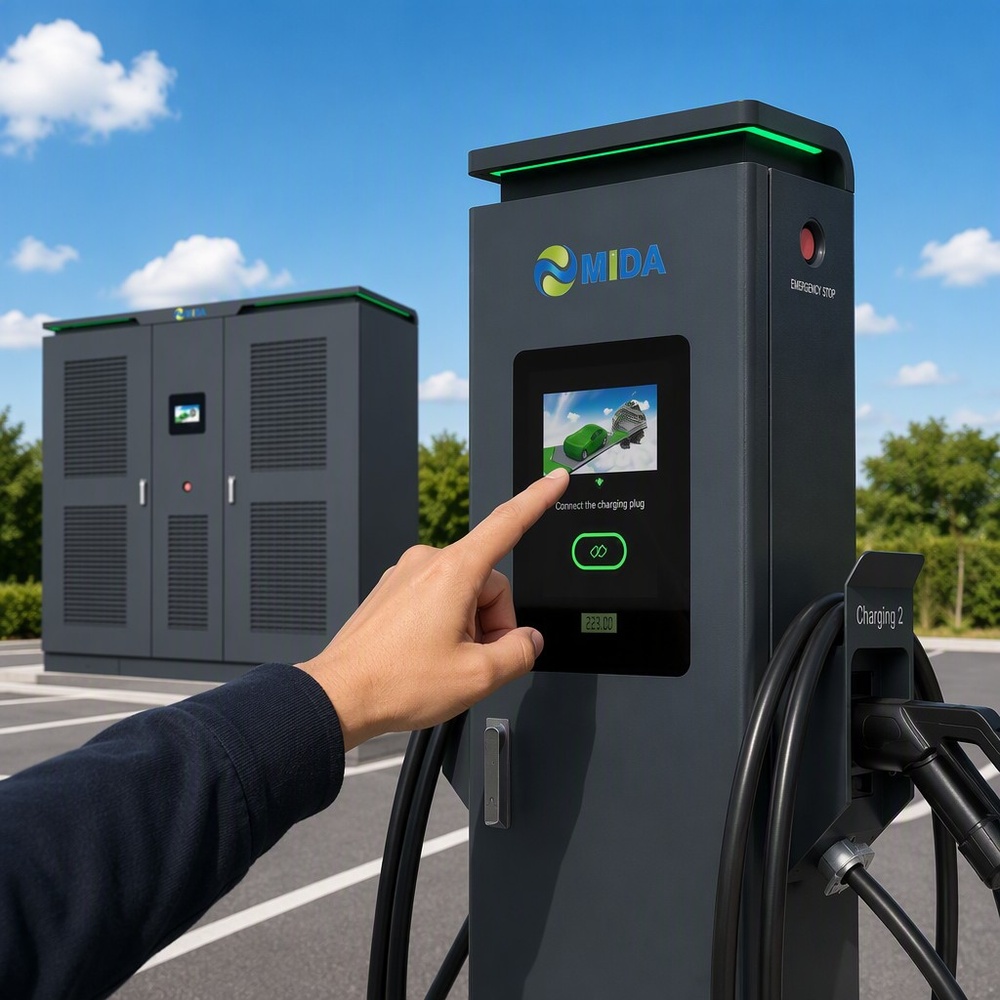

8’’ LCD touch screen featuring a user-friendly multi-language interface.
Secure authentication and dynamic payment options via RFID, mobile Apps, or POS.
Optional Plug & Charge feature compatibility for CCS2 and GB/T.
Advanced communications support including GPRS, COM, and CAN2.0.
Floor-mounted public and commercial charging systems: 480kw, 600Kw, 720kW, 800kW CCS2 GB/T Split DC fast EV chargers.

1000kw 1200kw 1440kW Split EV Charging Stack

Multi-standard DC Charging Station (Simultaneous 3-EV Charging)

Flexible layouts: 600KW, 720KW, 800kW, 1000KW, 1200KW, 1440KW DC Charging.
Supports CCS, CHAdeMO, GB/T, and NACS Plugs.
Integrated Ethernet, Wi-Fi, and 4G connections.
Fully compatible with OCPP 1.6J & OCPP 2.0.
Smart charging features supporting dynamic load balancing.

HPC Split EV Charging: 1000kw 1200kW 1440kW Liquid Cooled EV Charger Ultra-Fast Charging Systems

High-power 1000kW/1200kW/1440kW split-type liquid-cooled DC fast charging with 1500A/1500V output is the ideal choice for heavy-duty logistics trucks and fleet charging. This DC charging station employs liquid-cooled charging technology. Additionally, 1200kW commercial rectifier units and 4000A fast-charging centers are available. Specifically designed for large public charging stations, commercial parking lots, automotive test bases, gas station energy hubs, and government/enterprise charging hubs, it offers three specifications: 480kW/960kW/1200kW. It supports 12 single-gun or 6 dual-gun terminals, enabling simultaneous charging for 12 vehicles. Compatible with CCCP 1.6J standard (independent/commercial), it comes standard with RFID and optionally supports credit card payments. With IP54/IK10 protection ratings and a working temperature range of -30°C to 55°C, it ensures stable outdoor operation. The integrated design facilitates installation and maintenance.

Technical Summary Table

Specification	HPC 1200kW	HPC 1440kW
Architecture	Split-Type (Cabinet + Satellites)	Split-Type (Cabinet + Satellites)
Max Output Voltage	150V - 1000V DC	150V - 1000V DC
Max Output Current	600A (Liquid-Cooled)	800A (Liquid-Cooled)
Efficiency	≥ 96.5%	≥ 96.5%
Power Modules	SiC High-Frequency IP65	SiC High-Frequency IP65
Communication	OCPP 1.6J / 2.0.1 / ISO 15118	OCPP 1.6J / 2.0.1 / ISO 15118
Protection Grade	Cabinet IP55 / Module IP65	Cabinet IP55 / Module IP65

Frequently Asked Questions (FAQ)

Q1: Which vehicle connectors are compatible with these charging systems?

Our charging stations support a full range of global standards, including CCS, CHAdeMO, GB/T, NACS, and AC plugs, ensuring wide compatibility with diverse EV fleets.

Q2: How does the split-type architecture benefit large charging stations?

Split-type systems separate the power cabinet from the charging satellites. This design saves ground space, simplifies maintenance, and allows dynamic power allocation across multiple satellite dispensers.

Q3: What are the advantages of liquid-cooled charging technology?

Liquid-cooling enables continuous charging at ultra-high currents (up to 800A) without overheating. It keeps cables lighter, thinner, and easier to handle while maximizing safety and service life.

Q4: Are these charging stations integrated with smart management protocols?

Yes. The systems fully support OCPP 1.6J and OCPP 2.0.1 protocols, enabling easy remote monitoring, payment integration, billing, and smart dynamic load balancing.

Q5: Can the systems charge multiple electric vehicles at the same time?

Absolutely. Depending on the custom satellite configuration, they can dynamically charge 3 vehicles simultaneously, or scale up with multi-terminal splits to charge up to 12 vehicles at once.

Q6: What protection and safety features are included for outdoor installation?

The systems offer robust outdoor durability with IP54/IP55 protection ratings for the main enclosures and IP65 protection for internal modules. They are rated IK10 for impact resistance and operate efficiently in temperatures ranging from -30°C to 55°C.
