| Item | DC 30kW | DC 50kW | |
| Input | Input Voltage | 200V ±15% AC | |
| Input Voltage Type | TN-S (Three Phase Five Wire) | ||
| Working Frequency | 45~65Hz | ||
| Power Factor | ≥0.99 | ||
| Efficiency | ≥94% | ||
| Output | Rated Voltage | DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC - Type-2 400V; GBT 400V ,Tesla NACS DC 1000V | |
| Max. Output Current | DC - CHAdeMO 125A; CCS 200A; GBT 250A; | AC - Type-2 63A; GBT 32A | |

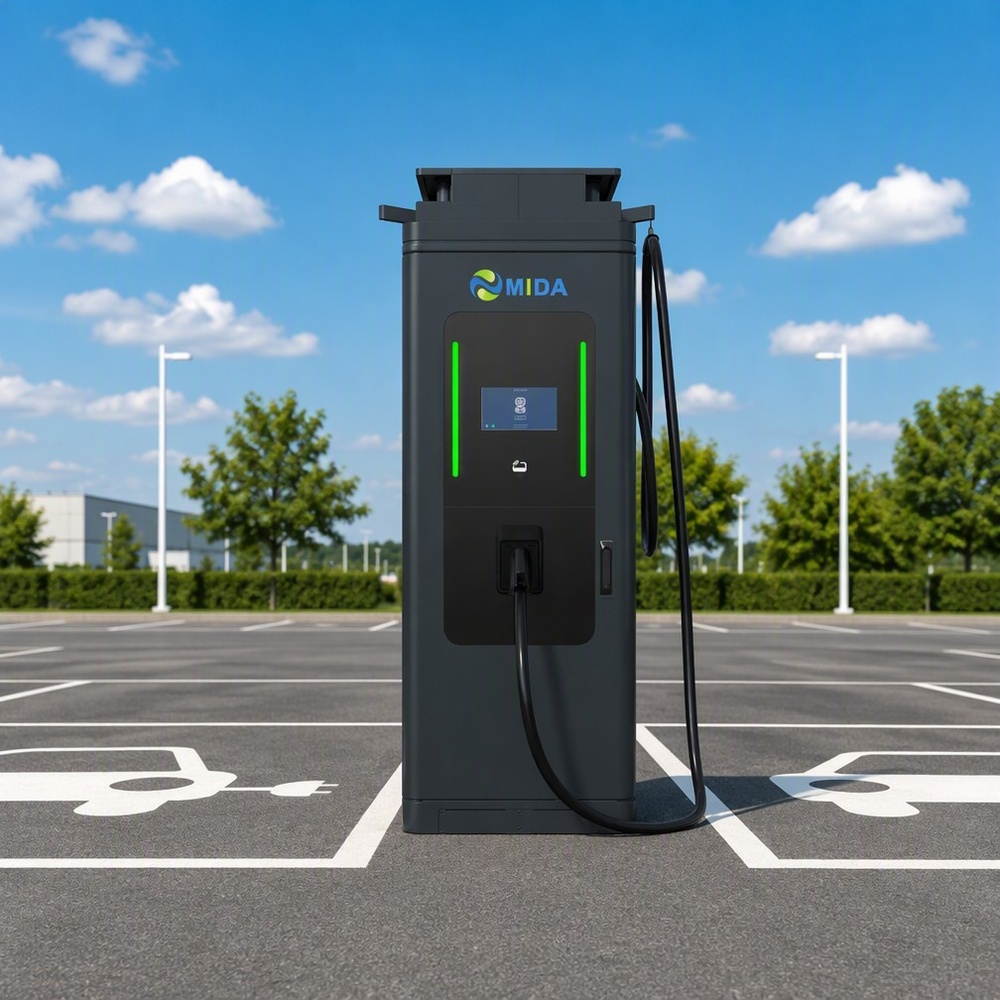

| Interface | Display | 8'' LCD Touchscreen | |
| Language | Chinese, English, French, German, Spanish, Russian, etc. | ||
| Payment | Mobile APP/RFID/POS | ||
| Communication | Network Connection | 4G(GSM or CDMA)/Ethernet | |
| Communication Protocols | OCPP1.6J or OCPP2.0 | ||
| Working Environment | Working Temperature | -30°C ~ +55°C | |
| Storage Temperature | -35°C ~ +55°C | ||
| Operating Humidity | ≤95% Non-Condensing | ||
| Protection | IP54 | ||
| Acoustic Noise | <60dB | ||
| Cooling Method | Forced Air-Cooling | ||
| Mechanical | Dimension(W x D x H) | 700*1900*650mm | |
| No. of Charging Cable | Single | Dual | |
| Cable Length | 5m or 7m | ||
| Regulation | Certificate | ETL /Energy Star/FCC certificate UL223-1 ,UL2231-1-2,UL 2202,CSA,C22.2 | |

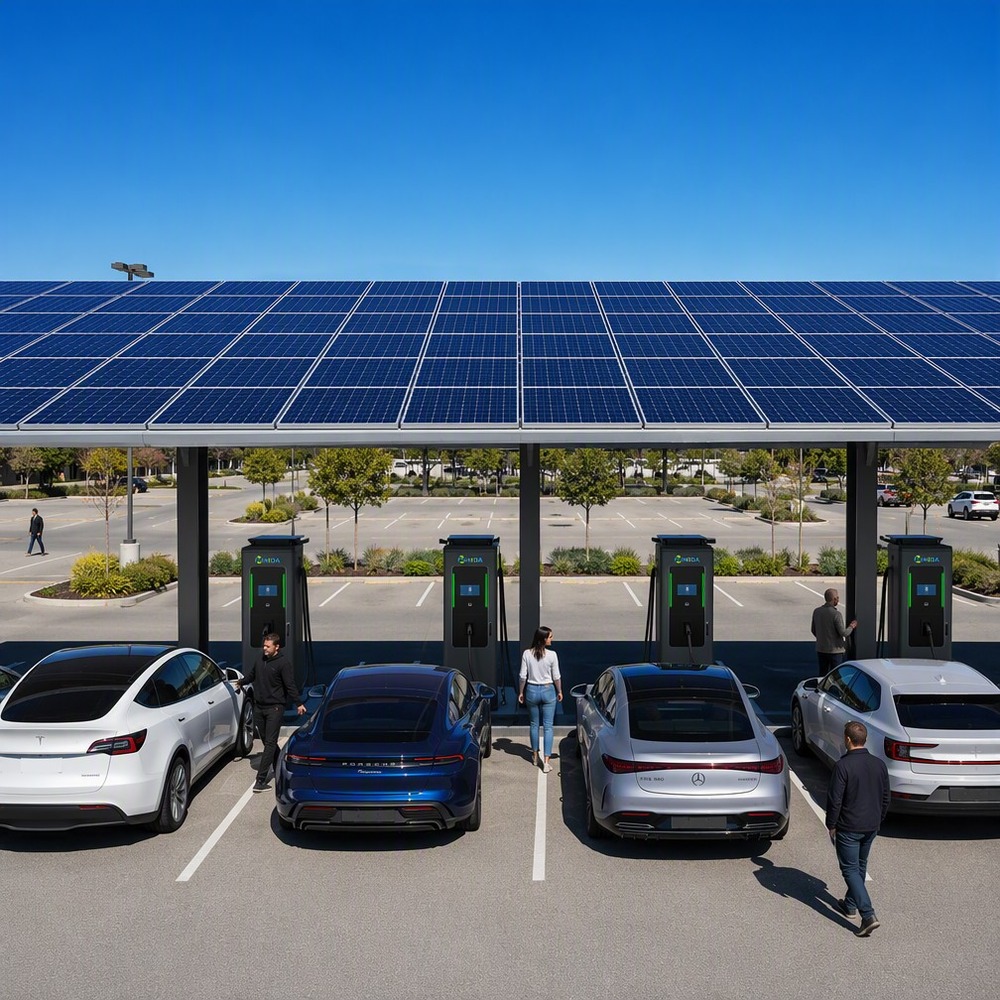

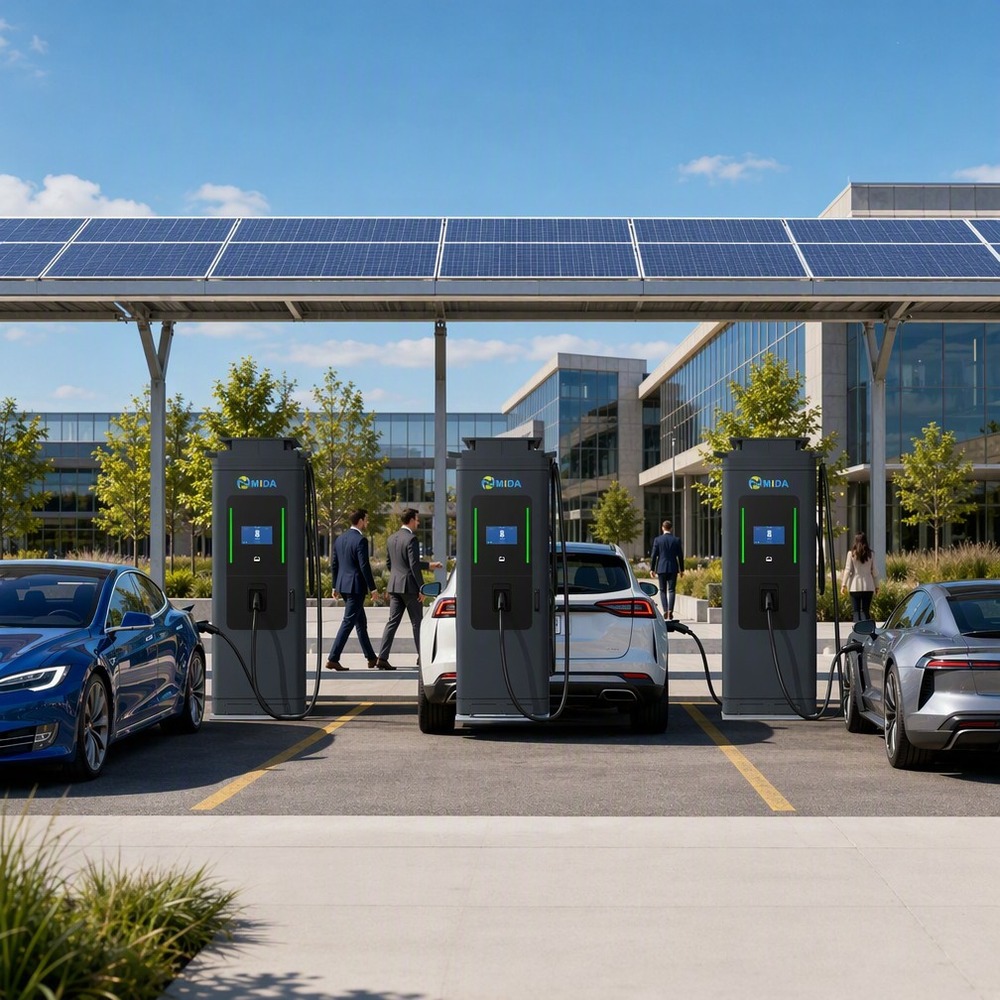

Simultaneously charging up to 3 EVs with high efficiency and robust performance.

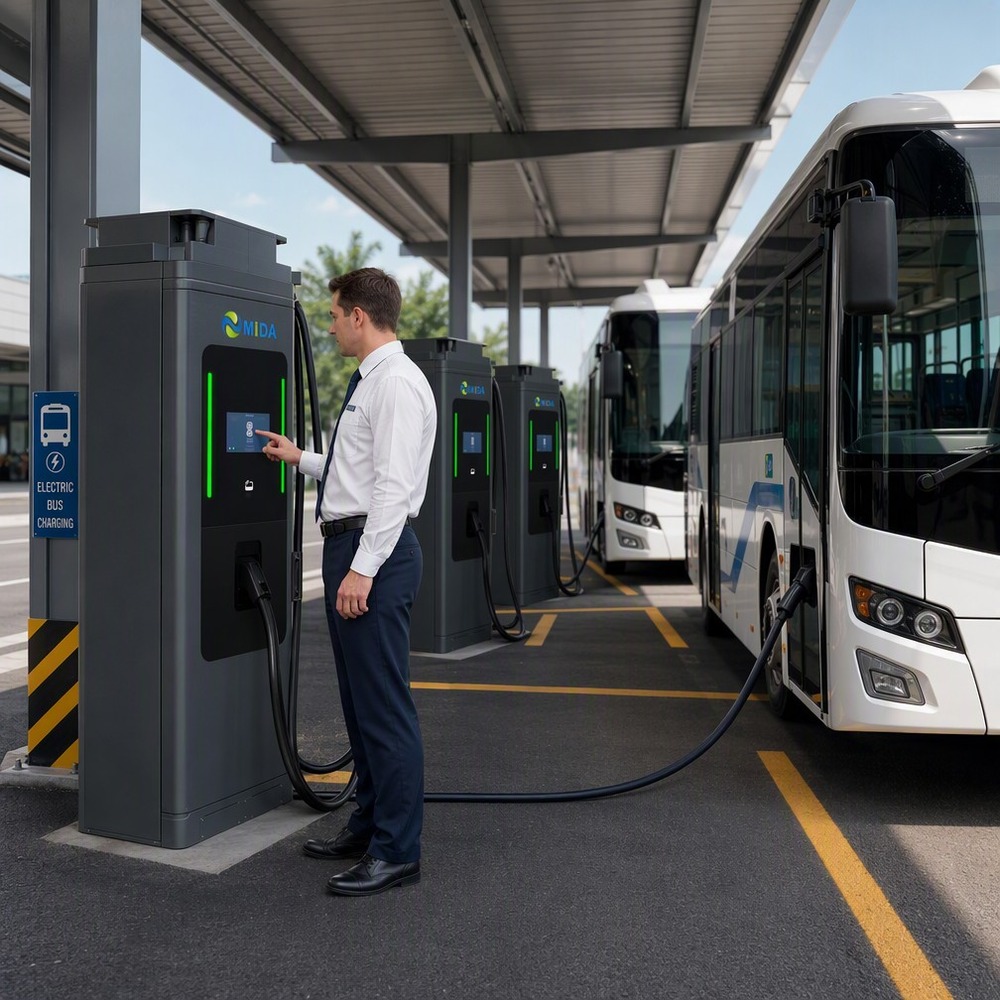

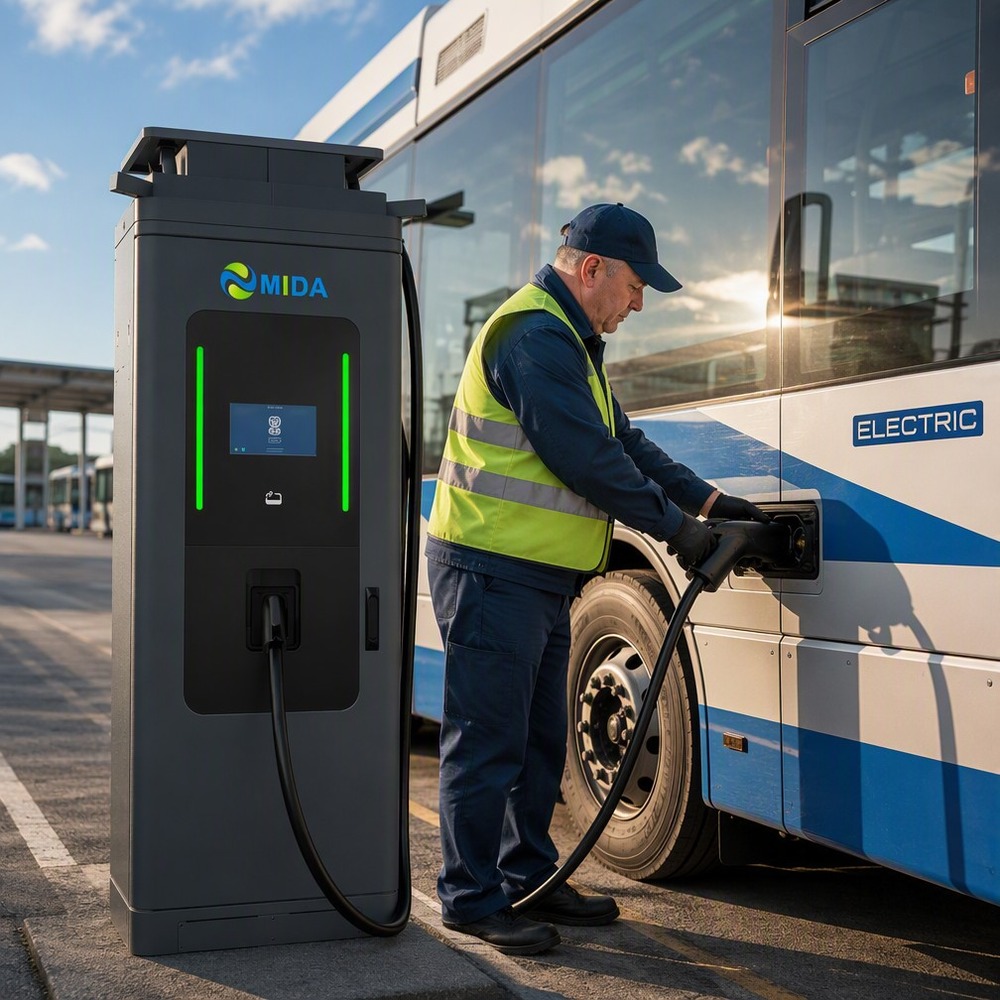

The 50kW CCS/Chademo all-in-one DC fast charger is suitable for electric vehicles, trucks, and buses. Only pure electric vehicles equipped with a CHAdeMO or Combo outlet can charge at a 50kW fast charging station.

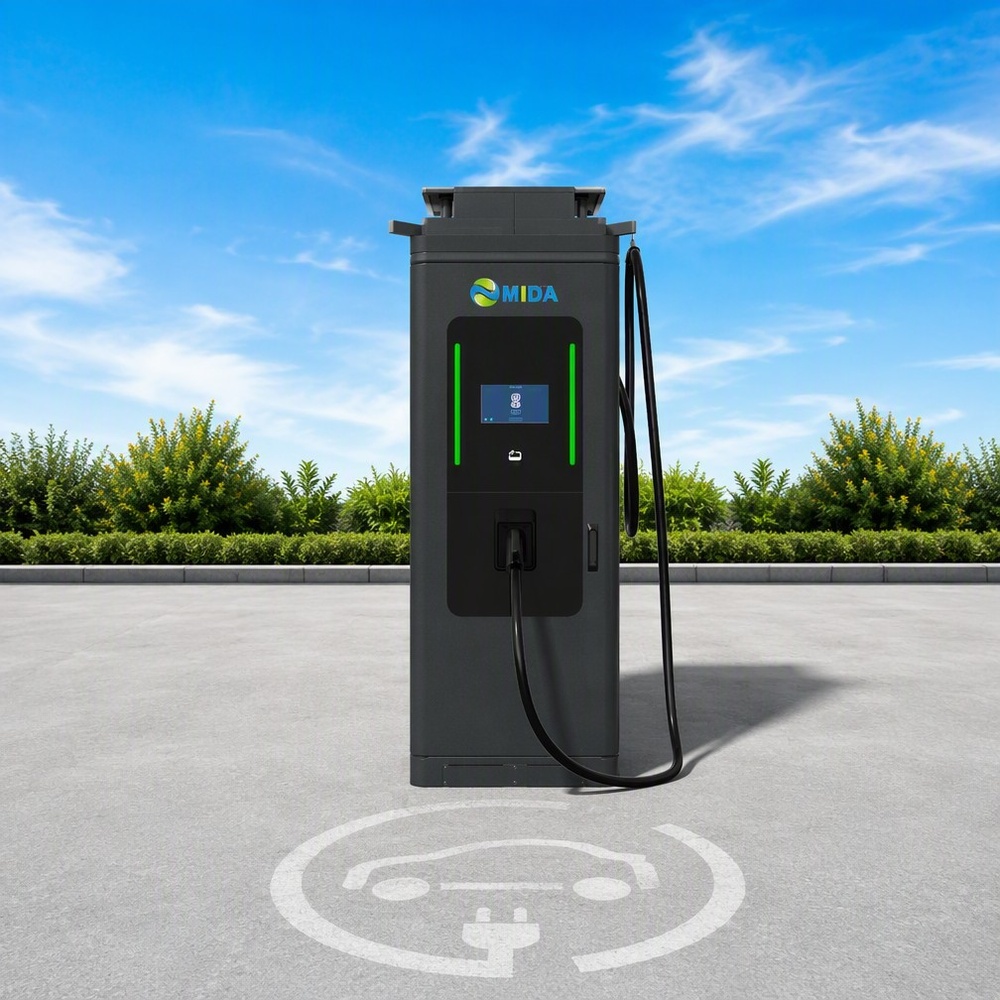

CHAdeMO Quick Charger for EV 50kW/30kW ev charging stations for electric vehicles.
The product is CHAdeMO compliant, and is compatible with domestic and overseas EVs that are CHAdeMO compliant. Since the establishment of the "CHAdeMO standard", development of quick chargers has progressed to ensure seamless vehicle compatibility.
To use a 30kW CHAdeMO charger: First, find the charging station's payment and authentication instructions, which may involve a mobile app or RFID card. Next, connect the charger's CHAdeMO cable to your vehicle's CHAdeMO port and follow the on-screen prompts to start charging. Once charging begins, you can stop charging by following the on-screen prompts or through the app.
To use a 50kW CHAdeMO charger: First, park your electric vehicle in the designated location and ensure the cable can connect to the vehicle's port. Next, follow the on-screen instructions to activate the charger using a mobile app, contactless payment, or RFID card. Finally, remove the CHAdeMO connector from the mount, plug it firmly into your car's CHAdeMO port, wait for charging to begin, and press the "Stop" button on the screen to stop charging when it's finished.
