Product Features
CCS NACS CHAdeMO DC Charger Station Tester Systems

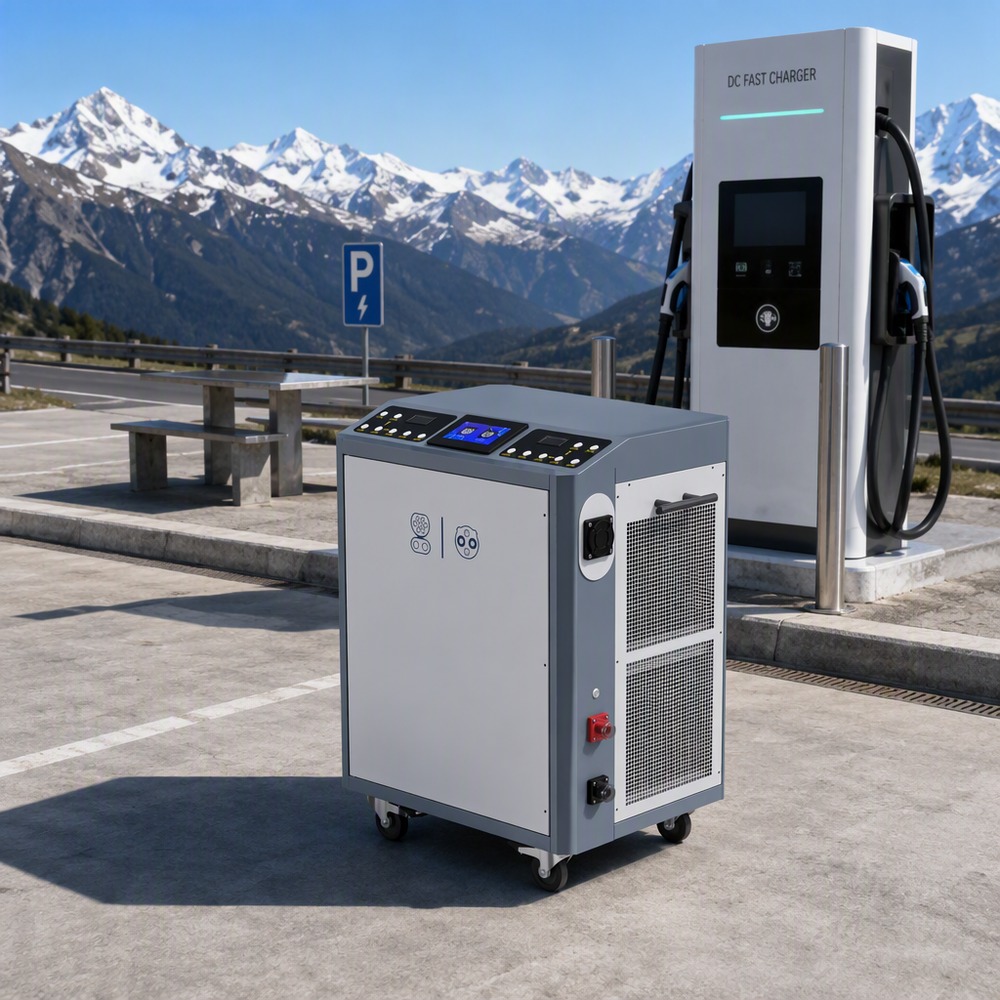

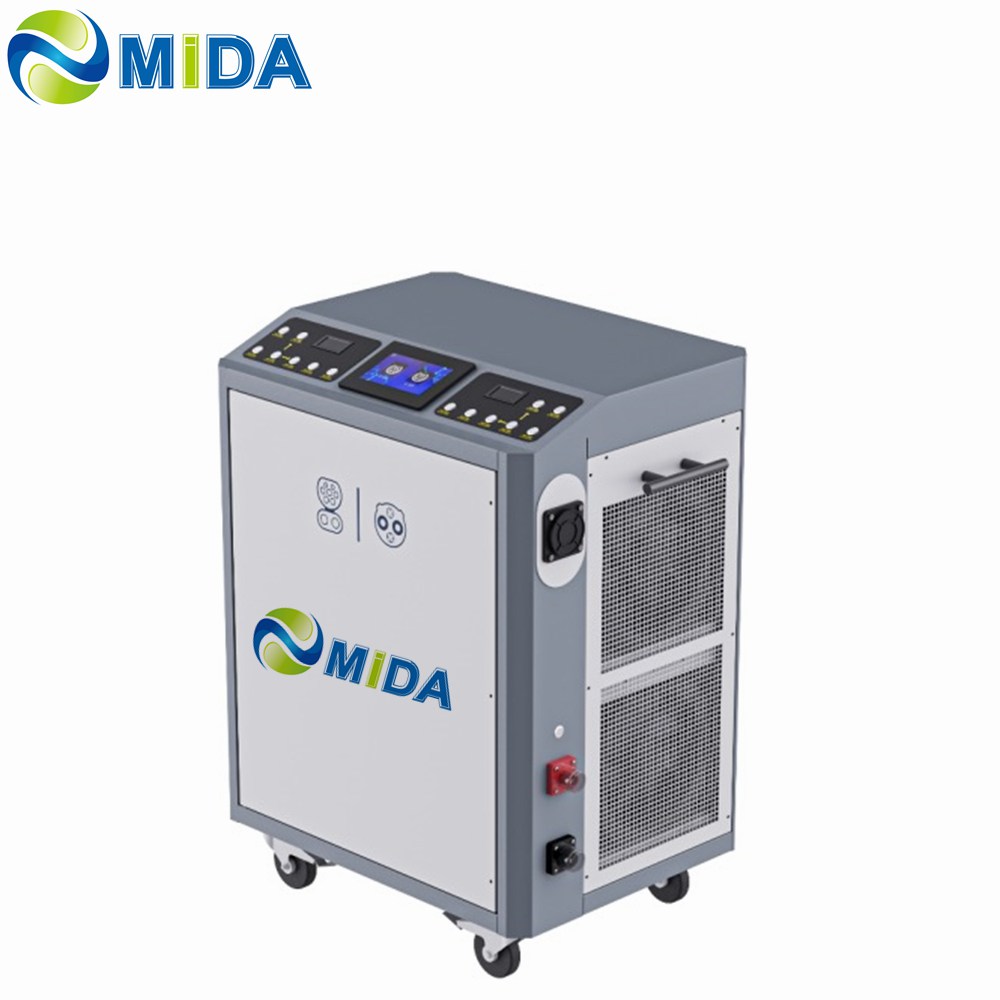

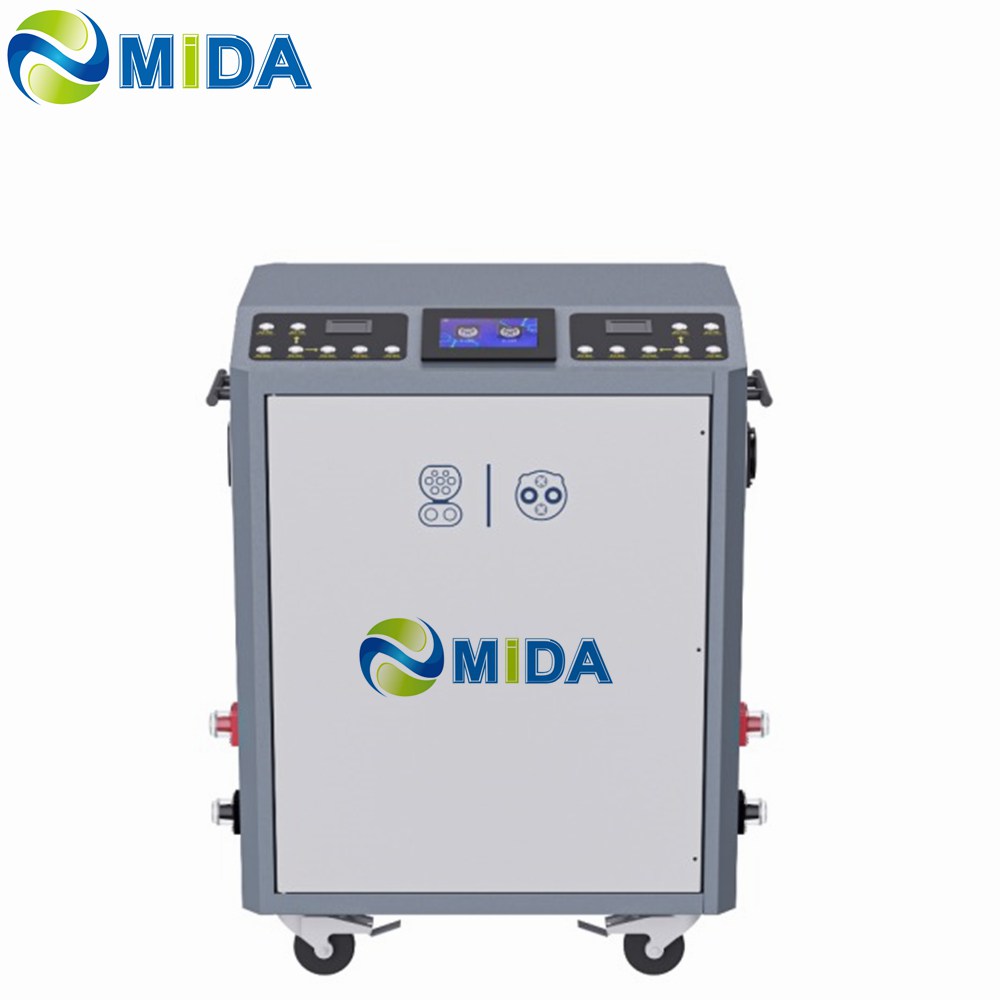

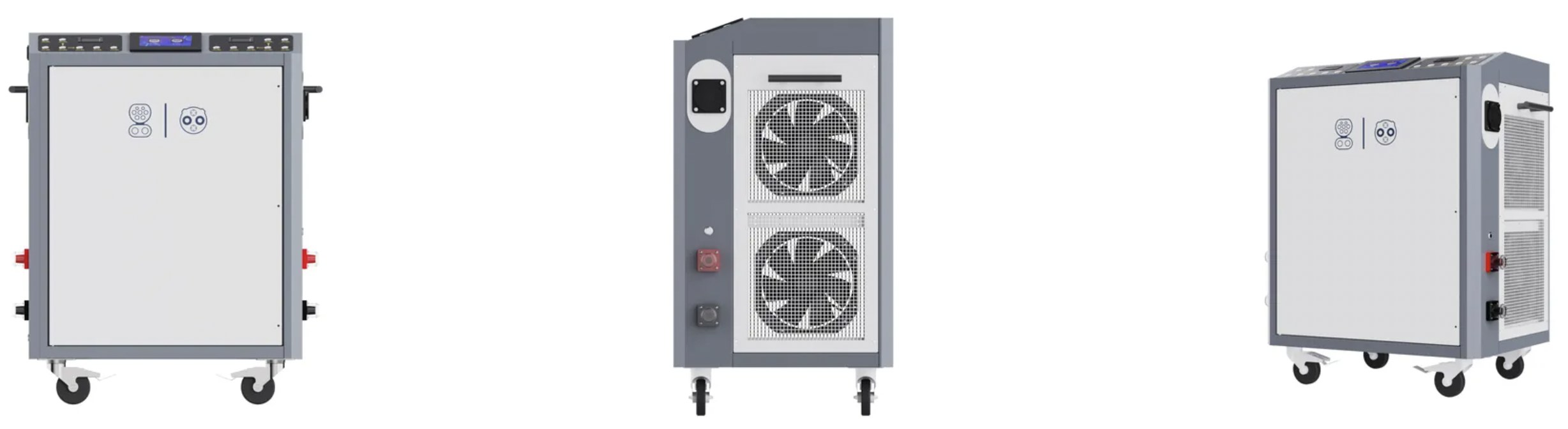

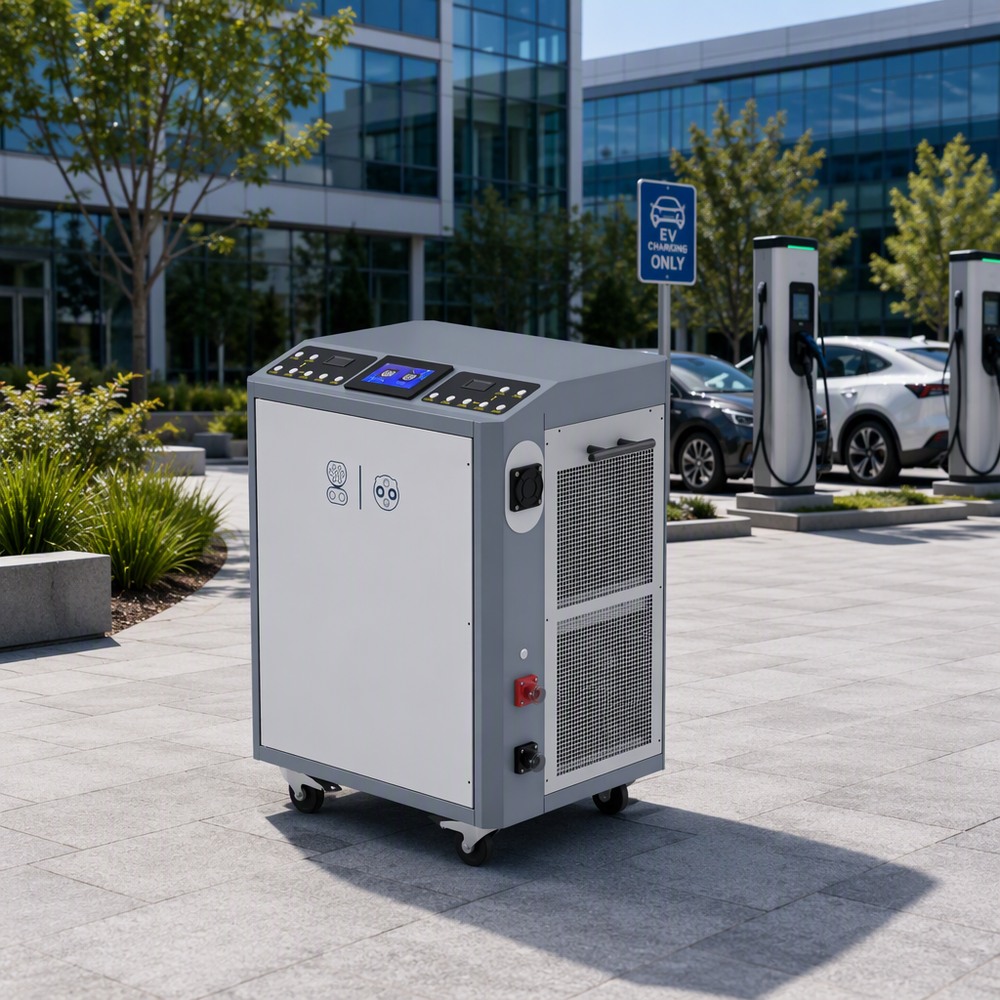

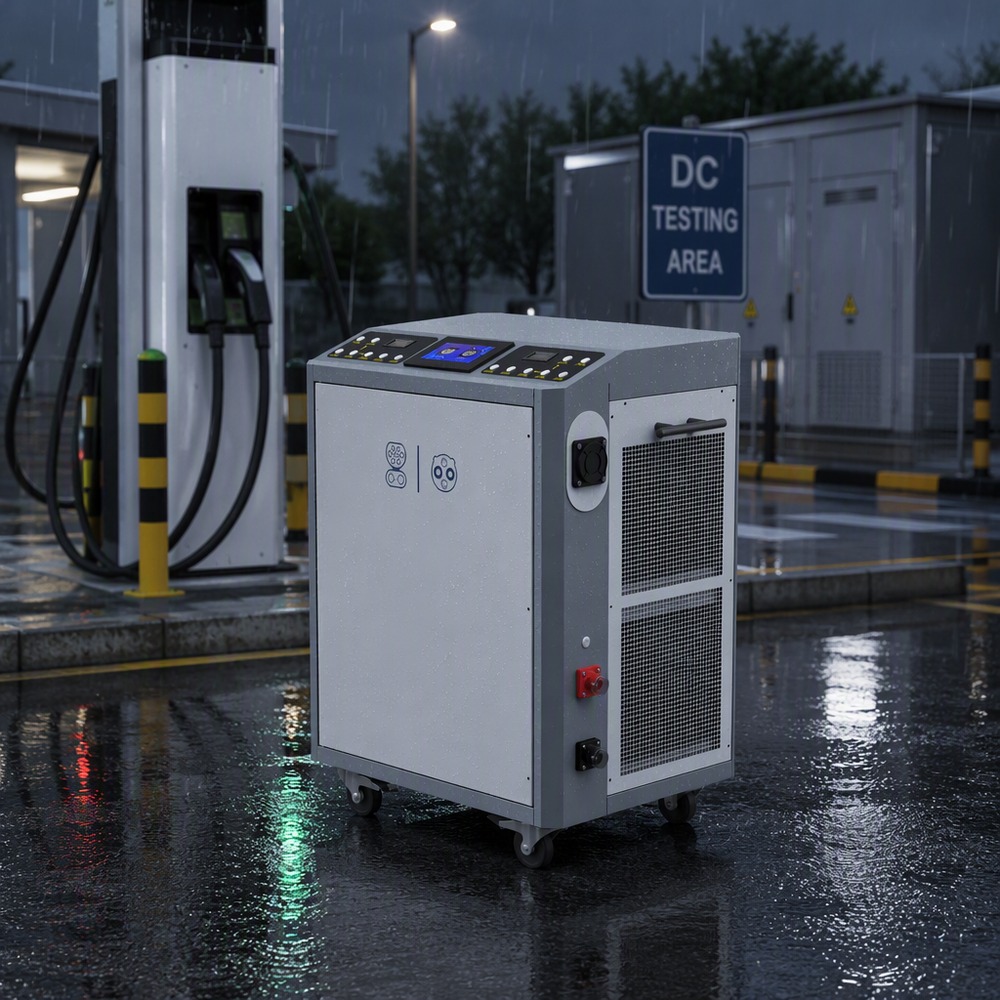

The DC EV charger tester supports GB/T, CHAdeMO, CCS1, CCS2 and Tesla. It can be used in various scenarios such as factory debugging of EV charger, on-site EV charger testing, laboratory EV charger testing, and EV charger R&D testing. It adopts a touch screen plus button design, and distinguishes the color indicators. When the button is pressed, the indicator light will light up. Comes with resistive load; various charging interfaces can be freely combined, CCS1 and CCS2 interfaces are universal for AC and DC; independent cooling air duct design; simple interface.
Specification
All-in-One DC EV Charger Tester: The Universal Testing Standard.
A DC charging station tester is an instrument used to verify the functionality, safety, and accuracy of DC electric vehicle (EV) charging stations. It is typically validated by simulating electric vehicles and performing various tests such as power, communication protocols, and safety checks. These testers are crucial for the installation, debugging, maintenance, and performance verification of DC chargers to ensure their compliance with national and international standards.
Types and functions of DC charging station testers
Integrated portable tester: These compact devices integrate multiple testing functions and typically come with built-in or expandable loads, making it convenient for a single person to conduct on-site testing.
Integrated AC/DC tester: Some devices can test both AC and DC chargers simultaneously and have high energy measurement accuracy.
Load box: The tester can be used in conjunction with an adjustable resistor load box to perform high-power testing and verify the performance of the charger under load.
Battery Management System (BMS) Simulator: Some professional testers include BMS simulators to check the communication between chargers and vehicle batteries.
Measurement and calibration tools: Specialized equipment can be used for on-site calibration to ensure that the measurement accuracy of the charging station meets regulatory requirements.
Main features and functions
Load testing: Simulate the power demand of an electric vehicle using an internal or external load box.
Communication testing: Use a specific communication protocol to verify whether the communication between the charging station and the vehicle is correct.
Safety and installation inspection: It can test safety characteristics such as insulation resistance and grounding continuity, and perform general installation inspections.
Performance and accuracy verification: Measure the accuracy of energy output and check for issues such as work errors and clock errors.
Compatibility: Supports various charging standards and connectors, such as GB/T, CCS, and CHAdeMO.
Frequently Asked Questions
QWhich charging standards and protocols are compatible with this tester?
The tester is fully compatible with multiple major global EV charging protocols, including GB/T, CHAdeMO, CCS1, CCS2, and Tesla (NACS).
QCan this system perform both AC and DC charging tests?
Yes, the universal CCS1 and CCS2 interfaces are designed to support both AC and DC testing scenarios efficiently.
QWhat testing scenarios is this equipment best suited for?
It is highly versatile and suitable for laboratory research and development (R&D), factory line debugging, laboratory EV charger testing, and on-site field maintenance.
QHow does the tester simulate realistic electric vehicle charging demands?
The tester incorporates a built-in resistive load, independent cooling ducts, and supports integration with Battery Management System (BMS) simulators to replicate EV communication and power requirements.
QWhat safety features are tested during diagnostic procedures?
It supports essential safety and installation inspections including insulation resistance tests, grounding continuity, and power performance measurements to ensure absolute standard compliance.
QIs the interface easy to operate for multi-lingual technicians?
Yes, it features a simple, user-friendly bilingual interface displayed on a high-response touch screen, complete with physical control buttons and clear color indicators.
