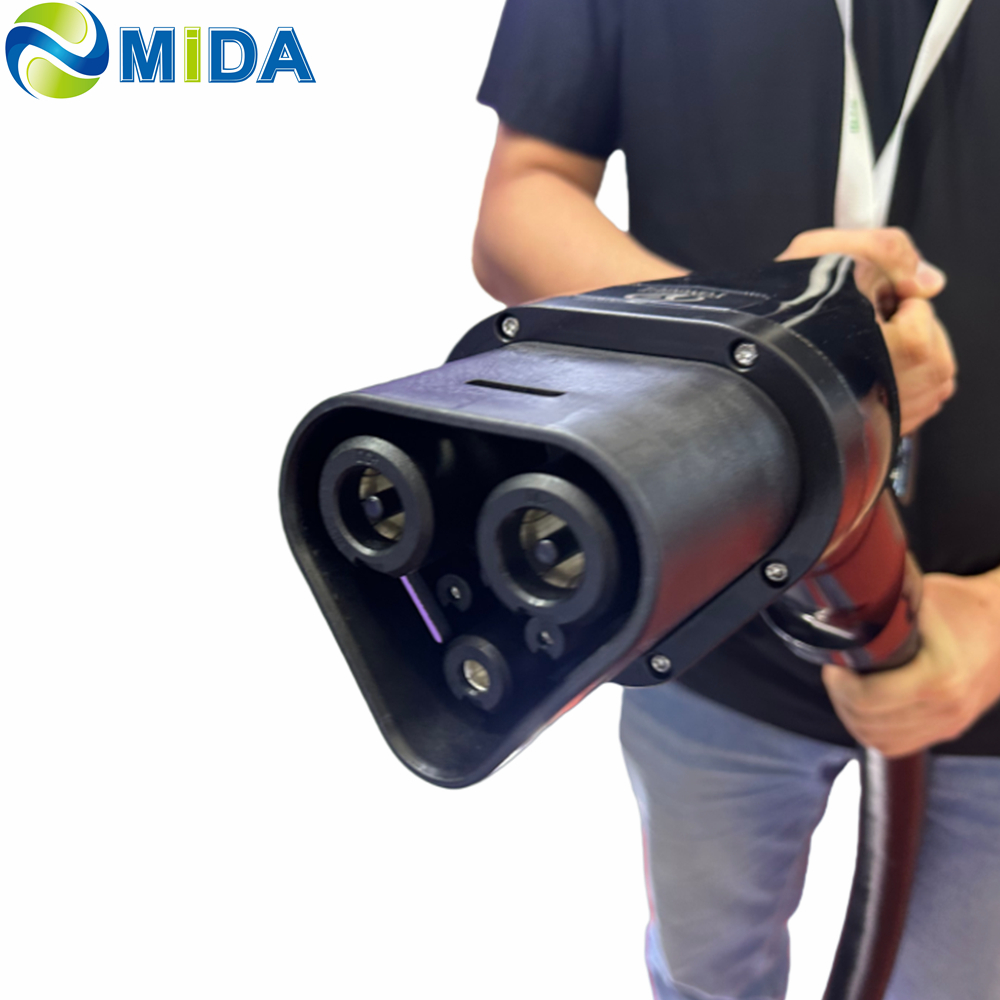

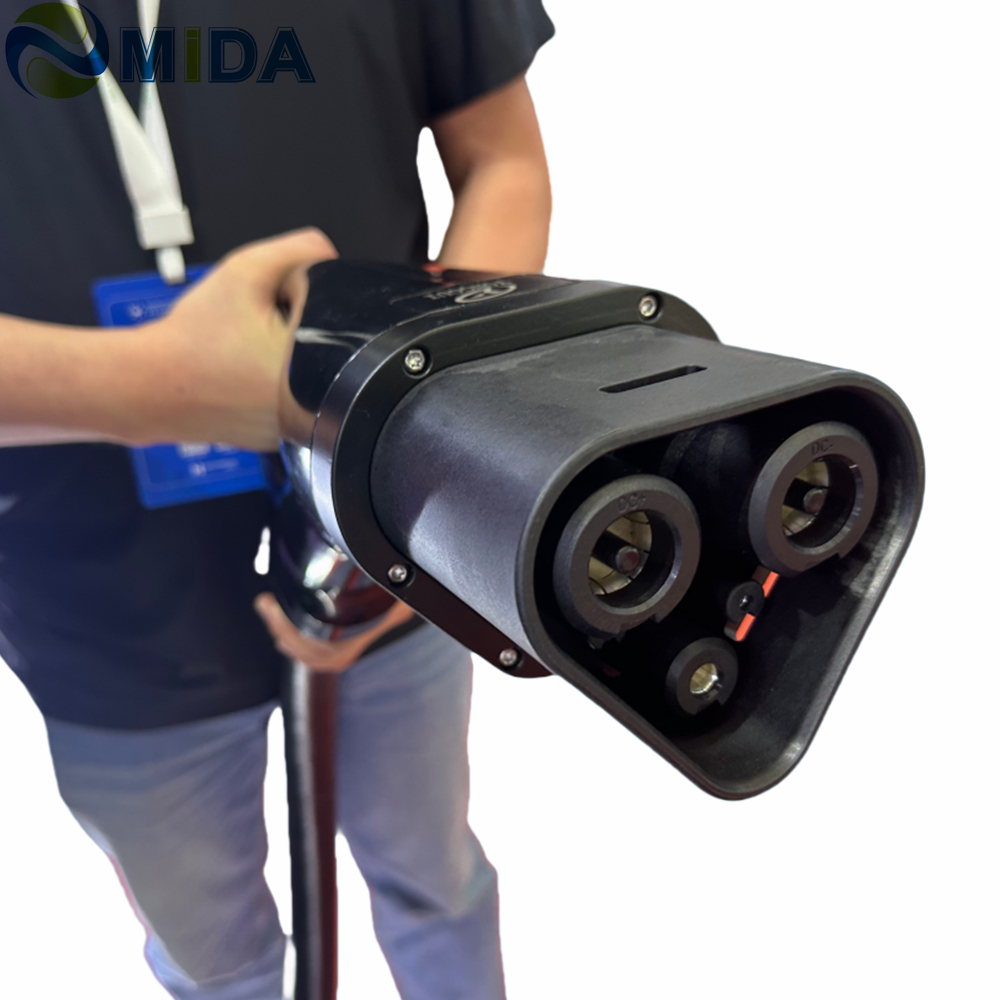

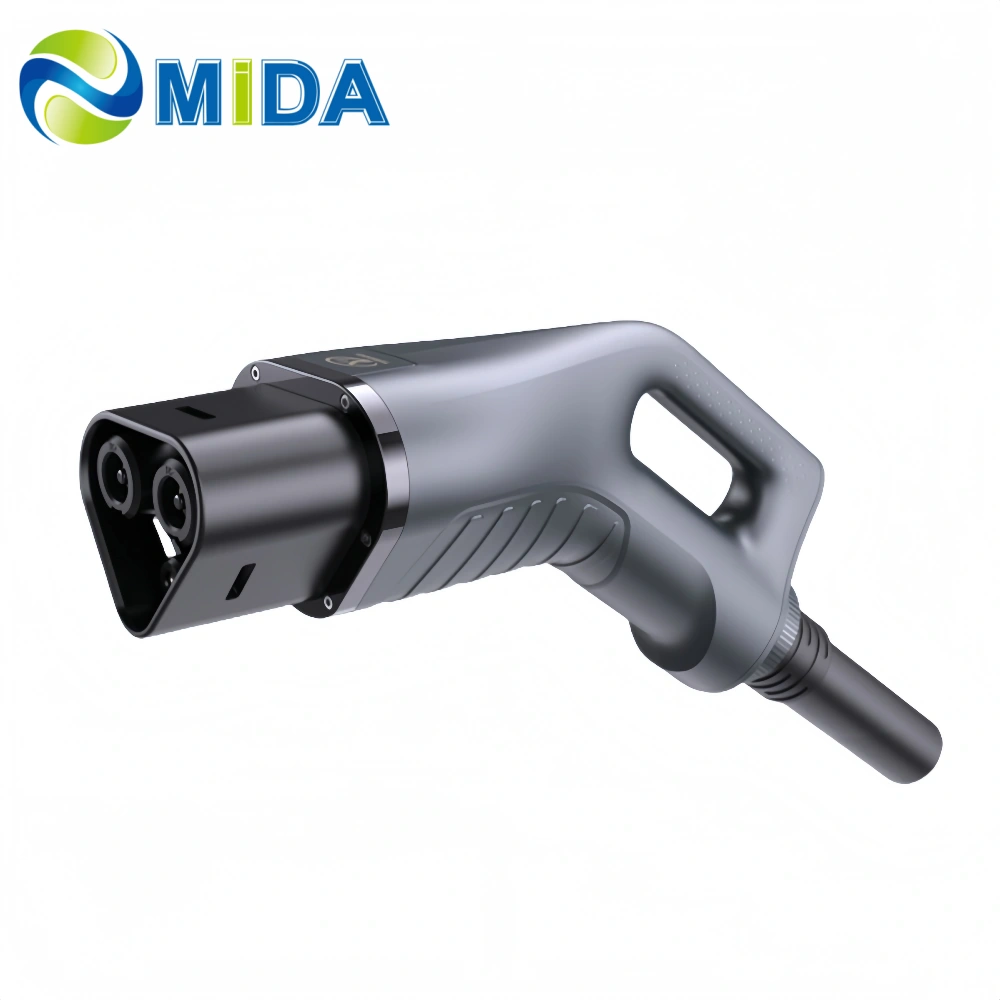

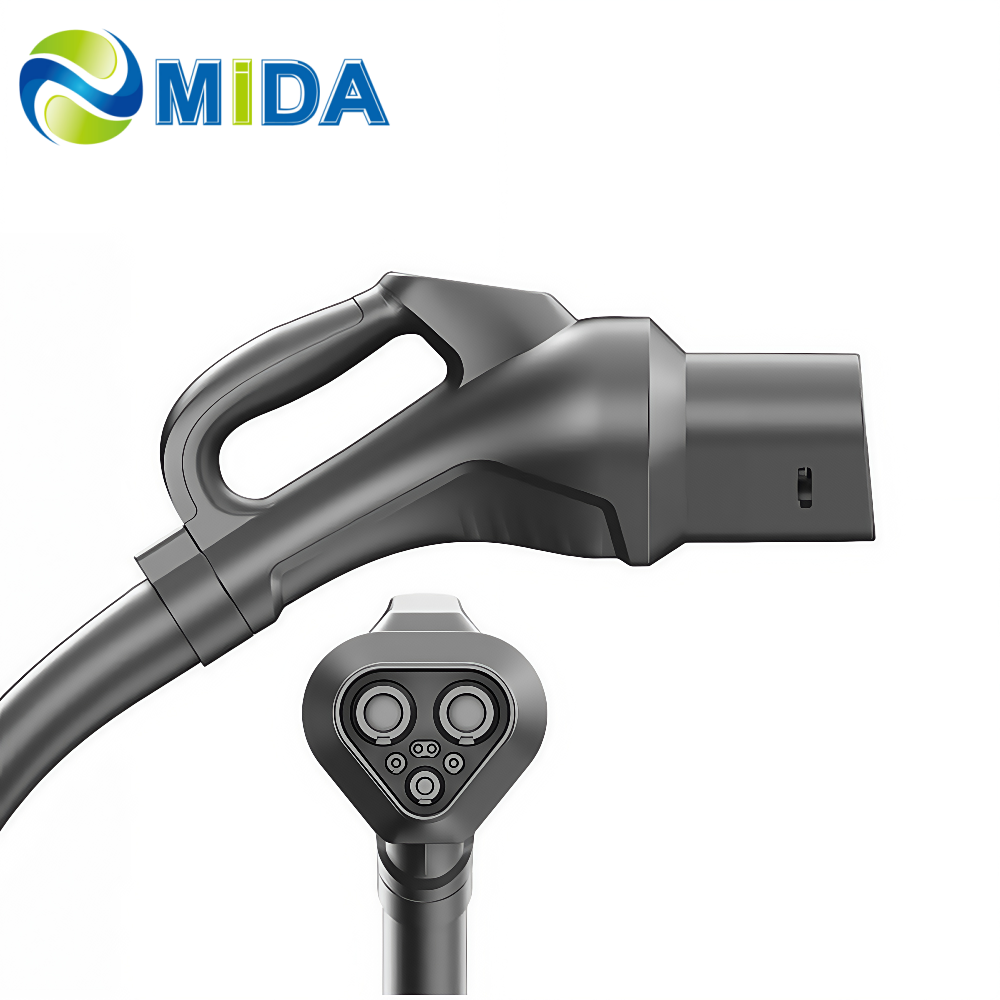

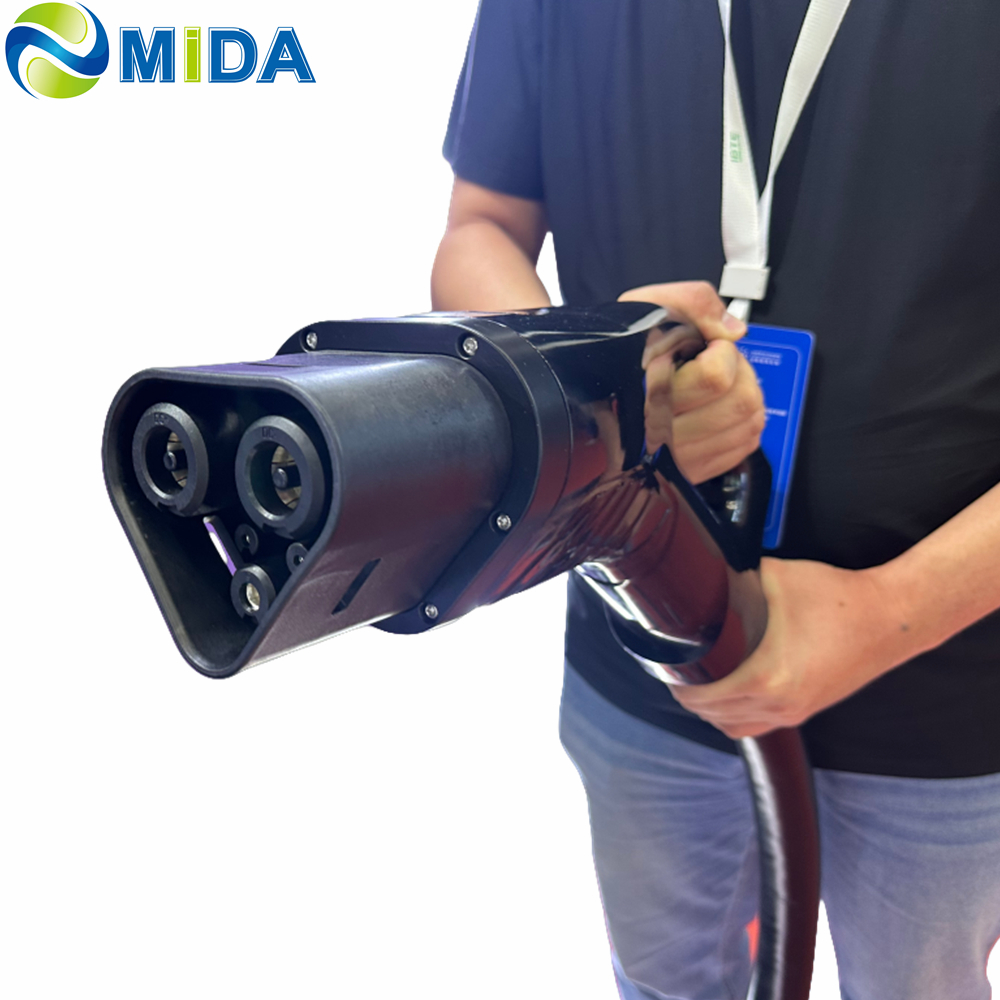

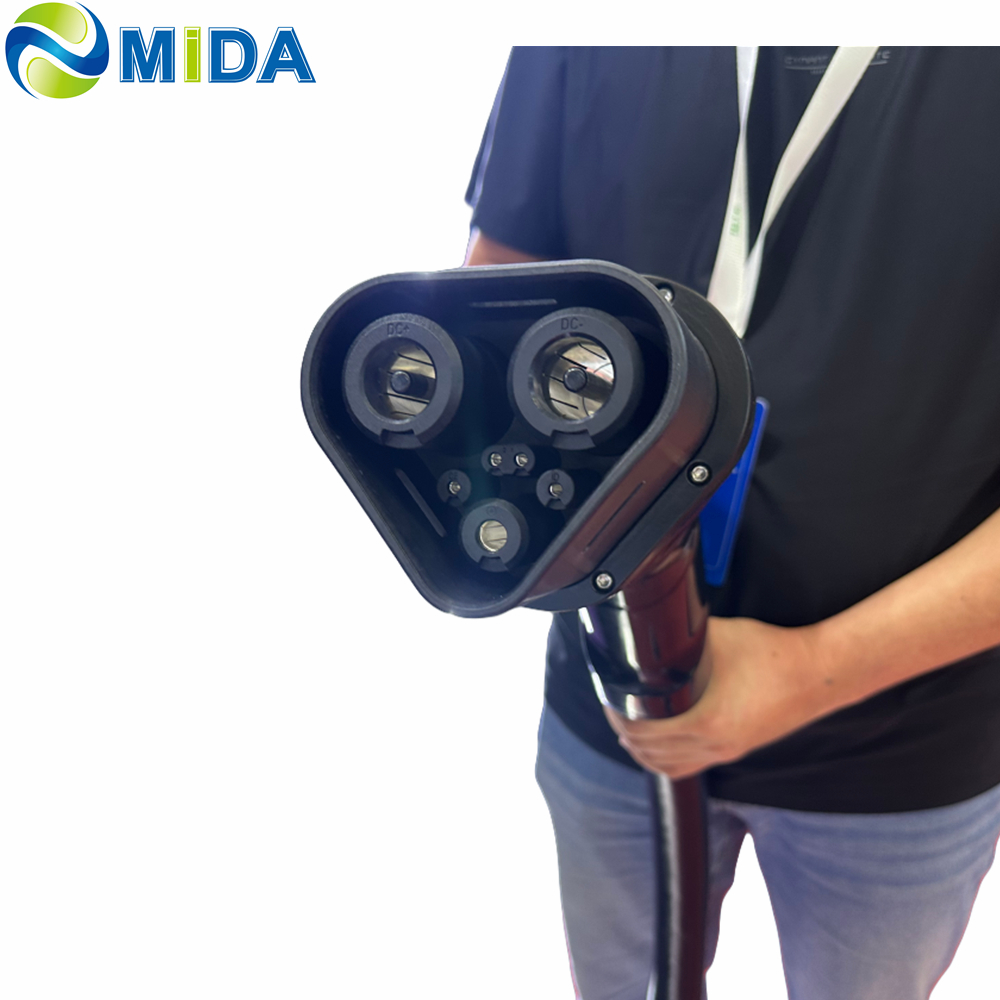

1000A 1500A MCS Charging Connector Megawatt Charging System
1000A 1500A MCS (Megawatt Charging System) charging cable is a high-power charging solution designed specifically for heavy-duty electric vehicles such as trucks and buses, capable of providing up to several megawatts of power, significantly accelerating charging speed. These charging cables use dedicated connectors with sturdy and durable structures, and typically require active heat dissipation during high-power operation to safely and efficiently manage high currents.
Key Features of MCS Charging Cable
✓
High Power Capacity: The MCS charging cable is designed to handle extremely high power, with a current rating of up to 3000 amperes and a power output of up to 3.75 megawatts.
✓
Specially Designed for Heavy-Duty Vehicles: This system is specifically developed for large pure electric vehicles, such as long-distance trucks, buses, and other heavy-duty applications, such as electric ships and airplanes.
✓
Durable and Sturdy: MCS charging cables are designed to operate in harsh industrial environments, and many connectors have protection measures such as IP67 protection level.
✓
Cable and Connector Cooling: Higher power levels (e.g. over 1 megawatt) require active cooling of connectors and cables to prevent overheating during charging.
✓
Unique Connector: The MCS connector is different from the combination charging system (CCS) used for passenger cars, although many electric trucks are now equipped with both interfaces.

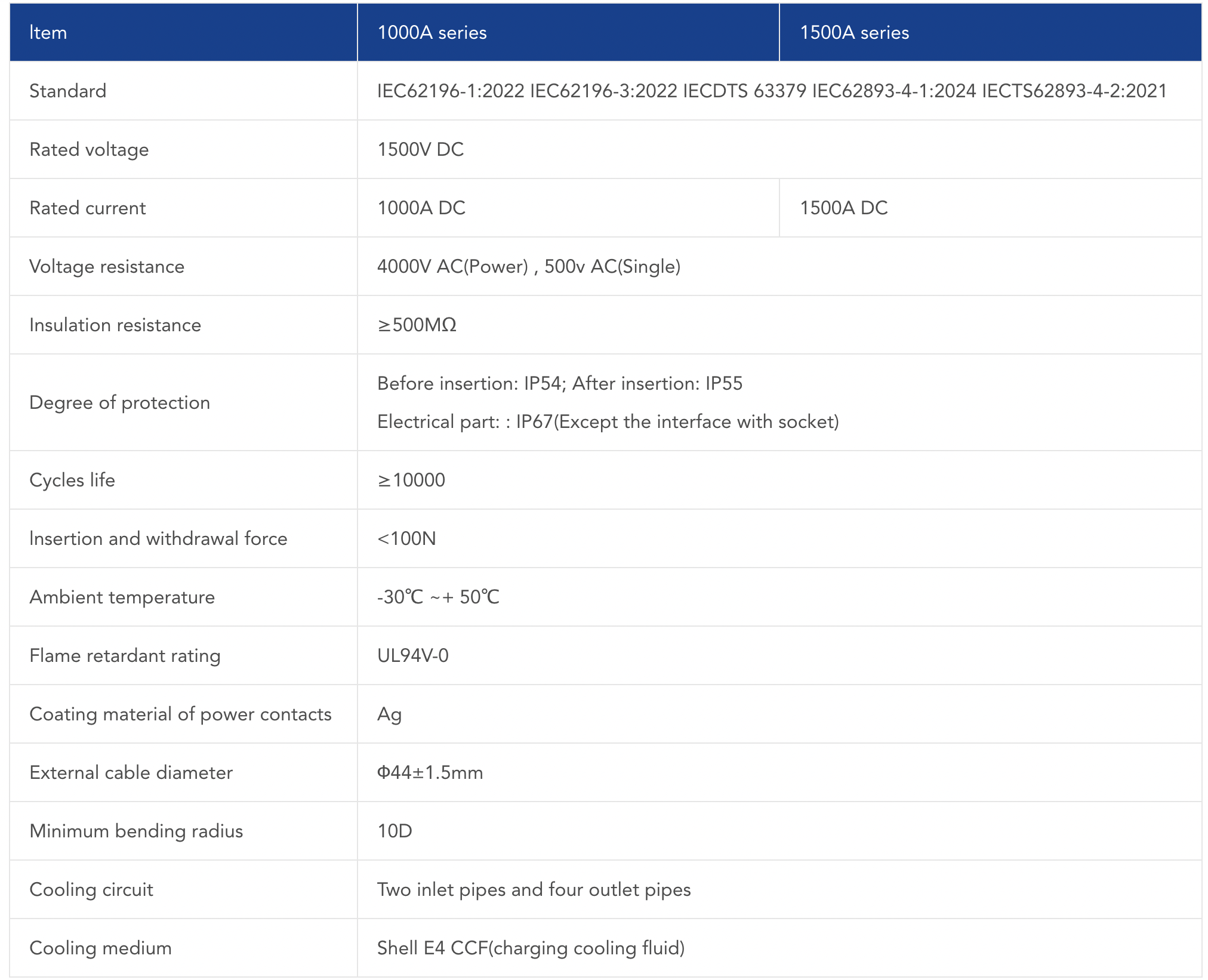

Technical Specifications
1000A 1500A Liquid Cooling MCS DC Charging Cable
The megawatt level charging system (MCS) is a new high-power charging solution with a charging speed much higher than traditional combined charging systems (CCS). It is specifically developed for heavy-duty pure electric vehicles, including trucks and buses.
YGC1000 and YGC1500 Megawatt Charging system is based on a market-leading distributed charging system and offers maximum flexibility during the upcoming MCS transition phase. Compliant with IEC 61851-1, IEC TS61851-23-3 and IECTS63379 for connection devices for conductive charging of electric vehicles.
The Megawatt Charging System (MCS) connector will be rated for charging at a maximum rate of 3.75 megawatts, supporting up to 3000A and 1250V. It represents a holistic system approach based on the Combined Charging System (CCS) principles, ensuring that all perspectives of the Heavy Duty Vehicles industry are considered.
Applications & Usage
Where is the MCS Charger Cable used?
MCS charging cable technology provides ultra-fast charging for heavy-duty trucks, ships, and aircraft. Its application areas are extensive, covering many industries such as commercial vehicles, maritime, agriculture, mining, and aviation. This system provides the charging speed, safety, and durability required for the most demanding applications, from electric heavy-duty vehicles to large energy storage systems.
How to use MCS charging connector?
To use an MCS connector, first locate the charging port on the heavy-duty vehicle (typically located between the driver's side axle). Then, connect the liquid cooled MCS cable (capable of withstanding high power) to the port of the vehicle.
Frequently Asked Questions
What is the maximum power capacity of an MCS charging system?
The Megawatt Charging System (MCS) is designed to handle a maximum rate of up to 3.75 megawatts, with current ratings reaching up to 3000 amperes and 1250 volts.
Which vehicles are primarily designed for MCS charging?
MCS is specifically developed for large-scale electric vehicles including long-haul heavy-duty trucks, buses, electric ships, and aircraft.
Why do MCS cables require liquid cooling?
Due to the extremely high current (1000A to 3000A), active liquid cooling is necessary to manage heat dissipation and prevent the cables and connectors from overheating during the charging process.
How does MCS differ from the standard CCS used in passenger cars?
While MCS is based on CCS principles, it uses a completely different connector designed for much higher power levels. CCS is typically for passenger cars, while MCS is for heavy-duty industrial and commercial transport.
What is the environmental protection level of MCS connectors?
MCS connectors are designed for harsh industrial environments and typically feature a high protection level, such as IP67, to ensure durability and safety against water and dust.
Where is the charging port usually located on heavy-duty vehicles?
On most heavy-duty electric trucks, the MCS charging port is typically located on the driver's side, often positioned between the axles for easy access.
