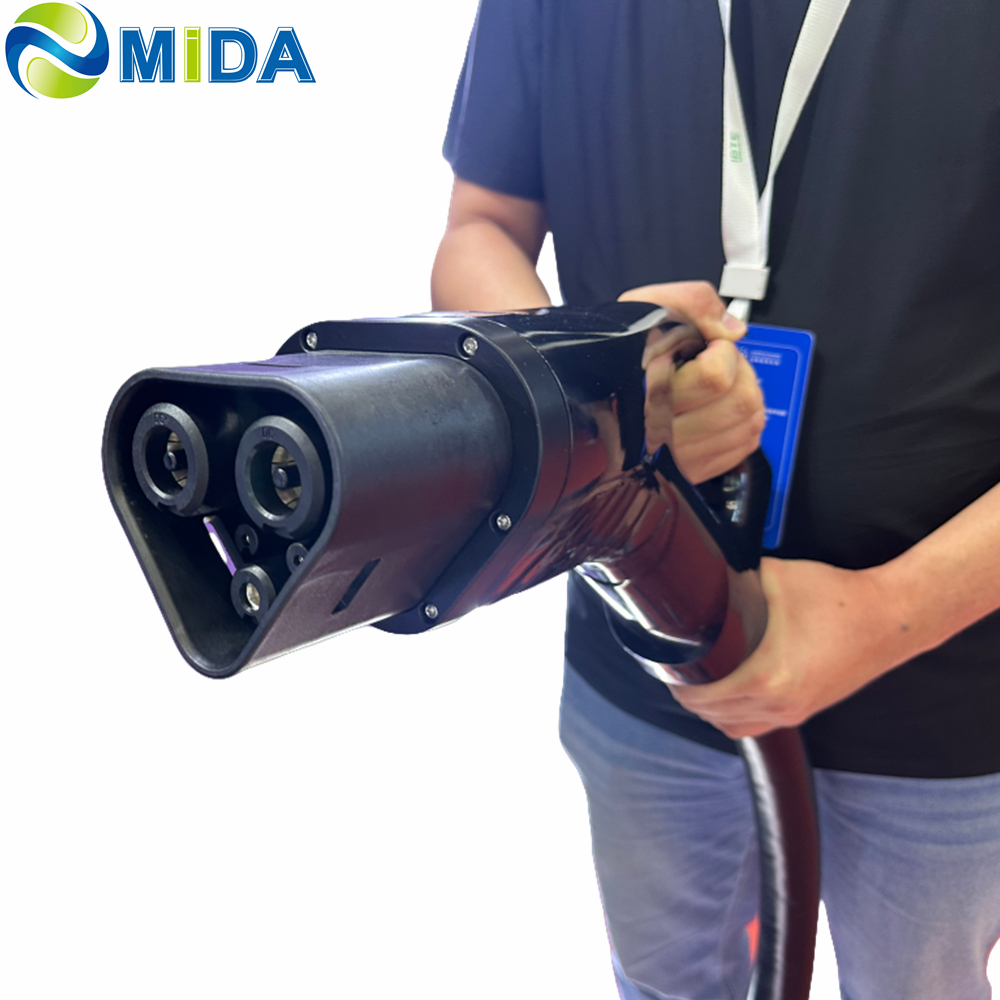

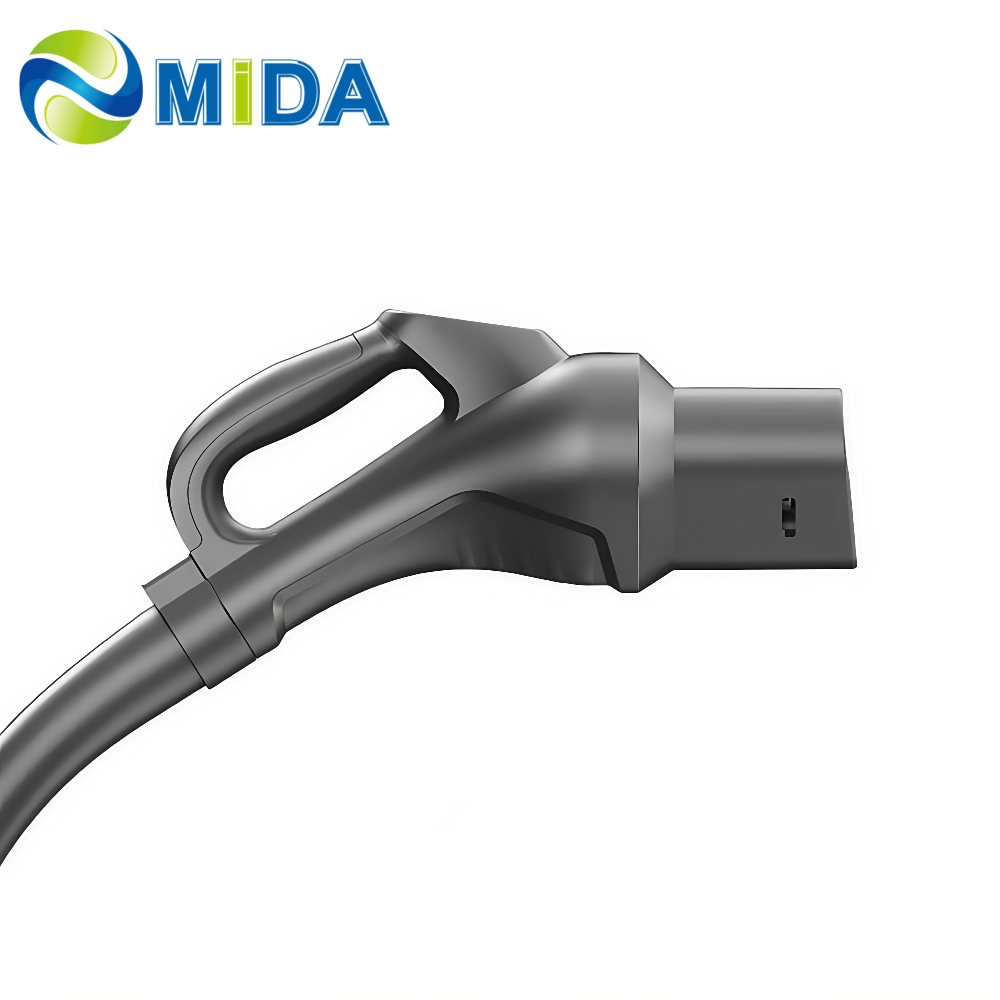

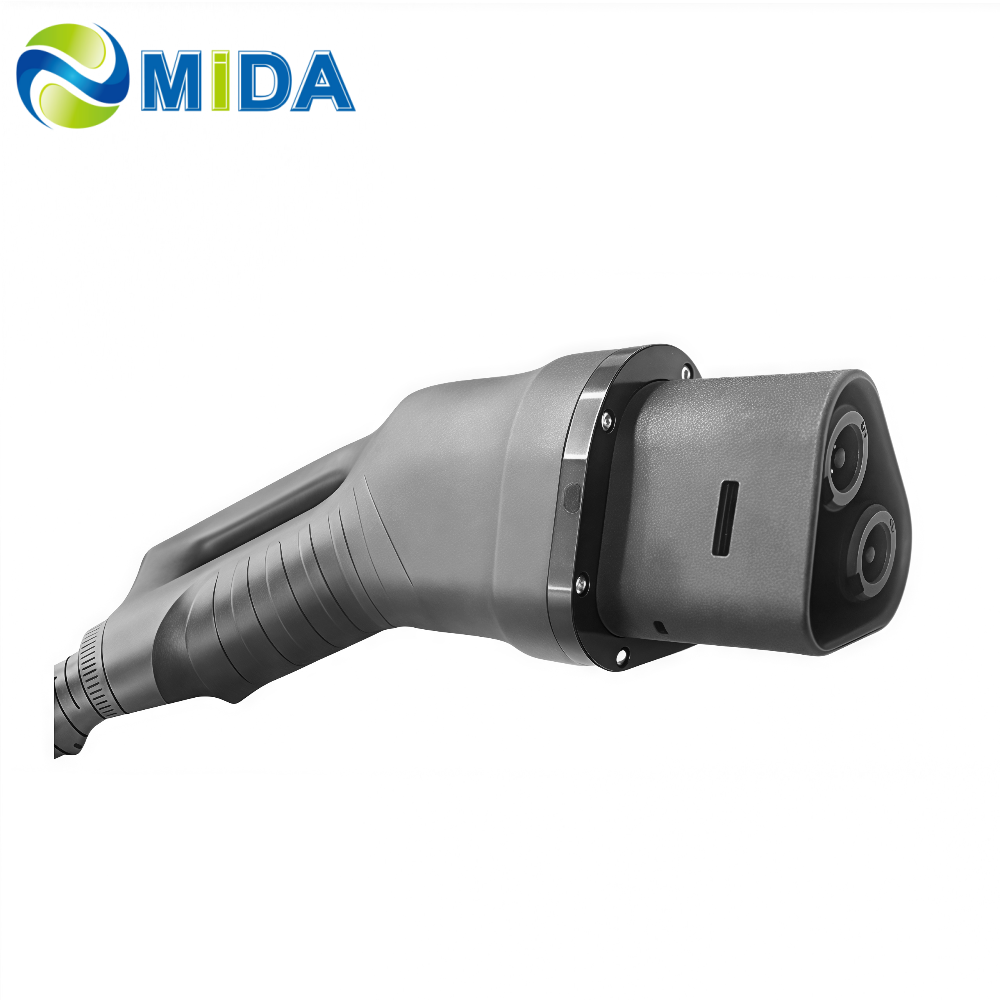

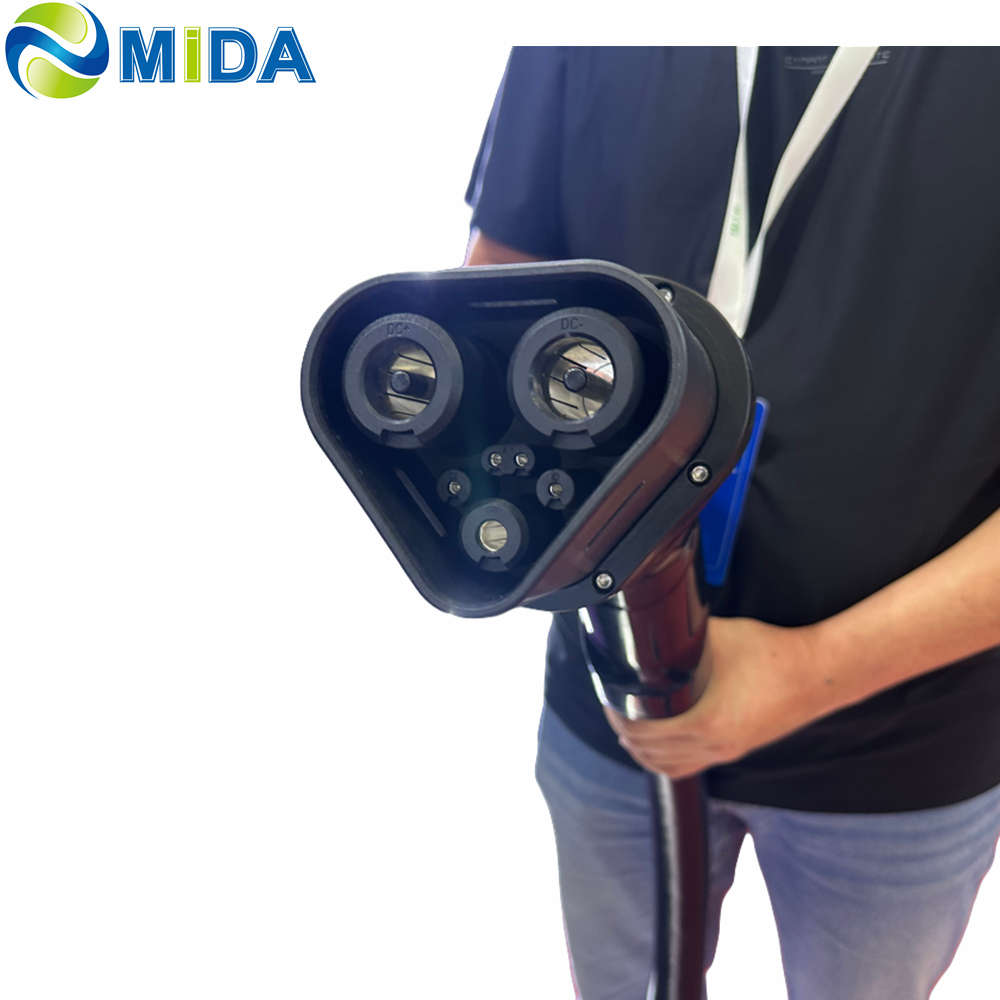

1000A 1500A MCS Charging Connector Megawatt Charging System
1000A 1500A MCS (Megawatt Charging System) charging cable is a high-power charging solution designed specifically for heavy-duty electric vehicles such as trucks and buses, capable of providing up to several megawatts of power, significantly accelerating charging speed. These charging cables use dedicated connectors with sturdy and durable structures, and typically require active heat dissipation during high-power operation to safely and efficiently manage high currents.
Key Features of MCS Charging System
●
High power capacity: Designed to handle extremely high power, with a current rating of up to 3000 amperes and a power output of up to 3.75 megawatts.
●
Specially designed for heavy-duty vehicles: Developed for large pure electric vehicles, such as long-distance trucks, buses, electric ships, and airplanes.
●
Durable and sturdy: Designed to operate in harsh industrial environments with protection measures such as IP67 protection level.
●
Cable and connector cooling: Higher power levels (over 1 megawatt) require active cooling of connectors and cables to prevent overheating.
●
Unique connector: The MCS connector is distinct from the combination charging system (CCS) used for passenger cars.
Specifications & Technical Standards
1000A 1500A Liquid Cooling MCS DC Charging Cable
The megawatt level charging system (MCS) is a new high-power charging solution with a charging speed much higher than traditional combined charging systems (CCS). It is specifically developed for heavy-duty pure electric vehicles, including trucks and buses. The YGC1000 and YGC1500 systems offer maximum flexibility during the MCS transition phase. Compliance includes IEC 61851-1, IEC TS61851-23-3, and IECTS63379 for connection devices for conductive charging of electric vehicles.
The connector will be rated for charging at a maximum rate of 3.75 megawatts, 3000A 1250V. The MCS Task Force represents the whole value chain of the Heavy Duty Vehicles industry segment to ensure all perspectives are considered.
Application & Usage
Where is the MCS Charger Cable used?
MCS charging cable technology provides ultra-fast charging for heavy-duty trucks, ships, and aircraft. Its application areas cover commercial vehicles, maritime, agriculture, mining, and aviation. It breaks through the limitations of traditional charging for large energy storage systems.
How to use MCS charging connector?
Locate the charging port on the heavy-duty vehicle, typically between the driver's side axle. Then, connect the liquid cooled MCS cable to the port of the vehicle to initiate high-power charging.
Communication Protocol
Multipoint Communication Service Protocol Specification defines a protocol operating through the hierarchy of a multipoint communication domain. It specifies the format of protocol messages and procedures governing their exchange over a set of transport connections.
Frequently Asked Questions (FAQ)
Q1: What is the maximum power output of the MCS charging system?
The Megawatt Charging System (MCS) is designed for a maximum charging rate of up to 3.75 megawatts, supporting up to 3000 amperes and 1250 volts.
Q2: Which vehicles are compatible with MCS charging cables?
MCS is specifically designed for heavy-duty electric vehicles, including long-distance trucks, buses, electric ships, and aircraft.
Q3: Why do MCS cables require liquid cooling?
Due to the extremely high current levels (up to 3000A), active liquid cooling is necessary to prevent the cables and connectors from overheating during the charging process.
Q4: Is the MCS connector the same as the CCS connector used in cars?
No, the MCS connector is a unique design different from the Combined Charging System (CCS) used for passenger cars, though some trucks may be equipped with both interfaces.
Q5: What is the durability rating for these connectors?
These connectors are built for harsh industrial environments and typically feature protection levels like IP67 for water and dust resistance.
Q6: What standards does the MCS charging cable comply with?
The system complies with international standards such as IEC 61851-1, IEC TS61851-23-3, and IECTS63379 for conductive charging devices.
