Parameters of HPC Cooling Module Liquid Cooling System
The EV-HPC-PCU-01 Cooling Unit HPC cooling module (TD8125010-XC01001) is used for intelligent high-power charging (HPC) technology, the radiating power is 3KW, the charging current can reach 500-800A (ambient temperature 50℃), and ensure the safe and stable operation of the high-power charging gun line. The core technology of the product is to provide coolant with appropriate temperature and flow rate to the high-power charging gun line under all working conditions to ensure that the temperature rise of the high-power charging gun line relative to the ambient temperature does not exceed 50K (ΔTmax = 50K) during the charging process.
| Model | EV-HPC-PCU-01 Cooling Unit Liquid Cooling System |
| Radiating power | 3000W @ 4L/min，700m³/h |
| Rated Current | 500A ~ 800A |
| Rated Voltage | 12V/DC |
| Noise | ≤ 60dB(A) |
| Maximum Pressure | 0.7MPa |
| Flow medium | 4L/min @ 450Kpa |
| Communication Mode | MODBUS Based 485 |
| Ambient temperature | -30℃ ~ 50℃ |
| Degree of Protection | IP68 |
| Lifetime | 25000h |
| Volume of oil can | 1.5L |
| Cooling Medium | Dimethyl silicone oil |
| Dimensions | 435 × 155 × 410mm |

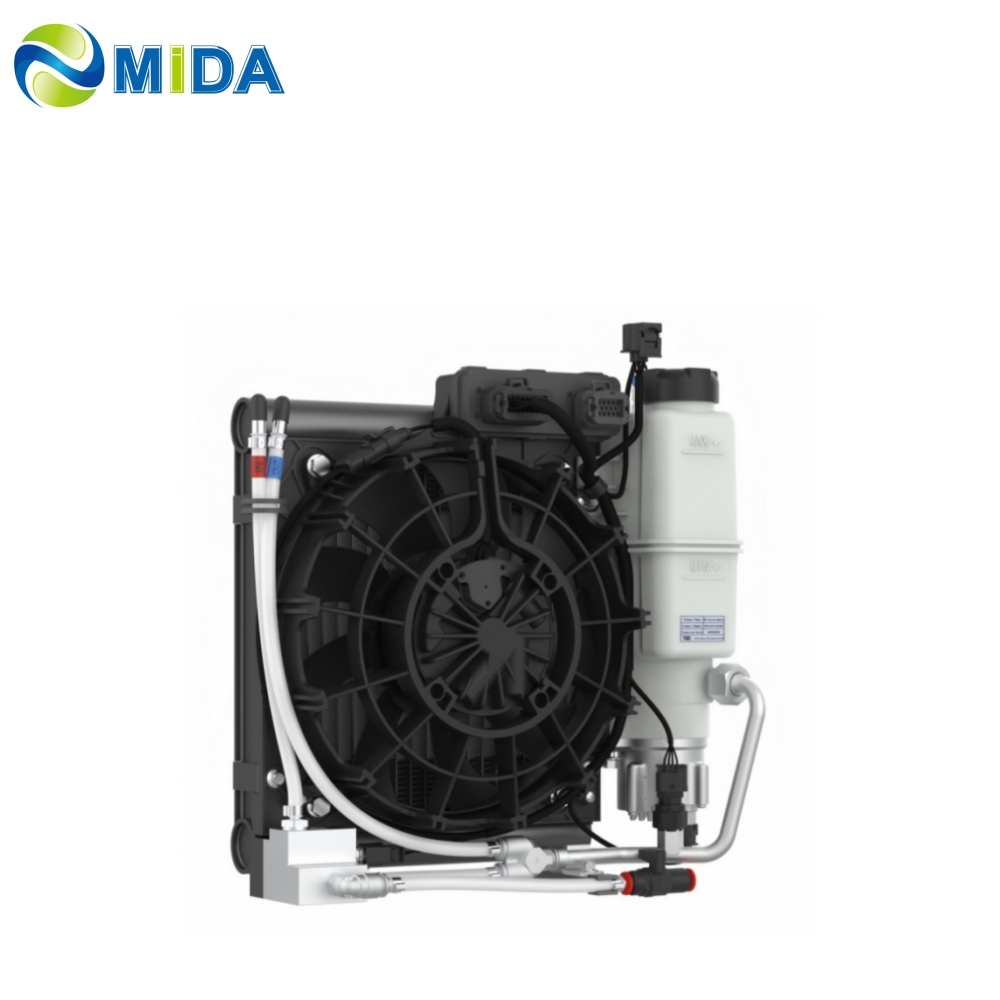

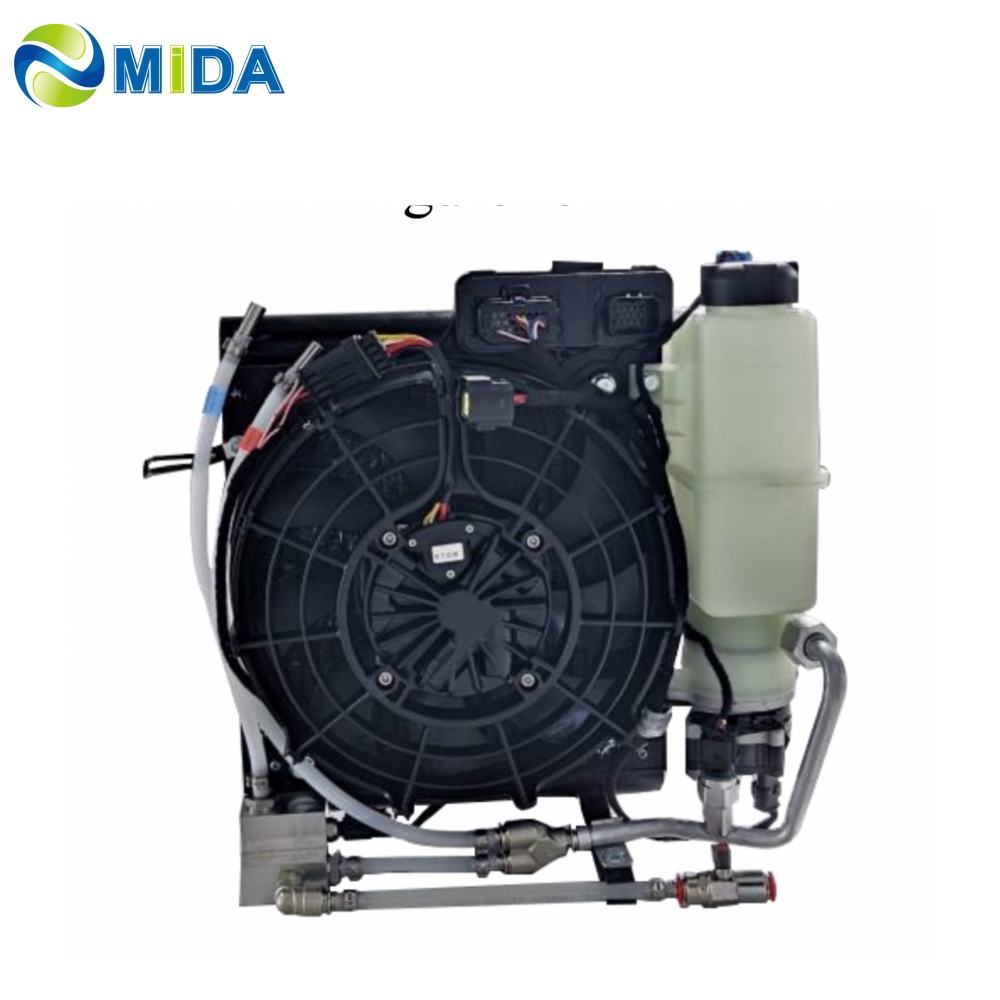

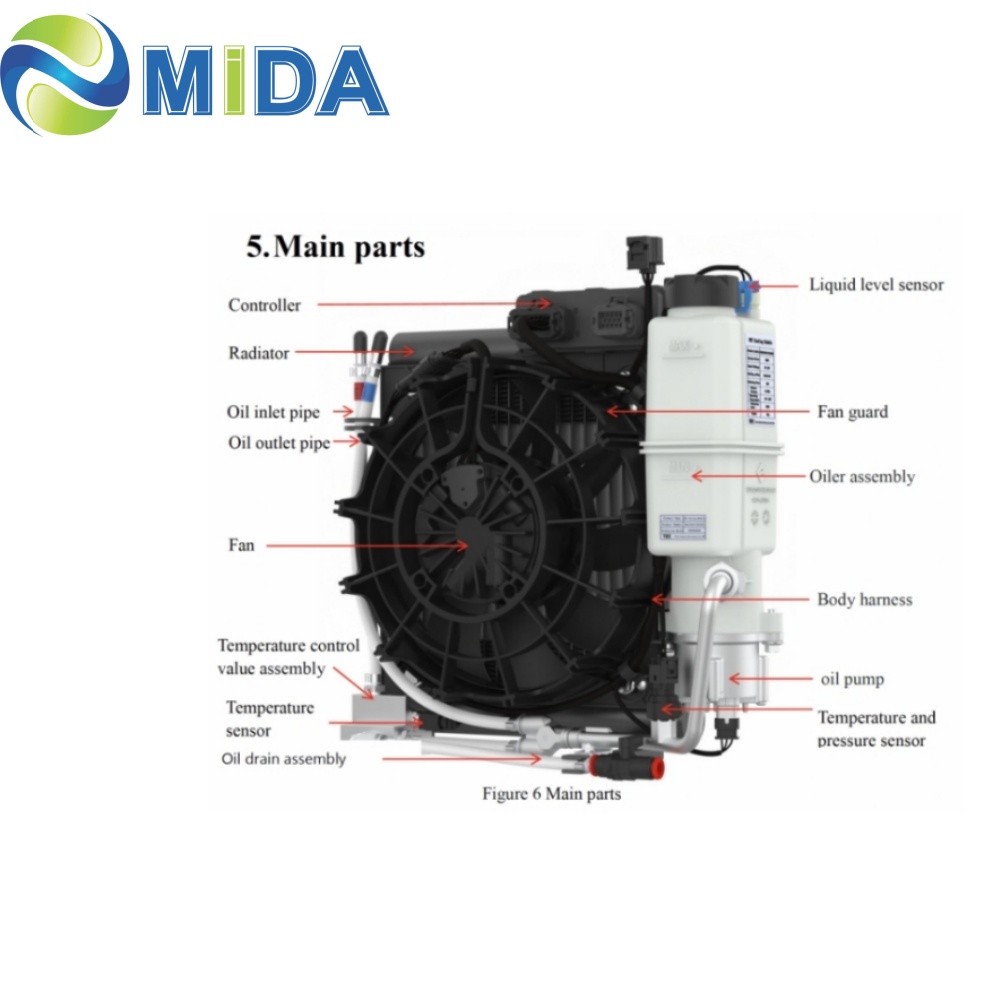

Introduction Of EV-HPC-PCU-01 Cooling Unit
Features & Highlights
- ✓Radiating power: 3000W @ 4L/min, 700m³/h
- ✓High Charging Current: 500-800A supported
- ✓Operating Temperature: Robust performance from -30℃ to 50℃
- ✓Advanced Communication: MODBUS Based 485 interface
- ✓Compact Design: Dimensions 435 × 155 × 410mm
- ✓Superior Protection: IP68 rated for harsh environments
- ✓Low Noise Operation: ≤ 60dB(A) during peak usage
- ✓Cooling Medium: High-efficiency dimethyl silicone oil
Frequently Asked Questions
Q1: What is the maximum radiating power of the EV-HPC-PCU-01?
The system provides a radiating power of 3000W at a flow rate of 4L/min.
Q2: Can this cooling unit handle 500A+ charging currents?
Yes, it is specifically designed for high-power charging (HPC) and can handle current levels ranging from 500A to 800A even at an ambient temperature of 50℃.
Q3: What type of protection does the unit offer against water and dust?
The cooling module features an IP68 protection rating, ensuring high durability and protection against ingress.
Q4: What cooling medium is used in this system?
The system utilizes dimethyl silicone oil as the cooling medium for optimal thermal management.
Q5: How does the unit communicate with the charging station?
It uses the MODBUS protocol based on the RS485 communication standard for reliable data exchange.
Q6: What is the expected lifetime of the cooling module?
The unit is engineered for a long service life with a rated lifetime of 25,000 hours.
