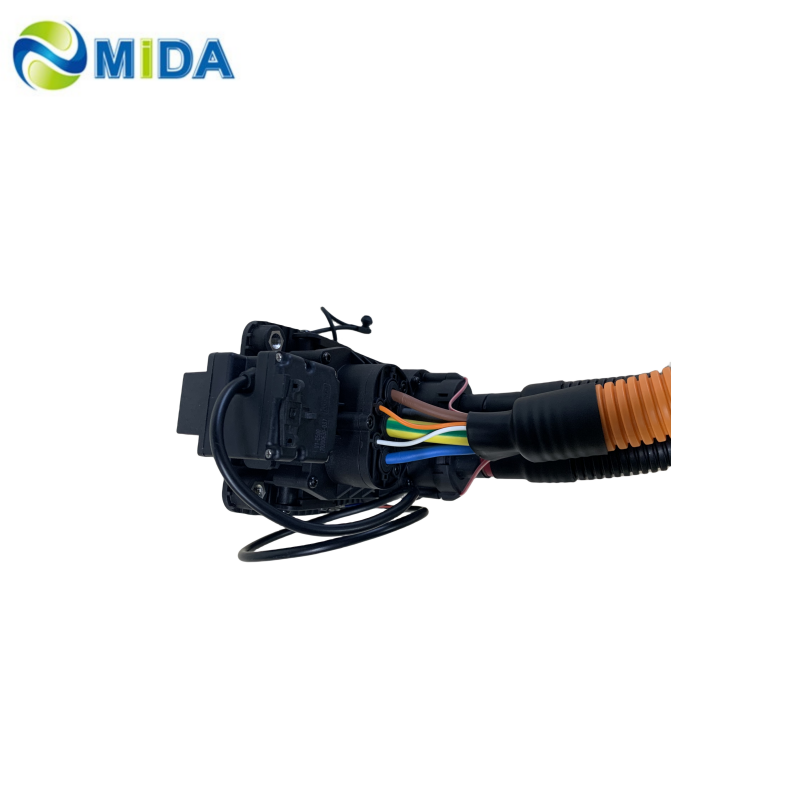

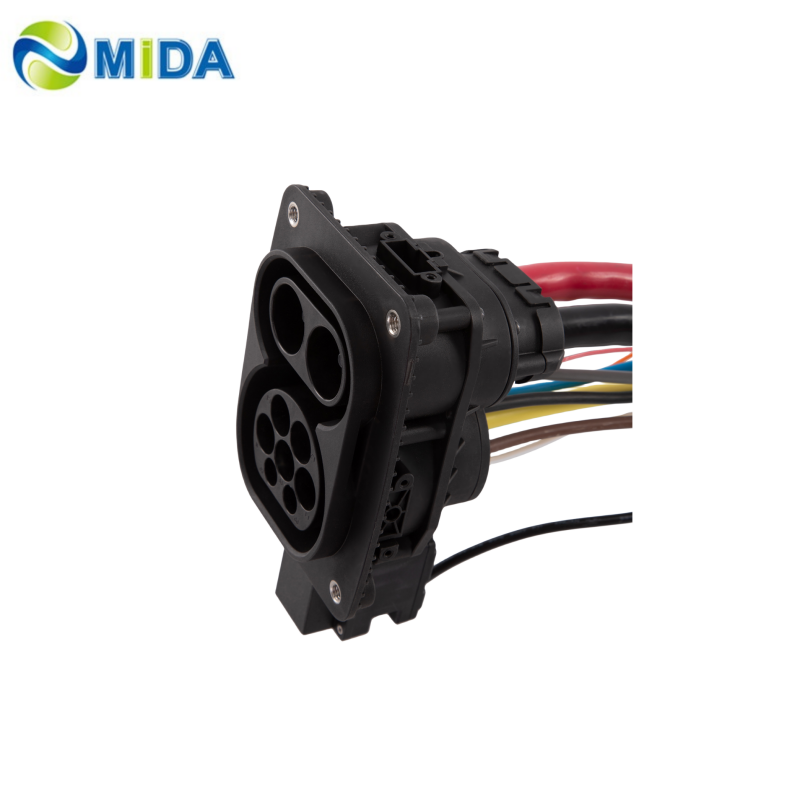

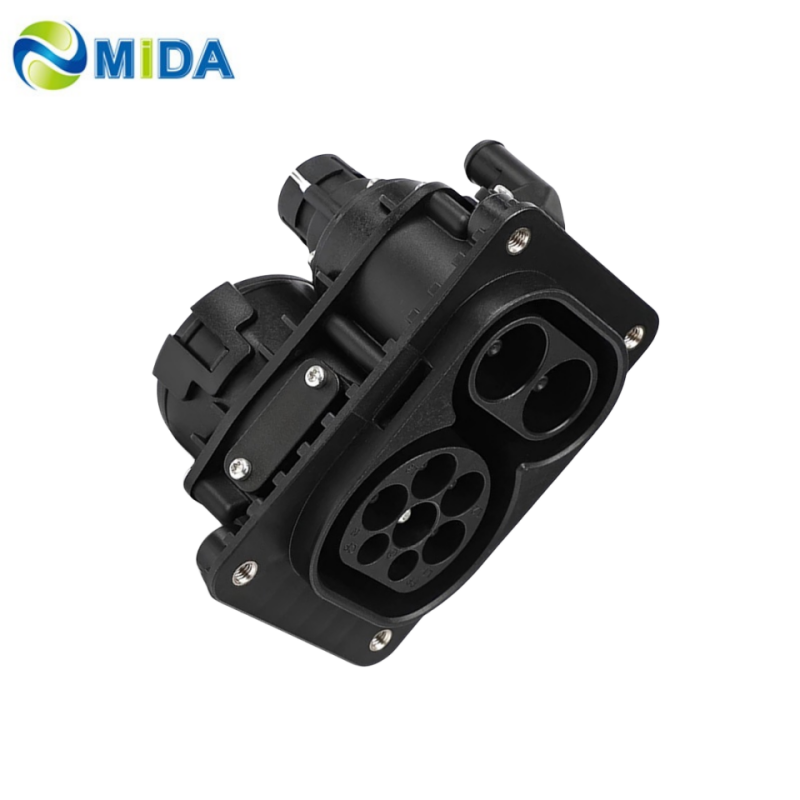

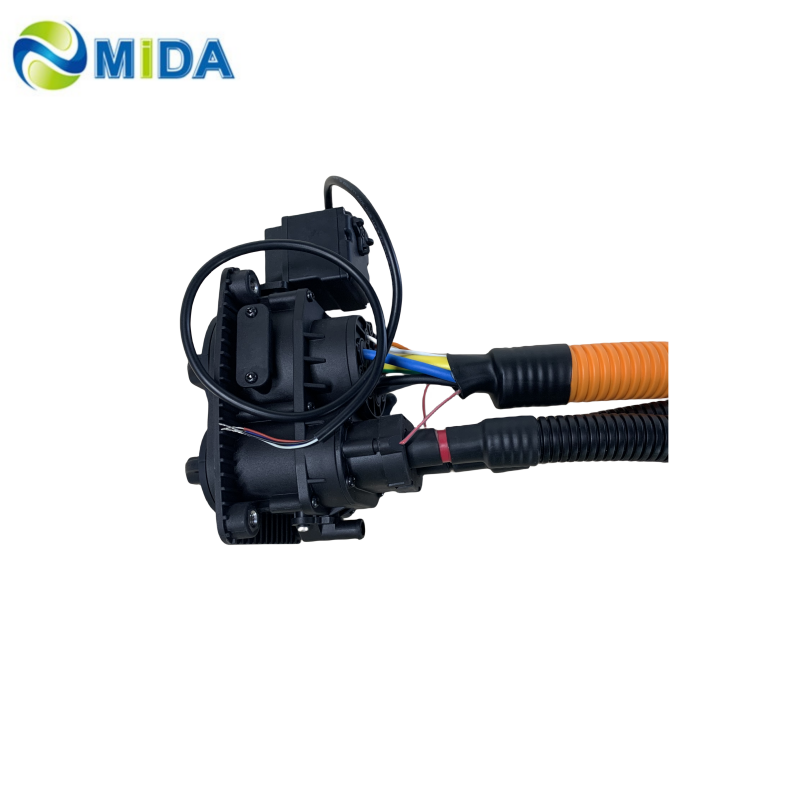

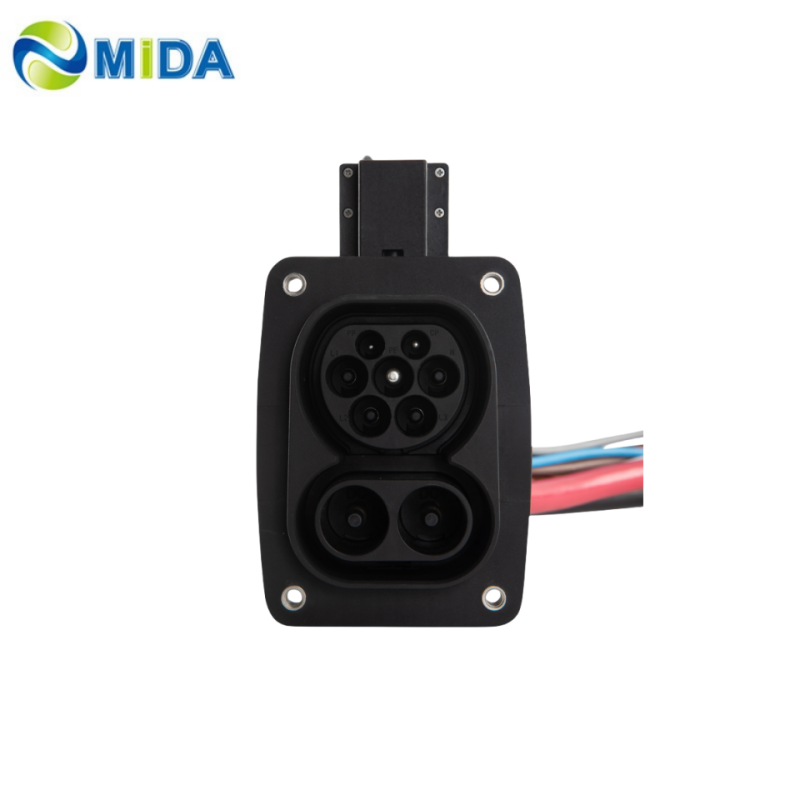

Best DC 60A 80A 125A CCS 2 car socket CCS2 charging inlet EV socket Manufacturer, Factories
Best DC 60A 80A 125A CCS 2 car socket CCS2 charging inlet EV socket Manufacturer, Factories
Best DC 60A 80A 125A CCS 2 car socket CCS2 charging inlet EV socket Manufacturer, Factories
Best DC 60A 80A 125A CCS 2 car socket CCS2 charging inlet EV socket Manufacturer, Factories
Best DC 60A 80A 125A CCS 2 car socket CCS2 charging inlet EV socket Manufacturer, Factories
1 / 5
Best DC 60A 80A 125A CCS 2 car socket CCS2 charging inlet EV socket Manufacturer, Factories
Best DC 60A 80A 125A CCS 2 car socket CCS2 charging inlet EV socket Manufacturer, Factories
Best DC 60A 80A 125A CCS 2 car socket CCS2 charging inlet EV socket Manufacturer, Factories
Best DC 60A 80A 125A CCS 2 car socket CCS2 charging inlet EV socket Manufacturer, Factories
Best DC 60A 80A 125A CCS 2 car socket CCS2 charging inlet EV socket Manufacturer, Factories

Best DC 60A 80A 125A CCS 2 car socket CCS2 charging inlet EV socket Manufacturer, Factories

The CCS2 charging socket is a newer version of the CCS1 and is the preferred connector for European and American automakers. It features a combined inlet design that makes it more convenient and easier to use for EV drivers. The CCS2 sockets combines the inlets for both AC and DC charging.
Send Inquiry

Product Description

CCS Type 2 Socket / CCS 2 Inlet (80A~400A)
European standard CCS 2 sockets are designed for installation on electric vehicles, providing a versatile interface for power intake. Available in ratings of 80A, 125A, 150A, 200A, 250A, 300A, and 500A, these inlets cooperate with CCS combo 2 DC charging cables to enable high-speed DC charging. All products strictly adhere to IEC 62196.3-2022 and RoHS requirements.
The Combined Charging System (CCS) socket is the industry-standard connector for electric vehicle charging, supporting both AC and DC fast charging. As the European Electric Vehicle Supply Equipment (EVSE) standard, CCS2 regulates DC fast charging for Battery Electric Vehicles (BEVs) and Plug-in Hybrid Electric Vehicles (PHEVs).
Featuring a 9-pin design, the CCS2 connector includes one Type 2 AC charging pin and two dedicated DC charging pins. This configuration allows compatibility with both AC and DC chargers, making it the widely accepted standard among global car manufacturers.

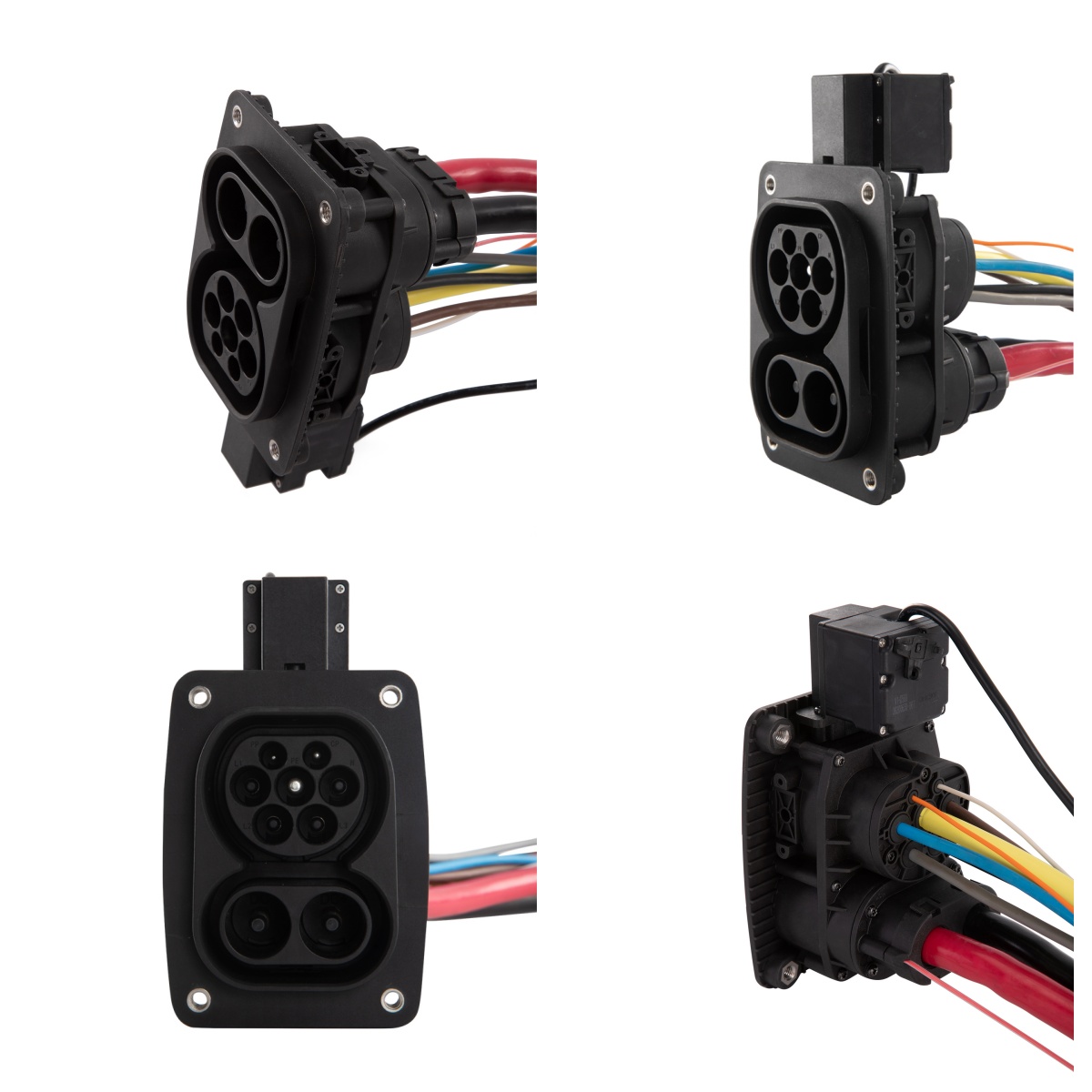

CCS2 Charging Socket
Technical Parameters
Parameter Specification Details
Model CCS 2 Socket
Rated Current DC+: 80A - 400A; L1/L2/L3/N: 32A; PP/CP: 2A
Wire Diameter 80A/16mm², 125A/35mm², 150A/50mm², 200A/70mm², 250A/95mm², 300A/95mm², 400A/120mm²
Rated Voltage DC+/DC-: 1000V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC
Withstand Voltage 3000V AC / 1min. (DC+/DC-/PE)
Insulation Resistance ≥ 100mΩ 1000V DC (DC+/DC-/PE)
Electronic Locks 12V / 24V optional
Mechanical Life > 10,000 mating cycles
Ambient Temperature -40℃ ~ +50℃
Degree of Protection IP55 (Unmated); IP44 (Mated)
Main Materials
Shell / Insulation High-quality PA (Polyamide)
Sealing Part Silicone Rubber
Contact Part Copper Alloy (Silver/Nickel Plated)
Product Gallery

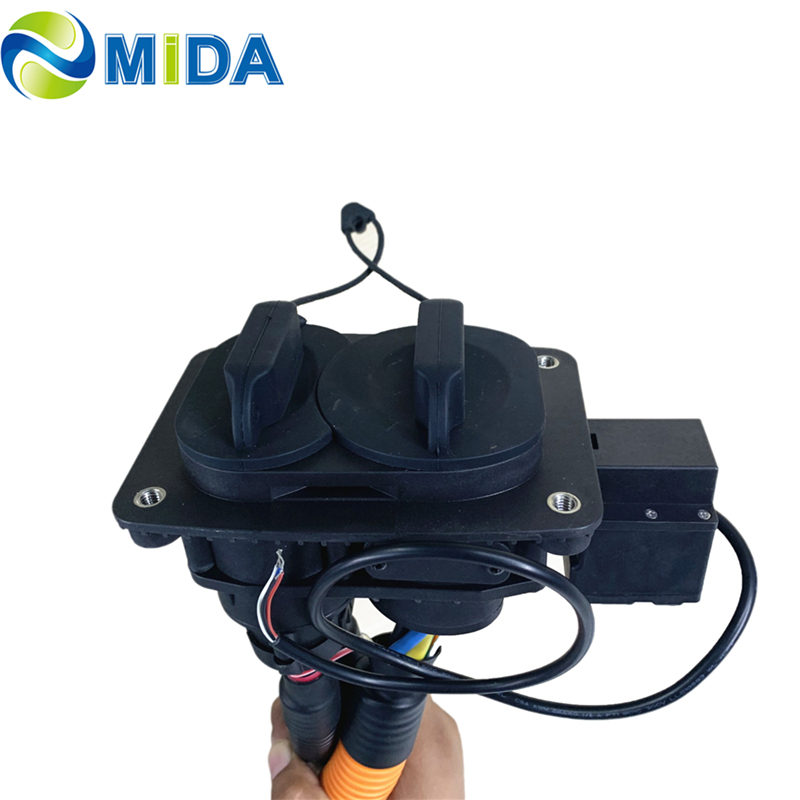

CCS 2 Socket View 1

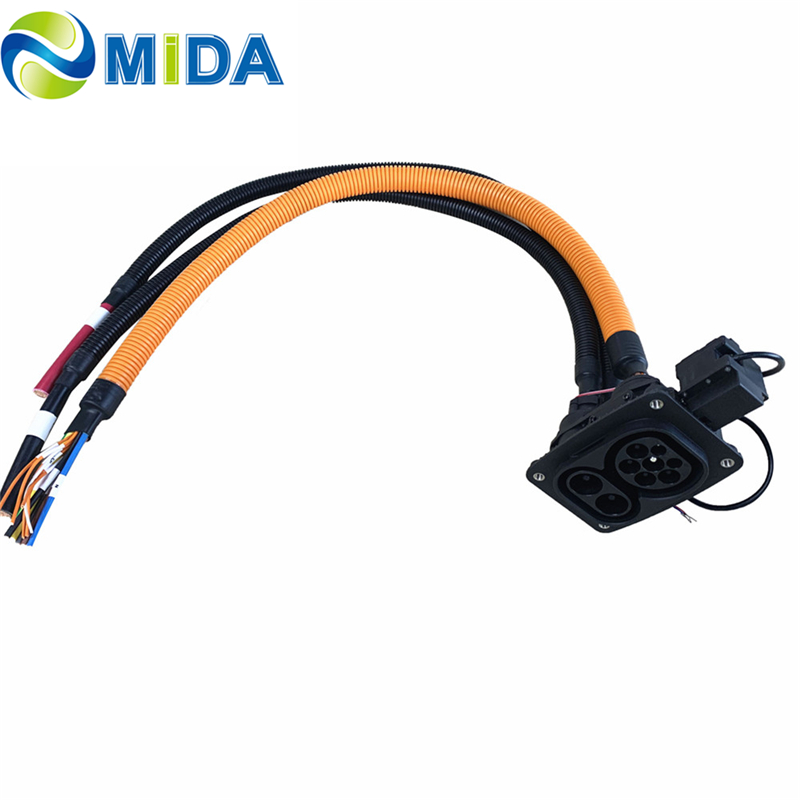

CCS 2 Socket View 2

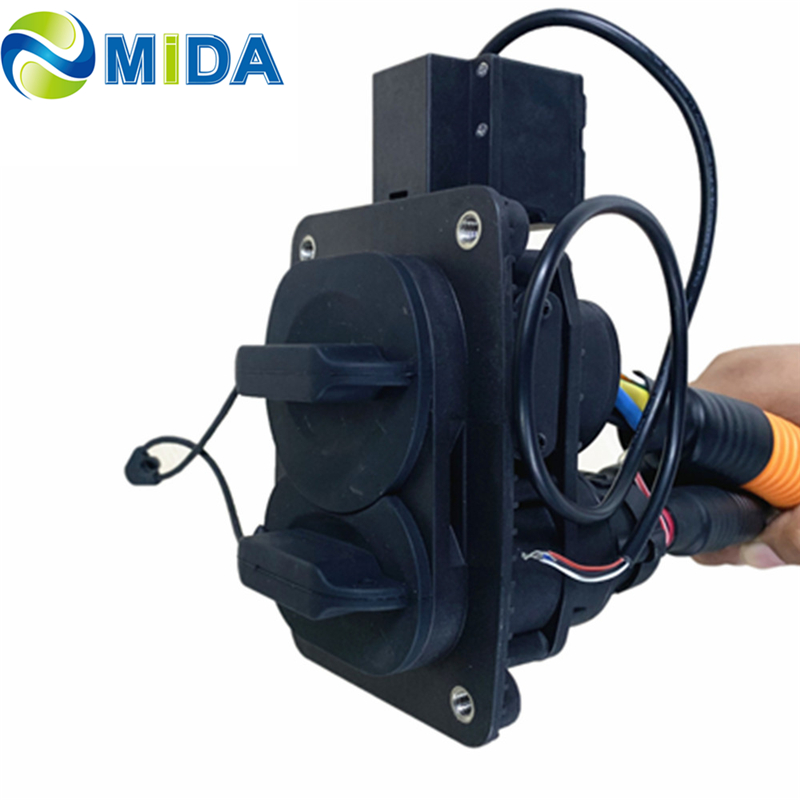

CCS 2 Socket View 3
Core Features & Advantages
✓Dual Charging Capability
Combines Type 2 AC charging and CCS DC fast charging in a single integrated inlet, providing maximum flexibility for EV users.
🛡️Enhanced Safety
Designed with safety-insulated pinheads to prevent accidental direct contact. Ensures the highest level of user protection against electric shock.
💎Investment Value
Robust construction designed for longevity. The 80A-500A rating options and ease of installation make it ideal for both residential and commercial applications.
Key Product Highlights

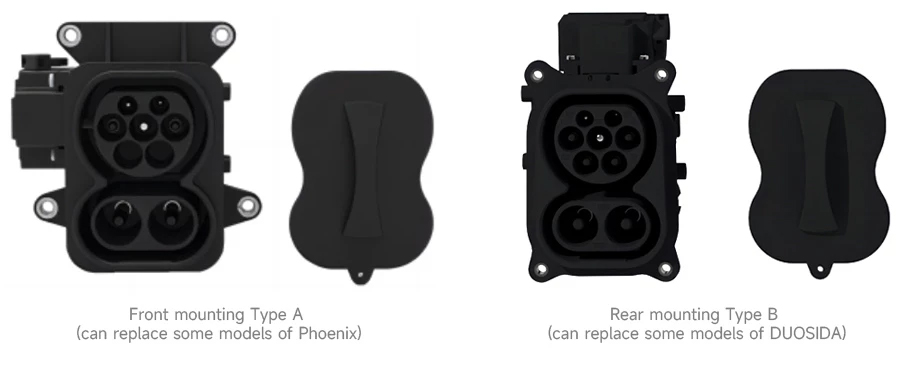

CCS 2 Socket Features
1 Full compliance with IEC 62196.3-2022 standards.
2 Rated for high voltage applications up to 1000V.
3 Optional 12V/24V electronic lock for secure charging sessions.
4 Anti-straight plug dust cover for environmental protection.
5 Proven durability with over 10,000 plugging cycles and stable temperature control.

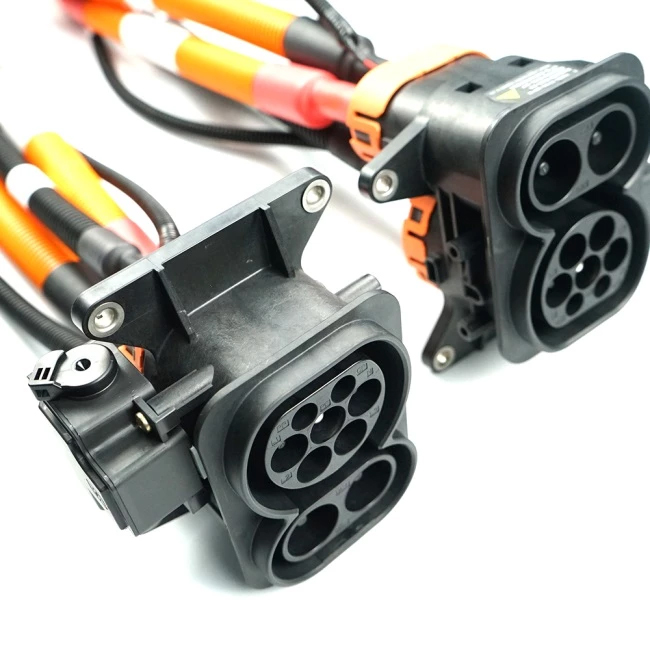

CCS 2 Technical Drawing
Frequently Asked Questions (FAQ)
What is the standard compliance for this CCS2 socket?
The CCS2 electric vehicle DC charging socket fully complies with the IEC 62196.3-2022 standard and meets TUV/CE certification requirements.
Does this socket support both AC and DC charging?
Yes, it is a Combined Charging System (CCS) inlet that integrates Type 2 AC charging pins and two heavy-duty DC charging pins in one unit.
What are the available current ratings?
We offer a wide range of DC current options including 80A, 125A, 150A, 200A, 250A, 300A, and 400A (up to 500A) to suit different vehicle requirements.
What is the durability and mechanical life of the inlet?
The socket is designed for a mechanical life of over 10,000 plugging and unplugging cycles with stable temperature rise performance.
Is the socket protected against water and dust?
Yes, it features an IP55 protection rating when not mated (with dust cover) and IP44 when mated, making it suitable for various environmental conditions.
Can I choose the voltage for the electronic lock?
Yes, the electronic lock system is optional and available in both 12V and 24V configurations to match your vehicle's electronic control unit.
