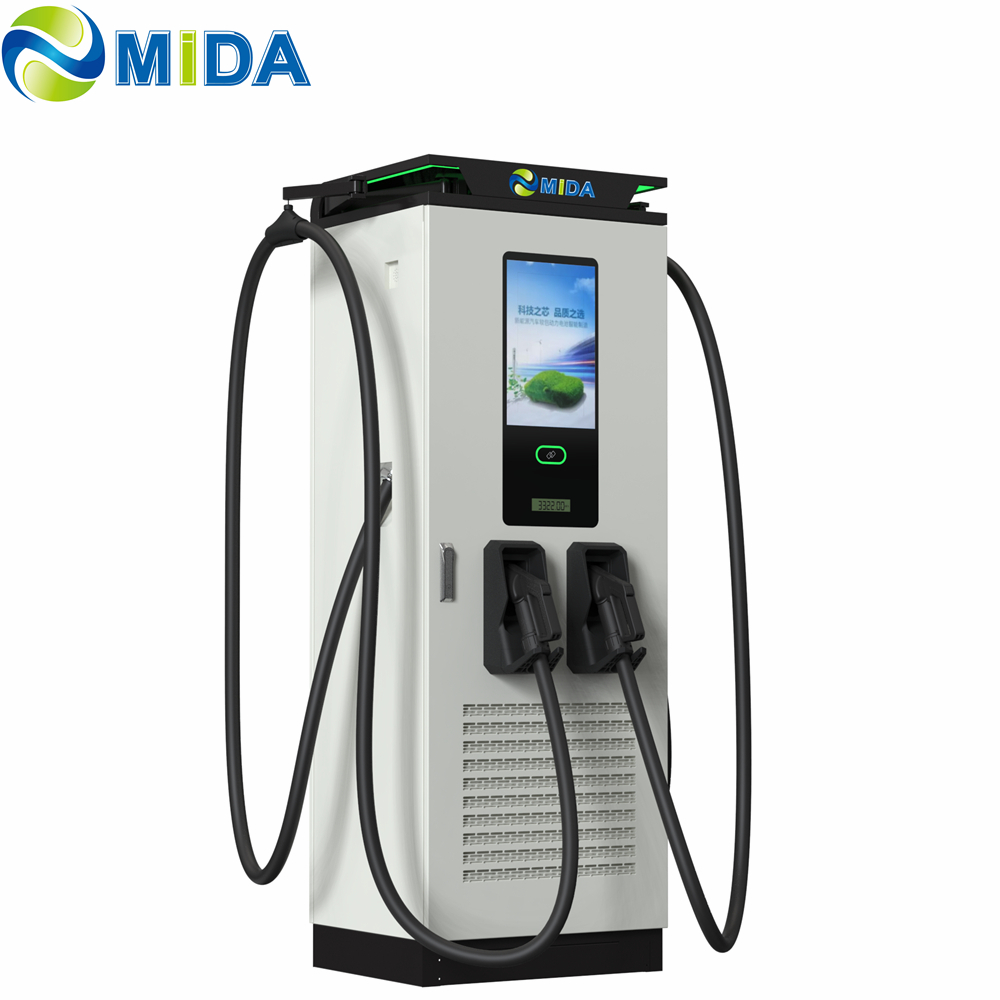

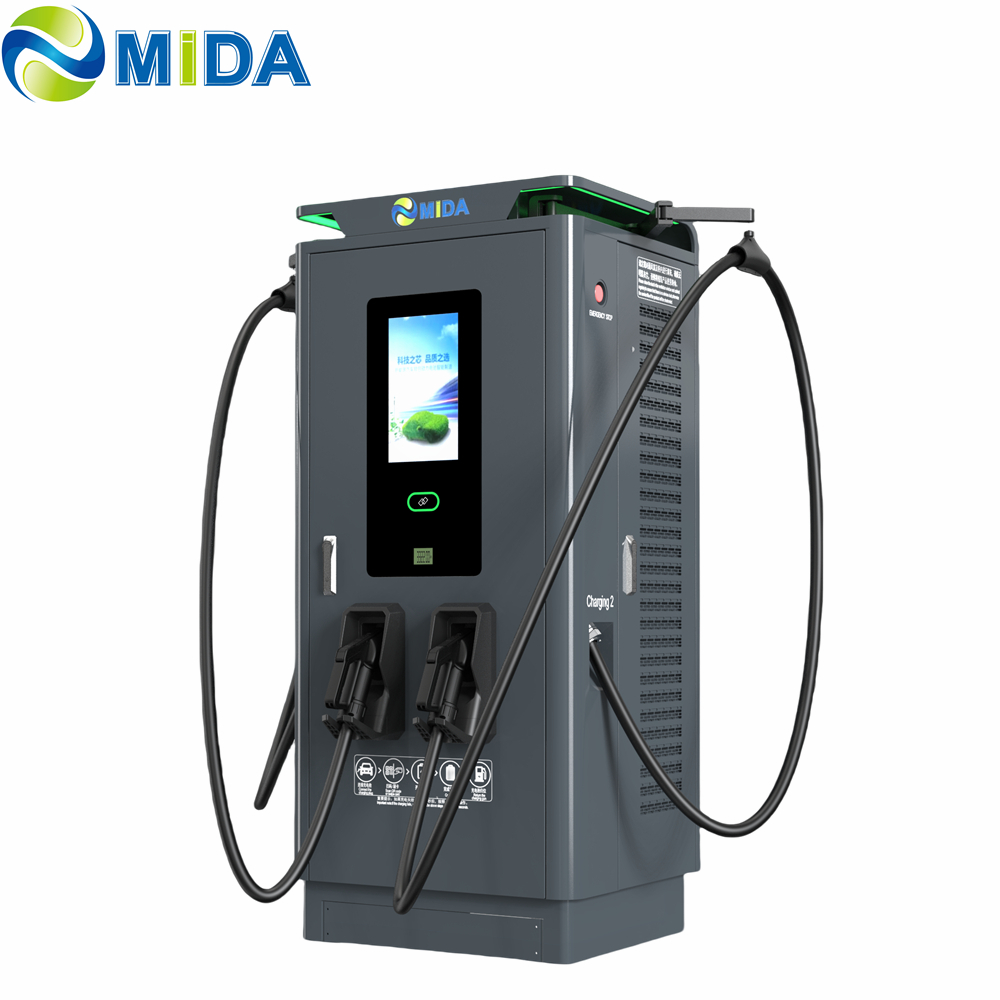

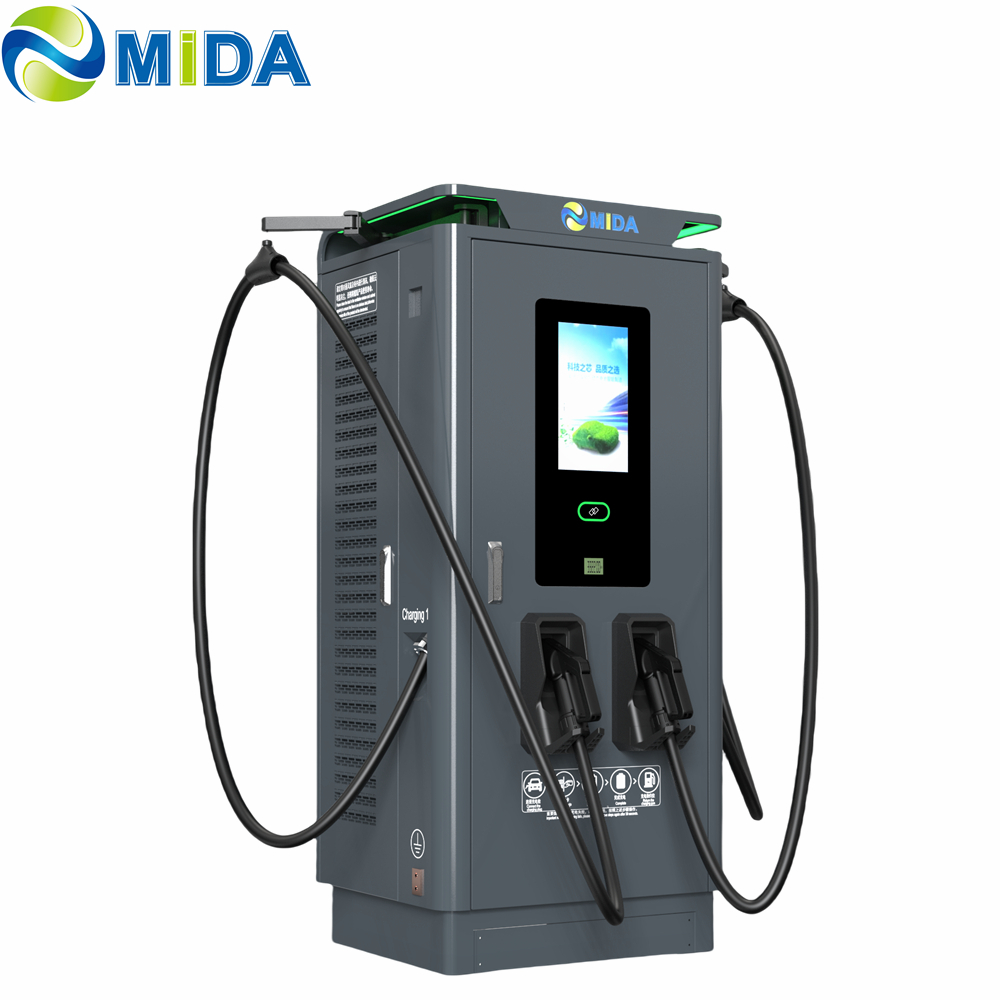

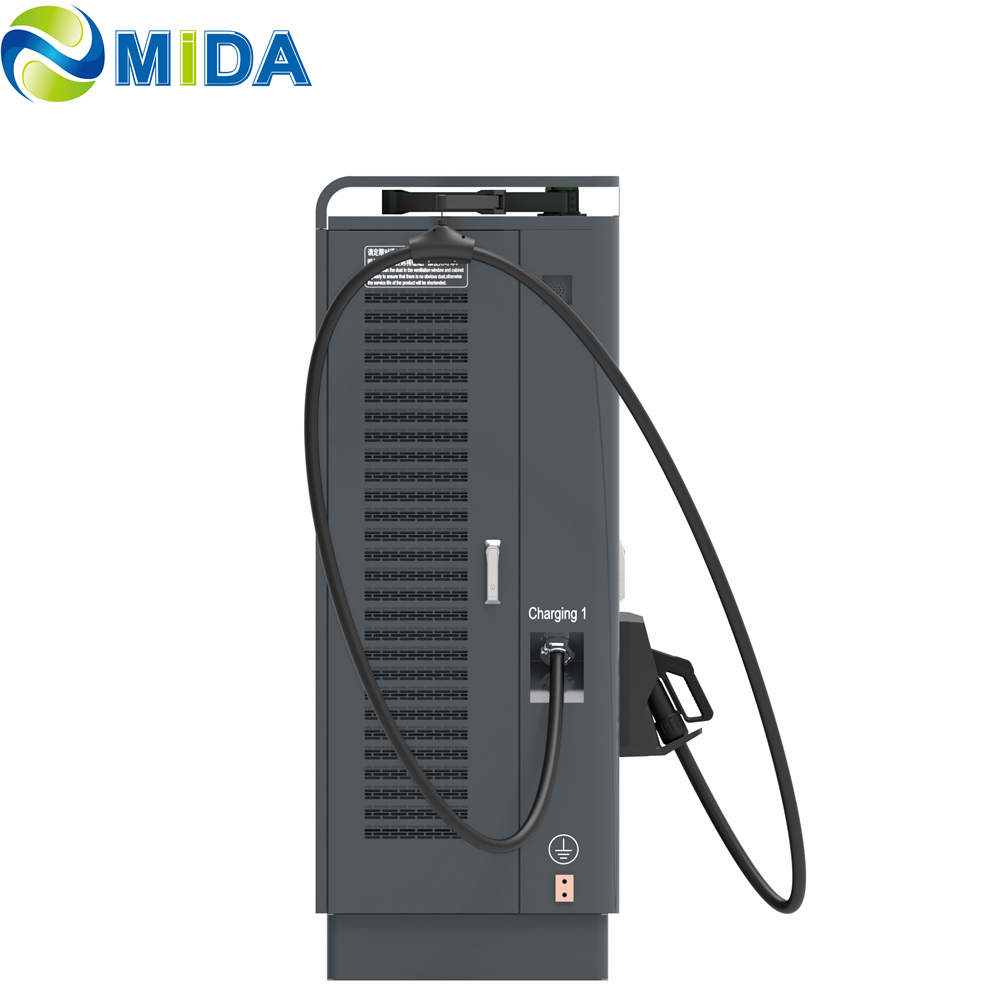

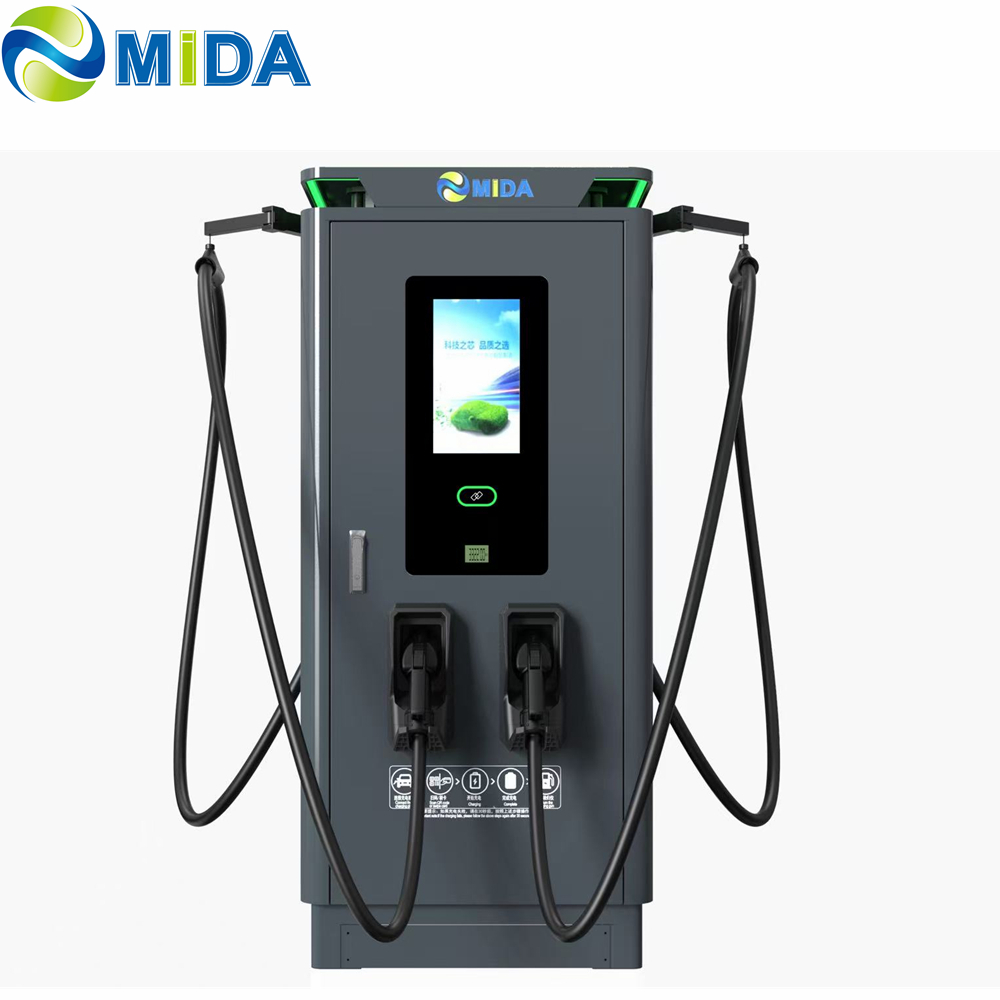

China 180kW 200kW 240kW Ultra Fast EV Charger CCS1 CCS2 GBT DC Charging Piles Supplier, Factories
Fast Charger 120kw 150kw 160kW DC Charging Station CCS2 GBT CHAdeMO is a perfect choice for commercial vehicle charging from electric heavy-duty trucks to electric buses. Designed with two CCS2 charging connectors, and charging connectors comply with the GB/T standard and the CHAdeMO standard can be customized.
DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC - Type-2 400V; GBT 400V
Max. Output Current
DC - CHAdeMO 125A; CCS 200A; GBT 250A;
AC - Type-2 63A; GBT 32A
Interface
Display
8'' LCD Touchscreen
Language
Chinese, English, French, German, Spanish, Russian, etc.
Payment
Mobile APP/RFID/POS
Communication
Network Connection
4G(GSM or CDMA)/Ethernet
Communication Protocols
OCPP1.6J or OCPP2.0
Working Environment
Working Temperature
-30°C ~ +55°C
Storage Temperature
-35°C ~ +55°C
Operating Humidity
≤95% Non-Condensing
Protection
IP54
Acoustic Noise
<60dB
Cooling Method
Forced Air-Cooling
Mechanical
Dimension(W x D x H)
700*1900*650mm
No. of Charging Cable
Single
Dual
Cable Length
5m or 7m
Regulation
Certificate
CE/IEC61851-1/IEC61851-23/IEC61851-21-2
Multi-standard Charging
Supports CCS, CHAdeMO, GB/T, and AC connectors. Charging up to 3 vehicles at the same time
Triple outlet ports, two DC cables, one AC cable, and one 3.6kW schuko output
120kw 150kw 160kw 180kw 240kw DC Fast Charger Station.
CCS 2 300KW 360KW 400KW 480KW DC Fast Charging Station Station
The whole machine is equipped with 2 CCS2 charging connectors, and other standard charging connectors such as GB/T standard and CHAdeMO standard can be selected. In addition, an AC charging connector can be added to flexibly meet the diverse demands of markets. The charger can be equipped with a cable management system, and the charging cable does not fall to the ground, making it more labor-saving and durable.
Optional charging interface of different standards Support local dynamic load adjustment Multi language switching, supporting OCPP 1.6J intelligent charging The equipment management system monitors the operating status
180kw 200kw 240kw Integrated DC Charger
The European standard 240/320kW integrated charger is mainly used for charging commercial vehicles such as electric heavy-duty trucks and electric buses, as well as special vehicles.
Flexible configurations 150kw 240kw 300kw 350kw 400kw DC Charging Station
Supporting CCS, CHAdeMO, GB/T
Ethernet, Wi-Fi, 4G connection
OCPP 1.6J & OCPP 2.0
Smart charging supports dynamic load balancing
1

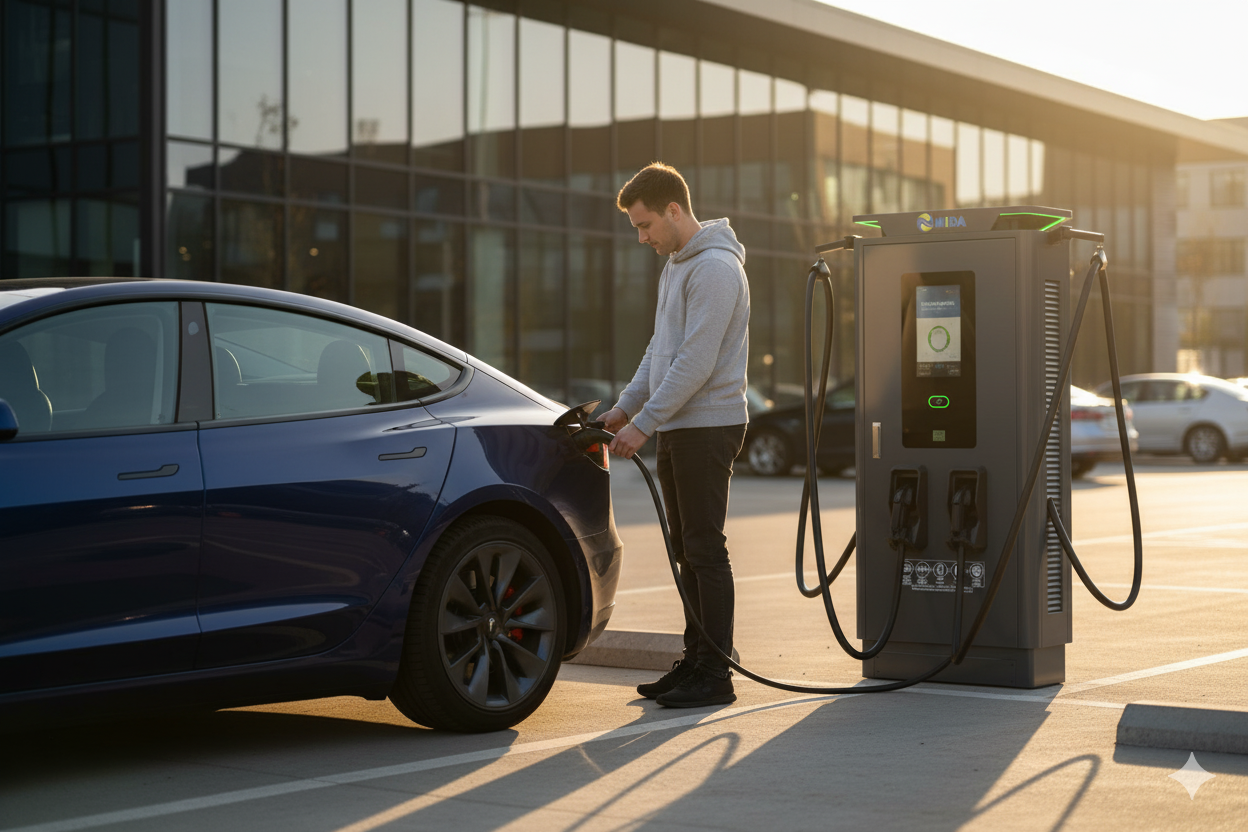

180kW 200kW 240kW Ultra Fast DC EV Charger: The CCS 2 Fast Charger is designed to be user-friendly and compatible with a wide range of electric vehicles.
2
The 180kw 200kW 240kW EV charging station features a perfect combination of classic design, IP54 protection, user-friendly 10" LCD touch screen display, multiple charging modes and power distribution modes as well as LAN and optional LTE wireless communication.
3
Technically, the 240kW fast EV DC charger supports a maximum DC output power capacity of 240kW and a wide output voltage range from 150Vdc to 1000Vdc.
4
200kW 240kW Complete kit for fast charging of battery systems with a voltage range between 250 – 500 VDC according to the standard CCS DC fast charge protocol.
5

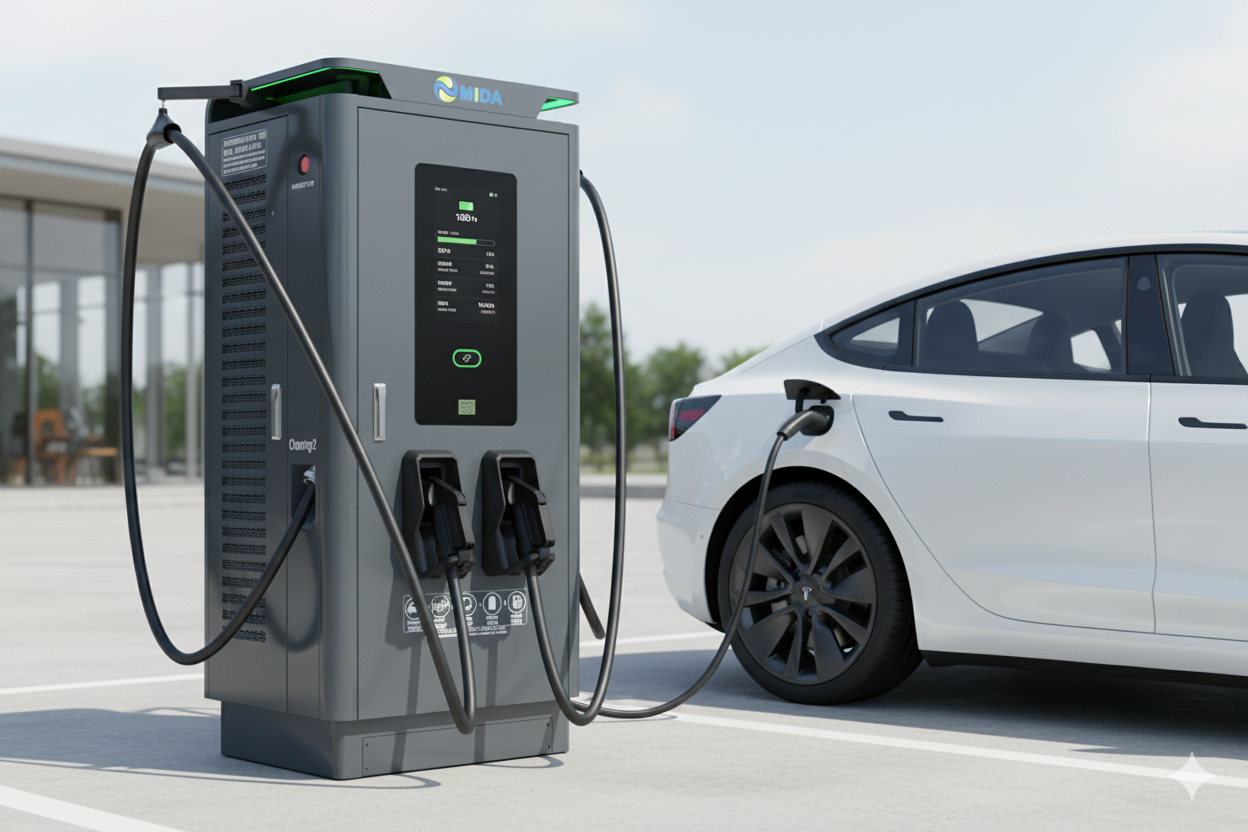

DC Electric Vehicle Charging Stations: 60kW, 120kW, 160kW, 180kW, 240kW, 300kW, and 360kW. These DC fast chargers are all-in-one charging stations designed for speed and ease of maintenance. Depending on the model, they offer power ranging from 140 to 500 amps. These integrated chargers integrate the distributor and power cabinet for easy installation, deployment, and cost savings, significantly reducing installation and maintenance costs.
Frequently Asked Questions
What charging standards do these DC fast chargers support?
These DC charging stations support multiple mainstream global standards including CCS (CCS 2), CHAdeMO, GB/T, and AC (Type-2) connectors, allowing multi-standard charging configurations.
Can the fast charger charge multiple electric vehicles simultaneously?

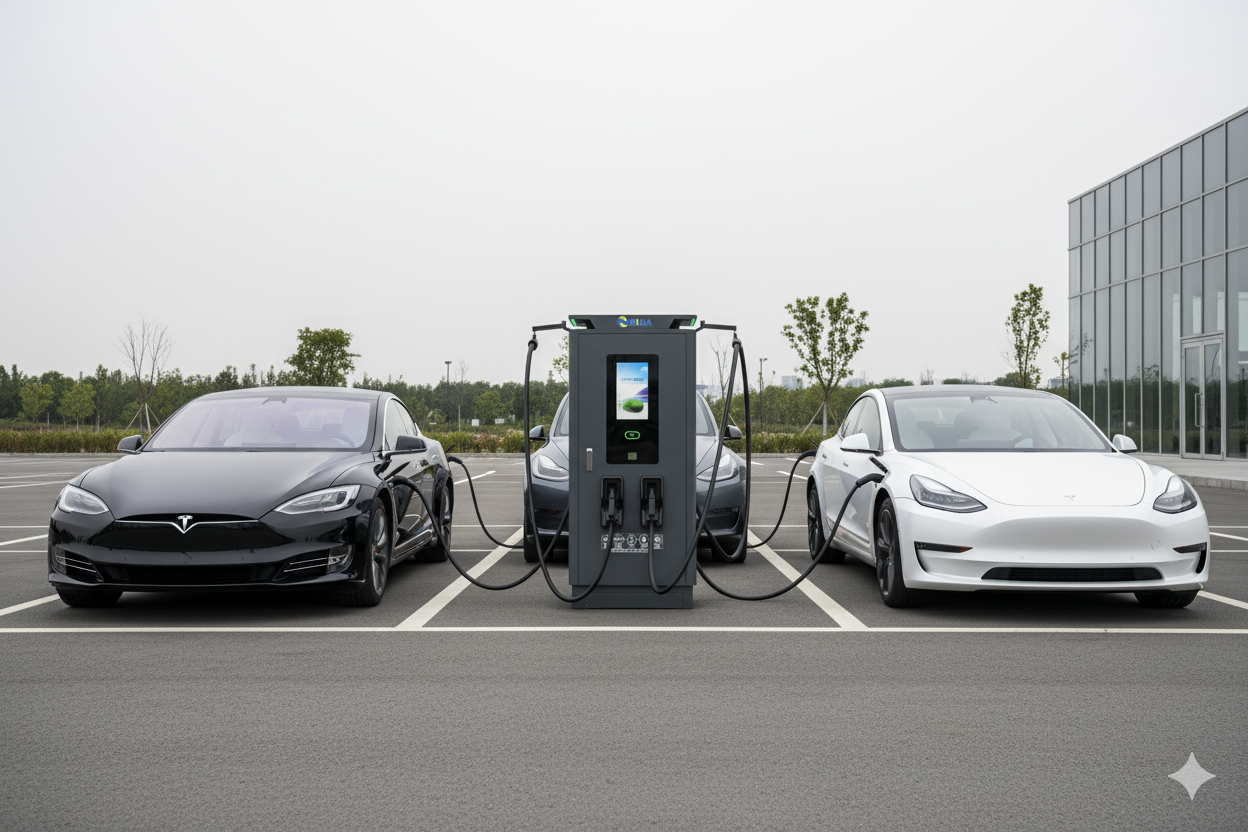

Yes, the systems support charging up to 3 vehicles at the same time through triple outlet ports. This setup generally features two DC cables and one AC cable for ultimate flexibility.
What is the protection rating and operational environment limits?
The chargers feature an IP54 protection class, enabling outdoor installation. They operate reliably within a temperature range of -30°C to +55°C with operating humidity ≤95% non-condensing.
What smart connectivity features and protocols are integrated?
The stations feature 4G, Ethernet, and Wi-Fi connectivity options and support OCPP 1.6J and OCPP 2.0 communication protocols. This enables dynamic load adjustment, smart charging management, and status monitoring.
What ranges of power capacities are available for selection?
A wide variety of configurations are available, ranging from 60kW, 120kW, 150kW, 160kW, 180kW, 200kW, 240kW, up to high-capacity stations of 300kW, 360kW, 400kW, and 480kW.
Does the charging station include a cable management option?
Yes, the charger can be optionally equipped with a cable management system that keeps the charging cable suspended off the ground. This minimizes wear and tear while reducing the physical effort required to plug in vehicles.
