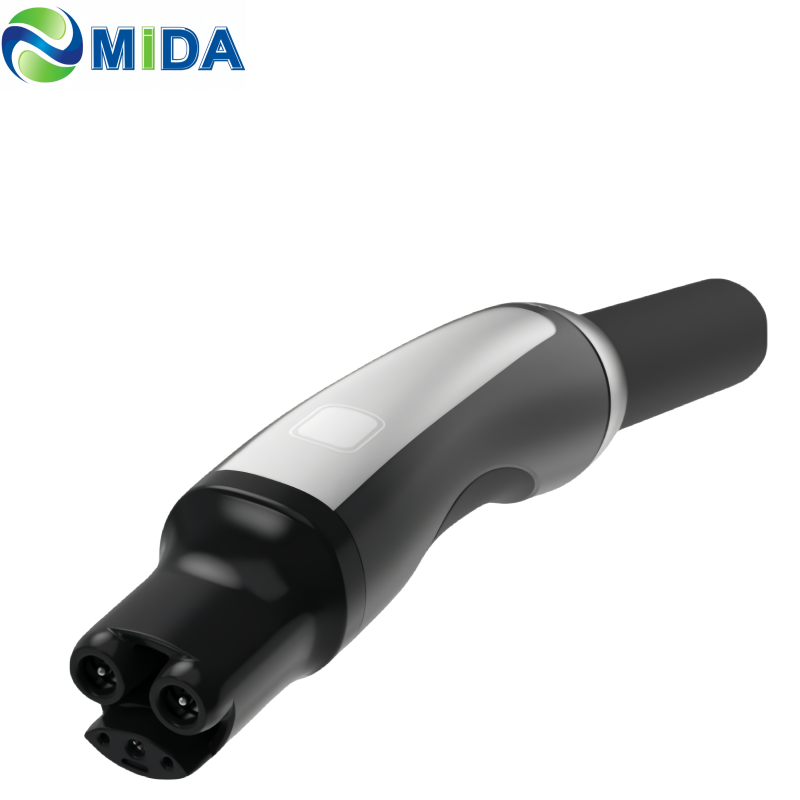

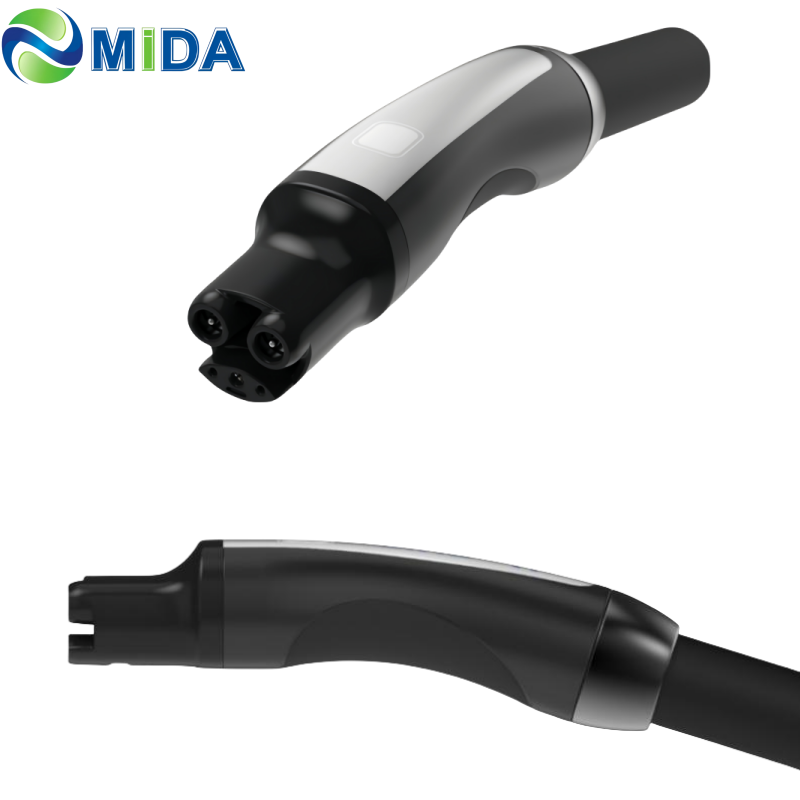

The 400A NACS Charging Cable is a high-performance direct current (DC) fast charging connector standard, formerly known as the Tesla charging connector. Since its implementation in 2012 and subsequent opening to other manufacturers in 2022, this connector has set industry benchmarks. Designed for 400-volt battery architectures, it is significantly more compact than other DC fast charging connectors. It is fully compatible with superchargers, currently supporting a rapid charge rate of up to 400kW.
Features a single button on the handle center. When depressed, it emits a UHF signal to command the vehicle to retract the latch or open the inlet door automatically.
Essential for charge point operators looking to serve new Ford and GM EVs. Enables conversion of CCS1 charger connectors to the NACS standard efficiently.
Supports up to 400A Tesla NACS connectivity, specifically engineered for high-demand supercharger stations.
| Features | 1. Meet NACS standard |
| 2. Concise appearance, support back installation | |
| 3. Protection Degree: IP67 | |
| 4. Max charging power: 400kW | |
| Mechanical Properties | 1. Mechanical life: no-load plug in/pull out > 10000 times |
| 2. External force impact: Affords 1m drop and 2t vehicle pressure | |
| Electrical Performance | 1. DC input: 400A 1000V DC MAX |
| 2. Insulation resistance: > 2000MΩ (DC1000V) | |
| 3. Terminal temperature rise: < 50K | |
| 4. Insertion / Withdrawal Force: < 90N | |
| 5. UV Resistance: F1 per UL 746C | |
| Applied Materials | 1. Case: Thermoplastic, flame retardant grade UL94 V-0 |
| 2. Pin: Copper alloy, silver + thermoplastic top | |
| Environment | Operating temperature: -40°C ~ +50°C |
Ultrasonic Welding Technology: This state-of-the-art technology ensures that the resistance of the EV tends to zero during charging. It significantly minimizes heat generation during the high-speed DC charging process.
Available in multiple ratings including 80A, 125A, 200A, 250A, 350A, and 400A. The connector supports up to 1,000-volt DC, making it the ideal choice for rapid and efficient electric vehicle charging.
The NACS Gun can withstand over 10,000 insertion cycles. It features integrated safety systems including short circuit protection, ground fault detection, and real-time temperature monitoring to ensure long-term operational safety and reduced maintenance costs.
Our 400A Gun supports full customization, from simple logo application to entire functional and appearance redesigns, backed by professional technical docking.
