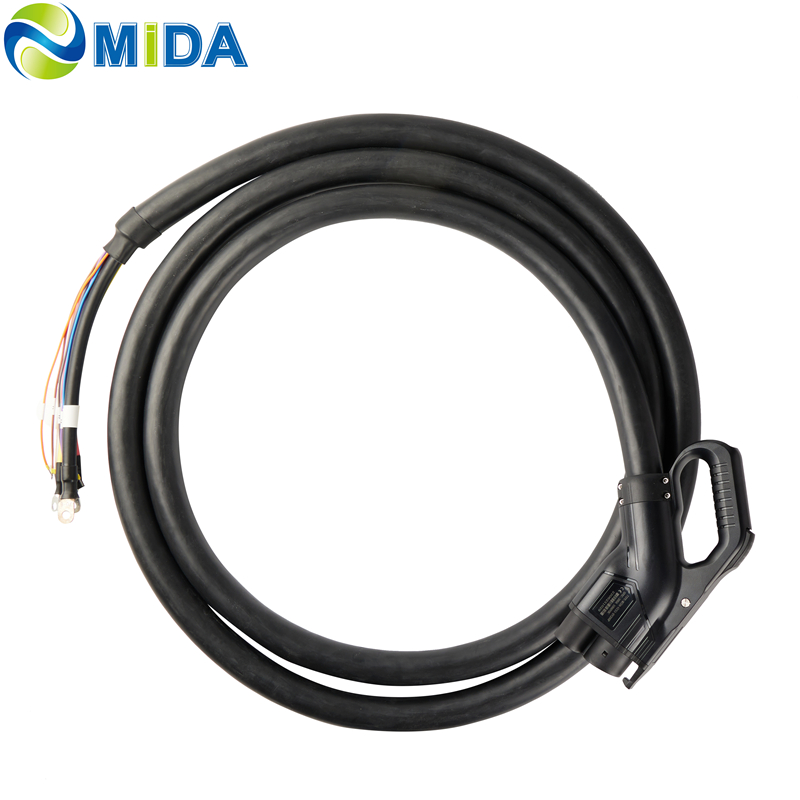

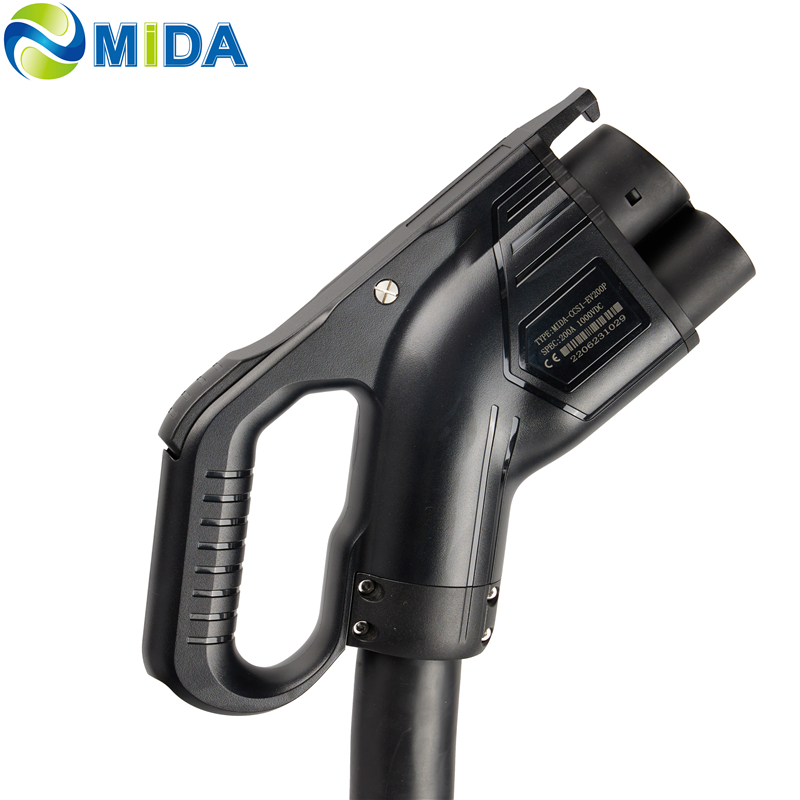

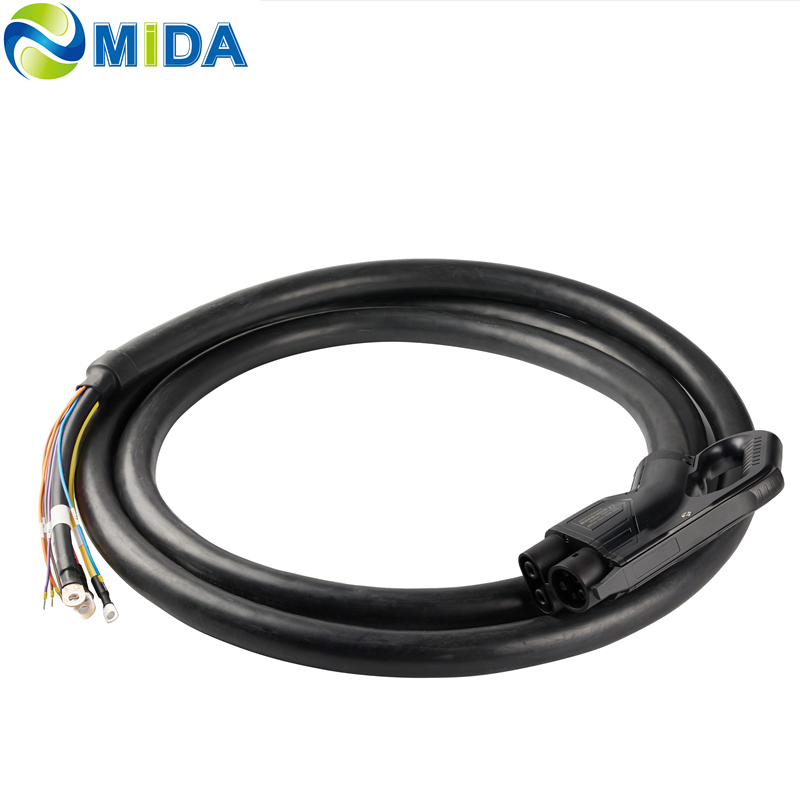

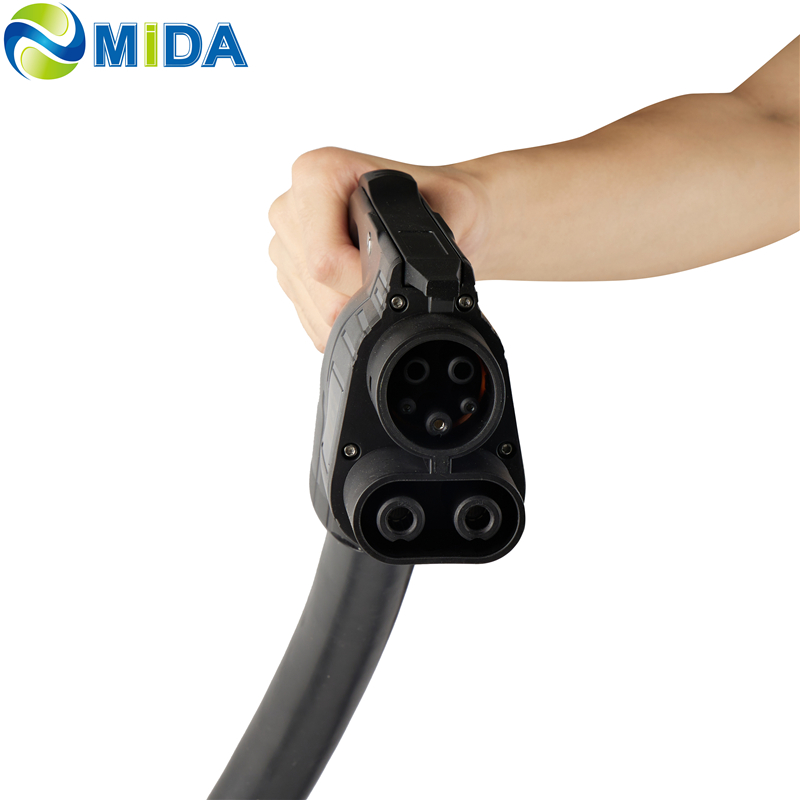

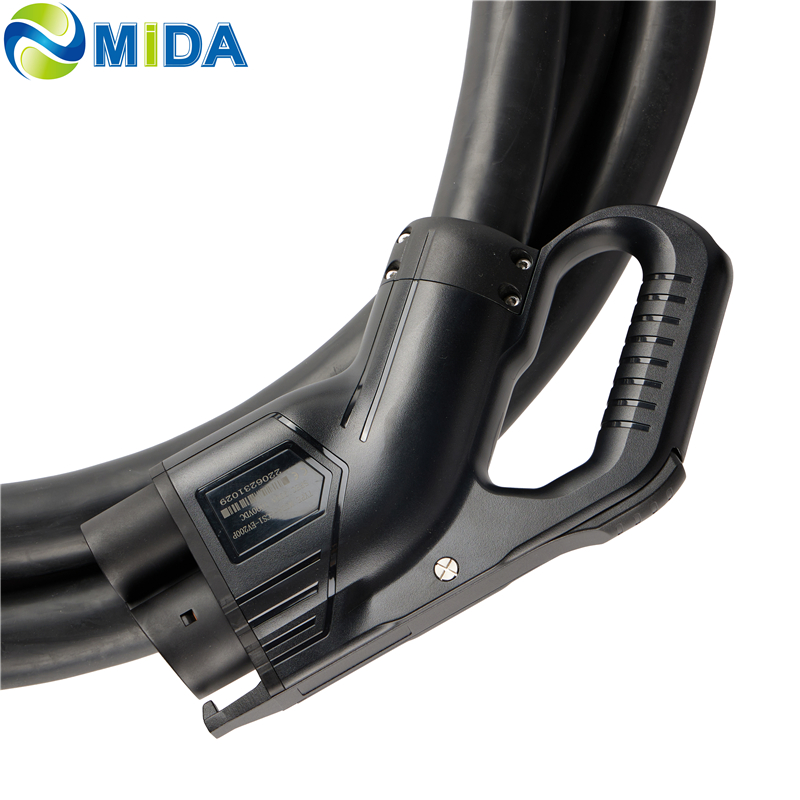

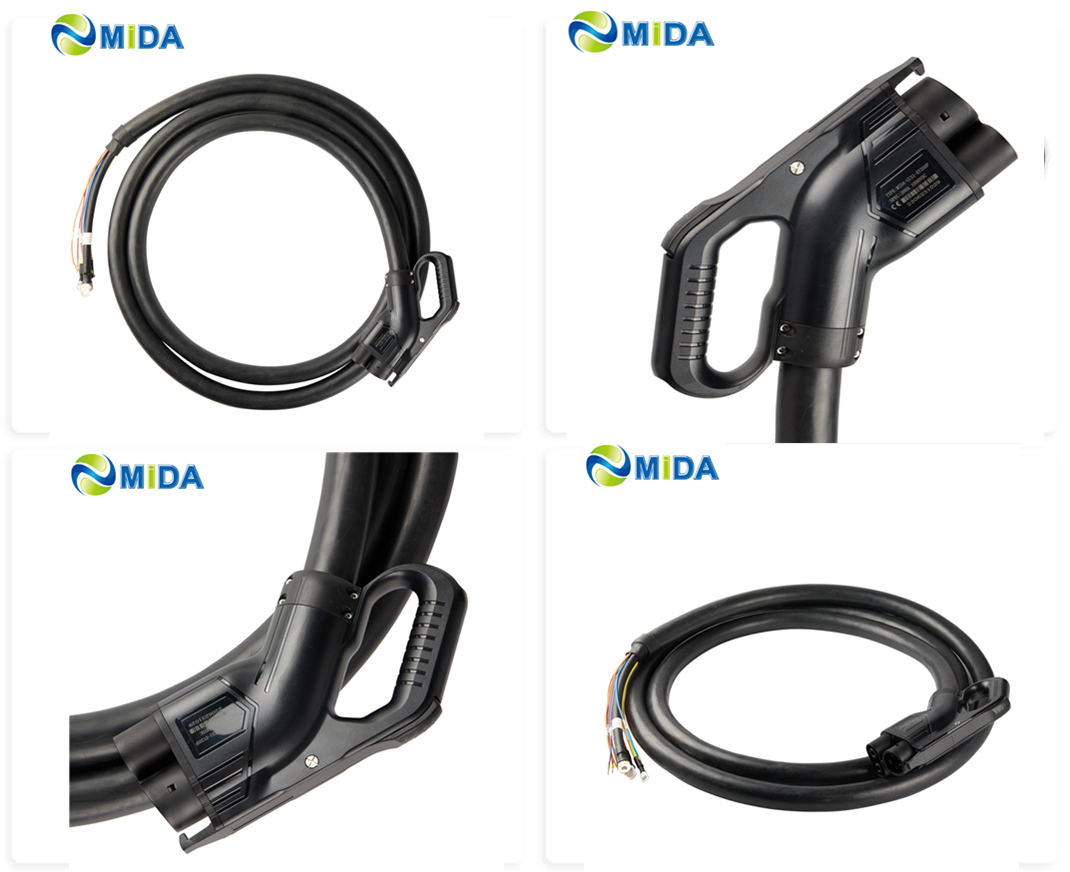

1. CCS1 EV plugs are available in 80A to 250A. It’s used in DC fast charging and complies with IEC 62196-3.
2. Combined Charging System (CCS1) is based on open and universal standards for electric vehicles. This CCS1 plug is used for direct-current charging at a maximum of 250 kW. Universally compatible, high-quality CCS1 Gun EV plugs are designed for 10,000+ charging cycles.
3. CCS1 Connector electric car charging plugs integrated temperature sensors (2pcs PT1000) for monitoring the temperature change at the power contacts (between DC+ and DC- terminals). Universally compatible, high-quality CCS1 Gun designed for 10,000+ charging cycles. The CCS1 Connector is developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001 standard. Available in 80A, 125A, 200A, and 250A configurations.
| Features | 1. Meet IEC 62196-3 standard 2. Concise appearance, support back installation 3. Back Protection class IP65 4. Max charging power: 80kW, 125KW |
| Mechanical Properties | 1. Mechanical life: no-load plug in/pull out > 10,000 times 2. Impact of external force: can afford 1m drop and 2t vehicle run over pressure |
| Electrical Performance | 1. DC input: 80A/125A 1000V DC MAX 2. Insulation resistance: > 2000MΩ (DC1000V) 3. Terminal temperature rise: < 50K 4. Withstand Voltage: 3200V 5. Contact resistance: 0.5mΩ Max |
| Applied Materials | 1. Case Material: Thermoplastic, flame retardant grade UL94 V-0 2. Pin: Copper alloy, silver + thermoplastic on the top |
| Environmental | Operating temperature: -30°C ~ +50°C |
Industrial Standard: The CCS1 DC charging connector is the industrial standard interface for fast charging of EV (Electric Vehicle) with charging stations. Complying with UL 2251, it offers a reliable and user-friendly high-power solution for DC fast charging.
Ultrasonic Welding Technology: This technology minimizes resistance during the charging process, reducing heat buildup and ensuring efficiency.
Voltage Rating: Rated for up to 1,000-volt DC, the 80A to 250A CCS1 connectors are ideal for rapid and efficient vehicle charging.
Safe Features: Integrated safety systems protect against overvoltage, overcurrent, and short circuits, with constant ground fault detection and temperature monitoring.
Quality Assurance: Designed for durability, these plugs withstand over 10,000 insertion cycles, significantly reducing long-term maintenance costs for charging operators.
OEM & ODM: Supports simple logo customization and full-scale appearance or functional modifications through professional technical support.
Versatility: Fully compatible with all CCS1 EV models on the market, from compact cars and SUVs to heavy trucks and buses.
