Tesla's NACS charge port and the company's extensive network of Superchargers are largely considered the gold standard, and it appears other automakers are ready to make Tesla's system the industry standard. In May 2023, Ford was the first to agree to team up with Tesla and adopt the 200A NACS plug; then the dominos started falling, with several other automakers recently announcing agreements with Tesla. The engineering group SAE International also announced that it will standardize the 200A NACS connector.

Send Inquiry

Product Description

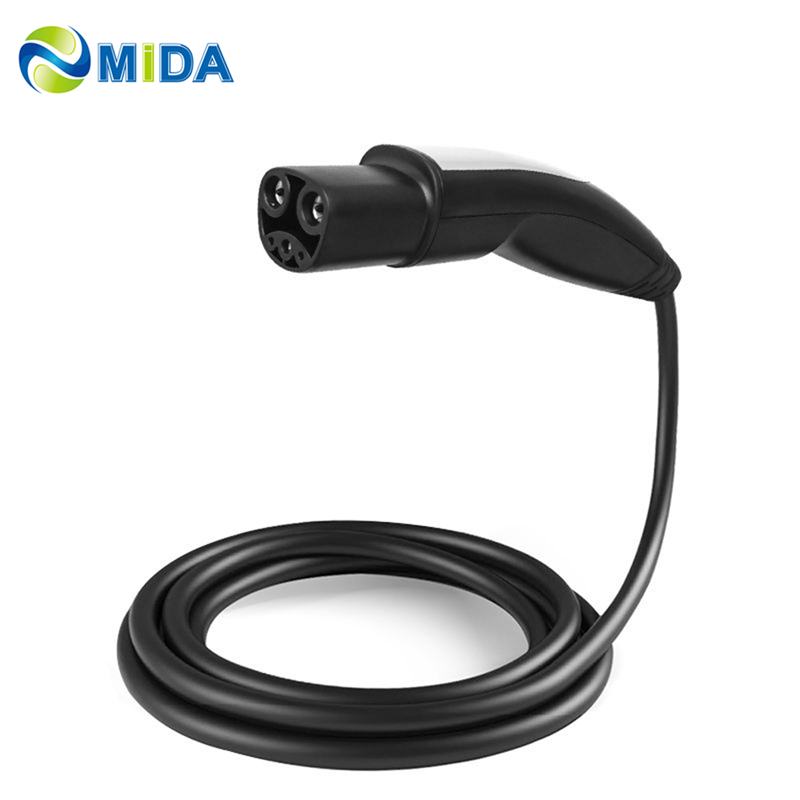

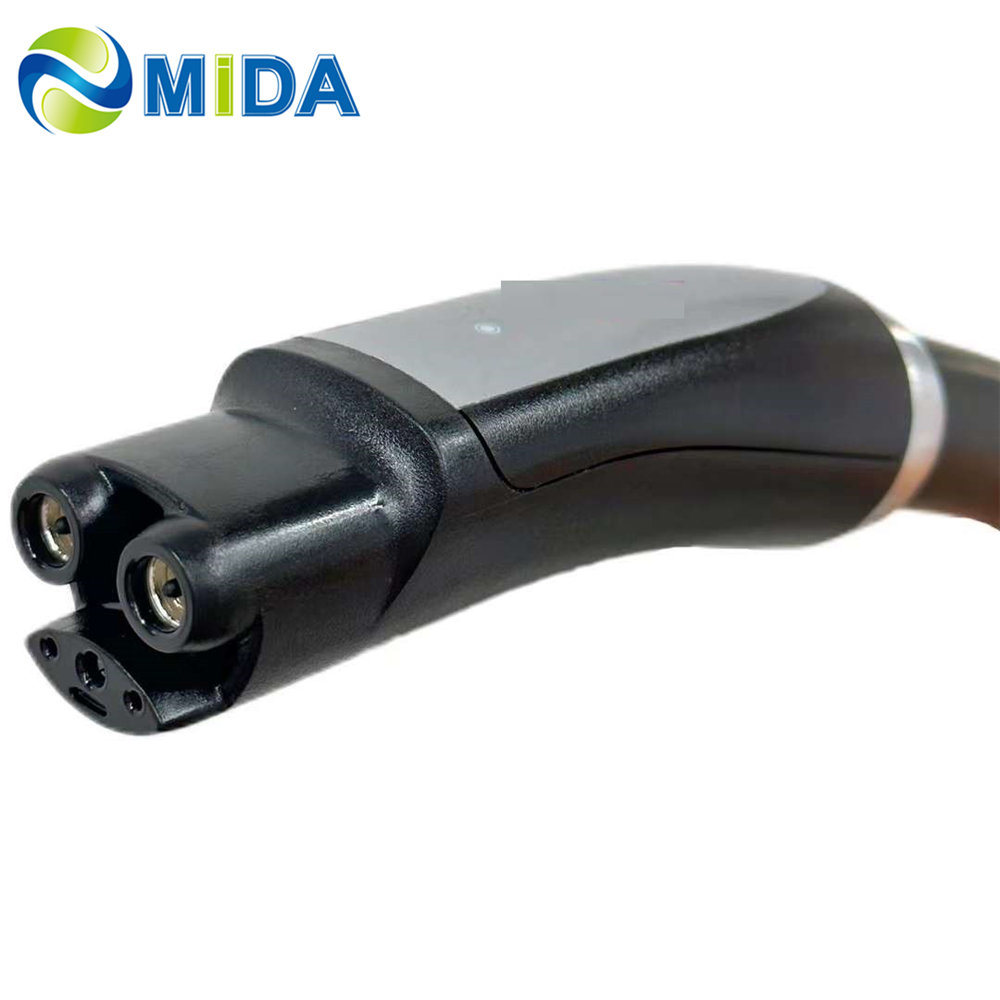

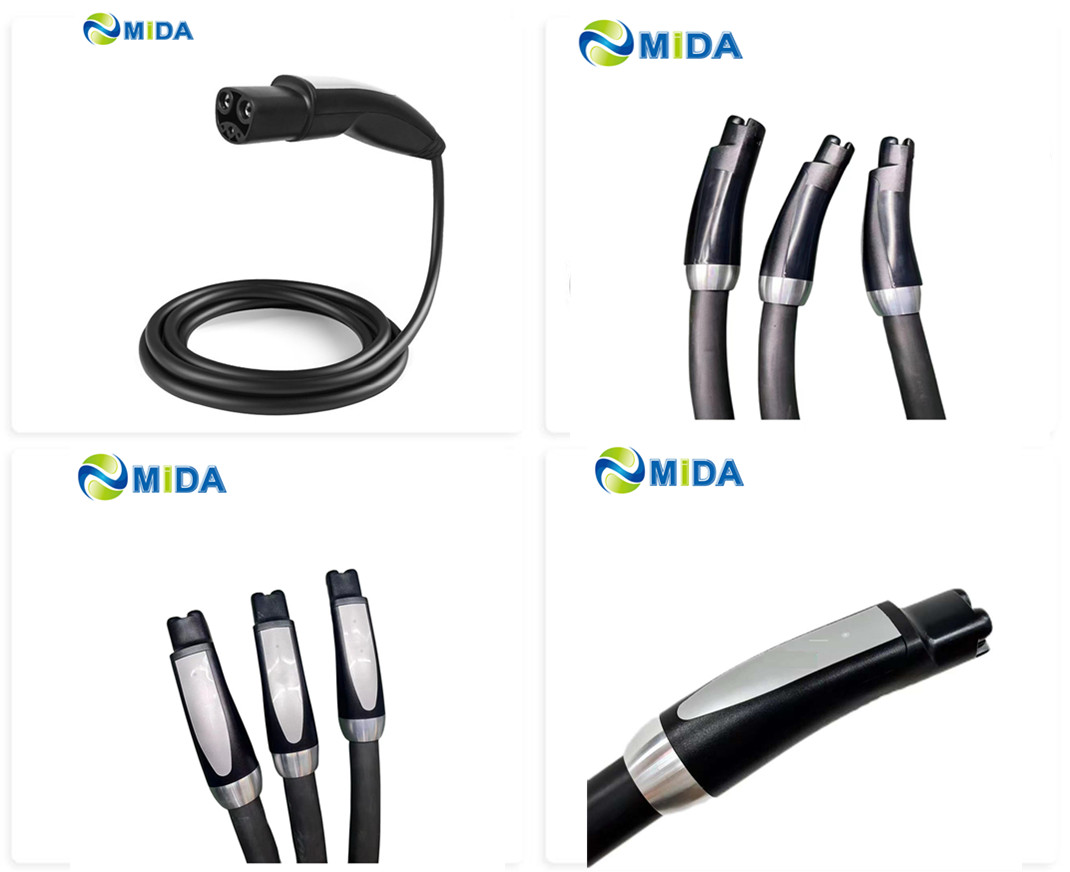

EV Charging Cable TESLA NACS Gun Features

NACS is Tesla’s previously proprietary direct current (DC) fast charging connector standard—formerly known simply as the “Tesla charging connector.” It has been used with Tesla cars since 2012 and the connector design became available to other manufacturers in 2022. It was designed for Tesla’s 400-volt battery architecture and is much smaller than other DC fast charging connectors. The NACS connector is used with Tesla superchargers, which currently charge at a rate of up to 250kW.

Product Features

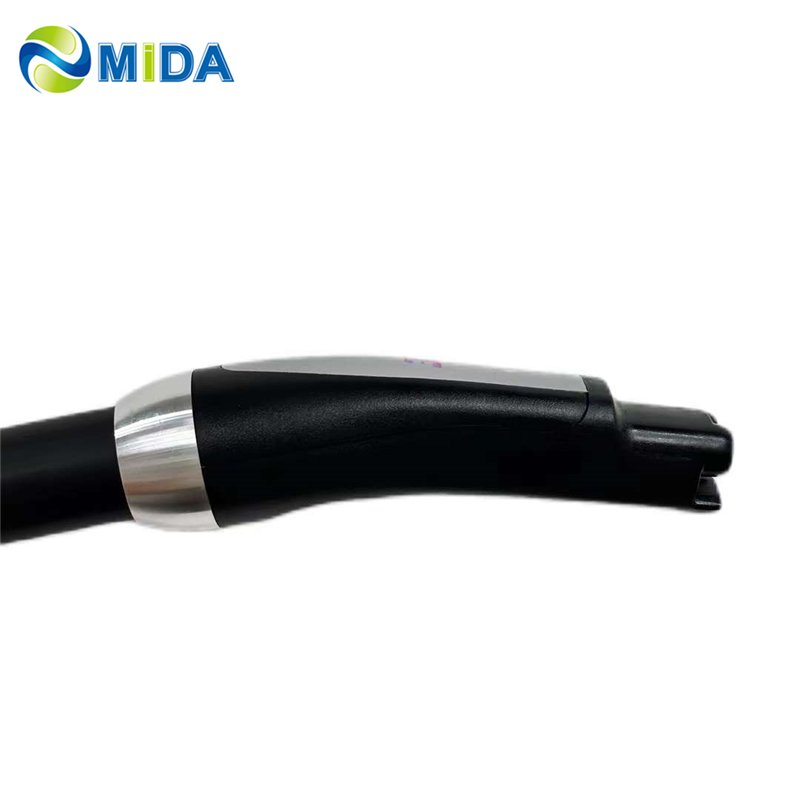

1. The 200A NACS connector has a single button located on the top center of the handle. When the button is depressed, a UHF signal is emitted. When the connector is locked in place, the signal commands the vehicle to retract the latch holding the connector in place. When the connector is not locked in place, the signal commands the nearby vehicle to open the door covering the inlet.

2. If charge point operators want to offer charging for new Ford and GM EVs, they’ll need to convert some of their CCS1 charger connectors to NACS. DC fast chargers like Tritium’s PKM150 will be able to accommodate NACS connectors in the near future.

3. Tesla Gun 200A Tesla NACS Connector, 200A Tesla NACS Plug.

Technical Specification

Features	1. Meet NACS standard
	2. Concise appearance, support back installation
	3. Back Protection class IP67
	4. Max charging power: 200kW
Mechanical Properties	1. Mechanical life: no-load plug in/pull out > 10000 times
Mechanical Properties	2. Impact of external force: 1m drop and 2t vehicle run over pressure
Electrical Performance	1. DC input: 200A 1000V DC MAX
	2. UV Resistance: F1 per UL 746C
	3. Insertion / Withdrawal Force: < 90N
	4. Withstand Voltage: 3200V
	5. Contact resistance: 0.5mΩ Max
Applied Materials	1. Case Material: Thermoplastic, flame retardant grade UL94 V-0
Applied Materials	2. Pin: Copper alloy, silver + thermoplastic on the top
Environmental	Operating temperature: -40°C~+50°C

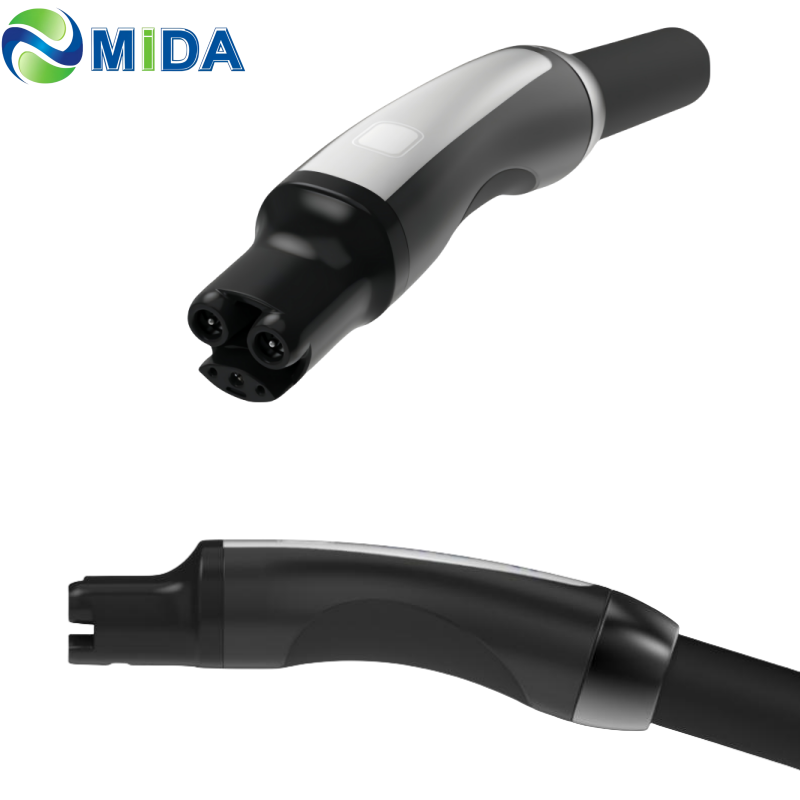

Physical Design

The 200A TESLA Gun is an EV connector complies with the standard of NACS. It is used with superchargers charging at up to 200kW.

Ultrasonic Welding

This technology makes the resistance tend to zero, reducing heat generation during the DC charging process significantly.

Voltage Rating

Available in 80A, 125A, 200A, and 250A. With a 1,000-volt DC maximum rating, it ensures quick and efficient vehicle charging.

Quality Assurance

Plugs withstand more than 10,000 cycles. Durable and wear-resistant, reducing long-term maintenance costs for charging enterprises.

Safe Features

Protects against overvoltage, overcurrent, and short circuits. Includes ground fault detection and temperature monitoring.

OEM & ODM

Supports logo customization as well as full function and appearance design. Professional technical docking is available.

Versatility and Compatibility

The 200A TESLA plug is compatible with all TESLA EV models on the market today. Whether you own a compact electric car, a powerful electric SUV, a heavy truck, a bus, or a commercial electric vehicle, our TESLA plug is designed to meet your DC fast charging needs.

Enhanced Safety Features

Ultrasonic welding technology is used between the conductive terminal and the cable, ensuring contact resistance tends to zero. Built-in temperature sensors ensure the charging process remains safe while extending the product's service life.

Frequently Asked Questions

Q1: What is the maximum charging power of the NACS connector?

A1: The NACS connector supports a maximum charging power of up to 200kW for the 200A model, and can handle up to 250kW in specific supercharger configurations.

Q2: Is this charging gun compatible with non-Tesla vehicles?

A2: Yes, as more manufacturers like Ford and GM adopt the NACS standard, this connector can be used with those vehicles through appropriate charger conversions.

Q3: How durable is the TESLA NACS connector?

A3: The plug is designed for heavy-duty use, rated for over 10,000 insertion and withdrawal cycles, and can withstand a 2-ton vehicle run-over pressure.

Q4: What safety protections are built into the handle?

A4: It includes integrated temperature sensors, short circuit protection, ground fault detection, and overvoltage/overcurrent safeguards.

Q5: Can the handle control the vehicle's charging port?

A5: Yes, the integrated button emits a UHF signal that can command the vehicle to open the charge port door or release the connector latch.

Q6: What is the benefit of Ultrasonic Welding in this cable?

A6: Ultrasonic welding reduces contact resistance to nearly zero, which prevents overheating during high-current DC charging and extends the product's lifespan.
