| Electrical Parameter | 16A Max | 32A Max |
| Three phase input: nominal voltage 3×230VAC 50-60 Hz | ||
| 11 kW at 3x230VAC | 22 kW at 3x 230 VAC | |
| Input Cord | Hard wired by licensed electrician | |

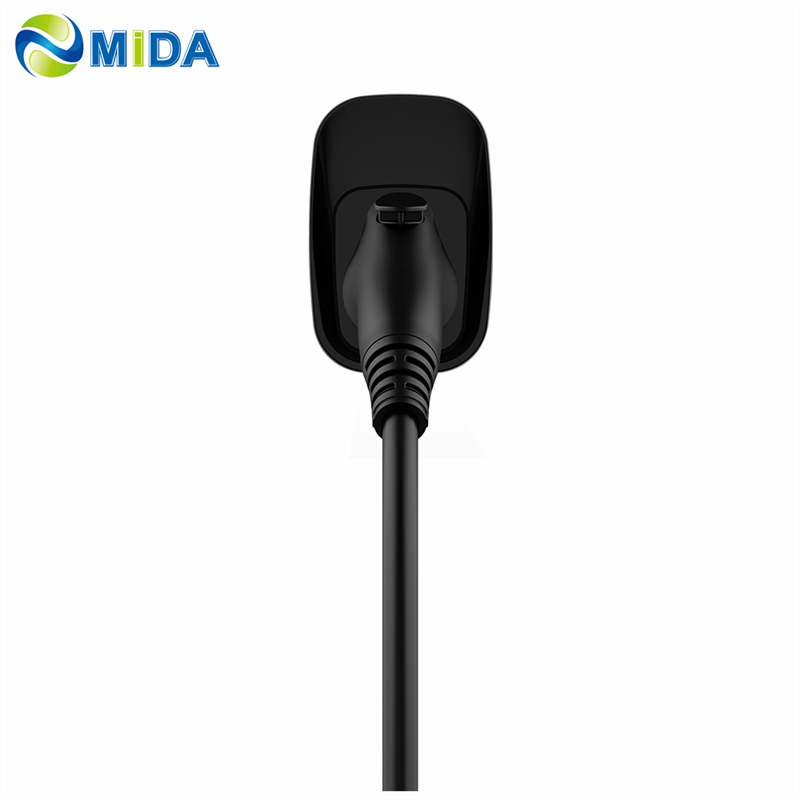

| Output Cable & Connector | 16.4FT/5.0 m cable (26.2FI/8.0m optional) | |
| IEC62196-2 standard compliance | ||
| Smart Grid Connectivity | Built-in Wi-Fi (Optional)(802.11 b/g/n/2.4GHz)/Bluetooth Connectivity | |
| Firmware | Over-the-air (OTA) upgradeable firmware | |
| Environmental Parameter | Dynamic LED lights show charging status standby, charging in progress, fault indicator, network connectivity | |
| 4.3" LCD Screen | ||
| Protection Class IP65: Weatherproof, dust-tight | ||
| IK08: Resistant polycarbonate case | ||
| Quick-release wall mounting bracket included | ||
| Operating Temperature: -22°F to 122°F (-30°C to 50°C) | ||
| Dimension | Main enclosure: 9.7in x 12.8in × 3.8in (247mm × 326mm × 97mm) | |
| Codes & Standards | IEC 61851-1 / IEC 61851-21-2 / IEC 62196-2 compliance, OCPP 1.6 | |
| Certification | CE / UKCA / SAA compliance | |
| Energy Management | Home power balancing (Optional) | |
| RFID | Optional | |
| 4G Module | Optional | |
| Socket | Optional | |
| Warranty | 3 years limited product warranty | |
Perfect for homeowners who own a single electric vehicle and want a reliable and convenient way to charge at home. Its compact design and high charging power make it an excellent choice for home use.
Can be installed at workplaces, such as offices or factories, to provide employees with a convenient way to charge their electric vehicles while they work.
Ideal for public areas, such as roadsides or public parking lots, providing electric vehicle owners with a convenient charging option while they are out and about.
Businesses operating electric vehicle fleets benefit from high charging power (11KW/22KW), quickly preparing vehicles to keep your fleet productive.

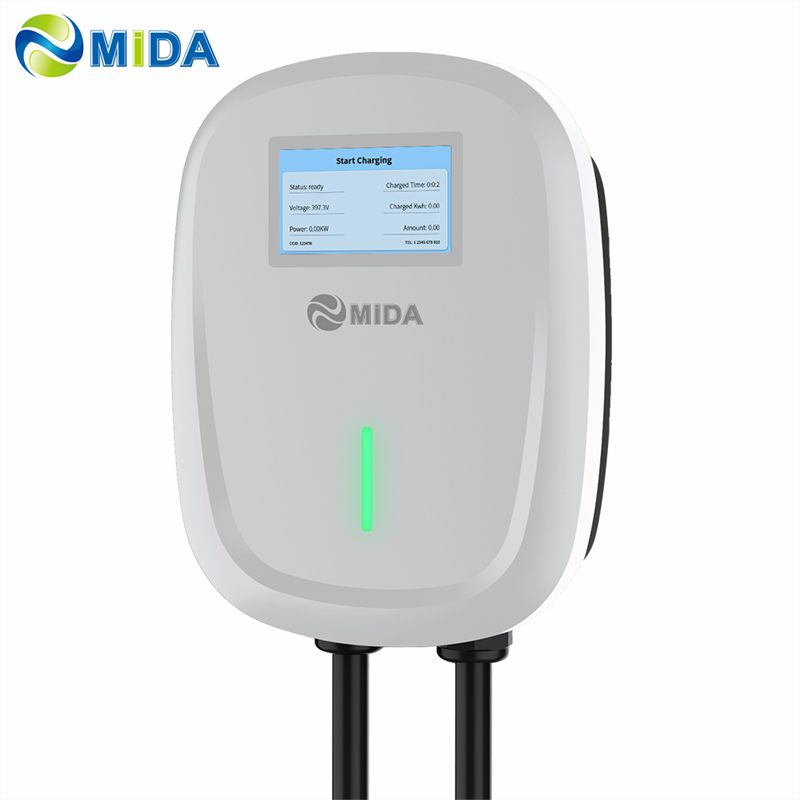

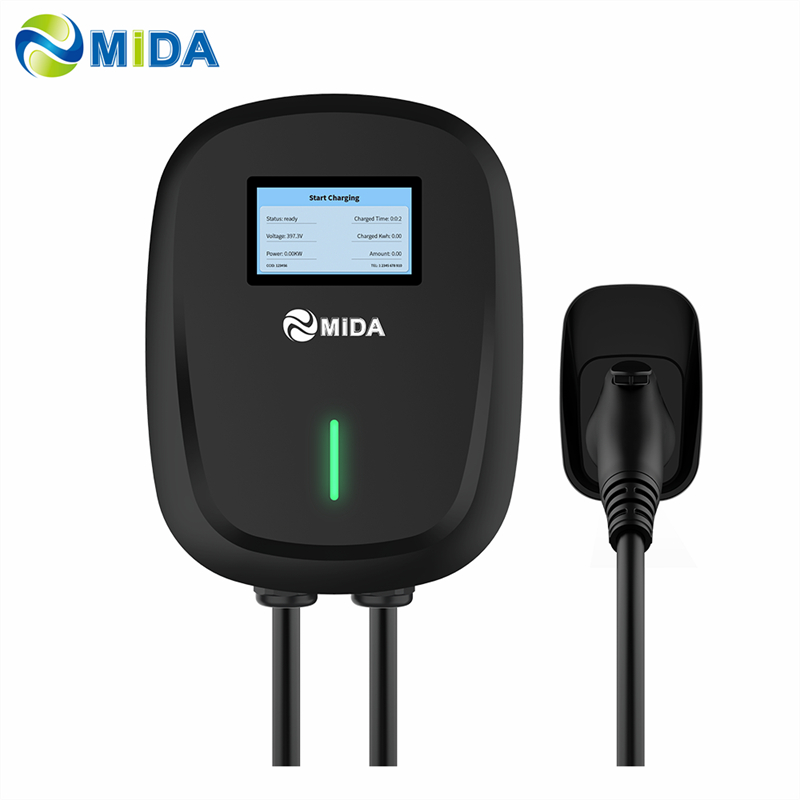

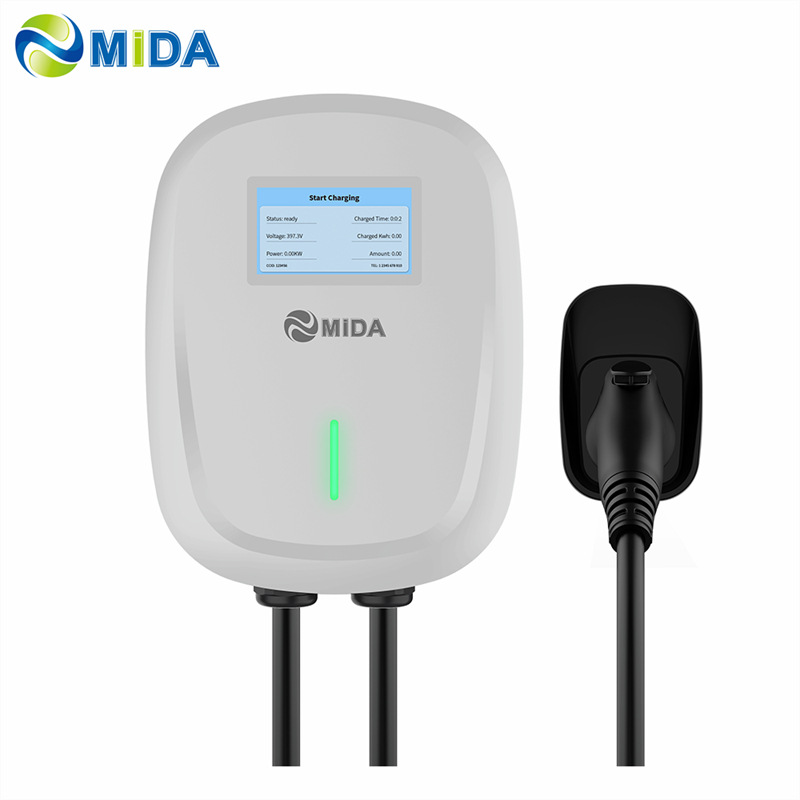

Overall, this single gun smart AC EV wall box charger is a versatile and reliable charging solution that can be used in various applications, making it an excellent investment for electric vehicle owners and businesses alike.
