CCS2 EV Charging Cable Gun Features
⚡
Product Introduction
The high-performance 250A, 300A, 350A, and 375A CCS2 EV plugs are specifically engineered for DC fast charging, complying strictly with IEC 62196-3 (EN 62196-3) standards.
The Combined Charging System (CCS) is built upon open and universal standards for electric vehicles globally.
The 350A CCS Type 2 plug is designed for direct-current charging at a maximum of 350 kW. These universally compatible, high-quality CCS2 Gun EV plugs are tested for over 10,000+ charging cycles, ensuring long-term reliability.

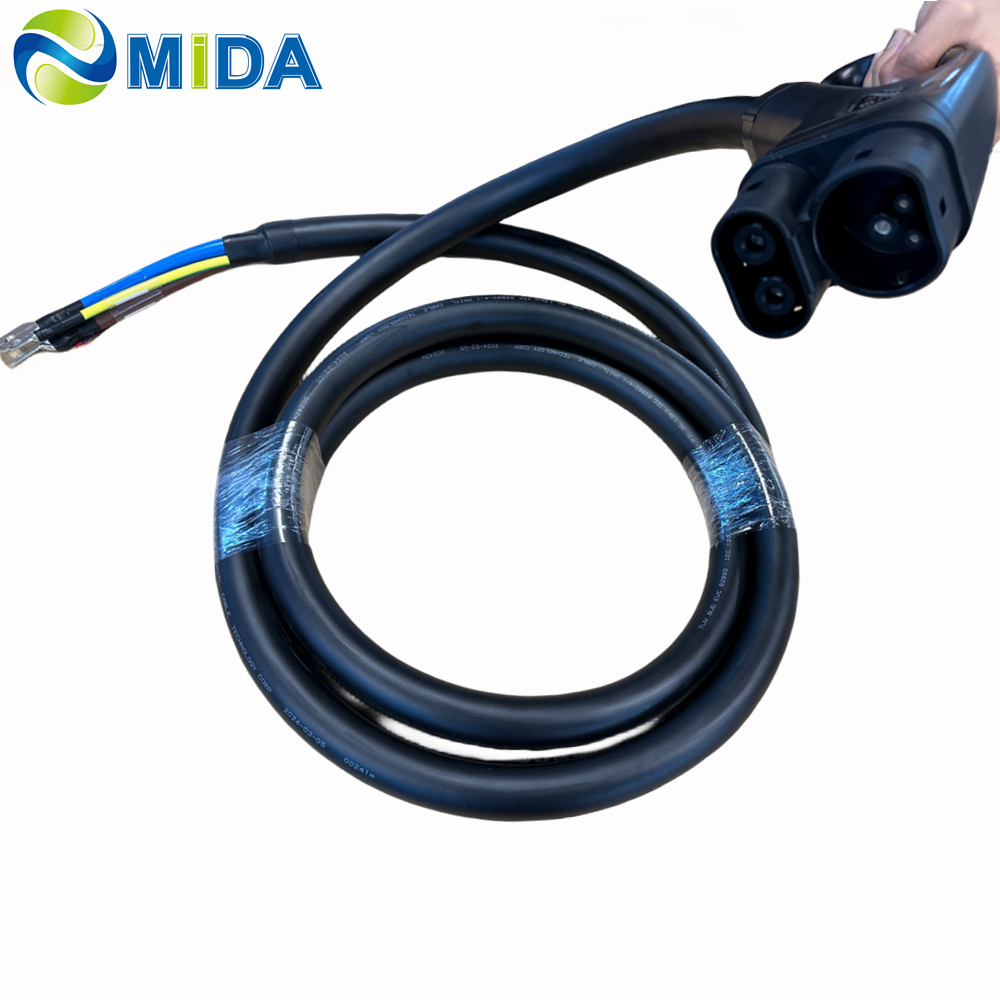

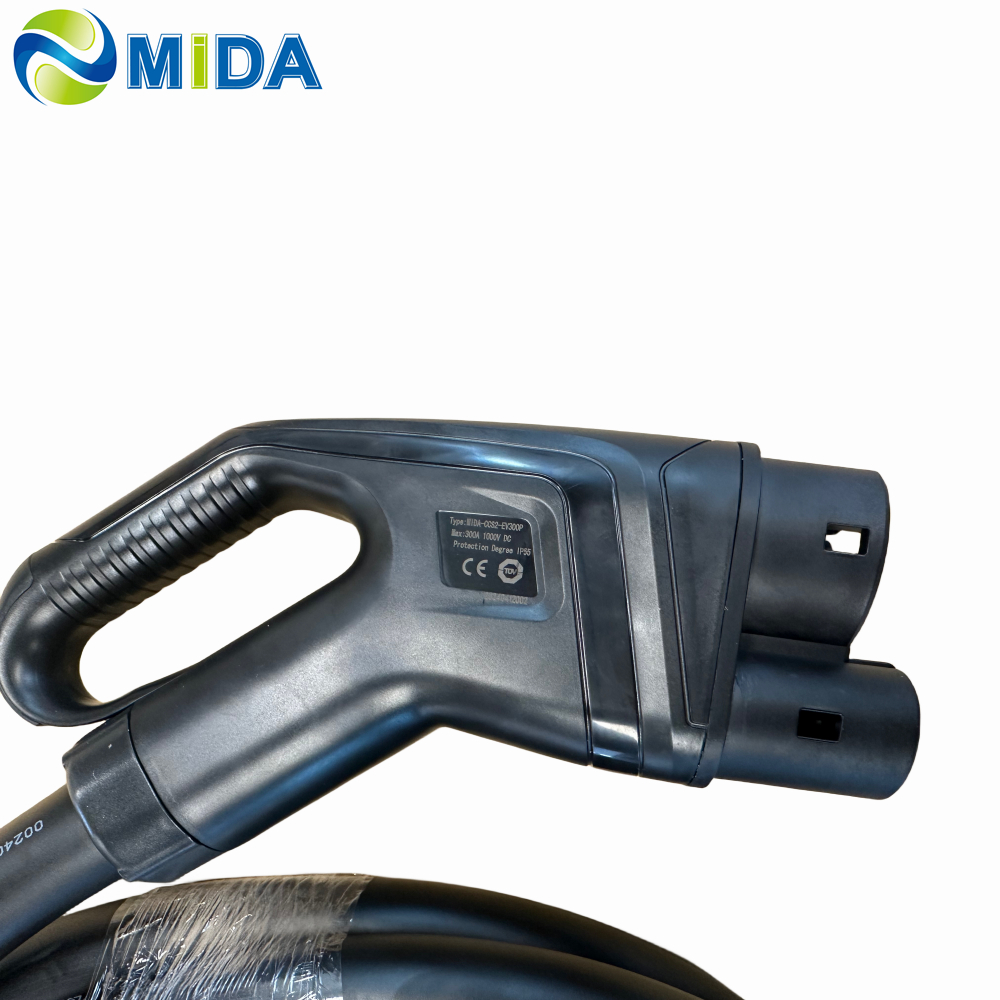

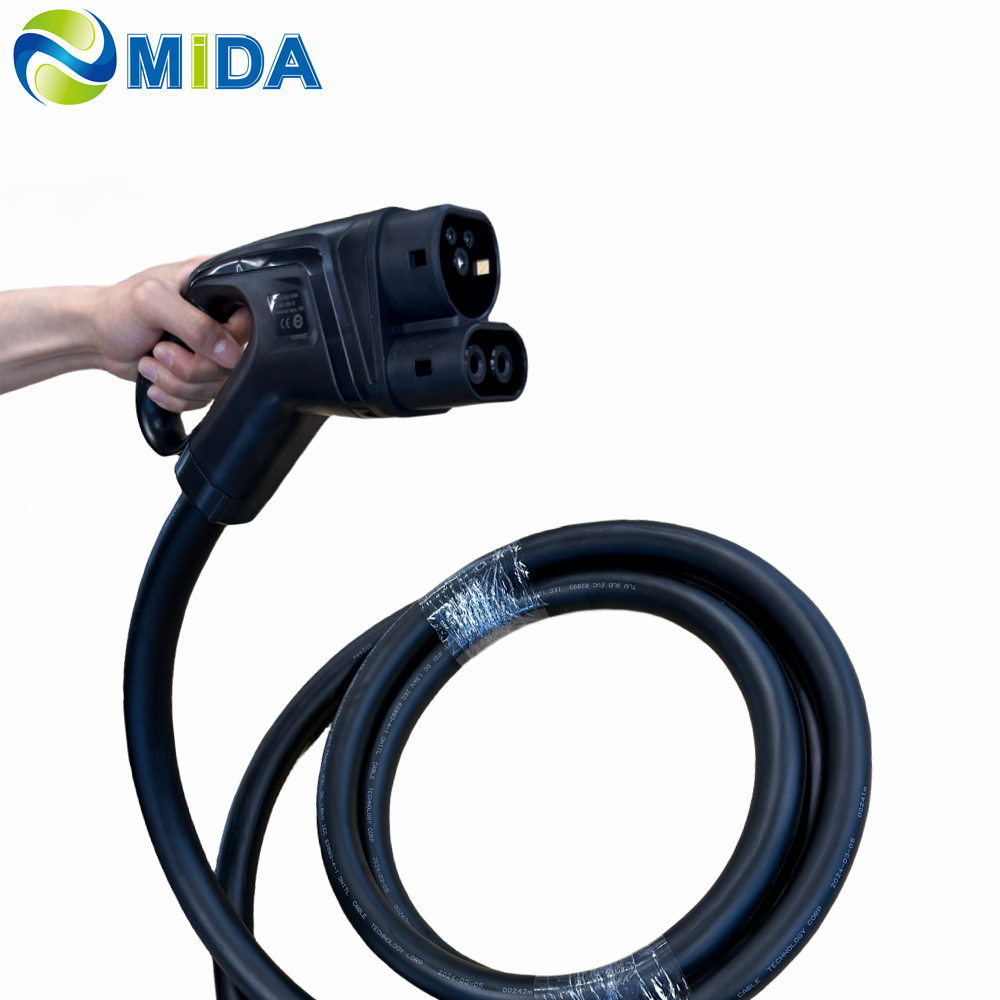

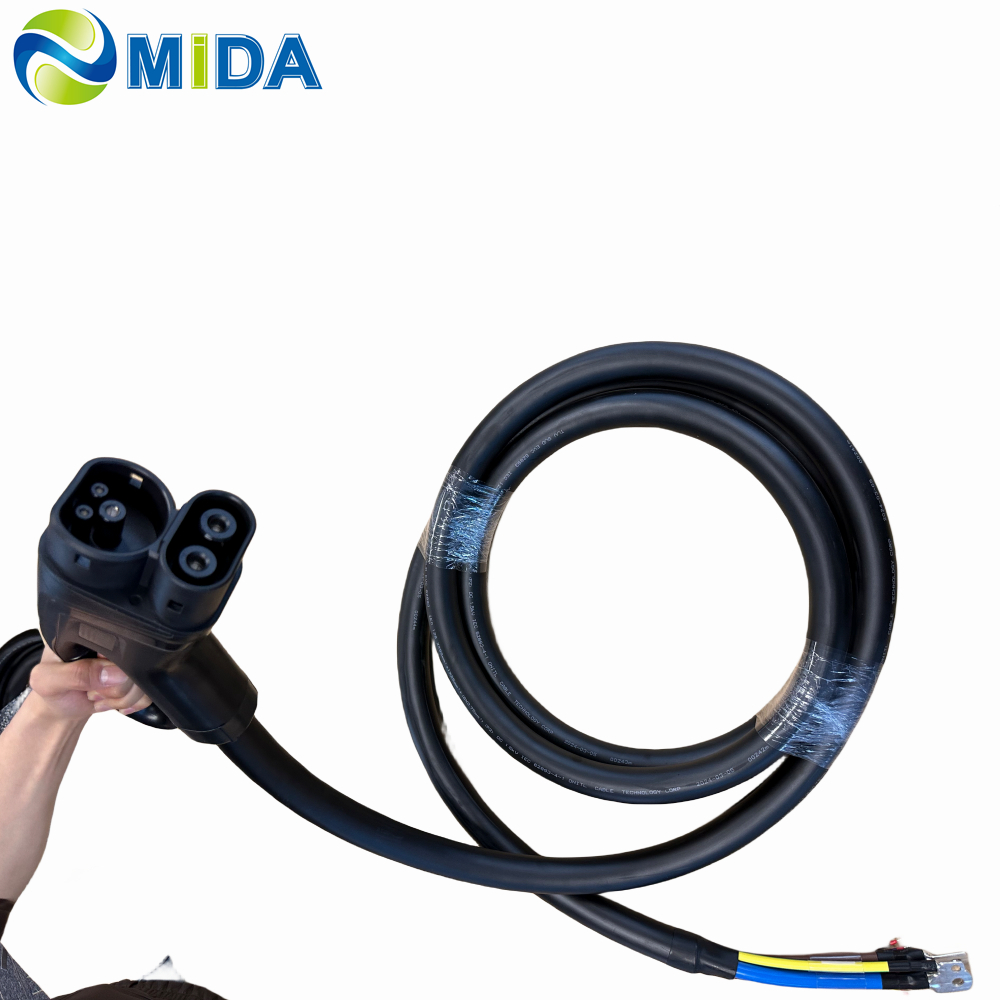

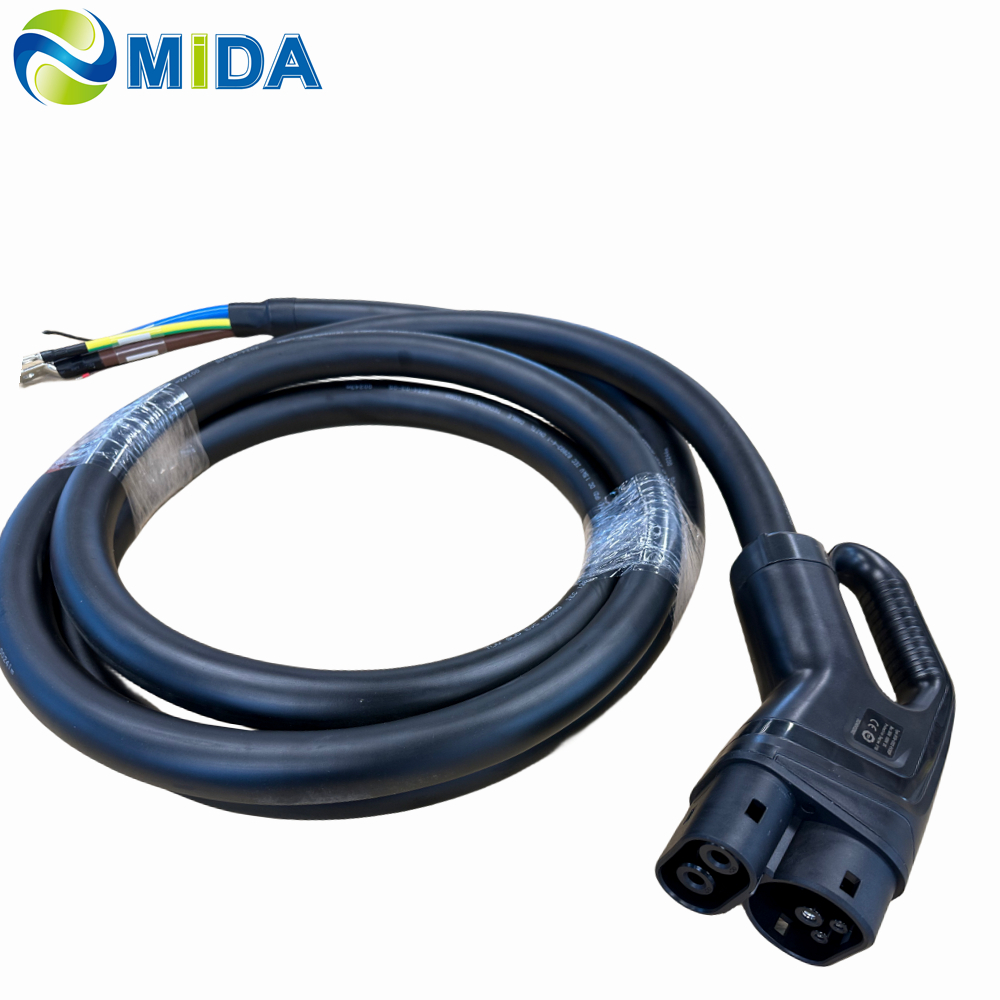

Product Pictures
Core Technical Advantages
The 300A 350A CCS 2 Connectors feature integrated dual temperature sensors (2pcs PT1000) for real-time monitoring of temperature changes at the power contacts (between DC+ and DC- terminals). Developed and produced in accordance with IATF 16949 and ISO 9001 automotive standards, these connectors offer unmatched safety and performance.
🚀 High Efficiency
Convenient charging for both Plug-in Hybrid Electric Vehicles (PHEV) and full Battery Electric Vehicles (BEV).
🛡️ Durability
Utilizes proprietary silver-plated contacts to ensure long-life durability across diverse environments in Europe, Asia, and Australia.
❄️ Cooling Systems
Available in both Air Cooling and Liquid Cooling configurations to support ultra-fast 400A and 500A charging requirements.
🔗 Ultrasonic Welding
Advanced ultrasonic welding technology reduces contact resistance to nearly zero, preventing heat buildup during high-power DC charging.
Technical Specifications
| 1. Meet 62196-3 IEC 2011 SHEET 3-Im standard |
| 2. Concise appearance, support back installation |
| 3. Back Protection class IP55 |
| 4. Max charging power: 300kW/350kW |
| 5. AC Max charging power: 45.36kW |
| 1. Mechanical life: no-load plug in/pull out > 10000 times |
| 2. Impact of external force: can afford 1m drop and 2t vehicle run over pressure |
| 1. DC input: 250A/300A/350A 1000V DC MAX |
| 2. AC input: 16A 32A 63A 240/415V AC MAX |
| 3. Insulation resistance: > 2000MΩ (DC1000V) |
| 4. Terminal temperature rise: < 50K |
| 5. Withstand Voltage: 3200V |
| 6. Contact resistance: 0.5mΩ Max |
| 1. Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
| 2. Pin: Copper alloy, silver + thermoplastic on the top |
| 1. Operating temperature: -30°C to +50°C |
Detailed Capabilities
Voltage Rating
Supports up to 1,000-volt DC maximum, making it ideal for rapid and efficient vehicle charging.
Safety Features
Equipped with short circuit protection, ground fault detection, and real-time temperature monitoring.
Quality Assurance
Designed to withstand more than 10,000 plugging cycles, reducing maintenance costs for charging operators.
OEM & ODM
Supports logo customization and full appearance or functional adjustments tailored to brand requirements.
High Power Ratings
Exceptional capacity for 300A, 350A, 400A, and 500A, significantly reducing station dwell time.
Compatibility
Compatible with all CCS2 EV models, including compact cars, SUVs, heavy trucks, buses, and commercial vehicles.
Frequently Asked Questions (FAQ)
1. What is the standard compliance for the CCS2 charging gun?
The connector complies with the IEC 62196-3 (EN 62196-3) international standard for Combined Charging Systems.
2. How many charging cycles is the plug rated for?
The CCS2 gun is designed for a high mechanical life, capable of exceeding 10,000+ no-load plug-in and pull-out cycles.
3. Does the plug have safety protection against overheating?
Yes, it features integrated dual PT1000 temperature sensors that monitor the heat at the DC+ and DC- power contacts to ensure safe operation.
4. Can this connector be used for ultra-fast charging?
Absolutely. With support for up to 1000V DC and currents reaching 500A (using liquid cooling), it is optimized for high-power DC fast charging.
5. What materials are used in the construction?
The casing is made of UL94 V-0 grade flame-retardant thermoplastic, and the pins are silver-plated copper alloy for maximum conductivity.
6. Is the plug compatible with both AC and DC charging?
Yes, the CCS2 (Combined Charging System) design uses separate pins to support both AC and DC charging modes in a single connector.
