Product Introduction
20kw 30kw 40kw Portable quick charger supports CCS and CHAdeMO only by replace the cable. USB for firmware update and RJ45 port for internet connect(optional). Open door design, it is convenient to replace power module. This charger is perfect to install for charging electric vehicle at maximum speed as well as many EV cars take in road trips through rural areas with RV or industrial areas being the main power sources for ev travelers.

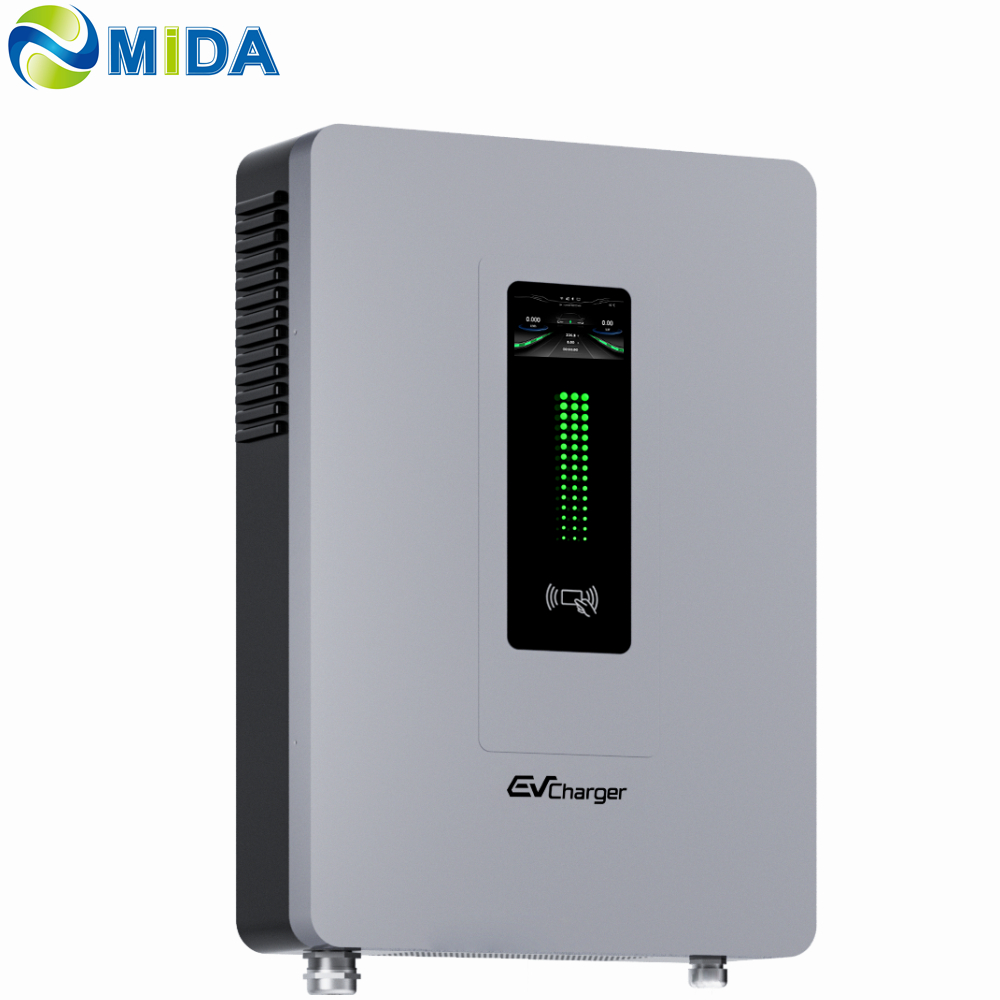

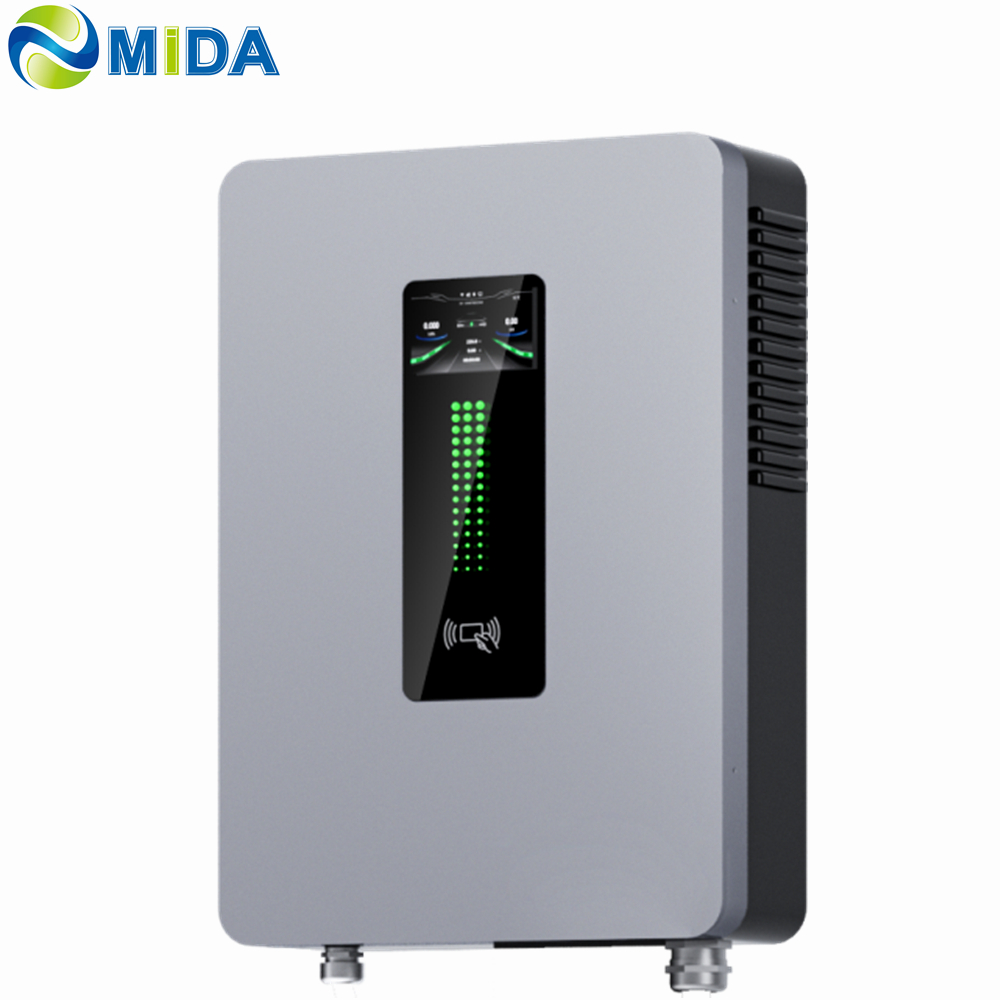

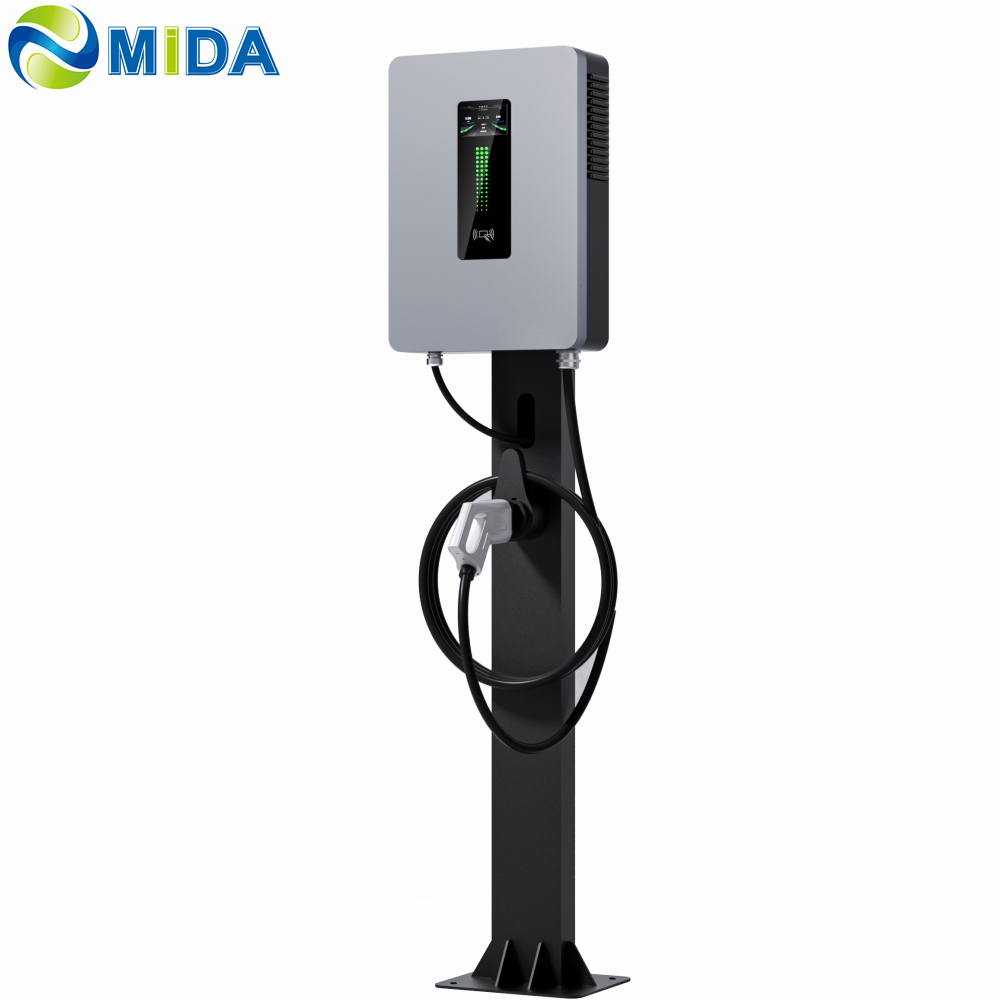

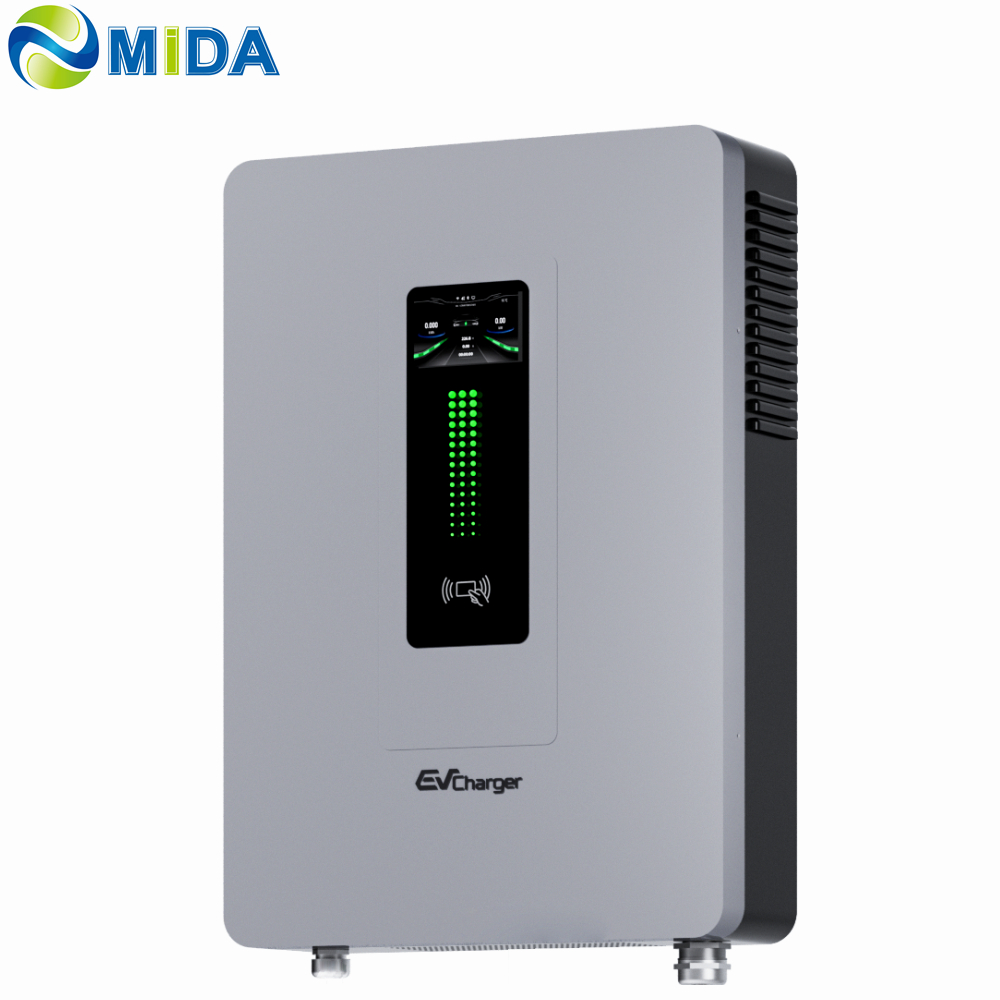

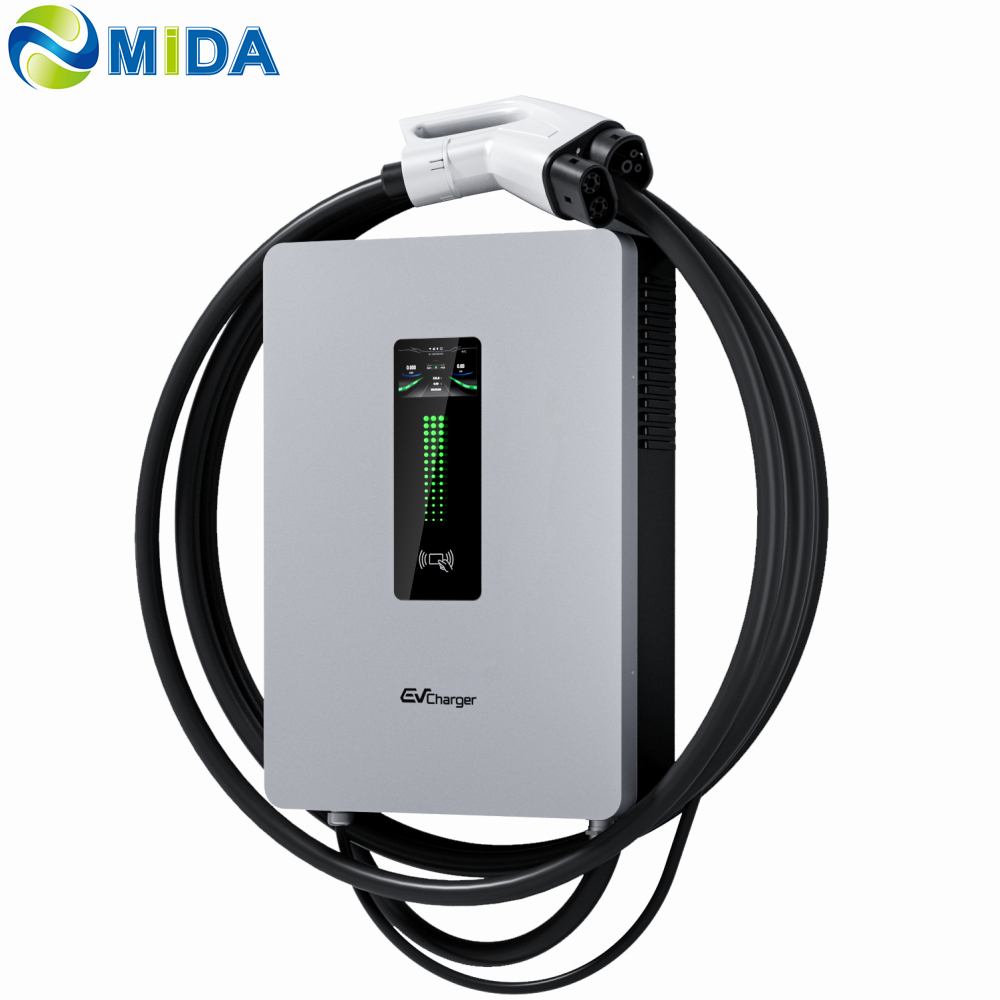

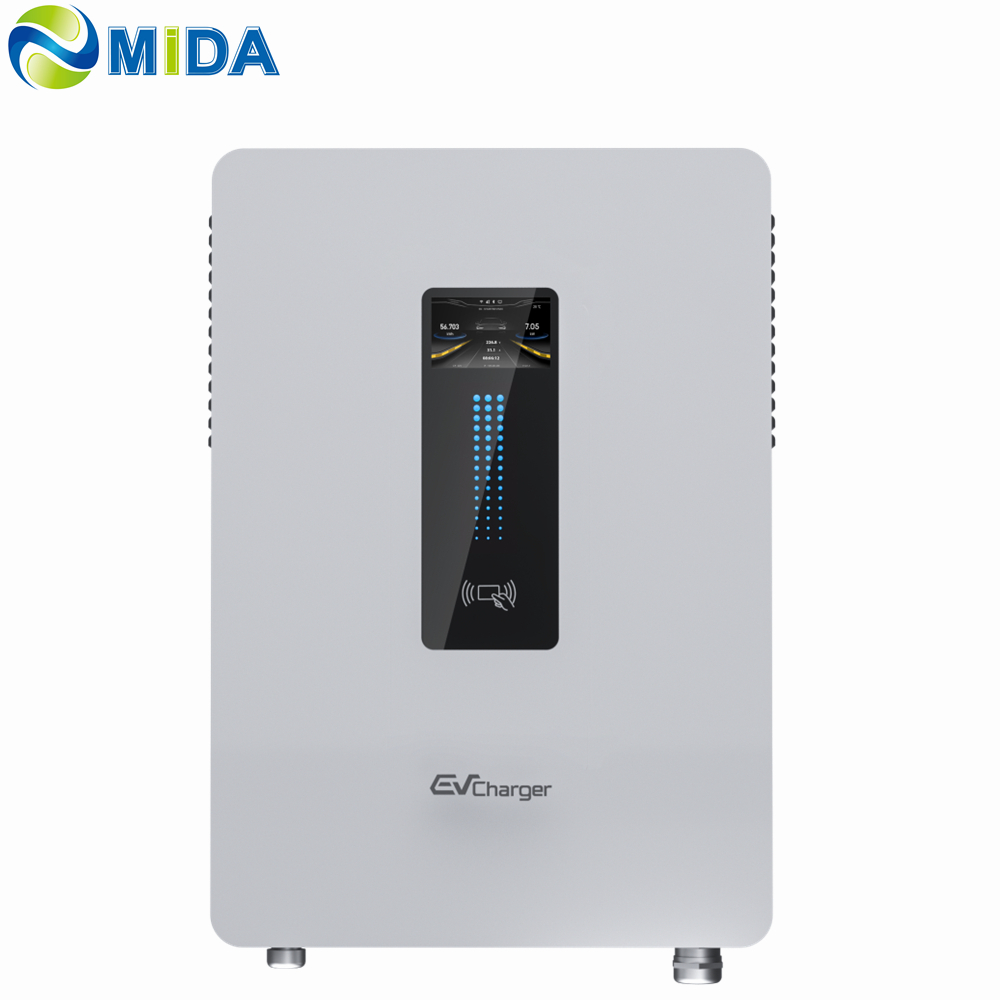

Product Pictures
Product Features
Mobile Charger 20kw 30kw 40kw Portable DC Charger Station
✔ Small size and compact design, easy for portable
✔ It is supporting CCS and CHAdeMO connector
✔ Certification: CE / IEC / ROHS
✔ Protection Degree: IP54
✔ Open door design, it is very convenient to replace power module.
Specification
| AC Input |
1. Input Rating: 400Vac ± 15%
2. AC Input Connection: 3P+N+PE (Wye connection)
3. Max. Input Current: 50A
4. Efficiency: 95%
|
| DC Output |
1. Output Voltage Range: 50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T)
2. Max. Output Power: 20KW, 30kW, 40kw
3. Max. Output Current: 100A@500V
|
| User Interface |
1. TFT-LCD Touch Panel: 4.3' touch display
2. Push Buttons: Emergency Stop
3. Interface: USB, RJ45
|
| Packing |
1. Dimension: 630*230*632mm
2. Weight: 35KGS
|
| Environment |
1. Operating Temperature: -20°C ~ +50°C (power derating above +50°C)
2. Humidity: 5% ~ 90% RH, non-condensing
3. Altitude: 2000m
4. IP Level: IP23
|
| Regulation |
1. Regulation: IEC61851-1
2. Certification: CE, ROHS
3. Charging protocol: CHAdeMO 2.0 / DIN 70121 / ISO15118 / IEC61851-23
|
Service Highlights
01 Warranty: 12 months comprehensive warranty.
02 Secure Trade: Trade-assurance purchase guarantees money safety, quality, and service.
03 Pre-sales Advice: Professional guidance on generator set choice, configuration, installation, and investment.
04 Production Tracking: Stay updated on the progress of your product manufacturing.
05 Customization: Supports customized design, samples, and packing according to client requirements.
06 After-sales Support: Free instructions for installation and troubleshooting; free parts available during warranty.
Frequently Asked Questions
What charging standards does this portable DC charger support?
The charger supports CCS and CHAdeMO standards. You can switch between them simply by replacing the charging cable.
Is the charger easy to maintain or repair?
Yes, it features an open-door design, making it very convenient to replace the power module if needed.
Can this charger be used outdoors?
The charger has a protection degree of IP54 for the main body and IP23 for environmental rating, making it suitable for various portable charging scenarios.
What is the input voltage requirement?
The standard input rating is 400Vac ± 15% with a 3P+N+PE Wye connection.
Does the charger support internet connectivity for updates?
Yes, it includes a USB port for firmware updates and an optional RJ45 port for internet connection.
What is the efficiency and output power range?
The charger has an efficiency of 95% and is available in 20kW, 30kW, and 40kW power versions.
