Product Introduction: Megawatt Charging System (MCS)
1000A 1500A 3000A MCS Connector charging cable is a high-power charging solution designed specifically for heavy-duty electric vehicles such as trucks and buses, capable of providing up to several megawatts of power, significantly accelerating charging speed. These charging cables use dedicated connectors with sturdy and durable structures, and typically require active heat dissipation during high-power operation to safely and efficiently manage high currents.

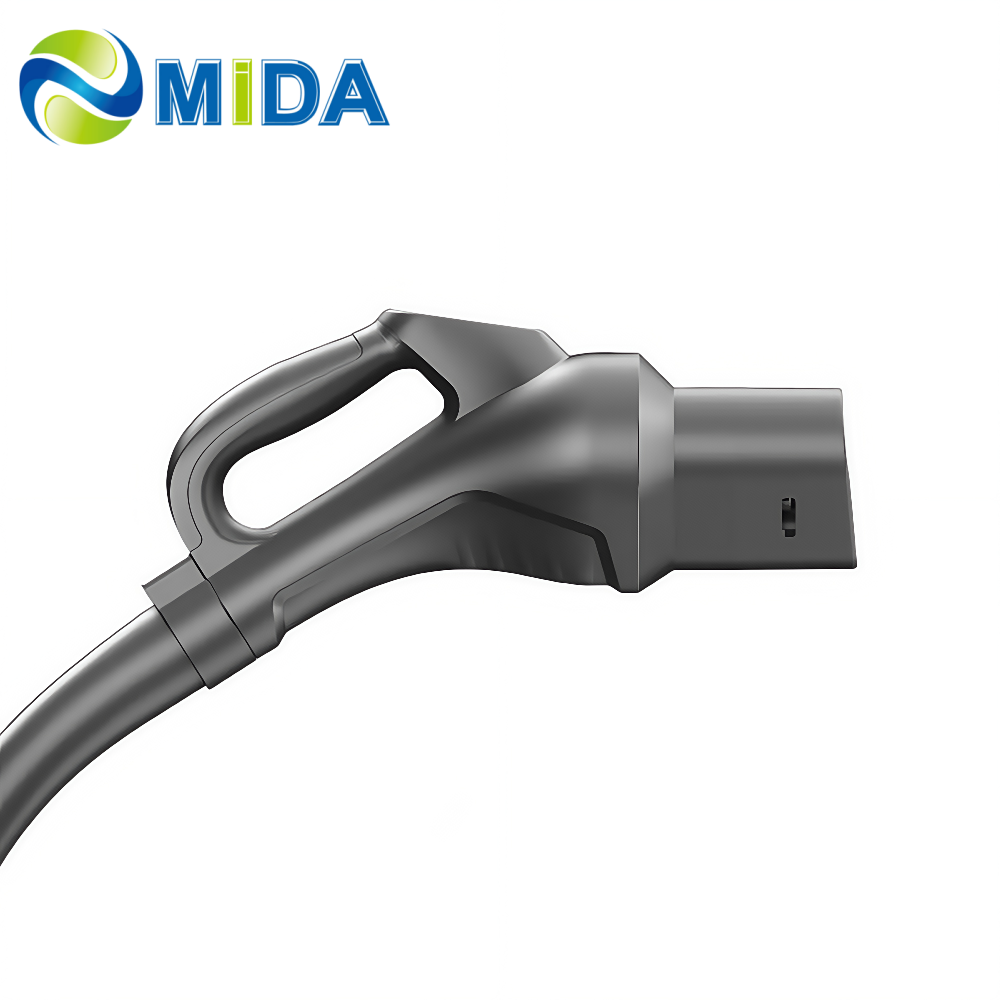

Key Product Features
✓
High Power Capacity: Designed to handle extremely high power, with a current rating of up to 3000 amperes and a power output of up to 3.75 megawatts.
✓
Heavy-Duty Applications: Specifically developed for large pure electric vehicles, such as long-distance trucks, buses, electric ships, and airplanes.
✓
Durable and Sturdy: Built for harsh industrial environments, featuring high-level protection such as IP67 protection level.
✓
Advanced Cooling: Requires active cooling of connectors and cables to prevent overheating during high-power operations exceeding 1 megawatt.
✓
Unique Interface: The MCS connector is distinct from the passenger car Combined Charging System (CCS), optimized for commercial utility.
Technical Specifications

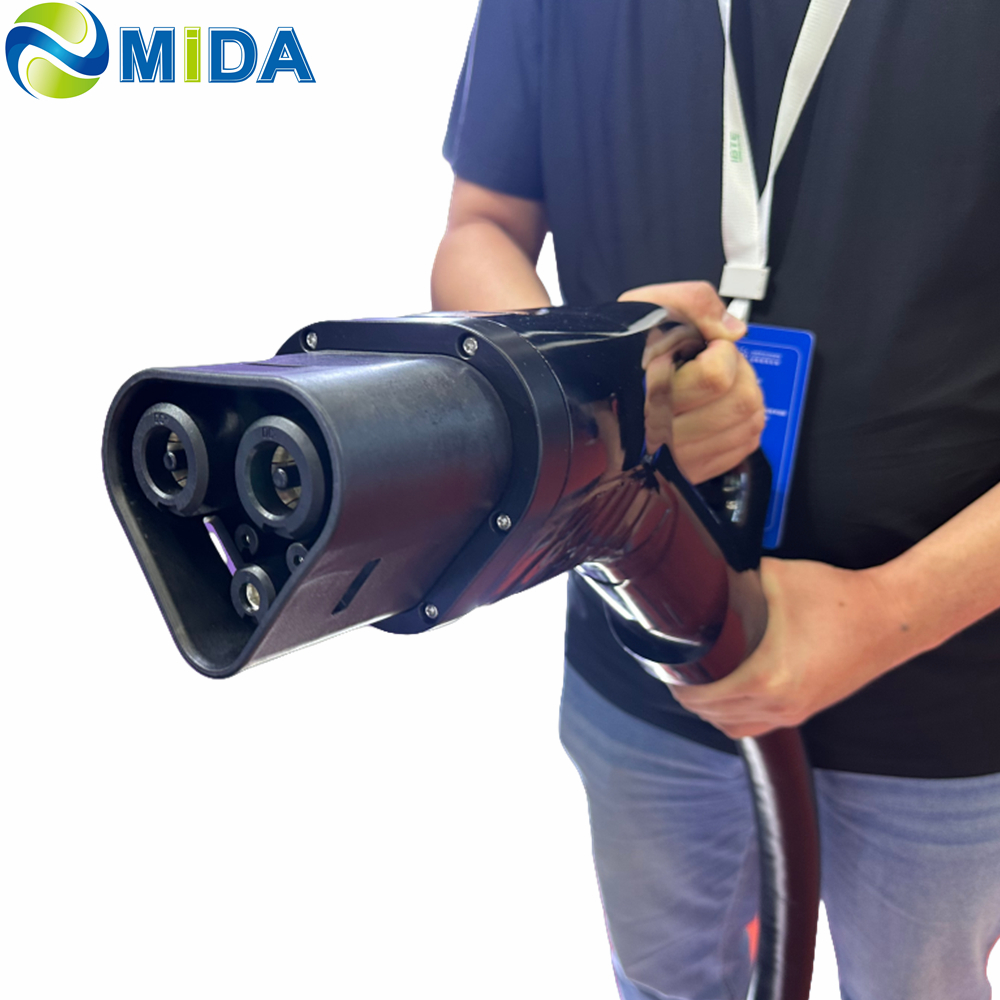

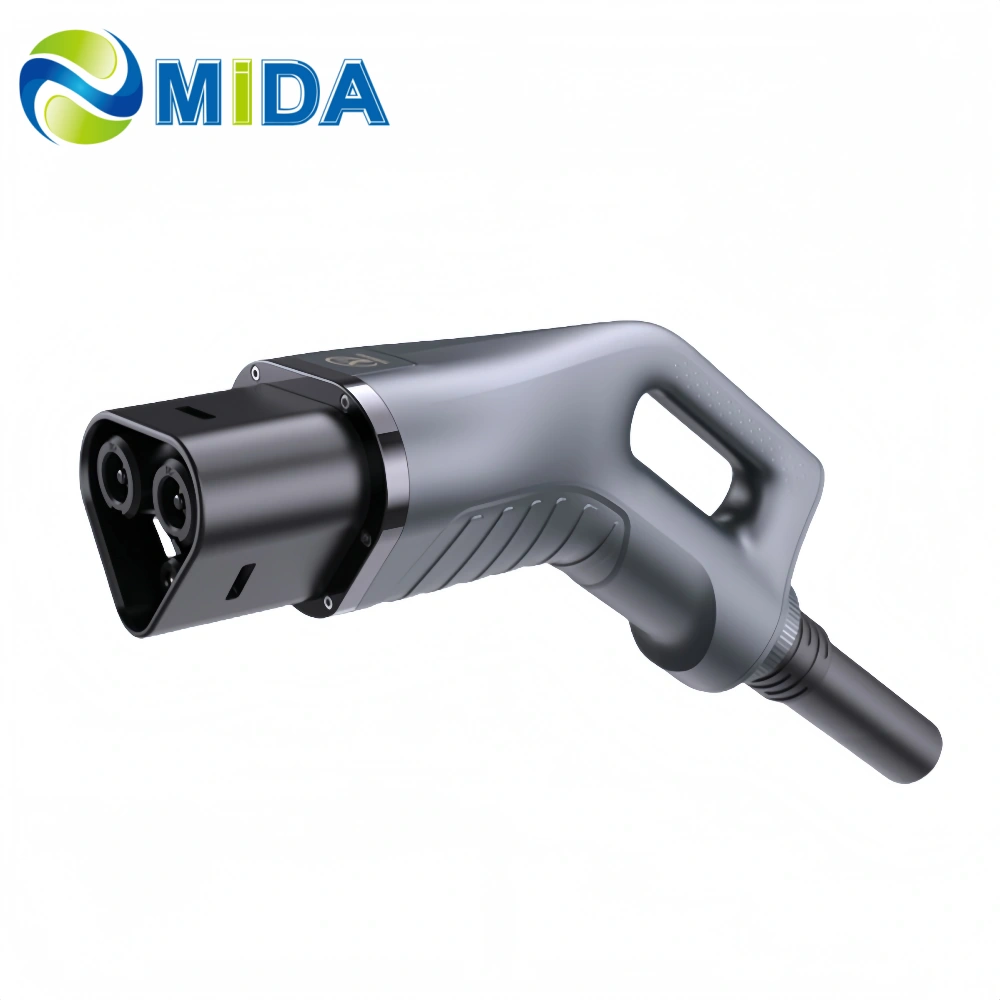

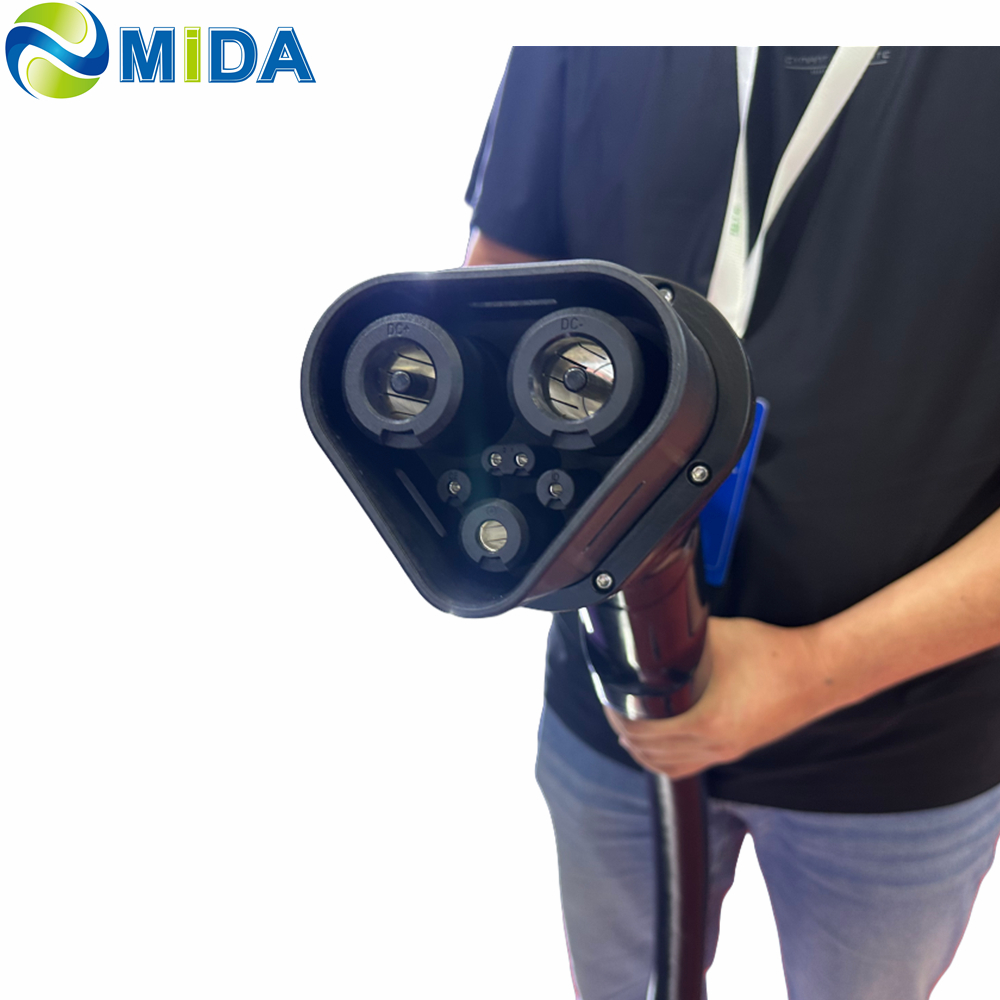

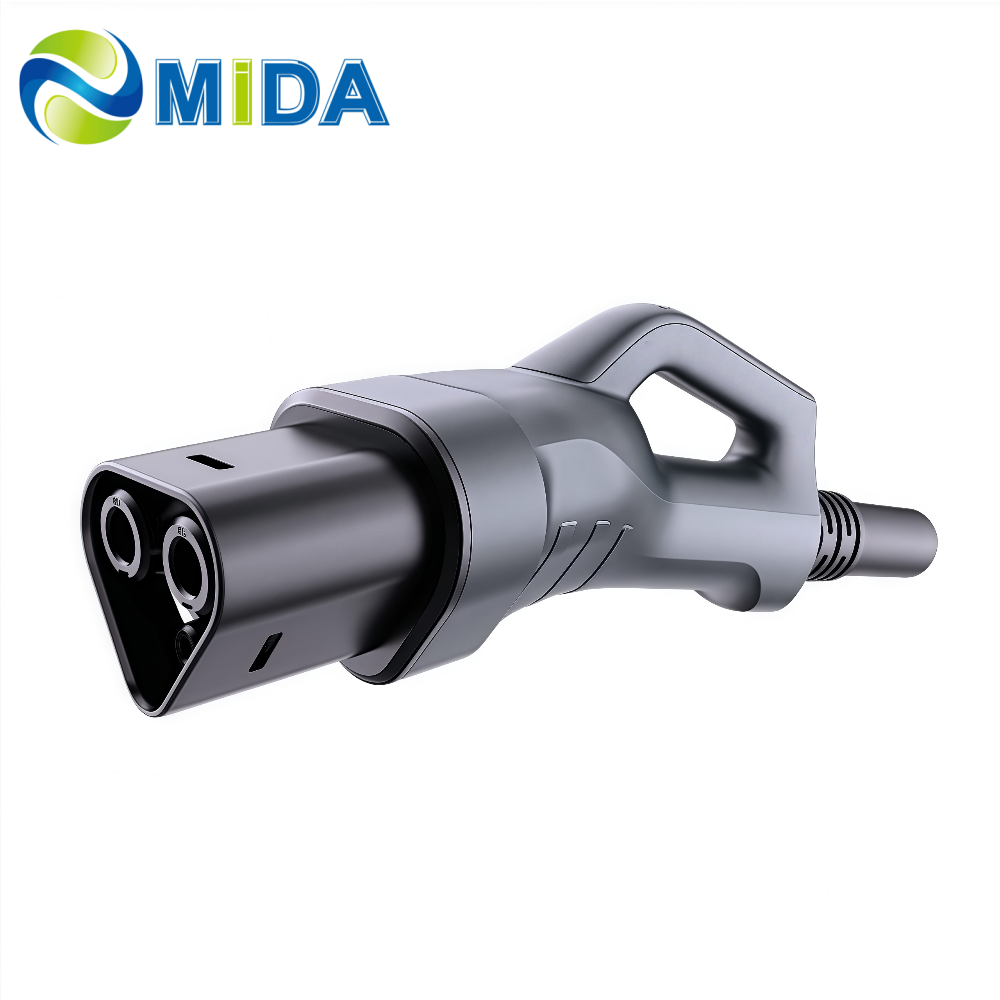

1500A 3000A Liquid Cooling MCS DC Charging Cable
The electrification of commercial vehicles requires a significant increase in charging capacity. The resulting megawatt level charging system (MCS connector) can provide up to 3.75MW (maximum 3000A / maximum 1250V) of power. Such high currents place extremely high demands on connectors, sockets, and cable systems, requiring a deep understanding of various electrical, thermal, and safety factors.
The system ensures usability, allowing a single person to easily insert the connector into the vehicle socket. All components of MCS adopt an active cooling system. The 3000A MCS charging interface utilizes indirect cooling and efficient coolant distribution to manage thermal loads safely.
These cable solutions comply with all regulatory requirements, including IEC 61851-1, IEC TS61851-23-3, and IECTS63379 for conductive charging of electric vehicles, ensuring maximum safety for operators.
Application and Operation
Where is the MCS Charger Cable used? MCS technology provides ultra-fast charging for heavy-duty trucks, ships, and aircraft. Its applications cover commercial vehicles, maritime, agriculture, mining, and aviation industries, breaking through the limitations of traditional charging.
How to use the MCS charging connector? First, locate the charging port on the heavy-duty vehicle, typically located between the driver's side axles. Then, connect the liquid-cooled MCS cable to the port of the vehicle. The system is designed for maximum flexibility during the upcoming MCS transition phase.
Communication Protocol
What is the MCS communication protocol? The Multipoint Communication Service Protocol Specification defines a protocol operating through the hierarchy of a multipoint communication domain. It specifies the format of protocol messages and procedures governing their exchange over a set of transport connections, ensuring seamless integration based on the Combined Charging System (CCS) approach.
Frequently Asked Questions
What is the maximum power output of the MCS charging system?
The Megawatt Charging System (MCS) is designed to provide a maximum power output of 3.75 megawatts, supporting up to 3000 amperes and 1250 volts.
Why is liquid cooling required for MCS cables?
Due to the extremely high currents (over 1000A), active liquid cooling is essential to manage thermal heat and prevent the connectors and cables from overheating during the charging process.
What types of vehicles use the MCS connector?
MCS is specifically designed for large battery electric vehicles, including long-distance heavy-duty trucks, buses, electric ships, and even electric aircraft.
Is the MCS connector the same as the CCS connector used in cars?
No, the MCS connector is a unique design specifically for high-power heavy-duty applications, though many modern electric trucks are equipped with both MCS and CCS interfaces for compatibility.
What standards does the MCS charging cable comply with?
The system complies with major international standards including IEC 61851-1, IEC TS61851-23-3, and IECTS63379, ensuring high safety and reliability for infrastructure operators.
What is the protection rating for these connectors?
Many MCS connectors are designed with industrial-grade protection, such as an IP67 rating, to ensure durable operation in harsh outdoor and industrial environments.
