1000A 1500A MCS Charging Socket Megawatt Charging System
1000A 1500A MCS (Megawatt Charging System) charging cable is a high-power charging solution designed specifically for heavy-duty electric vehicles such as trucks and buses, capable of providing up to several megawatts of power, significantly accelerating charging speed. These charging cables use dedicated connectors with sturdy and durable structures, and typically require active heat dissipation during high-power operation to safely and efficiently manage high currents.
Product Features
⚡
High Power Capacity
The MCS charging cable is designed to handle extremely high power, with a current rating of up to 3000 amperes and a power output of up to 3.75 megawatts.
🚛
Designed for Heavy-Duty Vehicles
This system is specifically developed for large pure electric vehicles, such as long-distance trucks, buses, and heavy-duty applications like electric ships and airplanes.
🛡️
Durable and Sturdy
MCS charging cables operate in harsh industrial environments, featuring robust protection such as the IP67 protection level.
❄️
Advanced Cooling System
Higher power levels (over 1 megawatt) require active cooling of connectors and cables to prevent overheating during high-speed charging.
🔌
Unique Connector Design
The MCS connector is a specialized standard, different from the passenger car CCS, though many trucks are now equipped with both interfaces.
Specifications & Capability
3000A Liquid Cooling MCS DC Charging Inlets

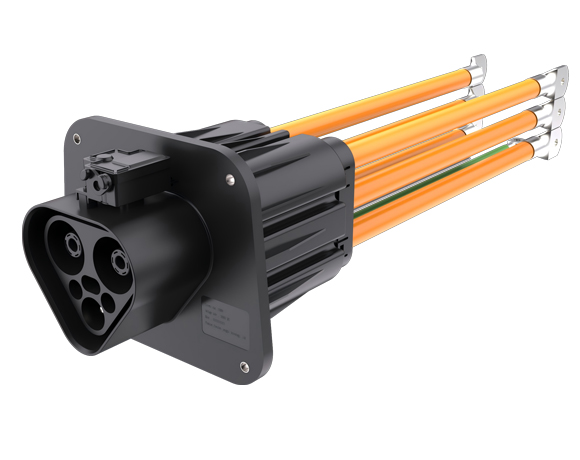

The HVCO4FN103 MCS Charging Socket interface is a high-power charging port designed specifically for heavy-duty pure electric vehicles. These sturdy and durable liquid-cooled charging interfaces can provide up to 3.75 megawatts (1500 volts DC, 3000 amps) of power and meet the highest safety and durability standards.
This system is based on market-leading distributed charging technology and offers maximum flexibility during the MCS transition phase, complying with IEC 61851-1, IEC TS61851-23-3, and IECTS63379 standards for conductive charging of electric vehicles.
Megawatt Charging System (MCS) Overview
What is a 3000A MCS Charger Connector?
The Megawatt Charging System (MCS Connector) is a new, high-power charging solution with the capacity to deliver significantly higher charging speeds than conventional Combined Charging Systems (CCS). It is designed to charge large batteries from 20% to 80% in around 30 minutes, making long-haul electric transport practical.
Communication Protocol
Multipoint Communication Service Protocol Specification defines a protocol operating through the hierarchy of a multipoint communication domain. It specifies the format of protocol messages and procedures governing their exchange over a set of transport connections.
Frequently Asked Questions
What is the primary purpose of the MCS Charging System?
The Megawatt Charging System (MCS) is designed specifically for heavy-duty electric vehicles like long-haul trucks, buses, ships, and planes that require much higher power than standard passenger vehicles.
How much power can the 3000A MCS socket deliver?
The system can provide a maximum power output of up to 3.75 Megawatts, operating at 1500 Volts DC and 3000 Amperes.
Does the MCS system require cooling?
Yes, because of the extremely high currents involved, MCS charging cables and connectors utilize active liquid cooling to prevent overheating and maintain safety.
What are the typical charging times for heavy trucks using MCS?
MCS is designed to charge large-capacity batteries from 20% to 80% in approximately 30 minutes, which is essential for commercial transport efficiency.
Is the MCS connector the same as the CCS used in cars?
No, the MCS connector is a unique, robust design specifically for industrial high-power use, though many commercial vehicles may include both MCS and CCS ports.
What is the environmental protection rating for these connectors?
Most MCS connectors are designed to meet IP67 standards, ensuring they are dust-tight and protected against water immersion, making them suitable for harsh outdoor industrial use.
