Parameters of CCS Type 2 Socket / CCS 2 Inlet 80A~400A
European standard CCS 2 socket are installed on electric vehicles, CCS type 2 inlet. By cooperating with CCS combo 2 DC charging cable, the DC charging function is realized. The products meet IEC 62196.3-2022 and RoHS requirements.
| Model |
CCS 2 socket |
| Rated current |
DC+: 80A, 125A, 150A, 200A, 250A, 300A, 400A; L1/L2/L3/N: 32A; PP/CP: 2A |
| Wire Diameter |
80A/16mm², 125A/35mm², 150A/50mm², 200A/70mm², 250A/95mm², 300A/95mm², 400A/120mm² |
| Rated voltage |
DC+/DC-: 1000V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC |
| Withstand voltage |
3000V AC / 1min. (DC + DC- PE) |
| Insulation resistance |
≥ 100mΩ 1000V DC (DC + / DC- / PE) |
| Electronic locks |
12V / 24V optional |
| Mechanical life |
10,000 times |
| Ambient temperature |
-40℃~50℃ |
| Degree of Protection |
IP55 (When not mated); IP44 (After mated) |
| Main Material |
| Shell |
PA |
| Insulation part |
PA |
| Sealing part |
Silicone Rubber |
| Contact part |
Copper alloy |
Introduction Of CCS 2 Socket

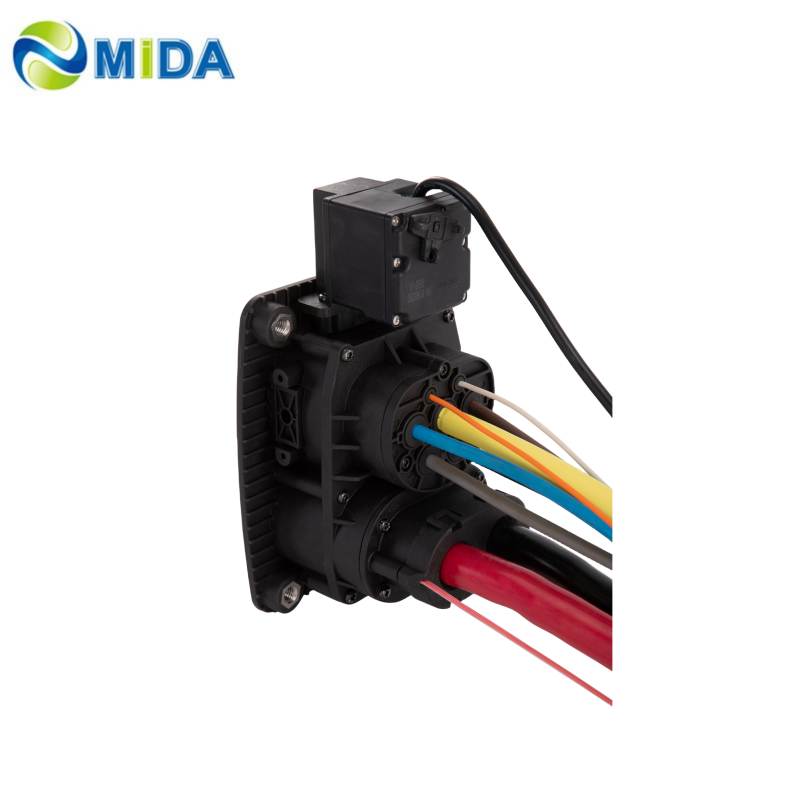

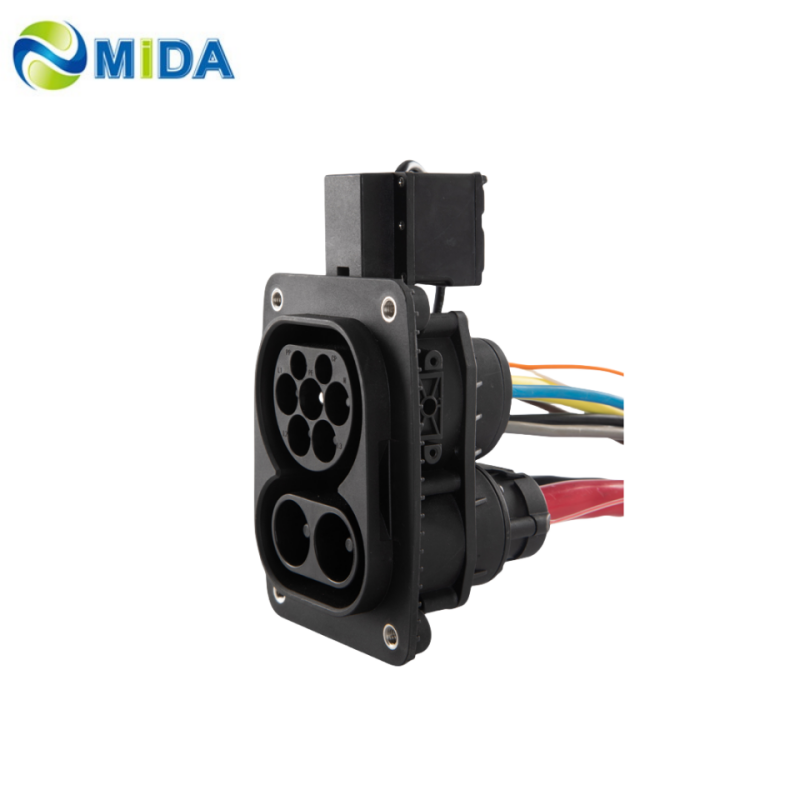

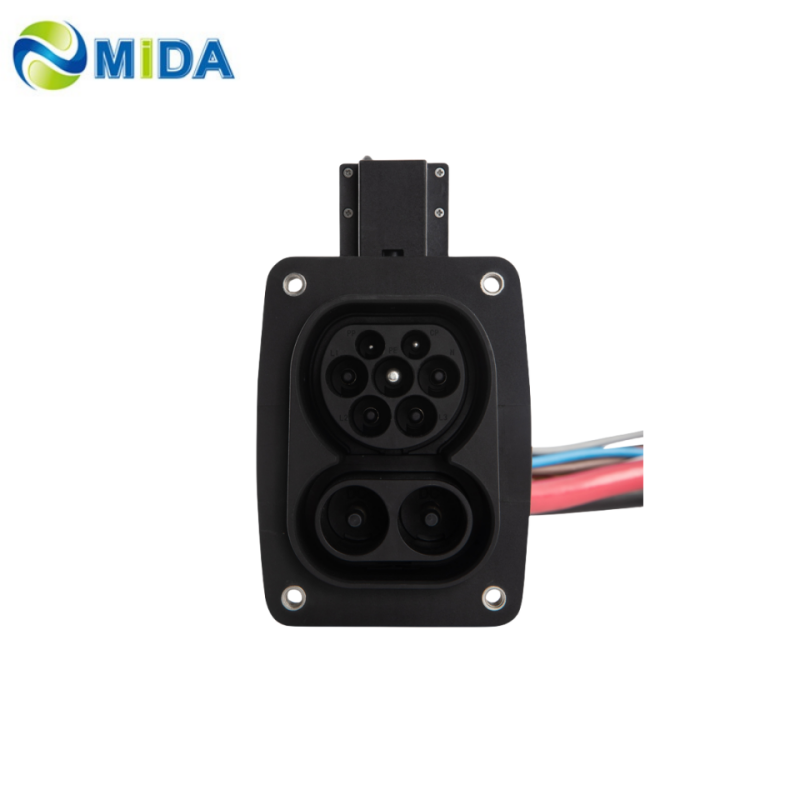

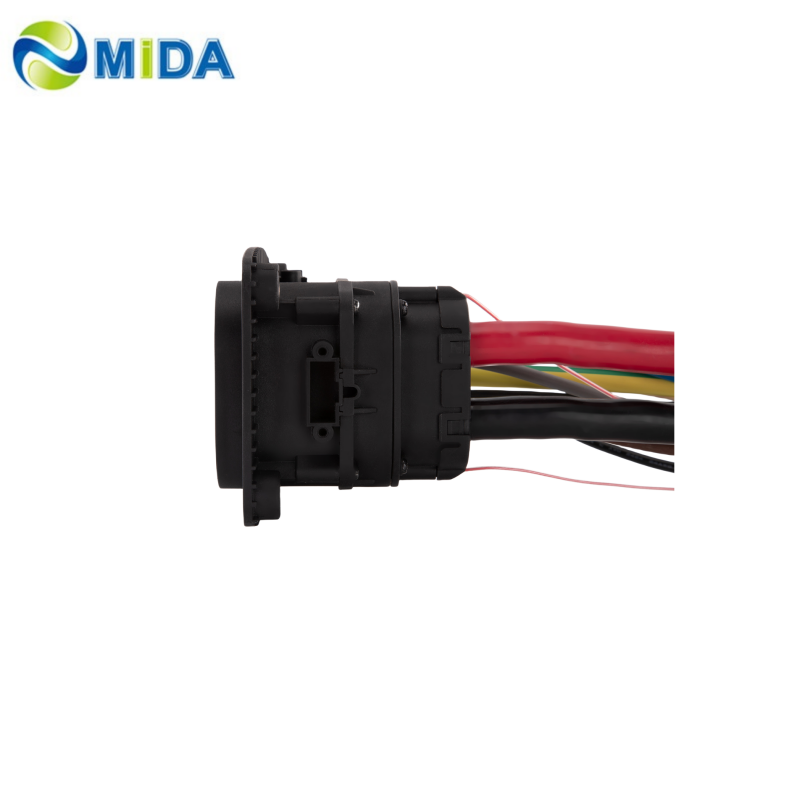

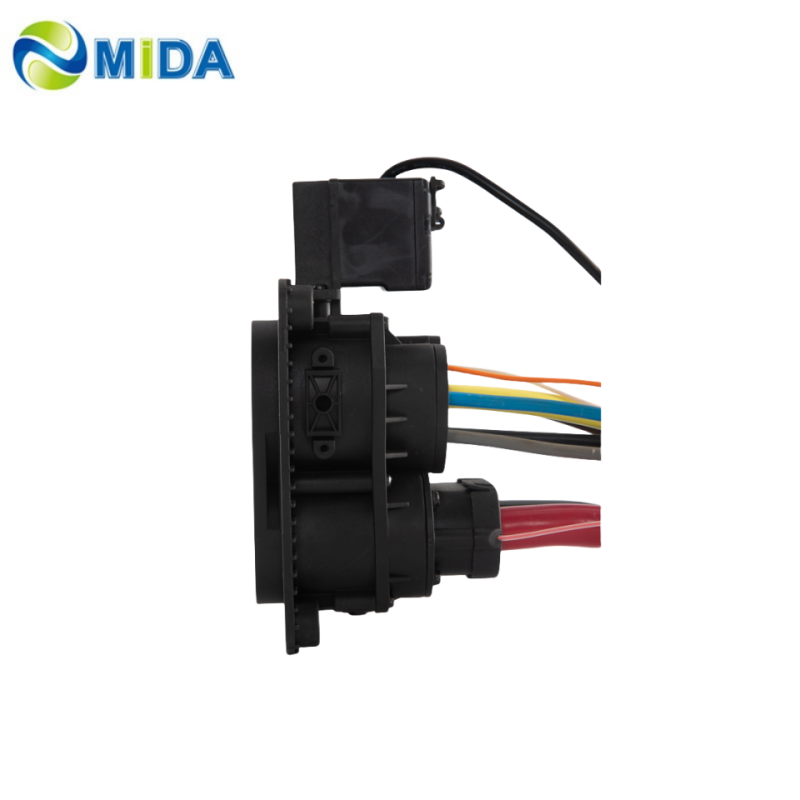

Product Pictures
EV CHARGING Socket CCS2 FEATURES
🔌 Alternating Current
The Combo CCS2 charging socket is available in 150A. It combines alternating current (AC) Type 2 charging and direct current (DC) CCS fast charge in one inlet.
🛡️ Safe Charging
CCS2 EV sockets are designed with safety insulation on their pinheads to prevent accidental direct contact with human hands, ensuring the highest level of safety.
💎 Investment Value
Built to last with robust construction. The Combo CCS2 socket is designed for reliability and longevity, making it an excellent long-term investment for residential and commercial use.
📈 Market Analysis
Designed for use with type 2 charging connectors common across Europe, ensuring broad compatibility and future-proof application for electric vehicle owners.
Features Of CCS 2 Socket
- Comply with IEC 62196.3-2022
- Rated voltage: 1000V
- Rated current: DC 80A/125A/150A/200A/250A/300A/350A optional; AC 16A, 32A, 63A, 1/3 phase
- 12V/24V electronic lock optional
- Meet TUV/CE certification requirements
- Anti-straight plug dust cover
- 10000 times of plugging and unplugging cycles, stable temperature rise
- Lower cost, faster delivery, better quality and better after-sales service.
Frequently Asked Questions
Q: What standards does this CCS Type 2 socket comply with?
A: Our CCS 2 sockets fully comply with the IEC 62196.3-2022 standard and meet RoHS requirements, ensuring international safety and quality compatibility.
Q: Can this socket handle both AC and DC charging?
A: Yes, the Combo CCS2 socket integrates both AC Type 2 charging and DC CCS fast charging in a single inlet, allowing for versatile charging options.
Q: What is the maximum current supported by the DC charging?
A: The socket supports a wide range of rated currents for DC charging, starting from 80A up to 400A, depending on your specific requirements and wire diameter.
Q: Is the CCS2 inlet protected against water and dust?
A: Yes, it features an IP55 protection rating when not mated and IP44 when mated, providing reliable protection against environmental factors.
Q: What is the expected lifespan of the electronic lock and connector?
A: The socket is designed for high durability with a mechanical life of over 10,000 plugging and unplugging cycles. The electronic lock is available in 12V or 24V options for secure charging.
Q: Does the socket include safety features against electric shock?
A: Absolutely. The pinheads are designed with safety insulation to prevent accidental direct contact, ensuring the highest level of user safety during handling.
