HPC Cooling Module Liquid Cooling System Parameters
The HPC cooling module (TD8125010-XC01001) is designed for intelligent high-power charging (HPC) technology. With a radiating power of 3KW and charging currents reaching 500-800A (at 50°C ambient temperature), it ensures the safe and stable operation of high-power charging gun lines. The core technology provides coolant at the optimal temperature and flow rate to maintain a temperature rise of less than 50K (ΔTmax = 50K) during the charging process.
| Model |
HPC Cooling Module Liquid Cooling System |
| Radiating Power |
3000W @ 4L/min, 700m³/h |
| Rated Current |
500A ~ 800A |
| Rated Voltage |
12V/DC |
| Noise Level |
≤60dB(A) |
| Maximum Pressure |
0.7MPa |
| Flow Medium |
4L/min @ 450Kpa |
| Communication Mode |
MODBUS Based 485 |
| Ambient Temperature |
-30°C ~ 50°C |
| Degree of Protection |
IP68 |
| Service Lifetime |
25,000 hours |
| Volume of Oil Can |
1.5L |
| Cooling Medium |
Dimethyl silicone oil |

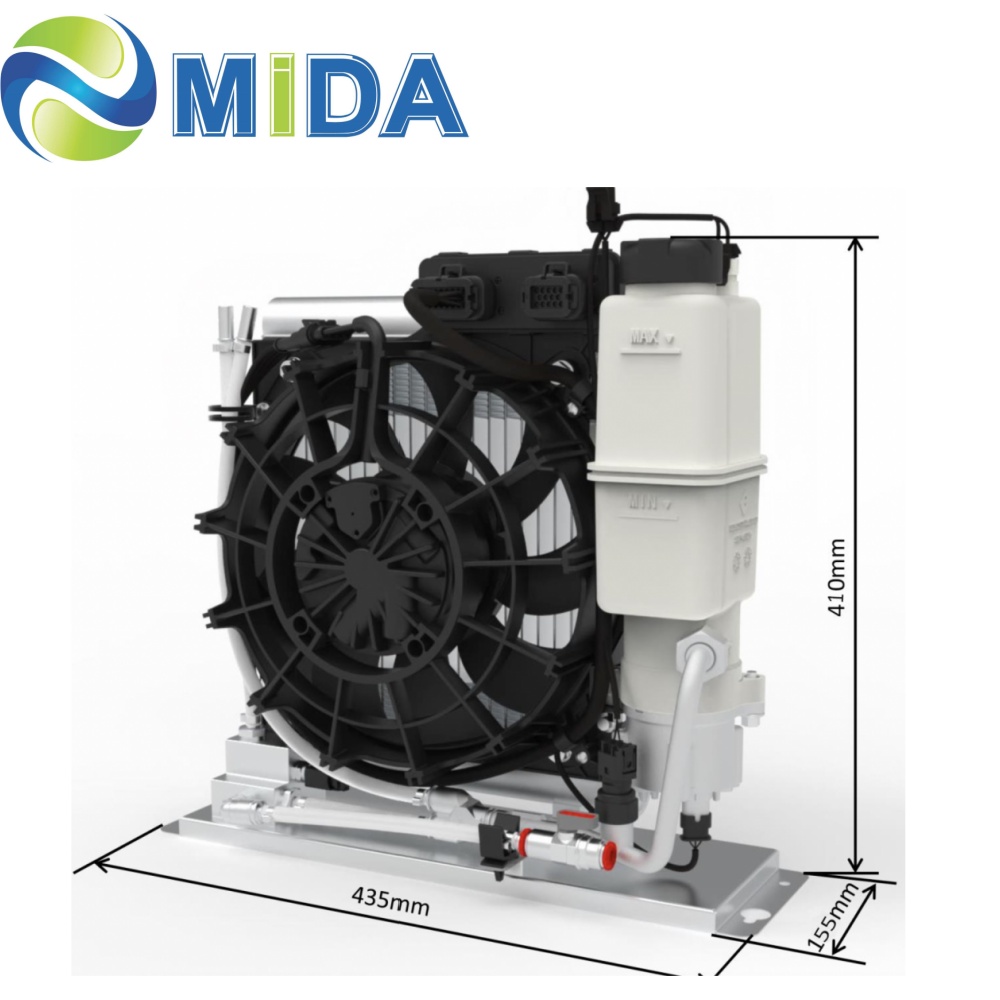

| Dimensions |
435 × 155 × 410mm |
EV Charging Station Liquid Cooling System Introduction
Key Features & Technical Highlights
- High Radiating Performance: 3000W radiating power @ 4L/min flow rate.
- Extreme Current Support: Engineered for high-speed charging between 500-800A.
- Robust Protection: IP68 rated, ensuring complete protection against dust and water ingress.
- Quiet Operation: Noise control kept under 60dB(A) for urban environments.
- Smart Communication: Integrated MODBUS Based 485 for seamless system monitoring.
- Durable Medium: Uses Dimethyl silicone oil for stable thermal management.
- Long Lifespan: Designed for a service life of up to 25,000 hours.
Frequently Asked Questions
What is the maximum charging current supported by this module?
The HPC cooling module supports a high-power charging current ranging from 500A to 800A, depending on environmental conditions.
What cooling medium does the system use?
The system utilizes Dimethyl silicone oil as the cooling medium to ensure effective temperature regulation.
How does the module handle communication with the station?
It features a standard MODBUS Based 485 communication interface for reliable data exchange and monitoring.
Is the cooling module suitable for outdoor use?
Yes, with an IP68 protection rating and an operating temperature range of -30°C to 50°C, it is designed for challenging outdoor environments.
What is the expected service life of the unit?
The module is built for durability with a rated lifetime of approximately 25,000 hours of operation.
What is the noise level during operation?
The noise level is kept at or below 60dB(A), ensuring quiet operation suitable for various installation sites.
