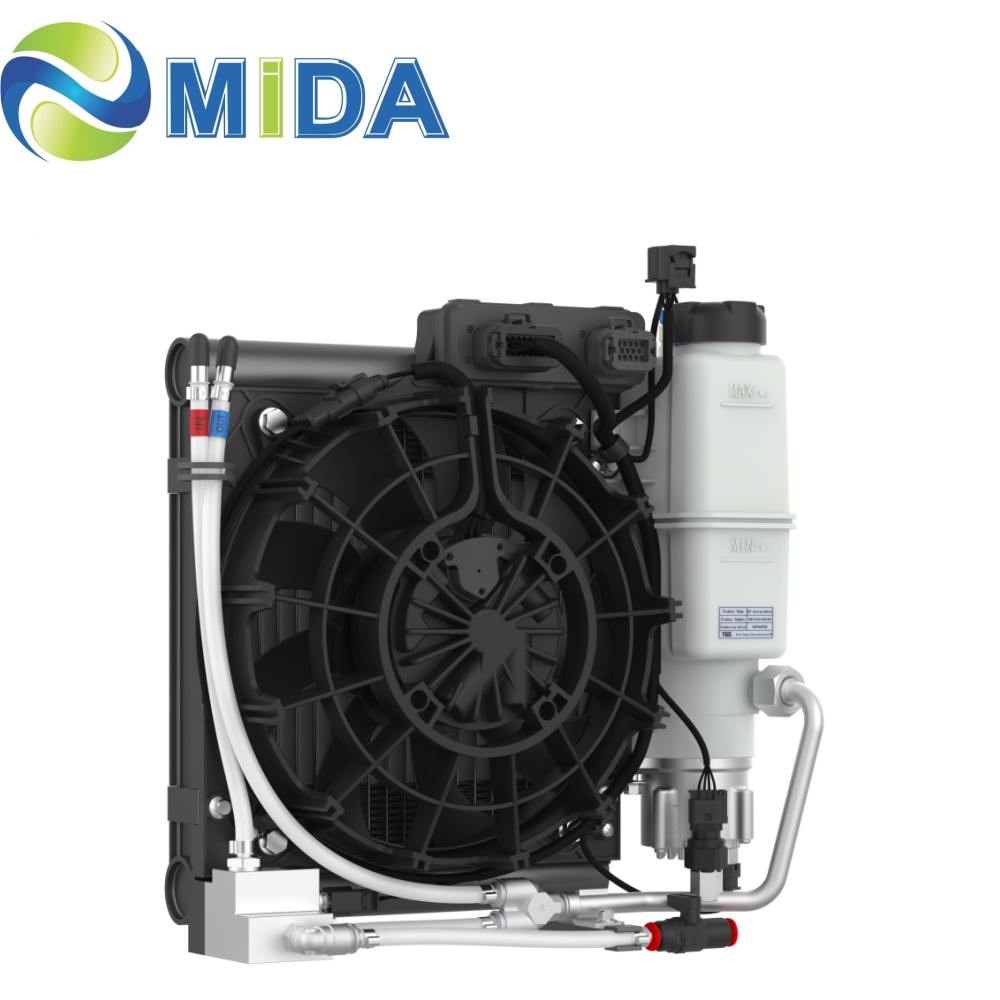

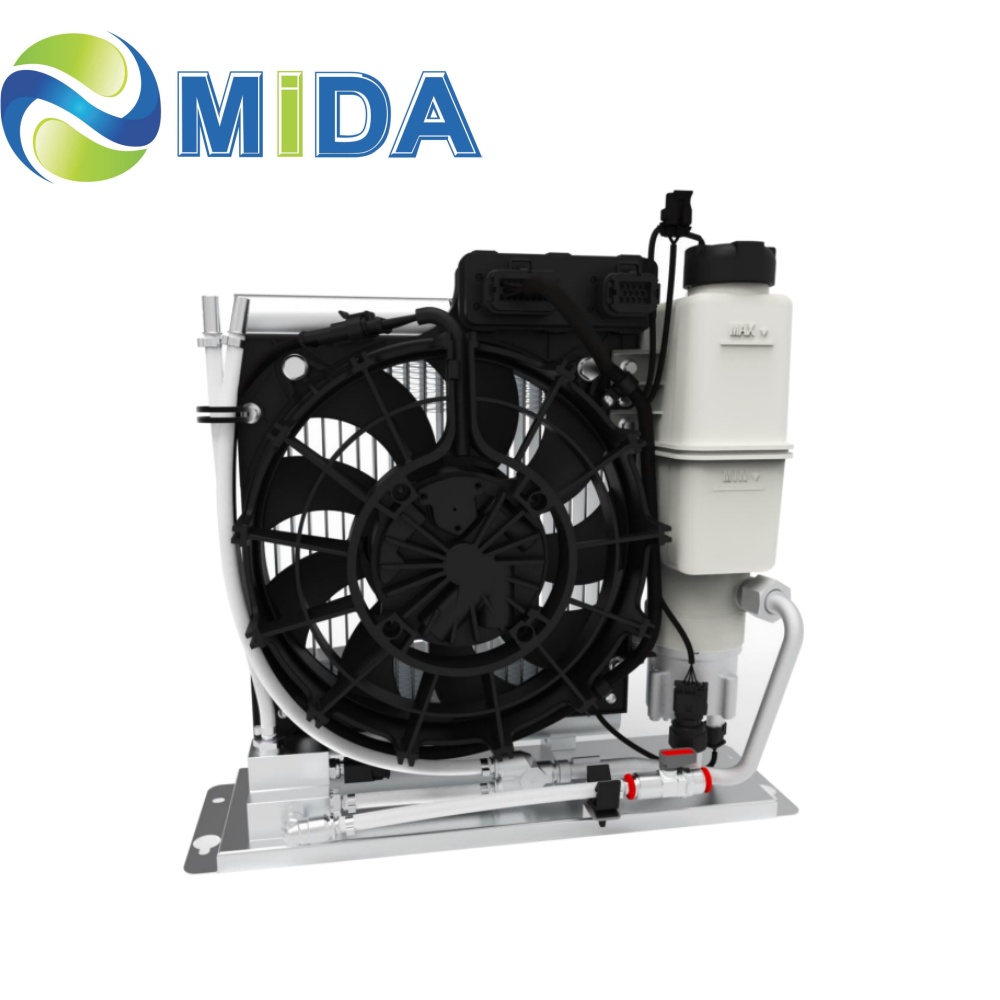

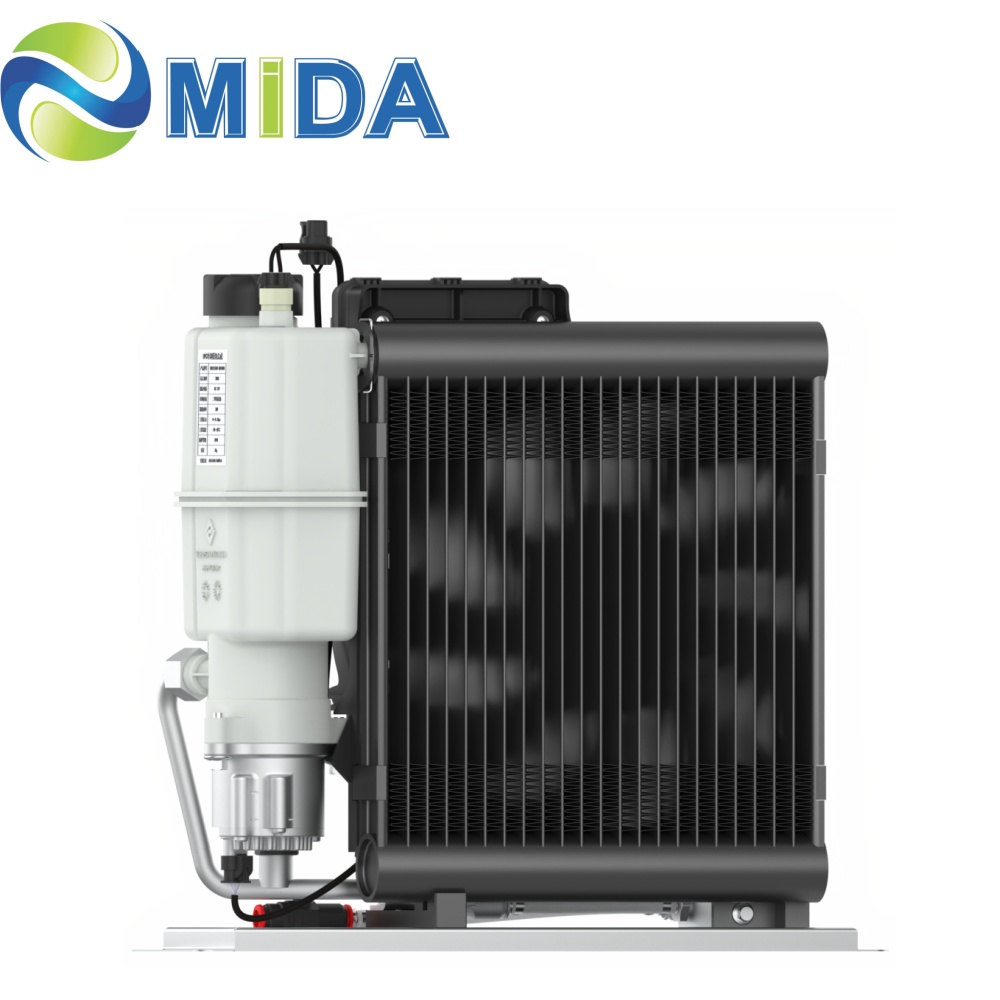

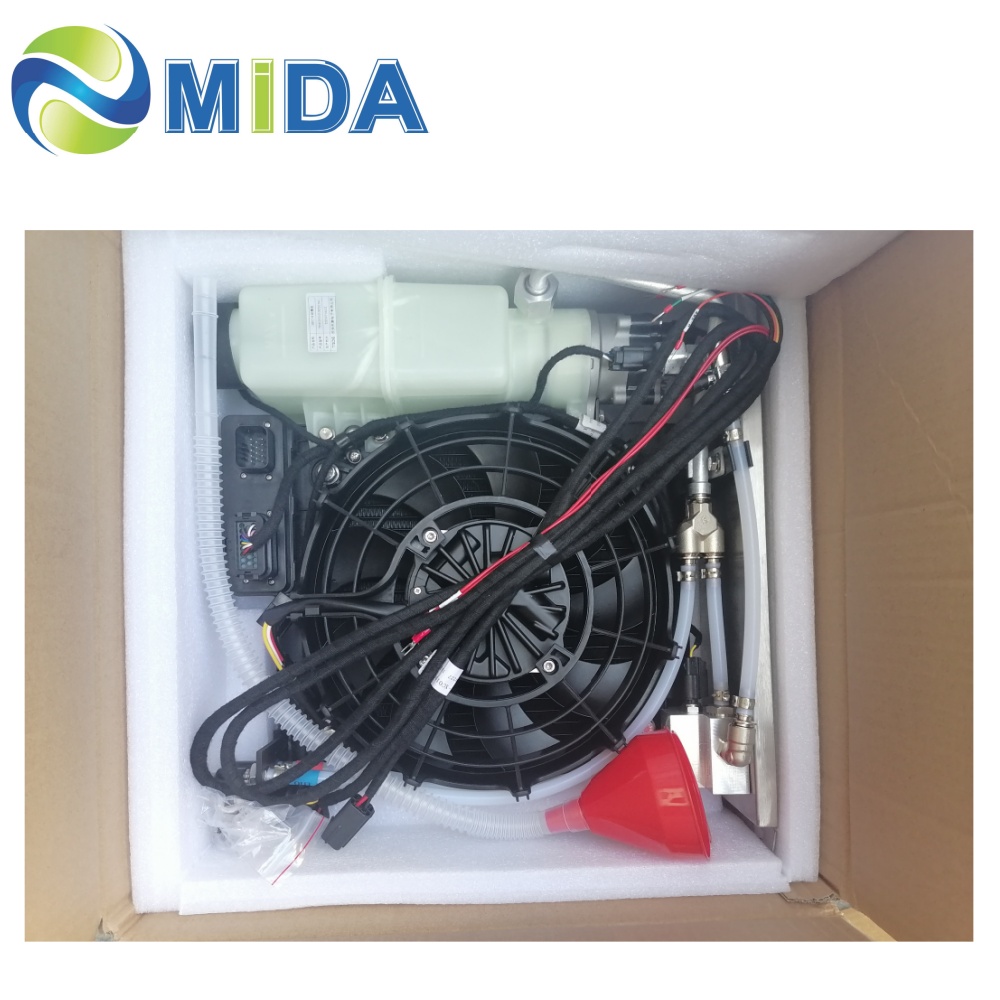

China HPC Liquid Cooling Module for 500A 600A CCS2 CCS1 GB/T DC EV Charger Station Manufacturer, Factory
EV Liquid Cooling System, Electric vehicle cooling system, Liquid Cooling For Electric Vehicles ,EV Battery Cooling System ,EV Charging Liquid Cooling System, Liquid cooling system ,Liquid cooling modules,HPC Liquid Cooling System

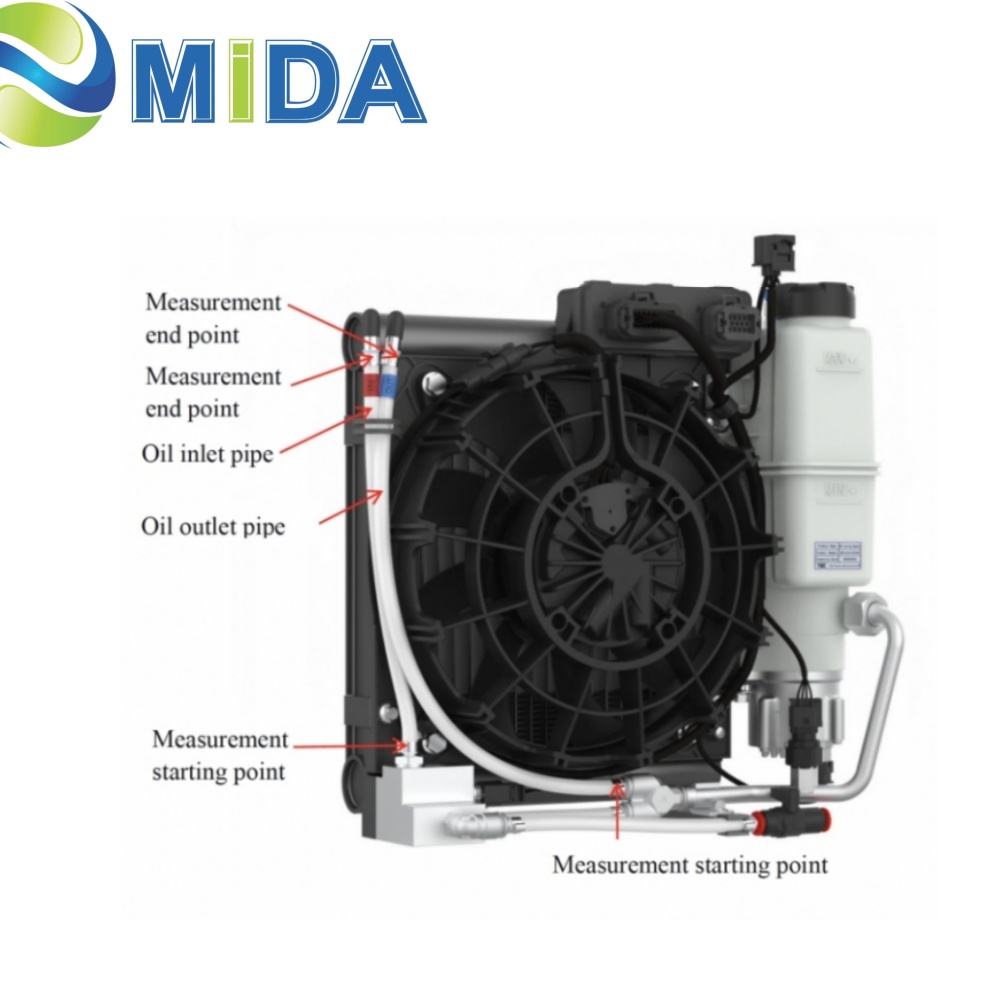

Parameters of HPC Cooling Module Liquid Cooling System
The HPC cooling module (TD8125010-XC01001) is used for intelligent high-power charging (HPC) technology, the radiating power is 3KW, the charging current can reach 500-800A (ambient temperature 50°C), and ensure the safe and stable operation of the high-power charging gun line. The core technology of the product is to provide coolant with appropriate temperature and flow rate to the high-power charging gun line under all working conditions to ensure that the temperature rise of the high-power charging gun line relative to the ambient temperature does not exceed 50K (ΔTmax = 50K) during the charging process.
Model
HPC Cooling Module Liquid Cooling System
Radiating power
3000W @ 4L/min，700m³/h
Rated Current
500A ~ 800A
Rated Voltage
12V/DC
Noise
≤ 60dB(A)
Maximum Pressure
0.7MPa
Flow medium
4L/min @ 450Kpa
Communication Mode
MODBUS Based 485
Ambient temperature
-30°C ~ 50°C
Degree of Protection
IP68
Main material & Specification
Lifetime
25000h
Volume of oil can
1.5L
Cooling Medium
Dimethyl silicone oil
Dimensions
435 × 155 × 410mm
Introduction Of EV Charging Station Liquid Cooling System
Features Of CHAdeMO Plug & Cooling System
✓Radiating power: 3000W@4L/min
✓Charging Current: 500-800A
✓Rated Voltage: 12V/DC
✓Operating Temp: -30°C to 50°C
✓Cooling Medium: Dimethyl silicone oil
✓Noise Level: ≤ 60dB(A)
✓Protection Grade: IP68 Rating
✓Max Pressure: 0.7MPa
✓Communication: MODBUS Based 485
✓Application: CCS 2 Plug Liquid-cooled Charging Unit
FAQ
Q1: What is the main purpose of the HPC cooling module?
The HPC cooling module is designed for high-power charging technology, providing coolant at appropriate temperatures and flow rates to ensure high-power charging gun lines operate safely without exceeding temperature limits.
Q2: What is the maximum radiating power and charging current?
The system features a radiating power of 3000W (3KW) and can support a charging current ranging from 500A to 800A.
Q3: What kind of cooling medium does the system use?
The system utilizes Dimethyl silicone oil as its cooling medium, with a tank volume of approximately 1.5L.
Q4: Can this cooling module operate in extreme weather?
Yes, it is designed to operate in ambient temperatures ranging from -30°C to 50°C and has an IP68 protection rating for durability.
Q5: How does the module communicate with other systems?
The module uses the MODBUS Based 485 communication mode for reliable data exchange and control.
Q6: What is the expected lifetime of the cooling module?
The cooling module is designed for a long service life of approximately 25,000 hours.
