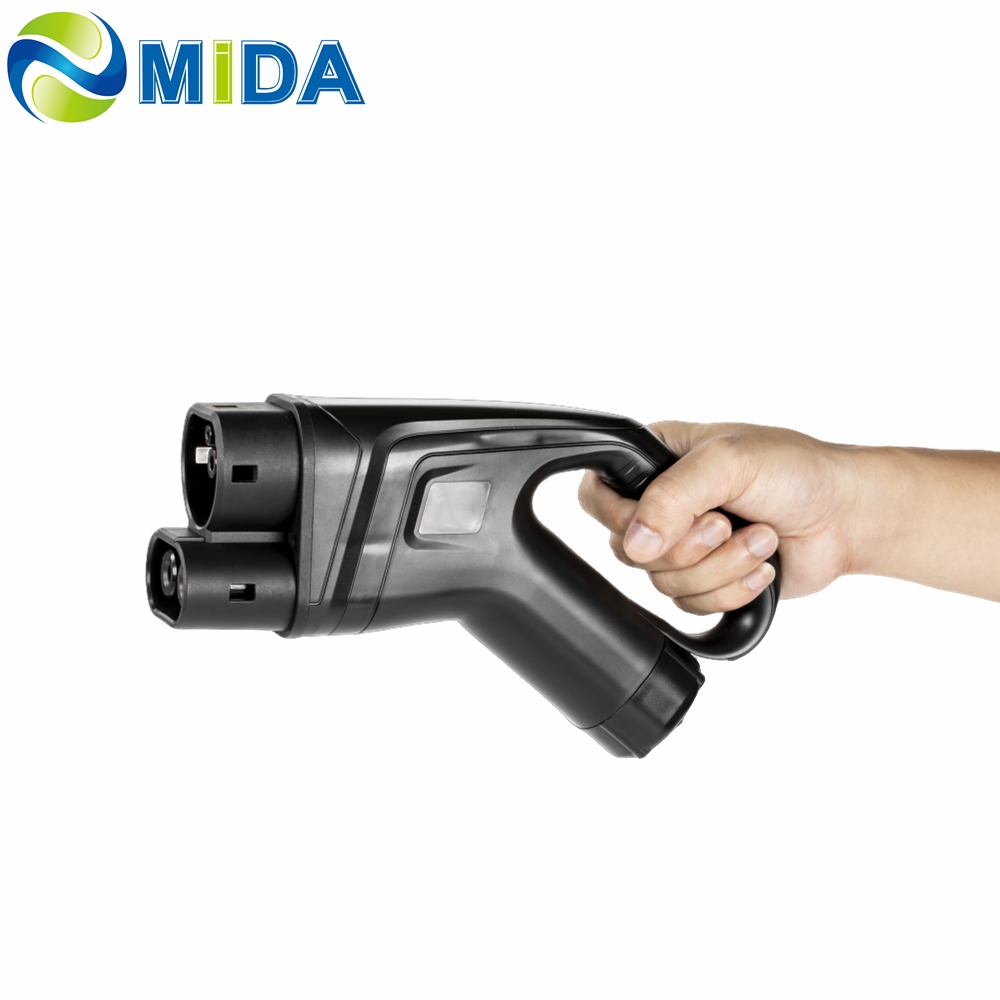

| Features | 1. Meet 62196-3 IEC 2011 SHEET 3-Im standard |
| 2. Concise appearance, support back installation | |
| 3. Back Protection class IP55 | |
| 4. Max charging power: 400kW/500kW | |
| 5. AC Max charging power: 45.36kW | |
| Mechanical Properties | 1. Mechanical life: no-load plug in/pull out > 10000 times |
| 2. Impact of external force: can afford 1m drop and 2t vehicle run over pressure | |
| Electrical Performance | 1. DC input: 400A/500A /600A 1000V DC MAX |
| 2. AC input: 16A 32A 63A 240/415V AC MAX | |
| 3. Insulation resistance: > 2000MΩ (DC1000V) | |
| 4. Terminal temperature rise: < 50K | |
| 5. Withstand Voltage: 3200V | |
| 6. Contact resistance: 0.5mΩ Max | |
| Applied Materials | 1. Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
| 2. Pin: Copper alloy, silver + thermoplastic on the top | |
| Environmental Performance | 1. Operating temperature: -30°C ~ +50°C |

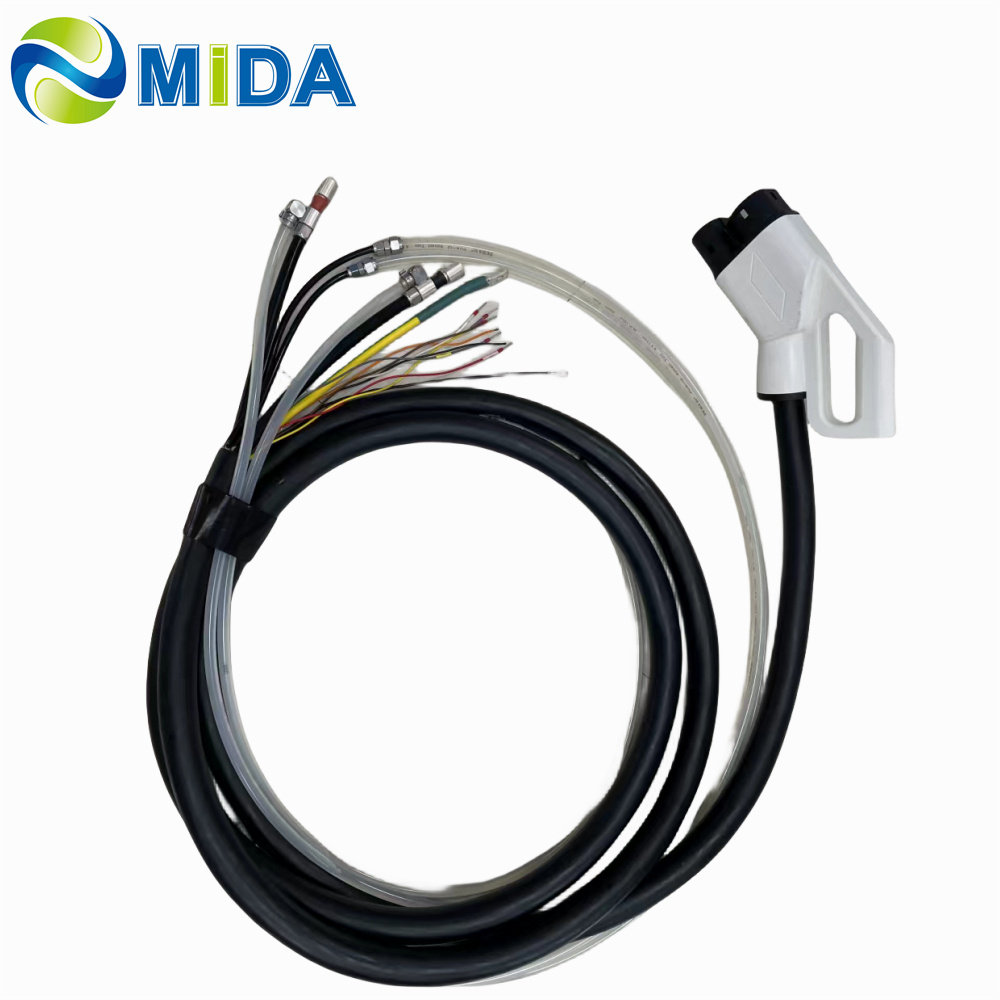

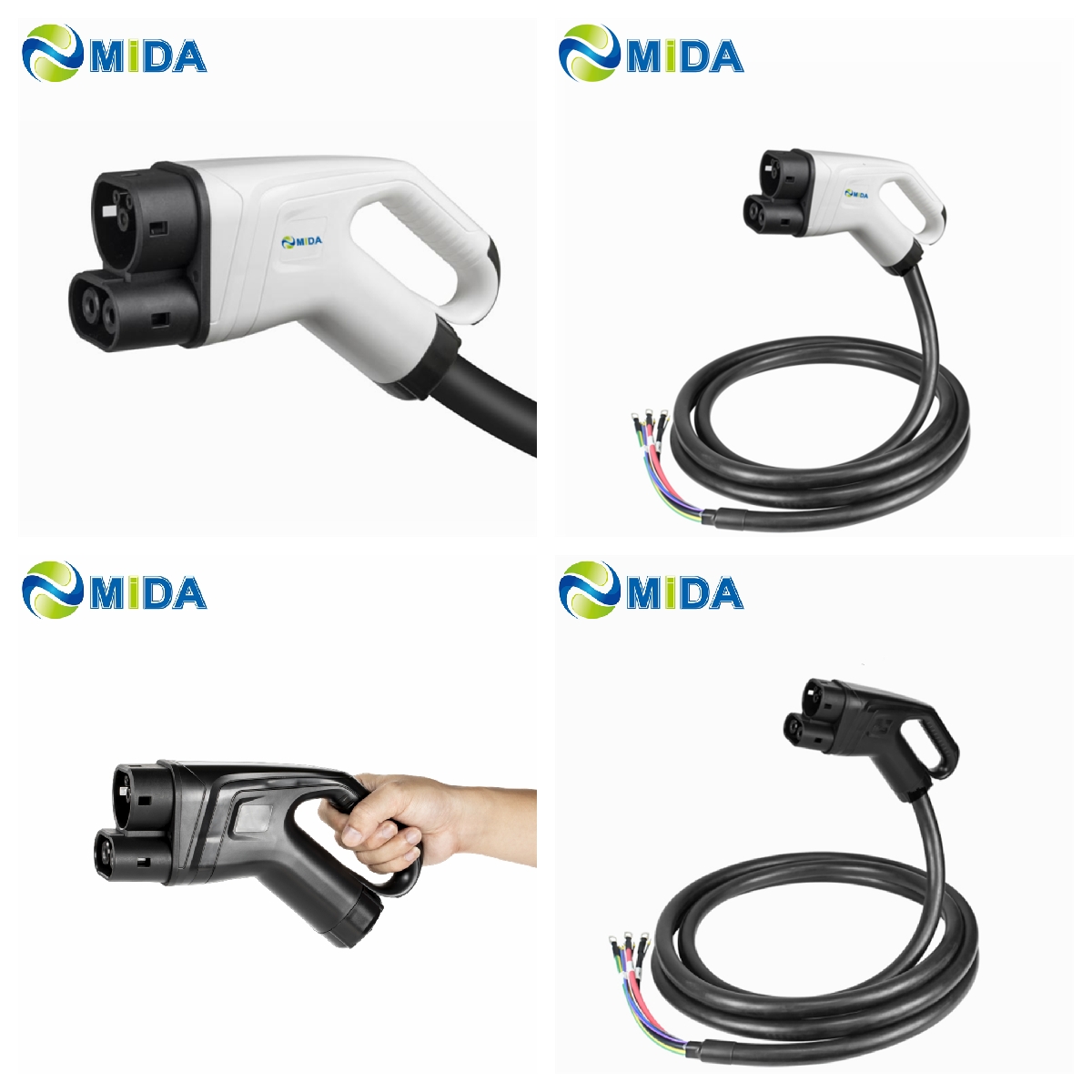

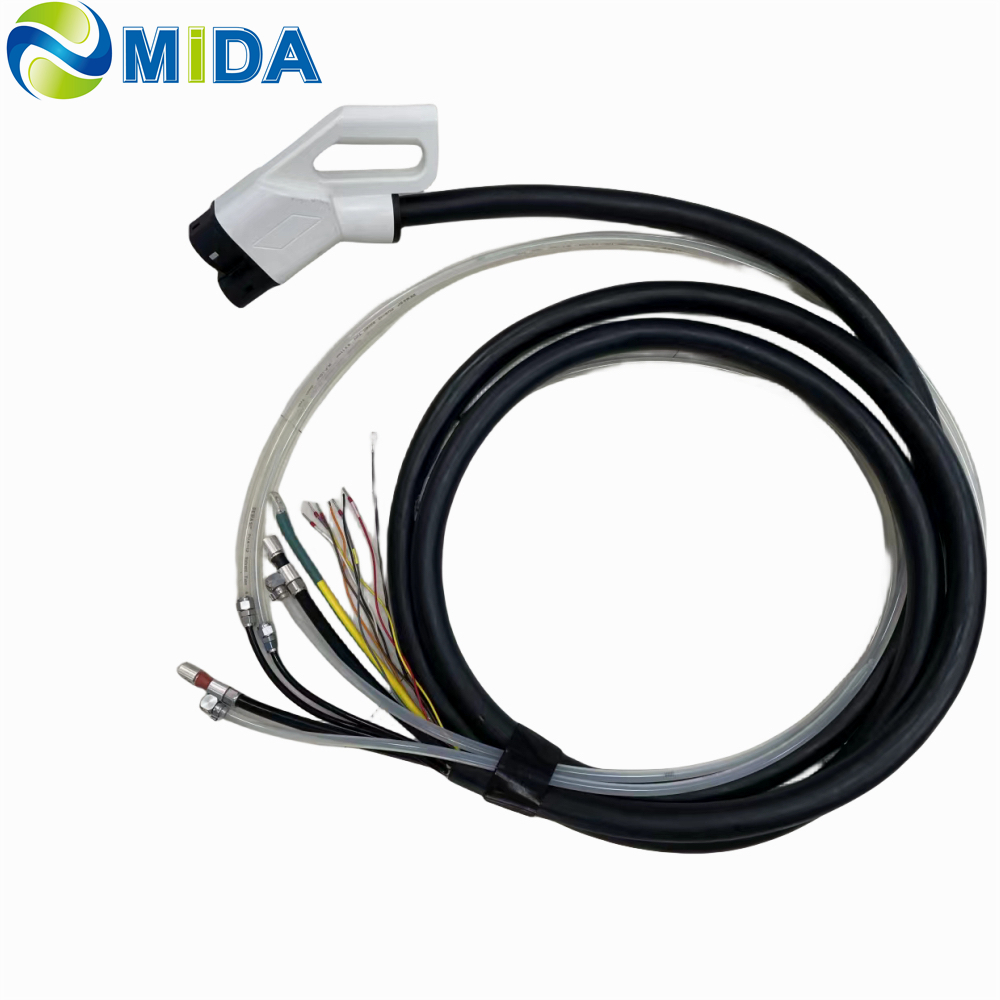

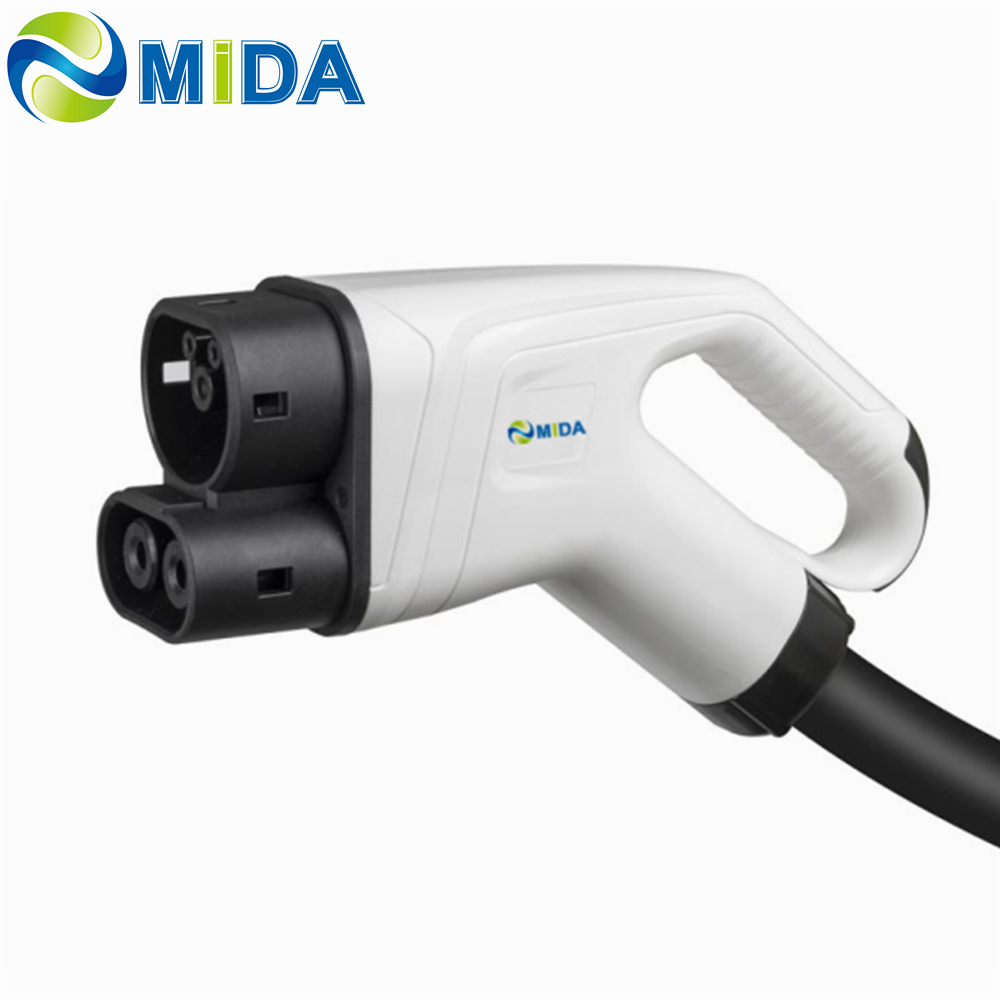

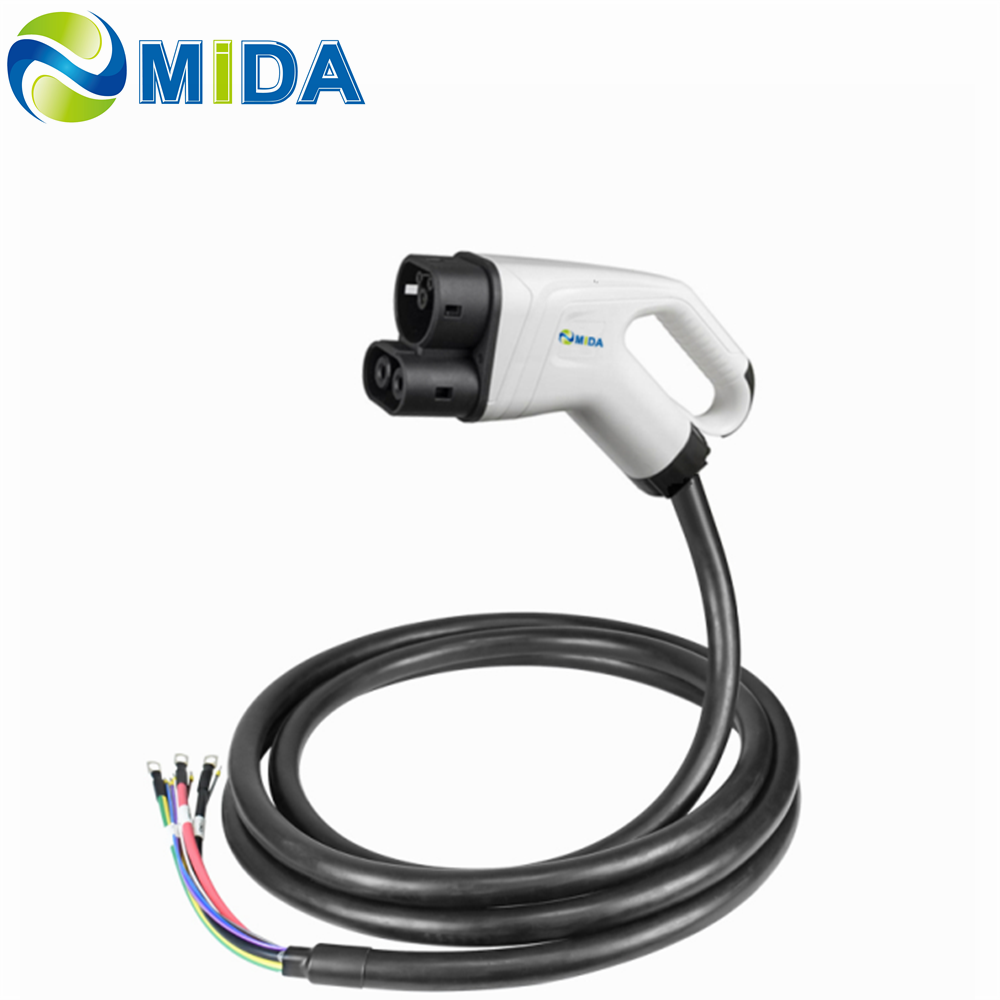

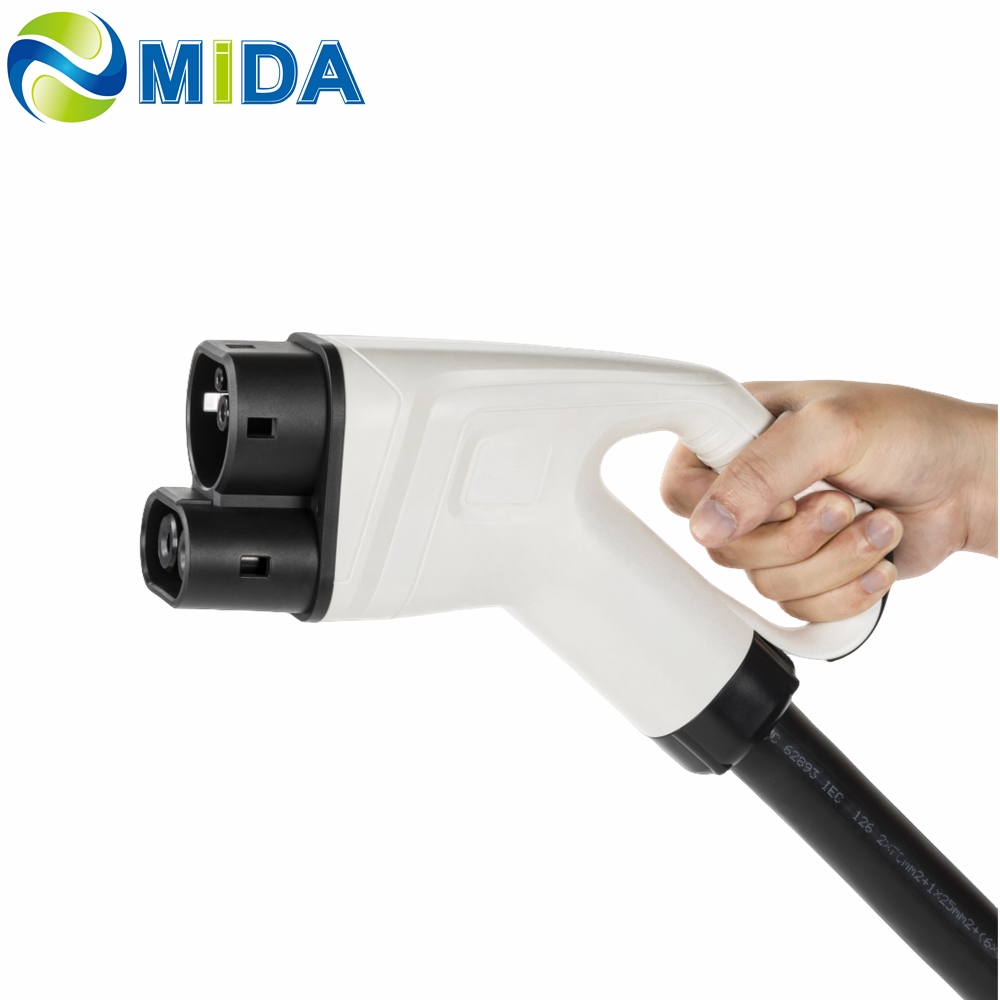

The 200A 250A 300A CCS2 Gun is an EV connector complies with the standard of IEC62196. The connector is compatible with AC and DC charging. Separate pins are used for each mode.
This technology can make the resistance of the EV tend to zero during the charging process, and reduce the phenomenon of heating up during the DC charging process of the EV.
The 250A, 300A, 350A CCS2 connector can be used to charge electric vehicles quickly, thanks to its 1,000-volt DC maximum voltage rating. It is the ideal choice for anyone who wants to charge their electric vehicle quickly and efficiently. The CCS2 connector, with its high voltage rating, CCS2 Plug is ideal for charging electric vehicles.
The 250A 375A 350A CCS2 connector has a number of safety features that protect against potential hazards such as overvoltage and overcurrent. These features include short circuit protection, ground fault detection, and temperature monitoring.
Our CCS 2 EV Plugs can withstand more than 10,000 times of plugging and unplugging. Ensure the safety of long-term power supply, solid and durable, and wear-resistant. It reduces the operation and maintenance costs of electric vehicle charging enterprises.
250A 300A 350A CCS 2 Gun supports simple LOGO customization and also supports customization of the entire function and appearance. There are professional sales and technical personnel docking. Open the road of brand agency for you.
Our 200A 250A CCS2 plug Designed to handle high currents, offers exceptional power ratings of 300A, 350A, 400A, and 500A CCS 2 Connector. This outstanding capacity ensures ultra-fast DC charging speeds significantly reducing the time spent at charging stations.
The 250A 300A CCS2 plug compatible with all CCS2 EV models on the market today. Whether you own a compact electric car, a powerful electric SUV, a heavy truck, a bus or a commercial electric vehicle, our 300A 350A CCS2 plug is designed to meet your DC fast charging needs.
Ultrasonic welding technology is used between the conductive terminal and the cable, the contact resistance tends to be zero, the temperature rise is lower during use and the service life of the product can be extended at the same time. And built-in temperature sensors, the charging process is safer.
