| Item | 240kW DC Charger | 320kW / 480kW DC Charger | |
|---|---|---|---|
| Input | Input Voltage | 3-phase 400V ±15% AC | |
| Input Voltage Type | TN-S (Three Phase Five Wire) | ||
| Working Frequency | 45~65Hz | ||
| Power Factor | ≥0.99 | ||
| Efficiency | ≥94% | ||
| Output | Rated Voltage | DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC - Type-2 400V; GBT 400V | |
| Max. Output Current | DC - CHAdeMO 125A; CCS 200A; GBT 250A; | AC - Type-2 63A; GBT 32A | |
| Interface | Display | 8'' LCD Touchscreen | |
| Language | Chinese, English, French, German, Spanish, Russian, etc. | ||
| Payment | Mobile APP/RFID/POS | ||
| Communication | Network Connection | 4G(GSM or CDMA)/Ethernet | |
| Communication Protocols | OCPP1.6J or OCPP2.0 | ||
| Working Environment | Working Temperature | -30°C ~ +55°C | |
| Storage Temperature | -35°C ~ +55°C | ||
| Operating Humidity | ≤95% Non-Condensing | ||
| Protection | IP54 | ||
| Acoustic Noise | <60dB | ||
| Cooling Method | Forced Air-Cooling | ||
| Mechanical | Dimension(W x D x H) | 700*1900*650mm | |
| No. of Charging Cable | Single | Dual | |
| Cable Length | 5m or 7m | ||
| Regulation | Certificate | CE/IEC61851-1/IEC61851-23/IEC61851-21-2 | |

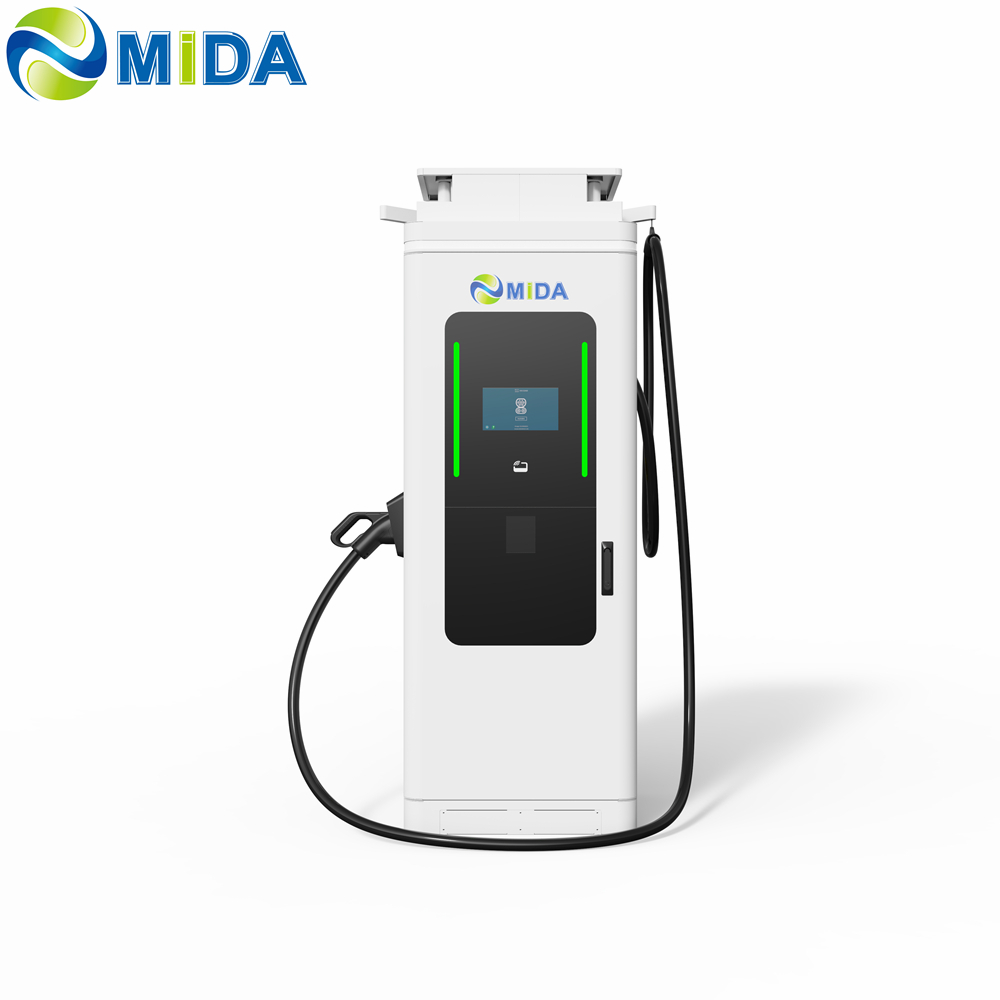

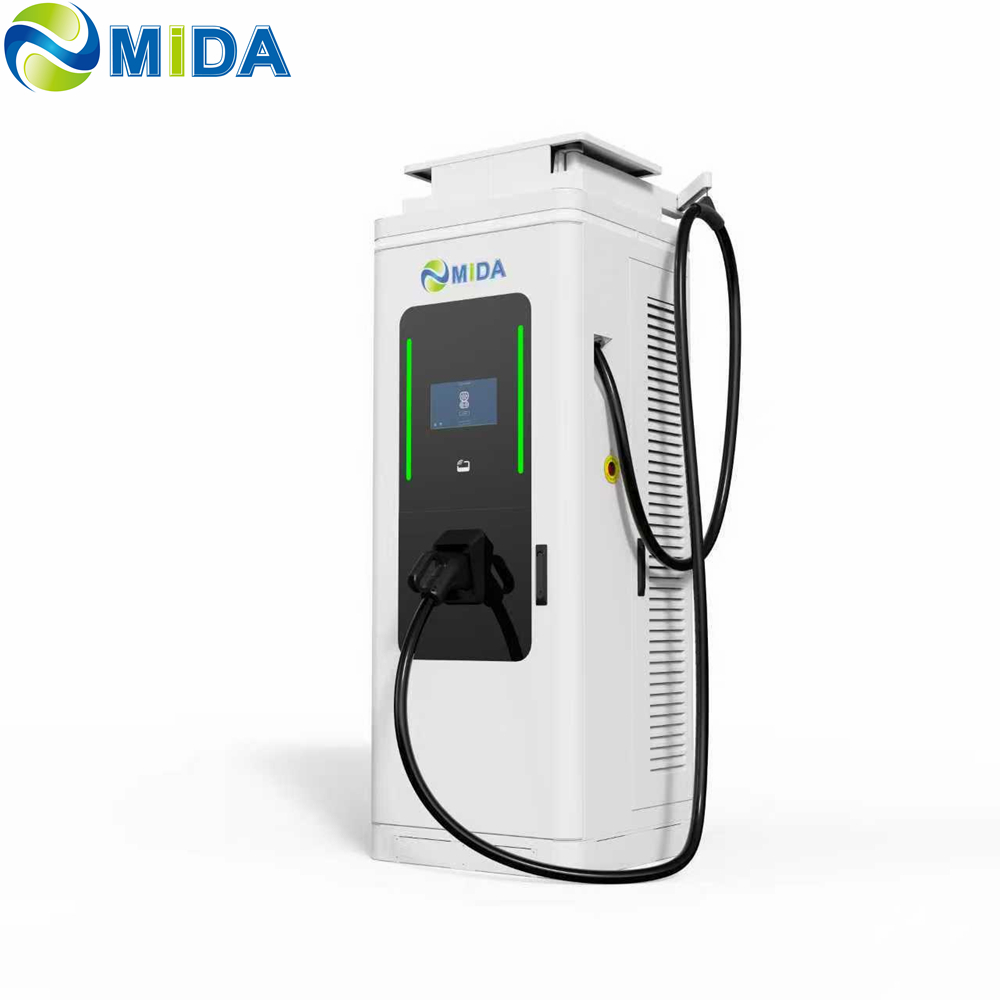

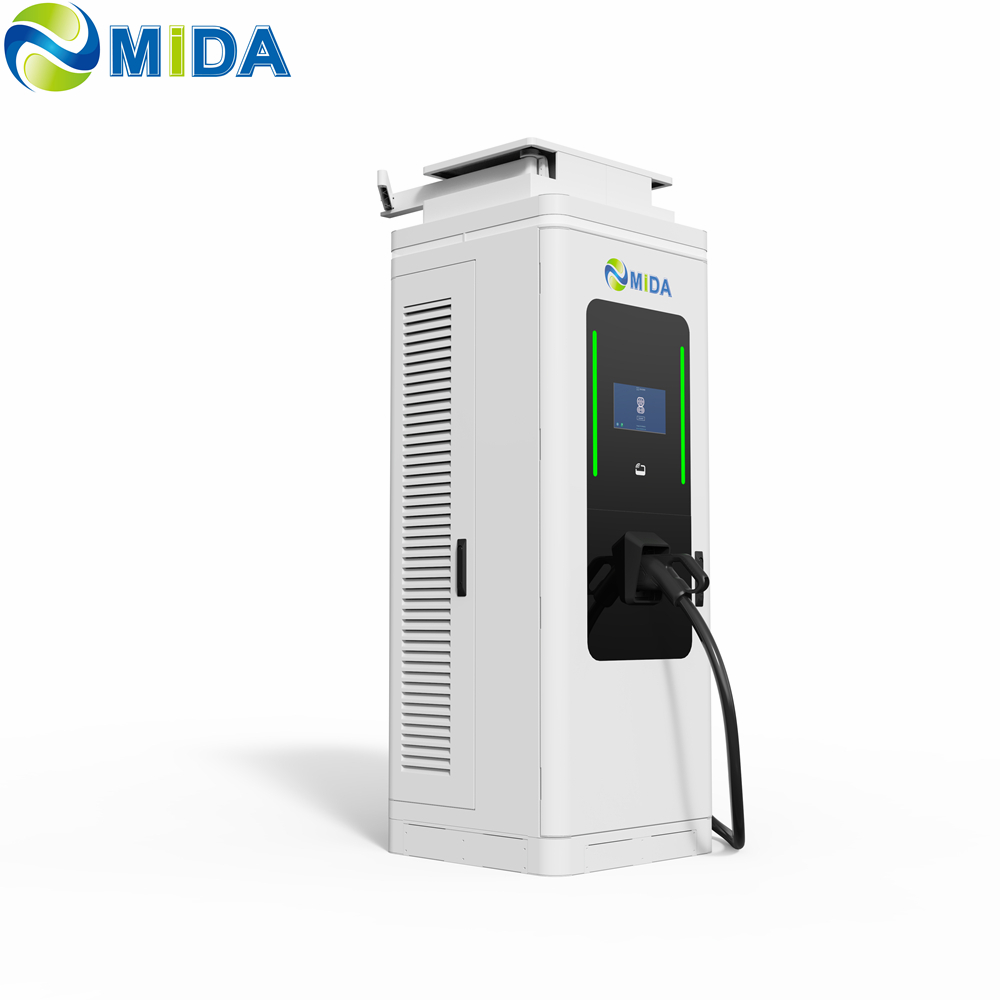

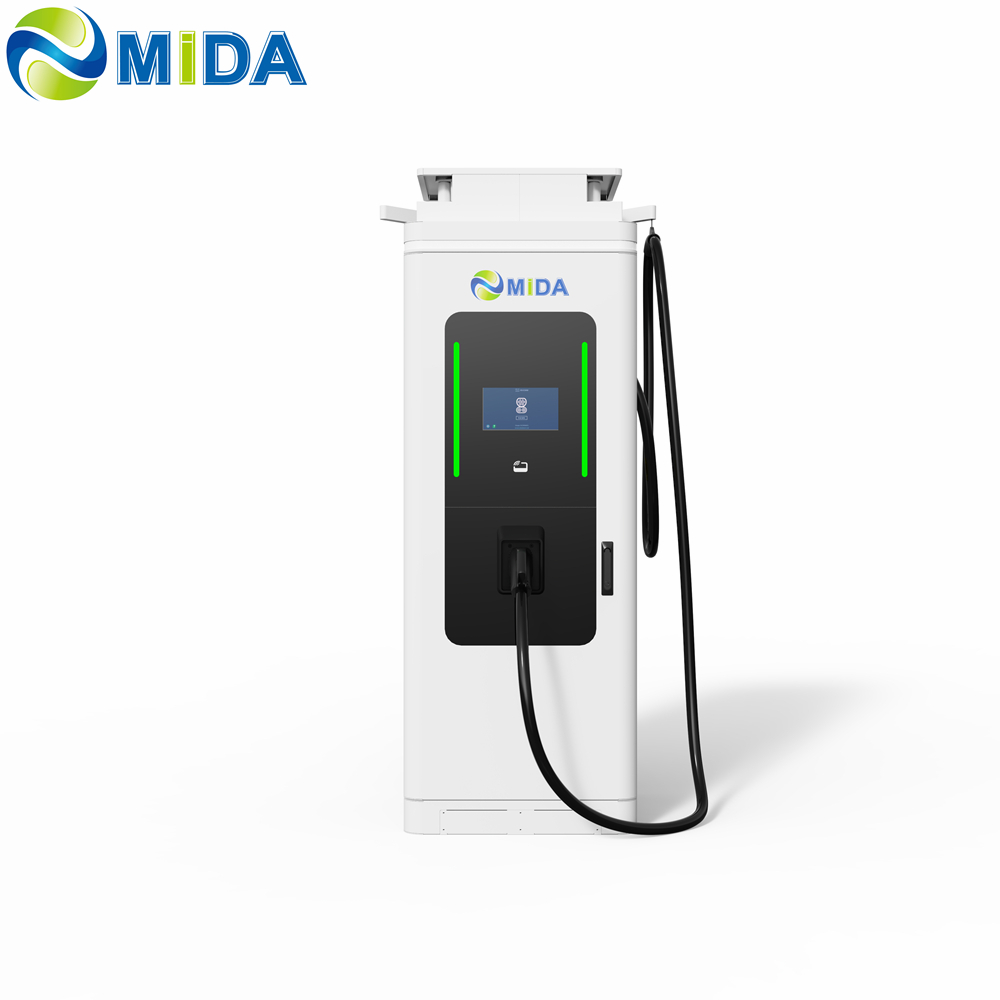

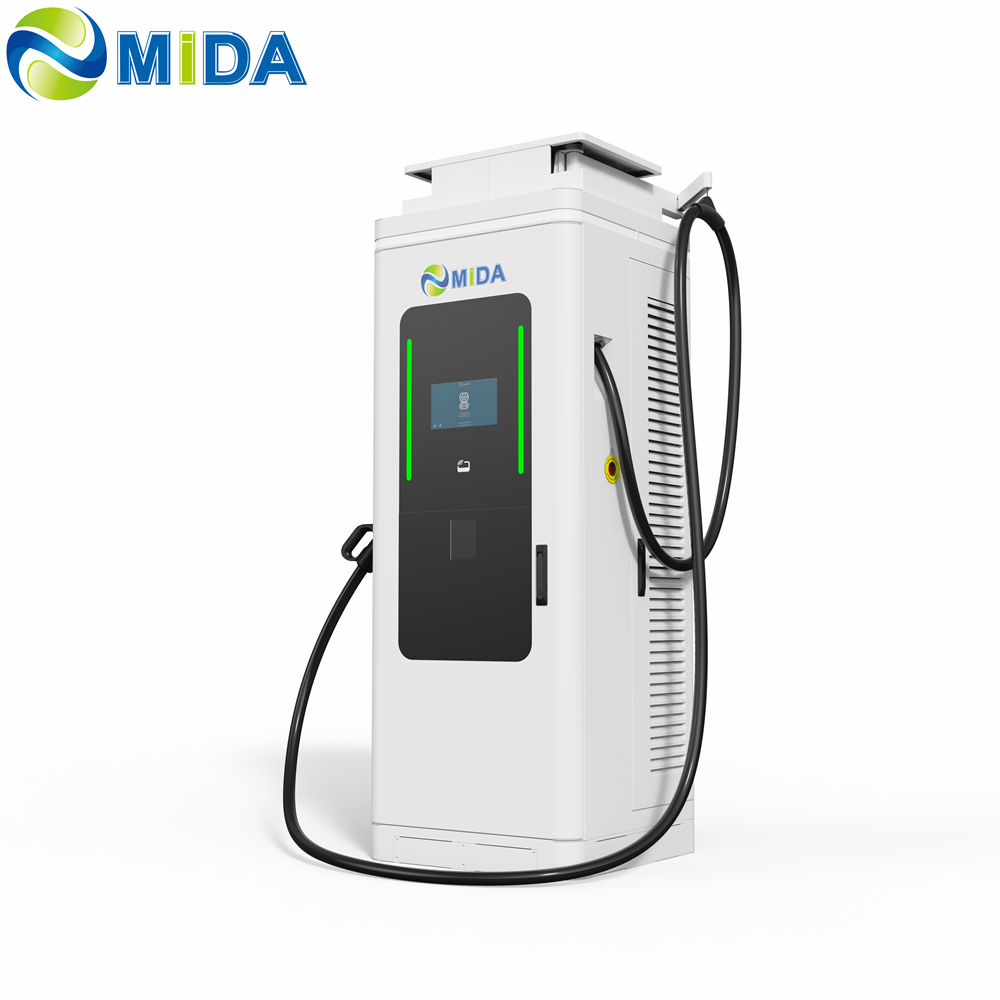

EV Integrated DC charger provides a DC charging solution for electric vehicles. This product integrates charging modules, charging control, energy meter, communication, and other functions with the CCS2 connector support, providing flexible power output and charging services for passenger cars and mining trucks.
1, A 60kW 120kW 150kW 180kW 200kW fast charger is a DC fast charger designed for electric vehicles (EVs) that delivers high power directly to the car's battery, significantly reducing charging times compared to standard Level 2 (AC) chargers. These chargers bypass the car's internal AC-to-DC converter, enabling rapid charging and offering convenience for drivers. Features often include support for various charging standards (CCS1, CCS2, CHAdeMO, GBT), user-friendly touchscreens, network connectivity (LAN, LTE), and options for dual-port simultaneous charging.
2, The 150kW 180kW 200kW Fast Charger is a DC fast charger designed specifically for electric vehicles (EVs) that delivers up to 200 kilowatts of power. This power output significantly reduces charging times compared to slower Level 2 AC chargers, potentially increasing range significantly in a short period of time. These high-power chargers are ideal for public charging stations, busy commercial areas, and along major roads. Compatible with standards such as CCS and CHAdeMO, they support a wide range of electric vehicles.
3, 200kW fast chargers significantly reduce EV charging times, bringing convenience to on-the-go drivers. High Efficiency: Many 200kW chargers feature a high-efficiency design, minimizing energy loss during the charging process. Wide Application: They are ideal for locations such as public charging stations, retail stores, and fleet parking garages, where fast turnaround and high utilization are critical.
