1 / 5
| Item | 240kW DC Charger | 320kW DC Charger | 480kW DC Charger |
| Input | Input Voltage | 3-phase 400V ±15% AC | |
| Input Voltage Type | TN-S (Three Phase Five Wire) | ||
| Working Frequency | 45~65Hz | ||
| Power Factor | ≥0.99 | ||
| Efficiency | ≥94% | ||
| Output | Rated Voltage | DC: CHAdeMO 500Vdc, CCS 1000Vdc, GBT 1000Vdc; AC: Type-2 400V, GBT 400V | |
| Max. Output Current | DC: CHAdeMO 125A, CCS 200A, GBT 250A | AC: Type-2 63A, GBT 32A | |
| Interface | Display | 8'' LCD Touchscreen | |
| Language | Multi-language: English, French, German, Spanish, Russian, Chinese, etc. | ||
| Payment | Mobile APP / RFID / POS | ||
| Communication | Network Connection | 4G (GSM or CDMA) / Ethernet | |
| Communication Protocols | OCPP1.6J or OCPP2.0 | ||
| Working Environment | Working Temperature | -30°C ~ +55°C | |
| Storage Temperature | -35°C ~ +55°C | ||
| Operating Humidity | ≤95% Non-Condensing | ||
| Protection | IP54 | ||
| Acoustic Noise | <60dB | ||
| Cooling Method | Forced Air-Cooling | ||
| Mechanical | Dimension(W x D x H) | 700*1900*650mm | |
| No. of Charging Cable | Single | Dual | |
| Cable Length | 5m or 7m | ||
| Regulation | Certificate | CE / IEC61851-1 / IEC61851-23 / IEC61851-21-2 | |

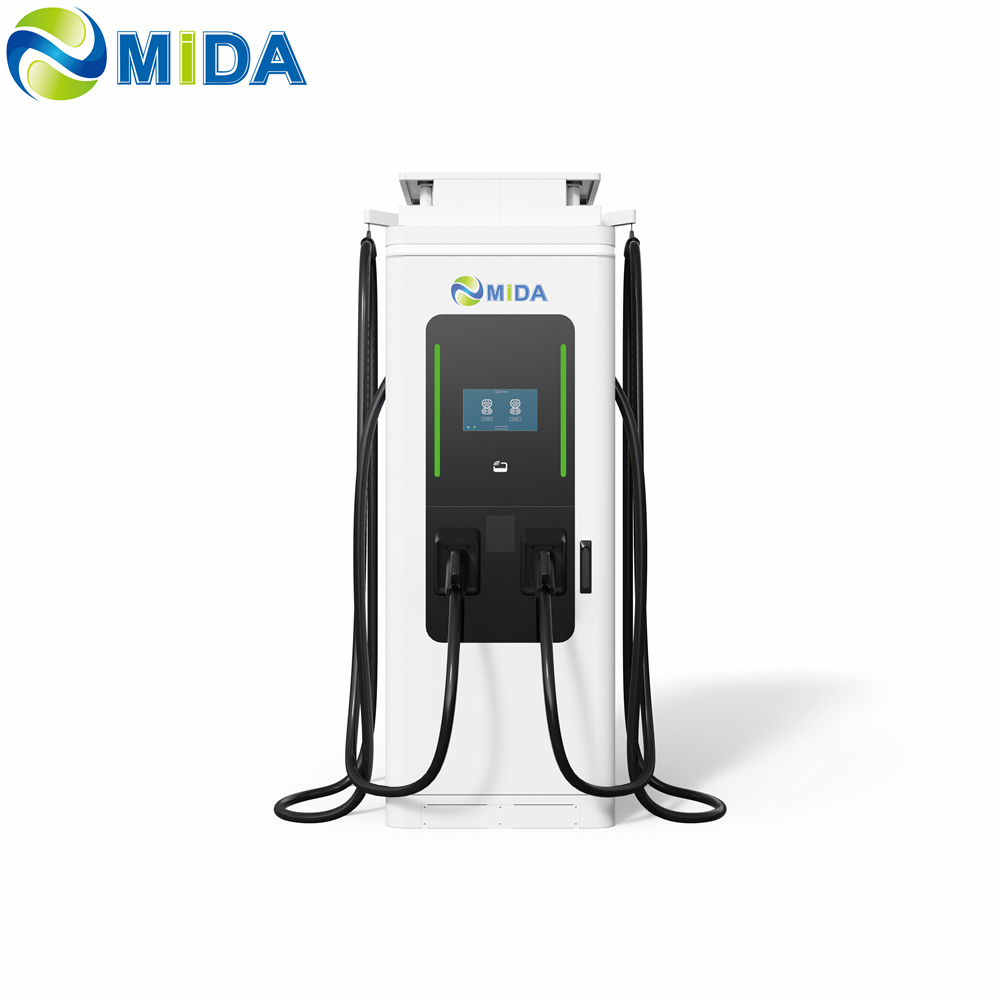

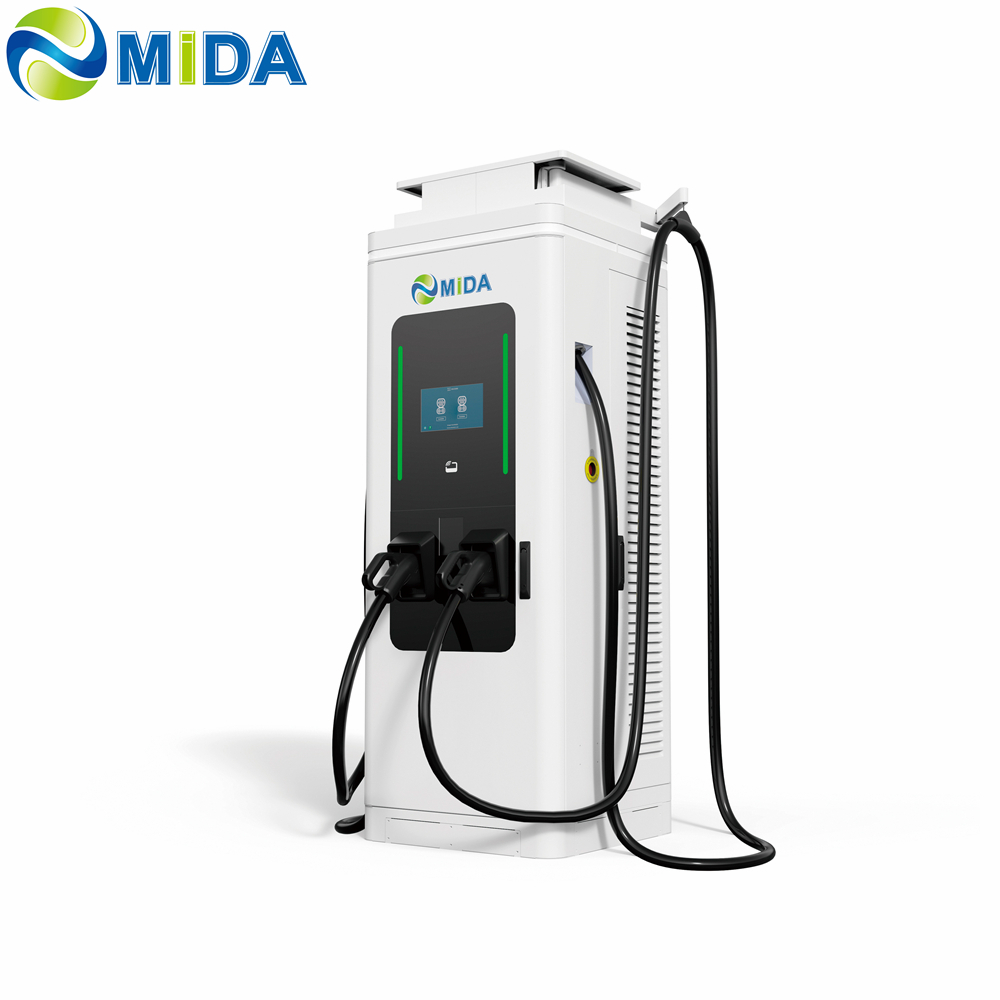

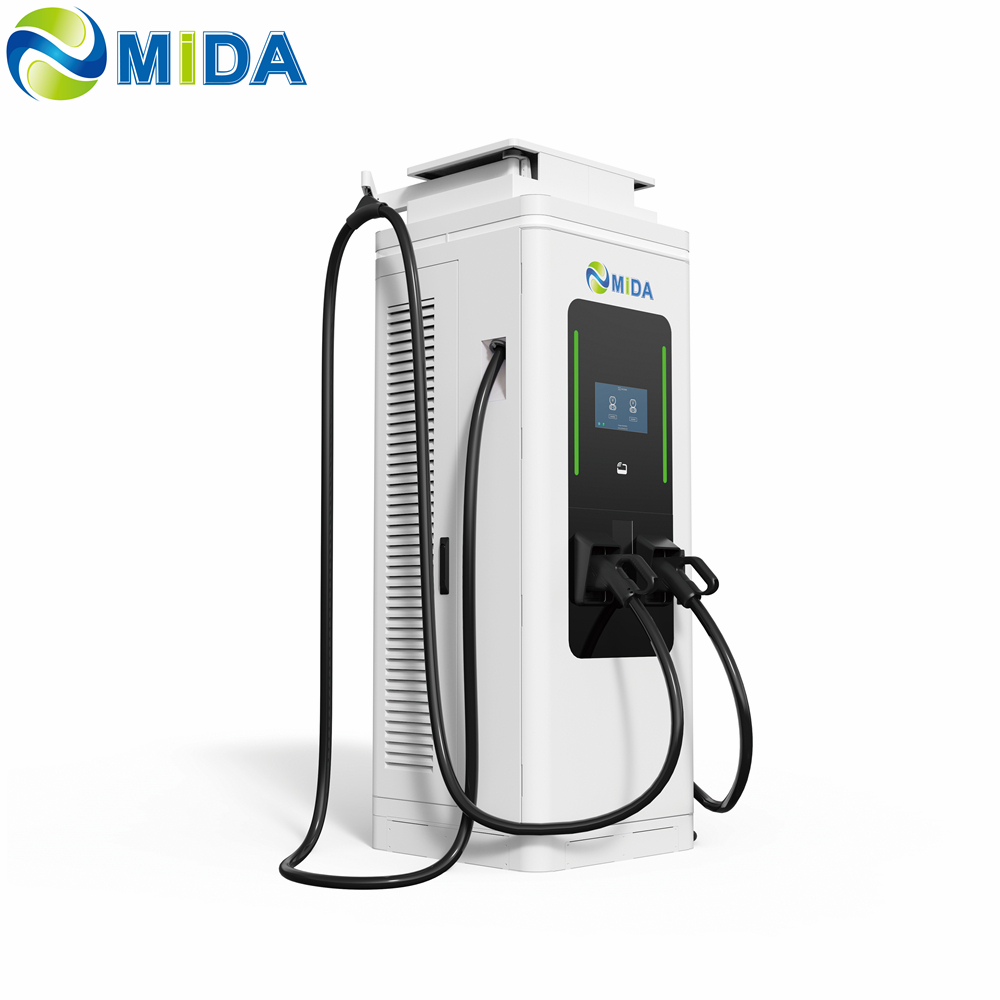

Our ultra-fast charging stations, ranging from 180kW to 400kW, are designed for the next generation of electric vehicles. They are ideal for commercial and public charging hubs, offering rapid charging capabilities that significantly reduce waiting times for EV drivers in high-traffic locations.
The 400kW EV charger offers a continuous output of up to 600A per socket, allowing for charging a wide range of EVs including heavy-duty EV trucks and buses. These powerful devices are capable of stacking power output to multiple devices via distributor expansions.
