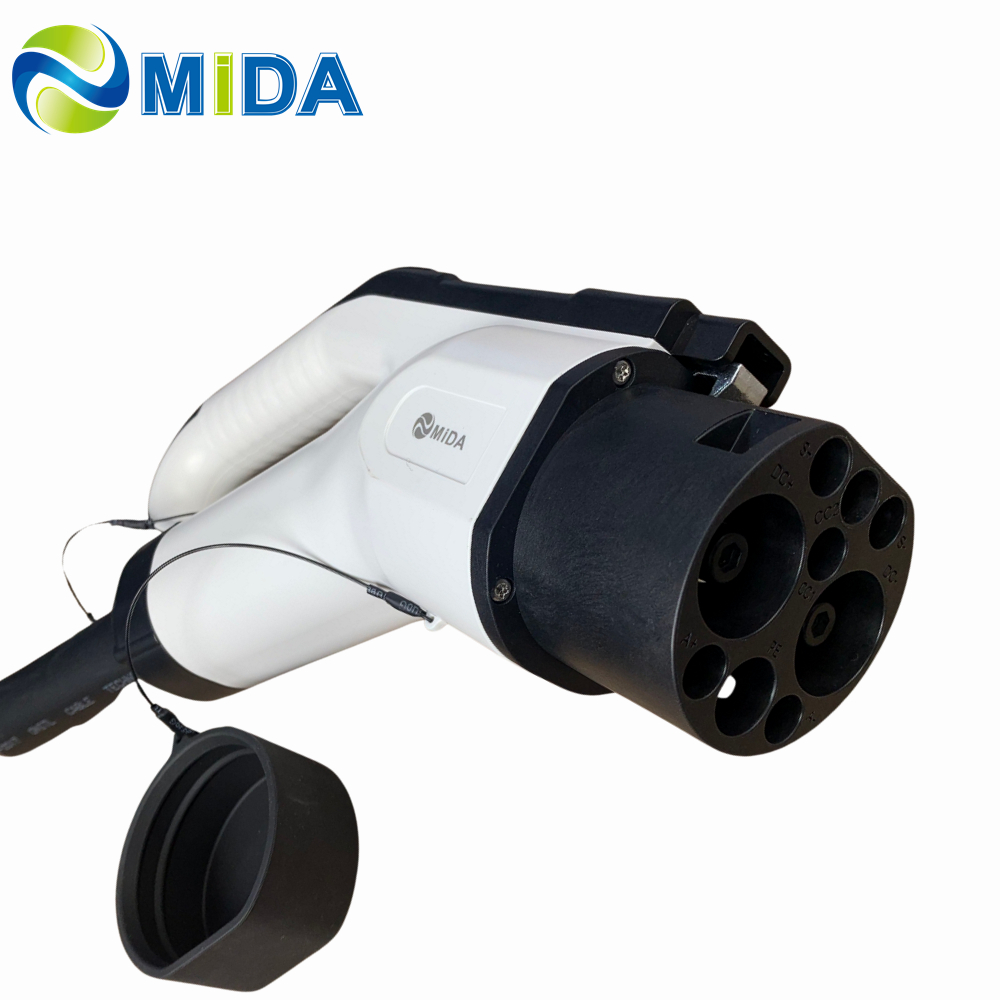

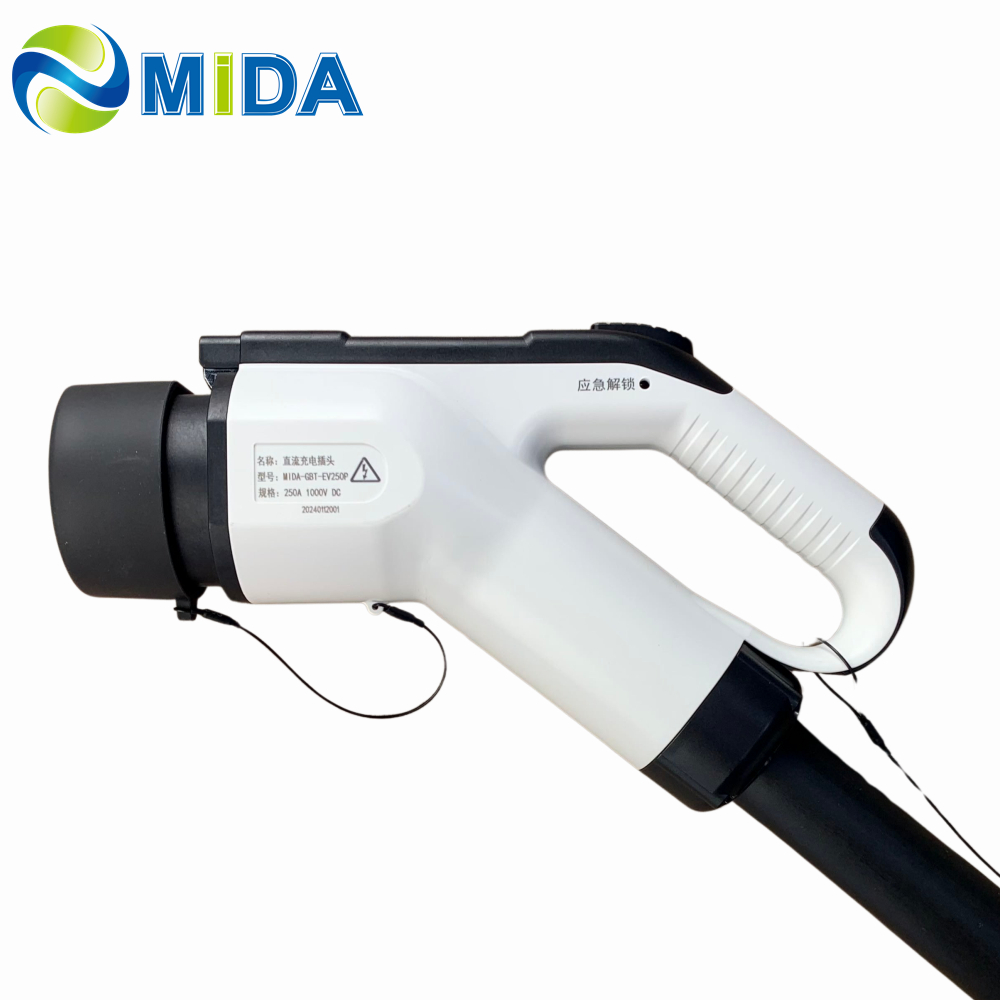

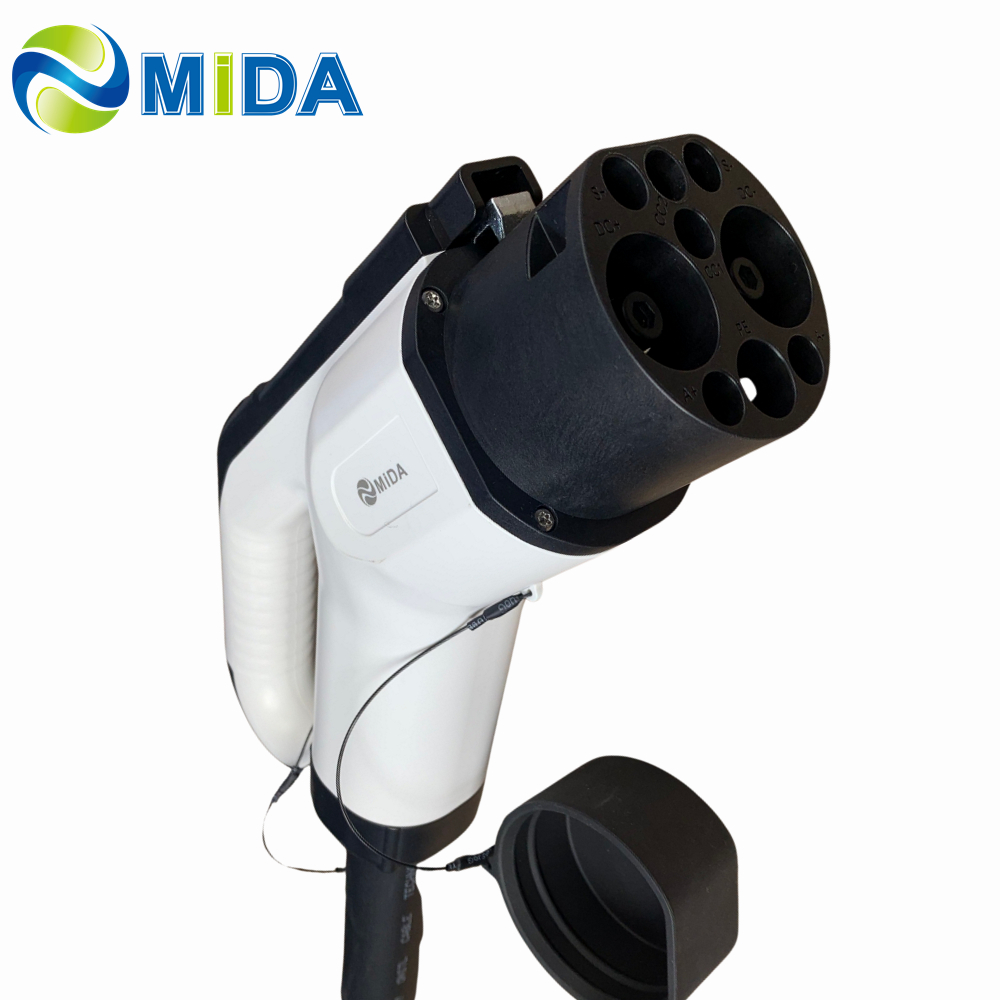

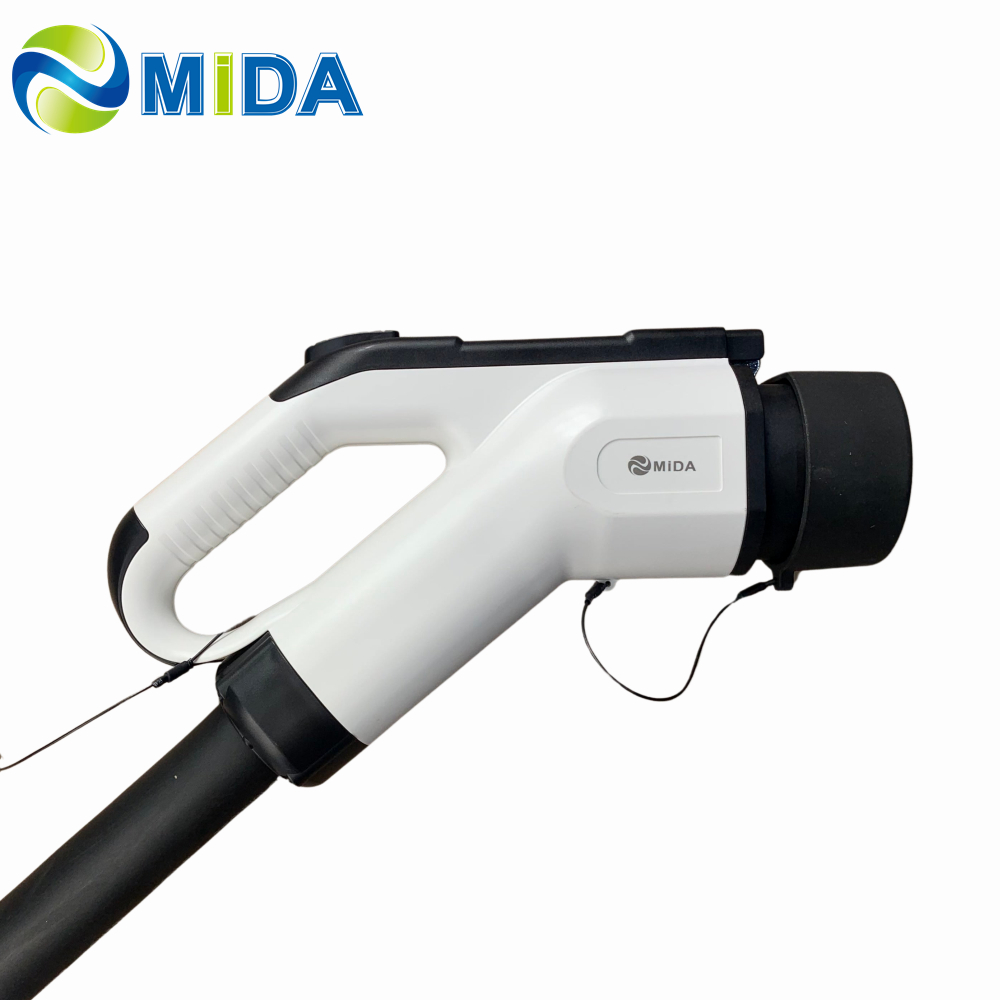

China Factory DC 1000V 200A 250A GB/T Charging Cable for 180kw DC Charger Station

1 / 5

China Factory DC 1000V 200A 250A GB/T Charging Cable for 180kw DC Charger Station

The DC fast charging standard (GB/T 20234.3) uses a different, larger connector and allows for fast charging at up to 250 kW, with current of 80/125/200/250A, and voltage of 750-1000V.However, 50 kW or other lower rated power chargers are more commonly seen, typically retaining the minimum GB/T voltage of 750V but with different current ratings. Some chargers may also follow the physical plug specified by GB/T 20234.3 but not the GB/T standard power limits by using a lower voltage than 750V, such as 500V.

Send Inquiry

Product Description

EV Charging Cable CCS2/GB/T Gun Features

Combined Charging System (GBT) is based on open and universal standards for electric vehicles. Our GB/T plug is used for direct-current charging at a maximum of 250 kW. Universally compatible, high-quality GB/T Gun EV plugs designed for 10000+ charging cycles.

➔

GB/T EV plug are available in 80A to 250A. It’s used in DC fast charging & comply with GB/T 20234.3.

➔

Integrated temperature sensors (2pcs PT1000) for monitoring temperature changes at power contacts (DC+ and DC- terminals).

➔

Produced in accordance with the IATF 16949 automotive standard and ISO 9001 standard.

Product Presentation

Core Advantages

1. GB/T Plug is convenient for charging Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles.

2. Uses proprietary silver-plated contacts for long-life durability, supporting AC & DC Charging standards globally.

3. Available in multiple specifications: 80A, 125A, 200A, and 250A GB/T Connector options.

4. Features Terminal Quick-Change DC High Power EV Charging capability with specialized EV cabling.

Technical Specifications

Features	Meet GB/T 2023.3-2015 standard; IP55 Protection; Max power 250kW
Mechanical Properties	Mechanical life: >10000 times; Impact force: 1m drop and 2t vehicle run over pressure
Electrical Performance	DC input: 250A 1000V DC MAX; Insulation resistance: >2000MΩ; Withstand Voltage: 3200V
Applied Materials	Case: Thermoplastic UL94 V-0; Pin: Copper alloy, silver + thermoplastic top
Operating Temperature	-30°C ~ +50°C

Ultrasonic Welding Technology This technology ensures the resistance of the EV tends to zero during the charging process, reducing heating phenomena during high-current DC charging.

High Voltage Rating Supports up to 1,000-volt DC maximum voltage rating, making it the ideal choice for anyone who wants to charge their electric vehicle quickly and efficiently.

Safety Features Includes short circuit protection, ground fault detection, and real-time temperature monitoring to protect against overvoltage and overcurrent hazards.

Quality Assurance Designed to withstand more than 10,000 plugging cycles. Solid, durable, and wear-resistant, reducing long-term maintenance costs.

OEM & ODM Support Supports LOGO customization as well as full function and appearance customization for brand agency requirements.

Wide Compatibility Compatible with all GB/T EV models, from compact cars and SUVs to heavy trucks, buses, and commercial electric vehicles.

Frequently Asked Questions

What is the maximum charging power of the GB/T gun?

The GB/T connector supports high-power DC fast charging with a maximum capacity of 250kW and a voltage rating of up to 1000V DC.

How does the integrated temperature sensor work?

The connector features dual PT1000 temperature sensors that monitor thermal changes at the power contacts (DC+ and DC- terminals) to prevent overheating and ensure safety.

Is the charging gun compatible with all electric vehicles?

Our GB/T gun is designed to be compatible with all electric vehicles and plug-in hybrids (PHEV) that follow the GB/T 20234.3 standards, including buses and heavy trucks.

What is the expected lifespan of the connector?

The GB/T connector is built for durability, rated for over 10,000 no-load plug-in and pull-out cycles, and can withstand 2-ton vehicle run-over pressure.

Does it offer protection against harsh environments?

Yes, it features an IP55 protection class and is made from flame-retardant thermoplastic (UL94 V-0), operating reliably in temperatures ranging from -30°C to +50°C.
