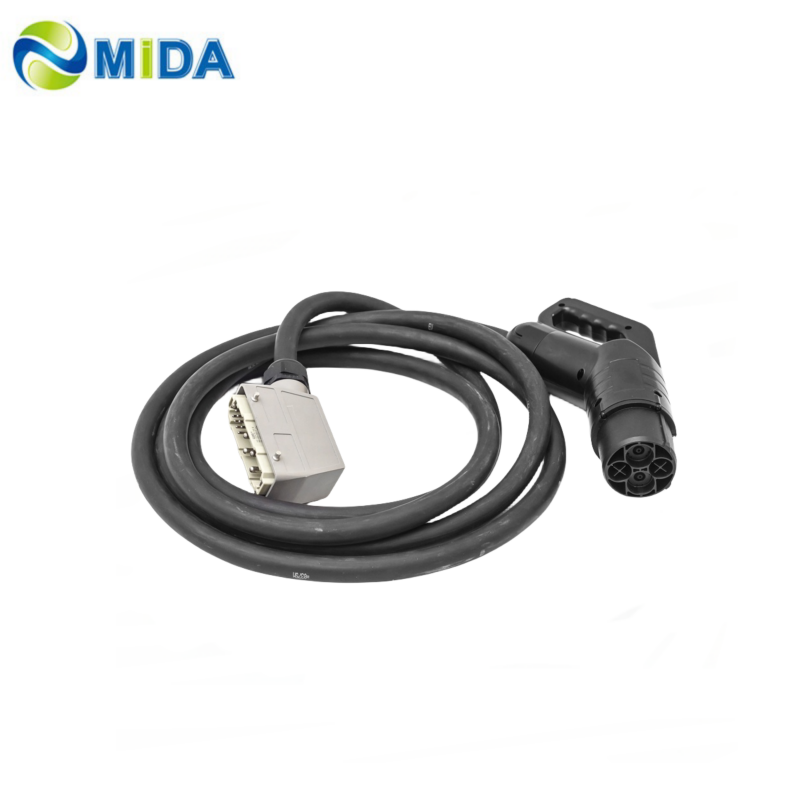

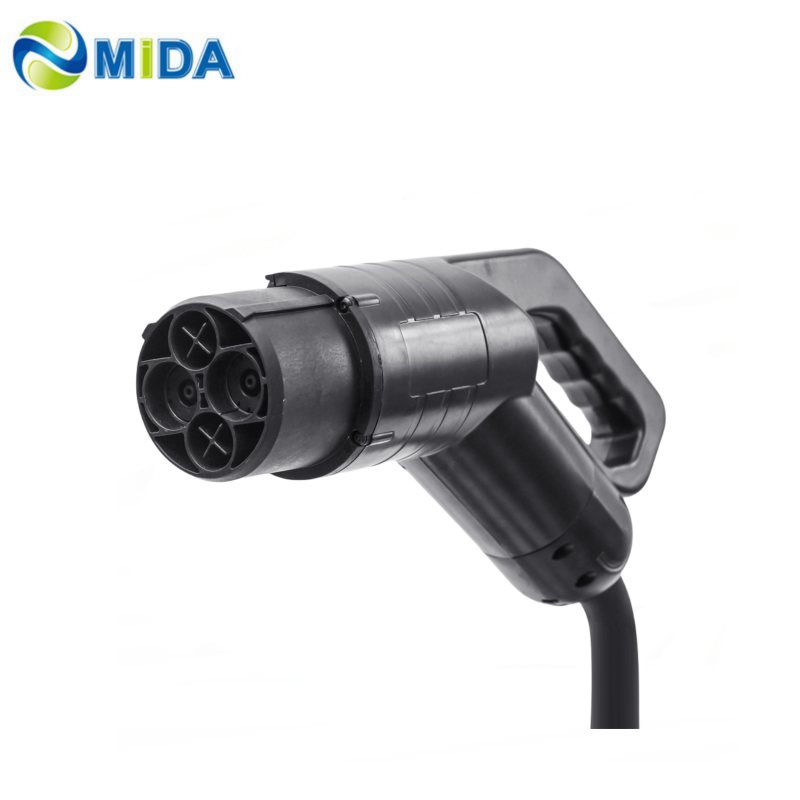

Parameters of CHAdeMO Plug 80~200A
CHAdeMO is one of a selection of rapid charging standards which was created by a consortium of carmakers and industry bodies that now includes more than 400 members and 50 charging companies. Its name stands for Charge de Move, which is also the name of the consortium. The goal of the consortium was to develop a fast-charging vehicle standard that the whole automotive industry could adopt. Other fast-charging standards exist, like CCS.
| Model |
CHAdeMO Plug |
| Rated current |
DC+/DC-：80A, 125A, 150A, 200A; PP/CP：2A |
| Wire Diameter |
80A/16mm2, 125A/35mm2, 150A/70mm2, 200A/80mm2 |
| Rated voltage |
DC+/DC-: 750V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC |
| Withstand voltage |
3000V AC / 1min. (DC + DC- PE) |
| Insulation resistance |
≥ 100mΩ 750V DC (DC + / DC- / PE) |
| Electronic locks |
12V / 24V optional |
| Mechanical life |
10,000 times |
| Ambient temperature |
-40℃~50℃ |
| Degree of Protection |
IP55 (When not mated), IP44 (After mated) |
| Main Material |
| Shell |
PA |
| Insulation part |
PA |
| Sealing part |
Silicone Rubber |
| Contact part |
Copper alloy |

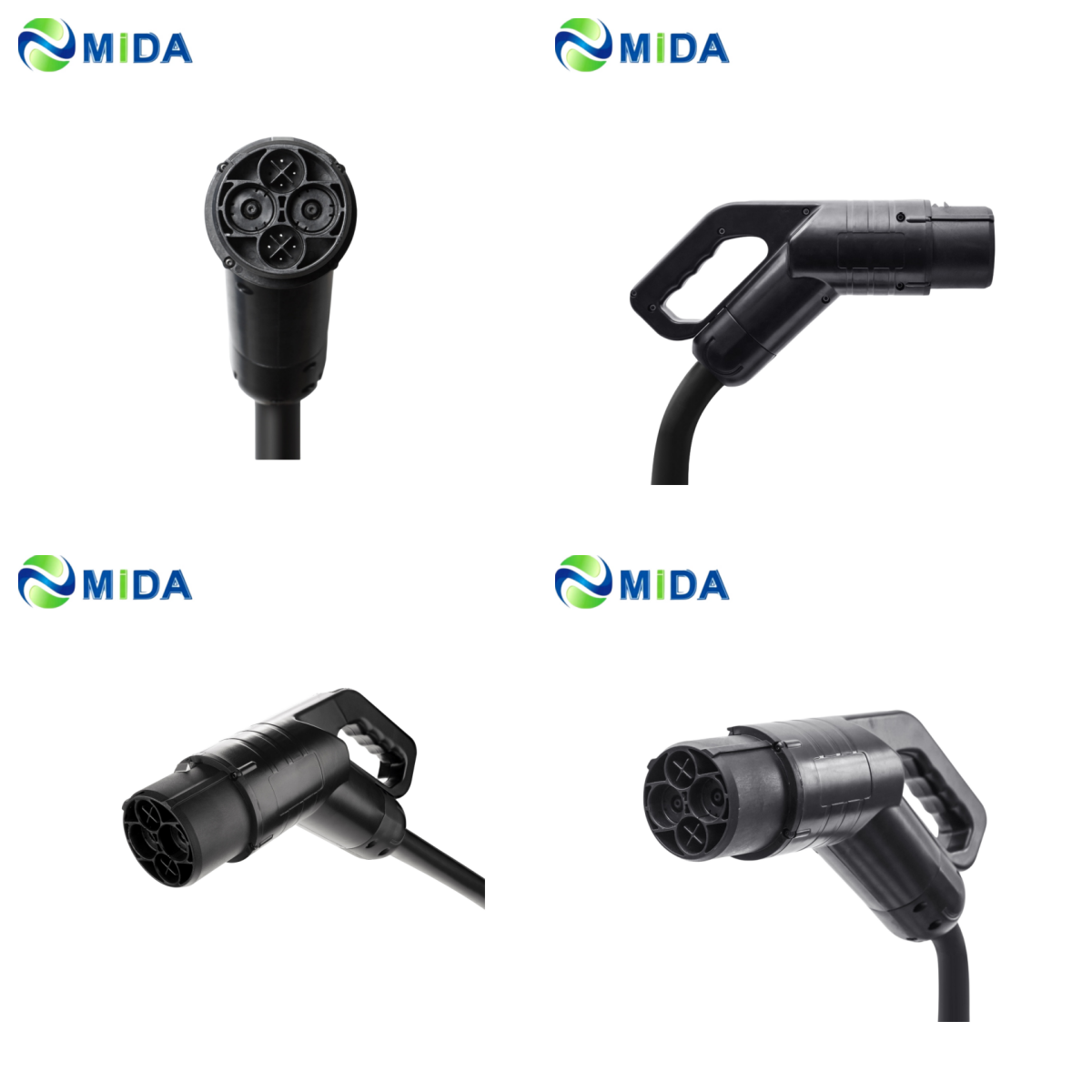

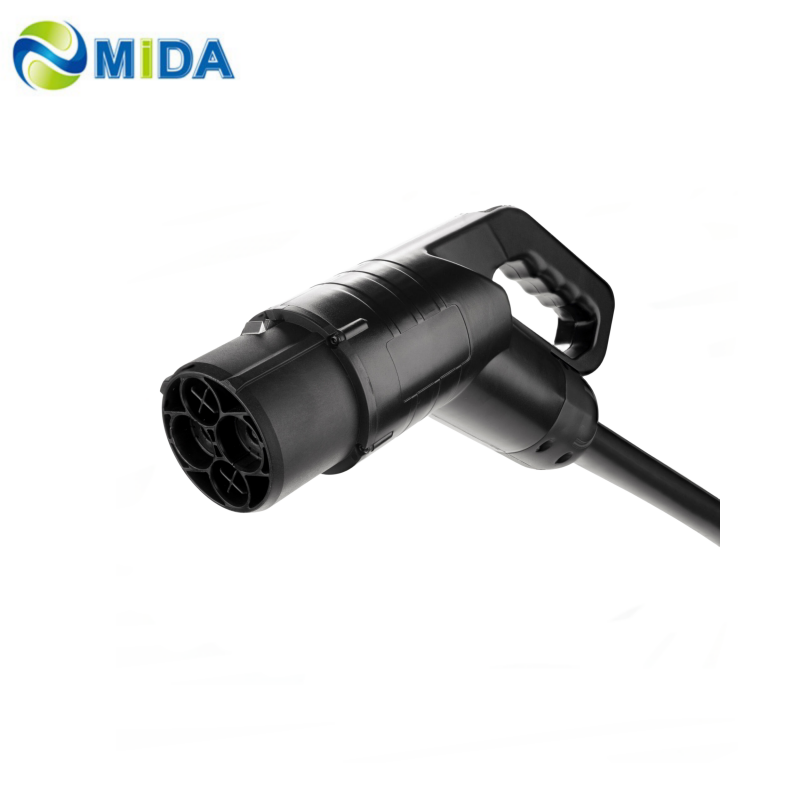

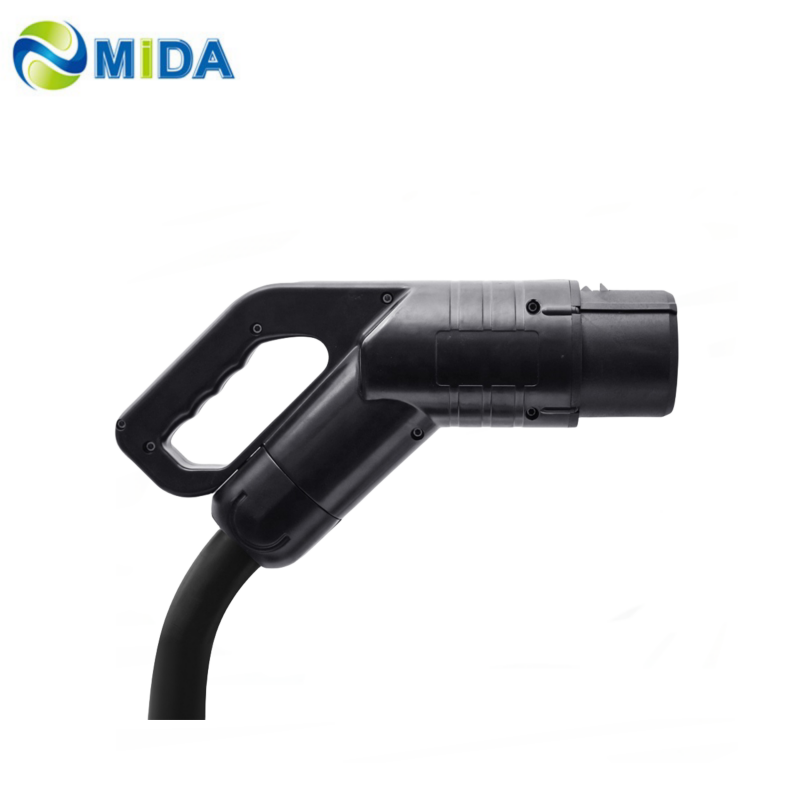

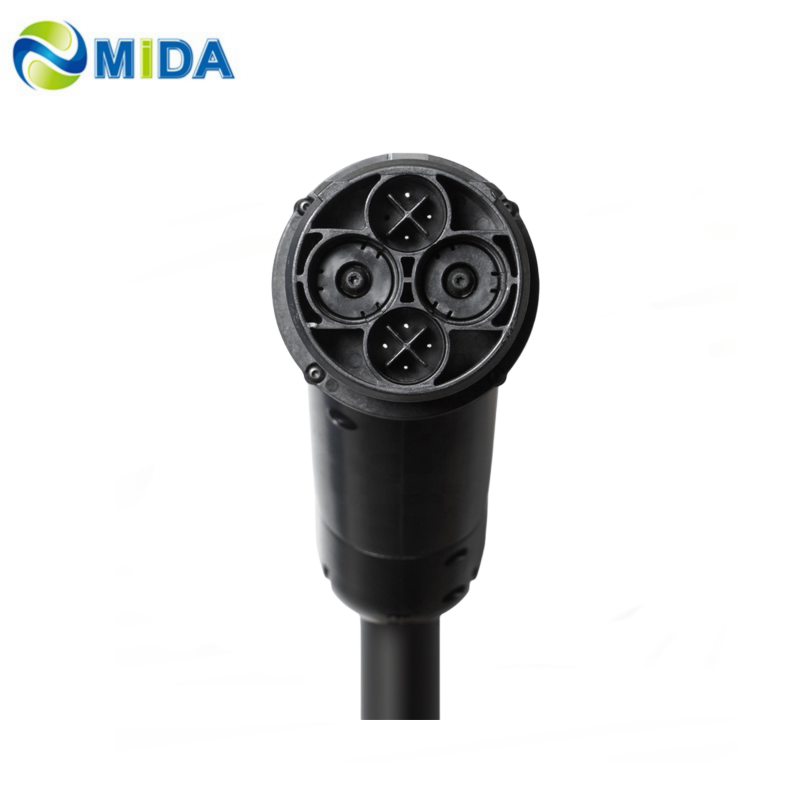

Introduction Of CHAdeMO DC Plug
EV CHARGING CHAdeMO Plug FEATURES
⚡
Alternating Current
The GBT Plug EV standard has two types of connectors – one for slow charging and the other for fast charging. The slow-charging connector, also known as the AC connector, is a single-phase, three-pin connector. This connector is typically used for charging at home or in commercial areas where charging time is not a constraint. The AC connector can provide a maximum charging power of 27.7 kW with three-phase current. A one-phase wire provides a maximum of 8 kW charging power.
🛡️

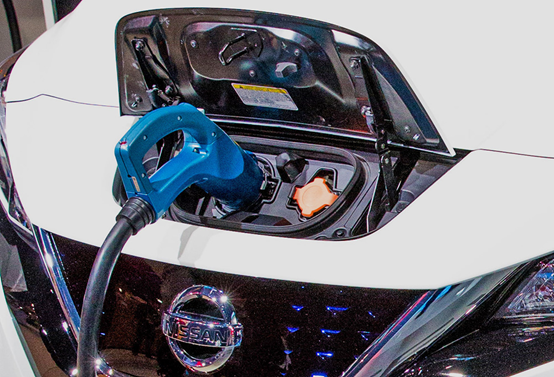

Safe Charging
GBT EV sockets are designed with safety insulation on their pinheads to prevent accidental direct contact with human hands. This insulation is meant to ensure the highest level of safety when handling the sockets, protecting the user from potential electric shock.
Key Technical Advantages
- Comply with IEC 62196.3-2022
- Rated voltage: 600V / Rated current: DC 80A
- 12V/24V electronic lock optional
- Meet TUV/CE certification requirements
- Anti-straight plug dust cover
- 10000 times of plugging and unplugging cycles, stable temperature rise
- Optimized design for lower cost, faster delivery, and better quality
Investment Value & Market Analysis
Investment Value: This advanced charging system is also built to last, with a robust construction that ensures reliability and longevity. The GBT socket is designed to outlast its competitors, making it an excellent long-term investment for EV owners. Its multi-avaliable current rating and easy installation make it a great choice for both residential and commercial applications.
Market Analysis: The socket is designed to be used with GBT charging connectors, which are becoming increasingly commonplace across the world. This makes it an ideal choice for those who want to charge their electric vehicles without having to worry about compatibility issues.
Frequently Asked Questions
What is the standard compliance for this CHAdeMO plug?
The plug complies with the IEC 62196.3-2022 standard, ensuring international quality and safety benchmarks.
What are the available current ratings?
We offer various options including 80A, 125A, 150A, and 200A to suit different charging requirements.
What is the protection level of the plug?
It features an IP55 rating when not mated and an IP44 rating after being mated, providing robust protection against dust and water splashes.
How long is the mechanical lifespan?
The plug is designed for durability with a mechanical life of over 10,000 plugging and unplugging cycles.
Does it support electronic locking?
Yes, 12V or 24V electronic locks are optional features to enhance security during the charging process.
What materials are used in the construction?
The shell and insulation parts are made of high-quality PA material, the seals are silicone rubber, and the contacts are premium copper alloy.
