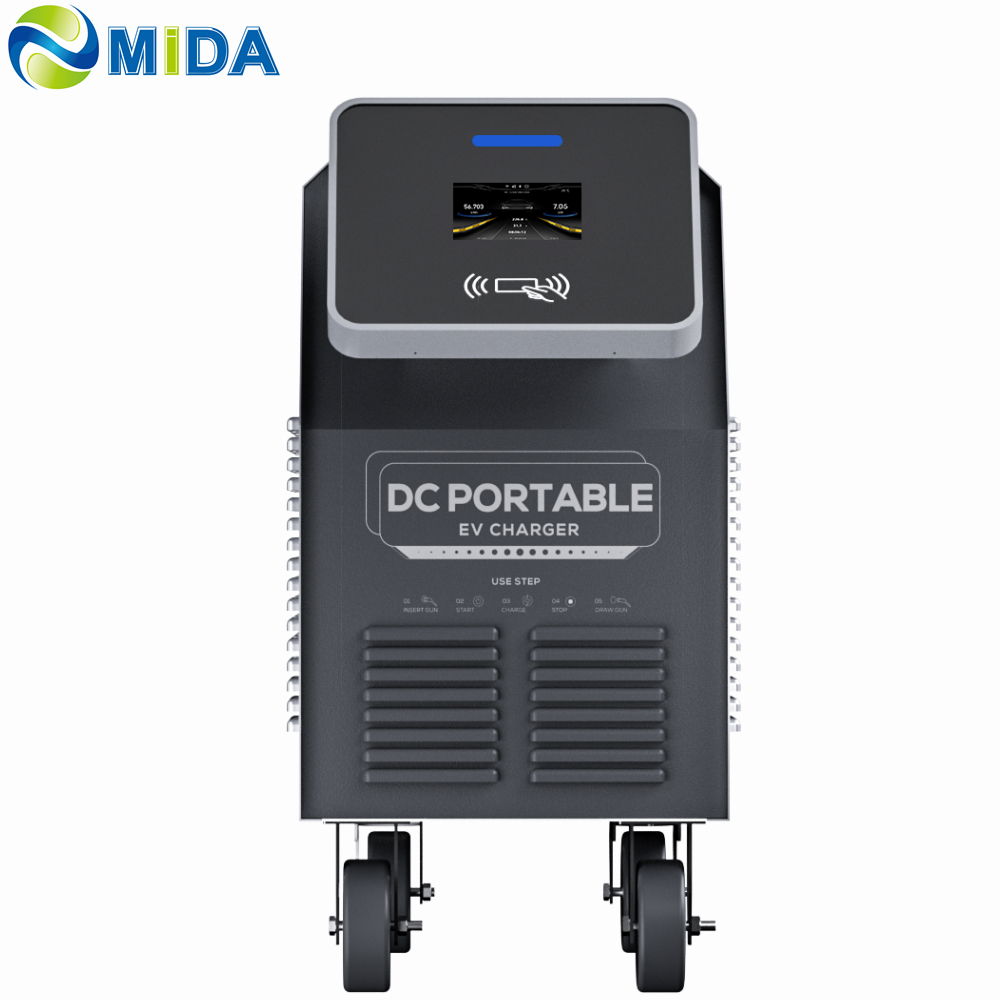

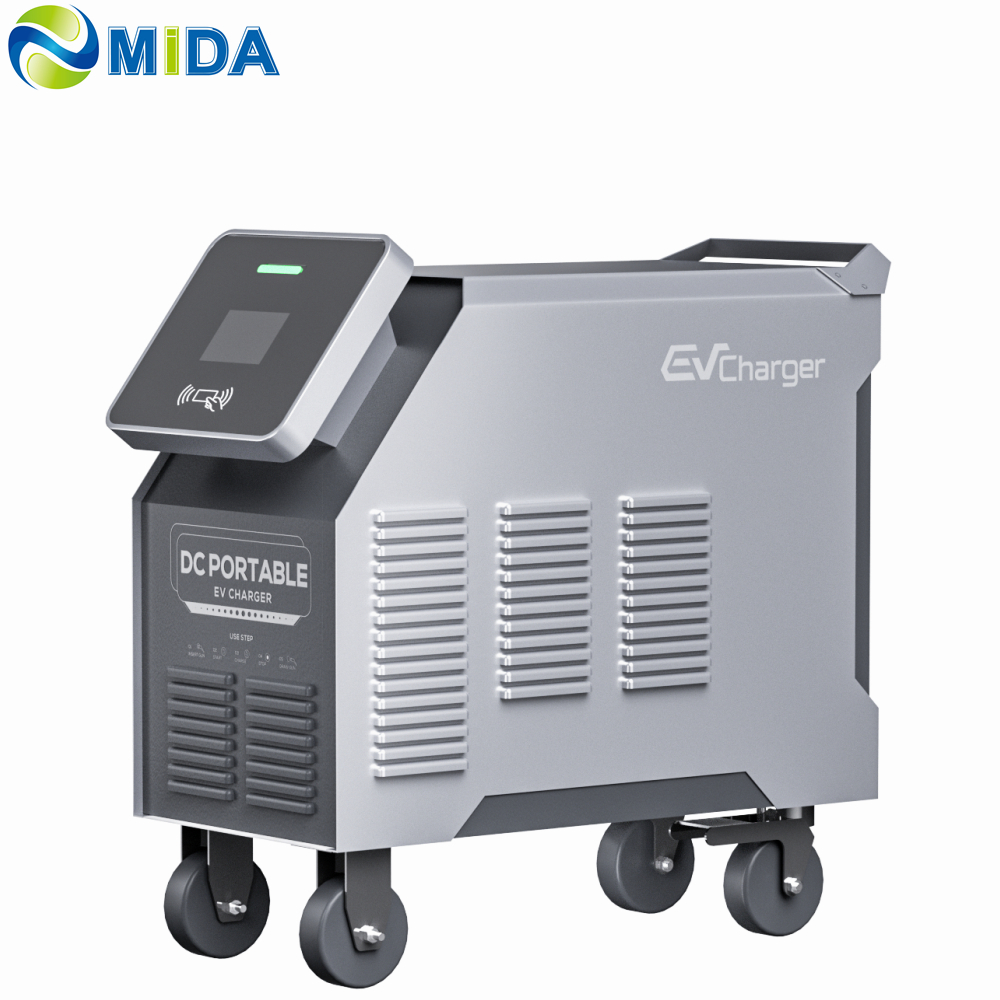

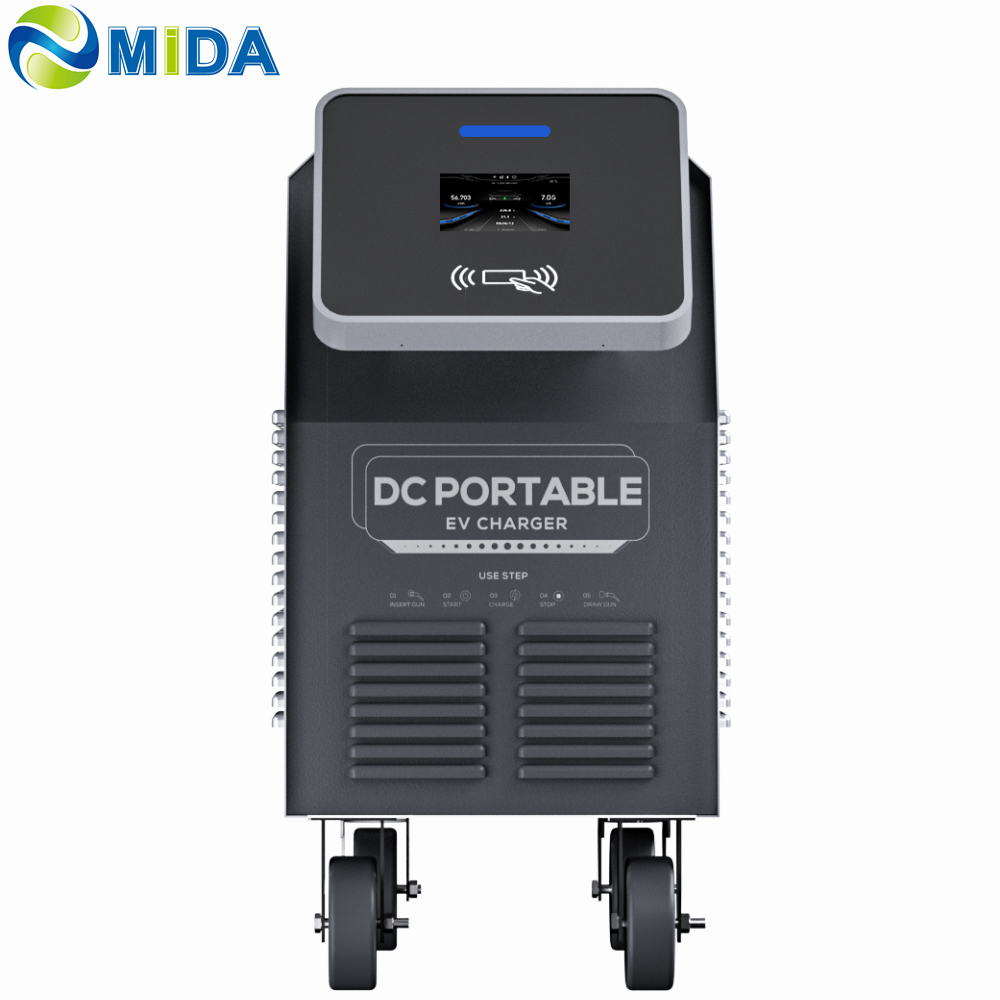

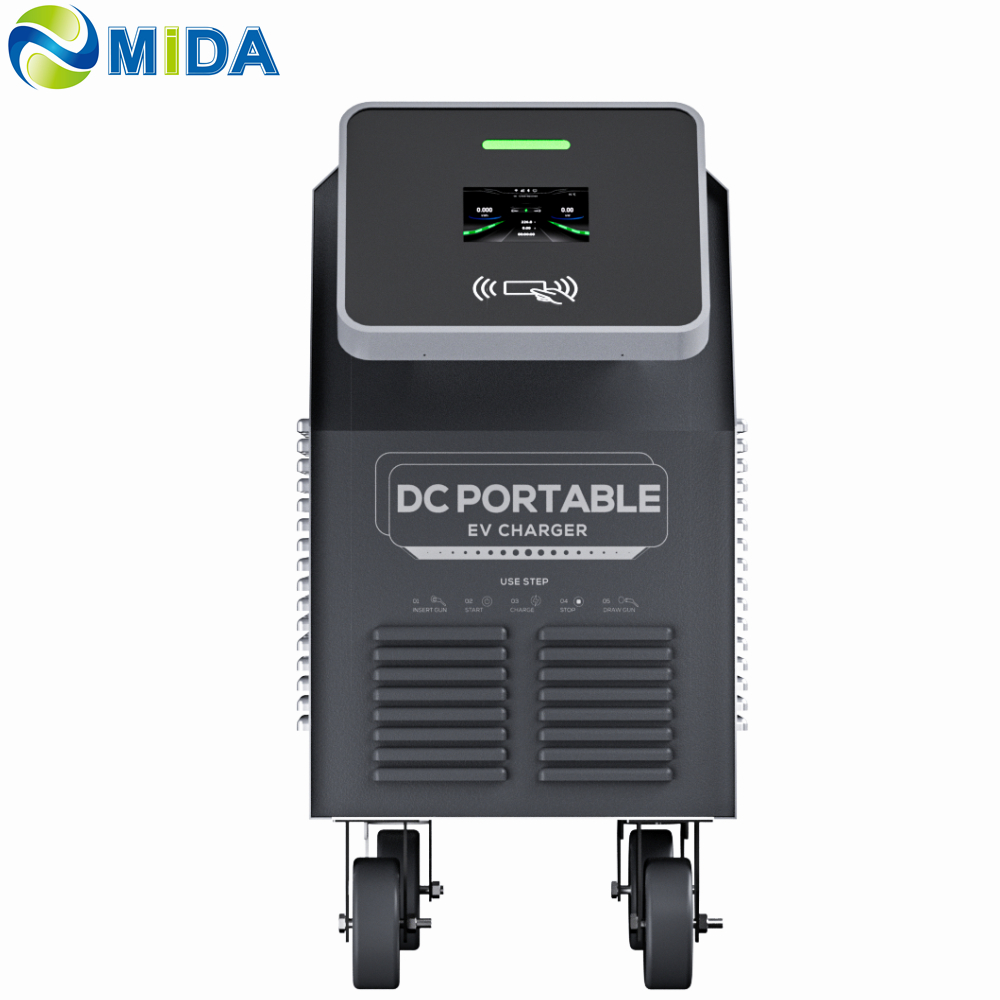

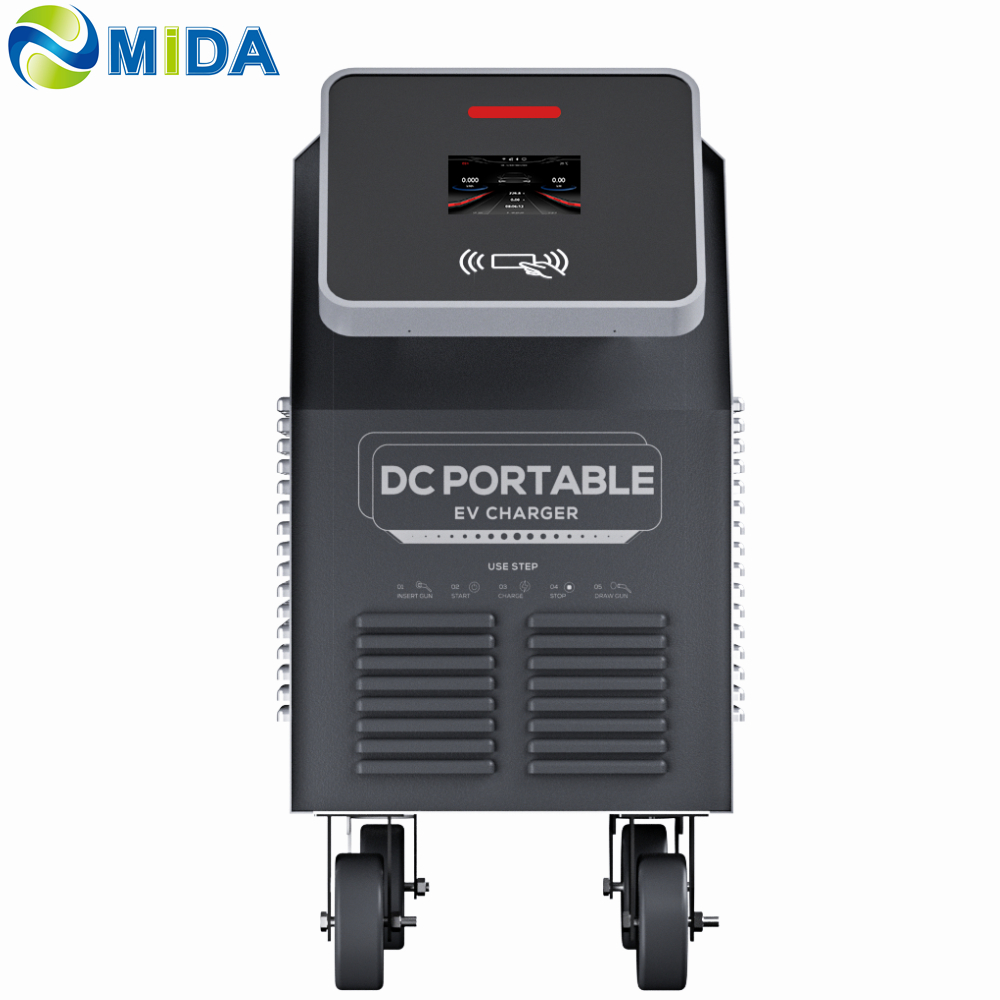

| AC Input | 1. Input Rating: 400Vac ± 15% |
| 2. AC Input Connection: 3P+N+PE (Wye connection) | |
| 3. Max. Input Current: 50A | |
| 4. Efficiency: 95% | |
| DC Output | 1. Output Voltage: 50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T) |
| 2. Max. Output Power: 20KW, 30kW | |
| 3. Max. Output Current: 50A@500V | |
| User Interface | 1. TFT-LCD Touch Panel: 4.3' touch display |
| 2. Push Buttons: Emergency Stop | |
| 3. Interface: USB, RJ45 | |
| Packing | 1. Dimension: 630*230*632mm |
| 2. Weight: 35KGS | |
| Environment | 1. Operating Temp: -20°C ~ +50°C (derating above +50°C) |
| 2. Humidity: 5% ~ 90% RH, non-condensing | |
| 3. Altitude: 2000m | |
| 4. IP Level: IP23 | |
| Regulation | 1. Regulation: IEC61851-1 |
| 2. Certification: CE, ROHS | |
| 3. Charging protocol: CHAdeMO 2.0/DIN 70121/ISO15118/IEC61851-23 |
1. For CCS/NACS: Connect the adapter to the NACS connector, plug into the vehicle port until it clicks. Use the vehicle app to start.
2. For CHAdeMO: Park vehicle, insert connector firmly, and activate via the designated method (App/RFID).
3. For CCS1: Ensure vehicle is off, insert adapter into CCS port, connect charger cable, and initiate via payment system.
Place the charger near the vehicle → Connect to 480V AC power → Plug the DC cable into the vehicle → Authenticate via App, RFID, or payment system to start.
