GB/T to CCS Combo 2 Adapter Specifications
| Product Name |
GBT CCS2 EV Charger Adapter |
| Rated Voltage |
1000V DC |
| Rated Current |
250A |
| Application |
For Cars with CCS Combo 2 inlet to charge on CCS2 Superchargers |
| Terminal Temperature Rise |
<50K |
| Insulation Resistance |
>1000MΩ (DC500V) |
| Withstand Voltage |
3200Vac |
| Contact Impedance |
0.5mΩ Max |
| Mechanical Life |
No-load plug in/pull out >10000 times |
| Operating Temperature |
-30°C ~ +50°C |
Key Features
🛡️
Safe & Reliable: This GBT to CCS Combo 2 adapter is engineered for safety and ease of use in various charging environments.
🌡️
Thermal Protection: Built-in thermostat prevents over-heat damage to both your vehicle and the adapter.
🔒
Security Lock: Features a self-lock latch to prevent accidental plug-off during the charging process.
⚡
Fast Charging: Supports a maximum charging speed of up to 250KW for rapid power delivery.
Product Characteristic & Visuals

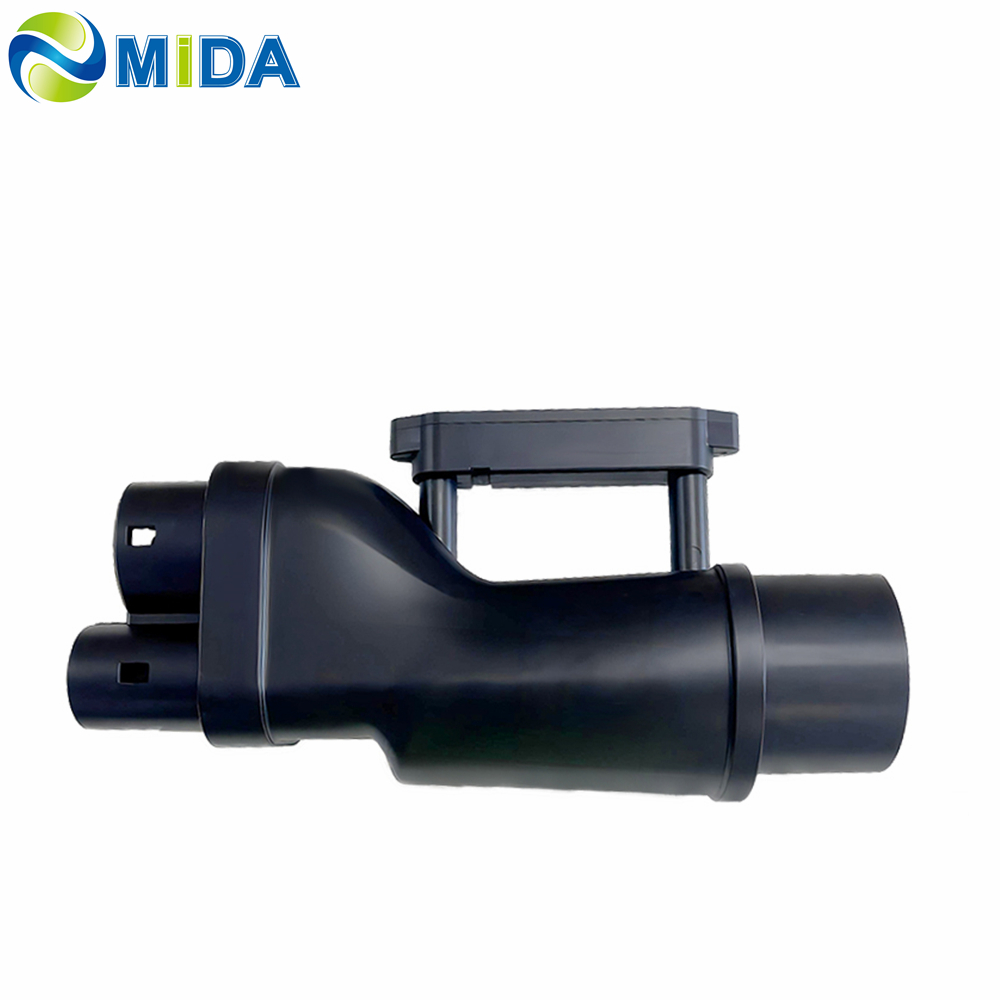

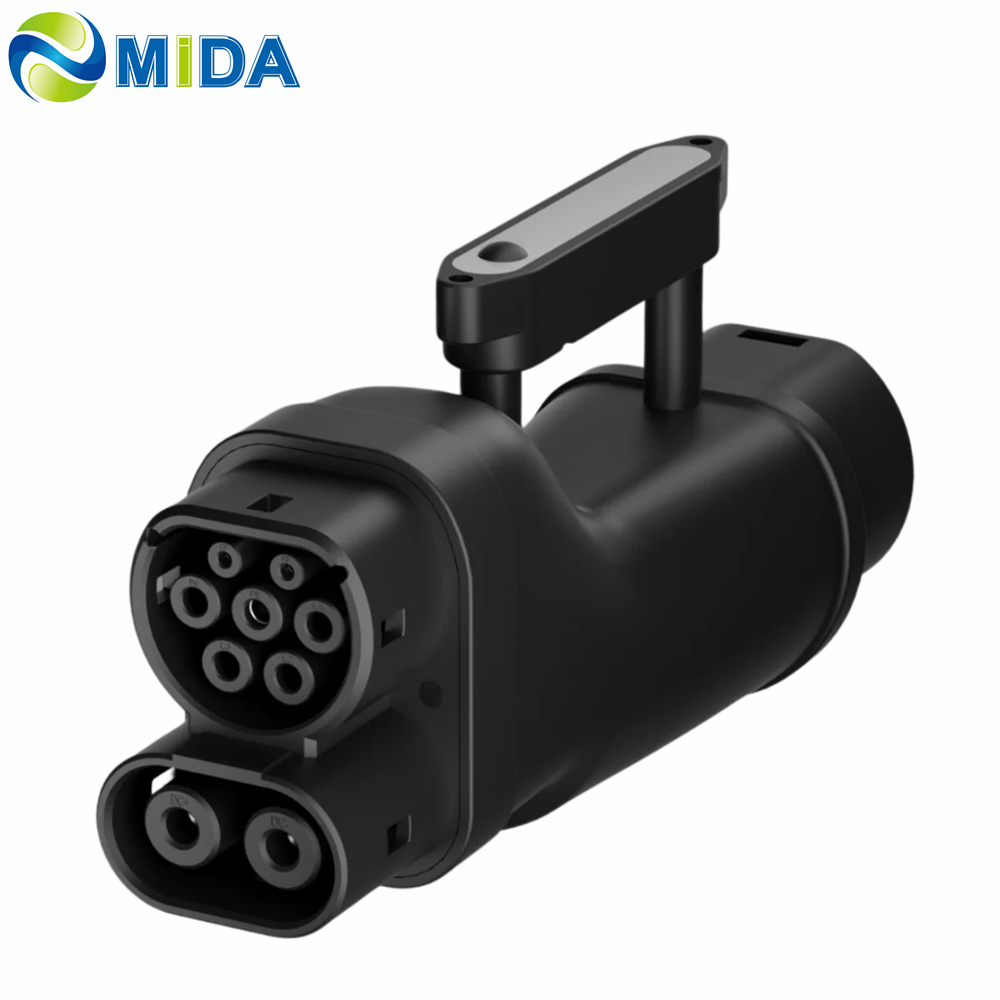

DC 1000V 250KW GB/T to CCS2 Adapter
Designed for GB/T Standard Electric Cars including NIO, BYD, LI, CHERY, and AITO. This Fast Charging DC Adapter is specifically engineered for efficiency and convenience, taking the hassle out of recharging electric vehicles with GBT charging ports. It allows you to charge your GBT car with CCS2 chargers typically used by Tesla (EU), BMW, Audi, Mercedes, Porsche, and more.
Product Overview
This adapter is a perfect solution for imported EU vehicles. It allows cars imported from Europe to utilize GB/T charging stations effectively. Rated at 200 kW, it is compatible with all EVs equipped with a CCS2 port. The unit includes a micro USB port for firmware updates and comes with long-term software support to ensure compatibility with future vehicle updates or new charging stations.
Note on Power: Most EVs with 400V architecture can withdraw around 90-100 kW (400V * 250A). Vehicles with 800V battery architecture can withdraw up to 180-200 kW of power.
Battery Information: The adapter utilizes an 18650 rechargeable battery (not included due to transport restrictions). Initial charging is required once, after which it will charge automatically during use.
Package Contents
- 🔹 1x GBT-CCS2 Adapter
- 🔹 1x Type-C charging cable
- 🔹 1x USB drive for firmware updates
- 🔹 1x Dongle for firmware updates
- 🔹 1x Manual
How to Use the GBT to CCS2 Converter
1 Preparation: Ensure your CCS2 vehicle and the GB/T charger are compatible.
2 Connect to Charger: Plug the GB/T end of the adapter into the plug on the GB/T charging station until it clicks.
3 Connect to Car: Plug the CCS2 end of the adapter into your car's CCS2 charging port securely.
4 Start Charging: Follow the charging station screen or app instructions to initiate the session.
5 Monitoring: Monitor progress on your car's dashboard. The adapter handles the communication handshake between the station and the vehicle.
Frequently Asked Questions (FAQ)
Q1: What is the maximum charging power of this adapter?
A: The adapter is rated for a maximum current of 250A and can support up to 250kW fast charging, though actual speeds depend on your vehicle's architecture and the charging station.
Q2: Which vehicle brands are compatible with this GBT to CCS2 adapter?
A: It is compatible with a wide range of EVs with CCS2 ports, including Volkswagen ID.4 and ID.6, NIO, BYD, LI, CHERY, AITO, and European models from Tesla, BMW, Audi, and Mercedes.
Q3: Does the adapter support 800V battery systems?
A: Yes. While 400V systems typically draw 90-100kW, vehicles with 800V battery architecture can withdraw between 180-200kW of power using this adapter.
Q4: How does the thermal protection system work?
A: The adapter features a built-in thermostat that monitors temperatures in real-time. If overheating is detected, it prevents damage to the car and the adapter by managing the connection.
Q5: Can the firmware be updated if I encounter compatibility issues?
A: Yes, the adapter includes a micro USB/Type-C port. We provide a USB drive and dongle specifically for firmware updates to ensure compatibility with new vehicle software or charging stations.
Q6: Do I need to buy a battery for the adapter?
A: The adapter requires one 18650 rechargeable battery which is not included due to shipping restrictions. You only need to charge it once manually; afterwards, it recharges itself during use.
