| Item | 120kW DC Charger | 160kW DC Charger | 180kW DC Charger |
|---|---|---|---|
| Input | Input Voltage | 3-phase 400V ±15% AC | |
| Input Voltage Type | TN-S (Three Phase Five Wire) | ||
| Working Frequency | 45~65Hz | ||
| Power Factor | ≥0.99 | ||
| Efficiency | ≥94% | ||
| Output | Rated Voltage | DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC - Type-2 400V; GBT 400V | |
| Max. Output Current | DC - CHAdeMO 125A; CCS 200A; GBT 250A; | AC - Type-2 63A; GBT 32A | |
| Interface | Display | 8'' LCD Touchscreen | |
| Language | Chinese, English, French, German, Spanish, Russian, etc. | ||
| Payment | Mobile APP/RFID/POS | ||
| Communication | Network Connection | 4G(GSM or CDMA)/Ethernet | |
| Communication Protocols | OCPP1.6J or OCPP2.0 | ||
| Working Environment | Working Temperature | -30°C ~ +55°C | |
| Storage Temperature | -35°C ~ +55°C | ||
| Operating Humidity | ≤95% Non-Condensing | ||
| Protection | IP54 | ||
| Acoustic Noise | <60dB | ||
| Cooling Method | Forced Air-Cooling | ||
| Mechanical | Dimension(W x D x H) | 700*1900*650mm | |
| No. of Charging Cable | Single | Dual | |
| Cable Length | 5m or 7m | ||
| Regulation | Certificate | CE/IEC61851-1/IEC61851-23/IEC61851-21-2 | |
Simultaneously charging up to 3 EVs

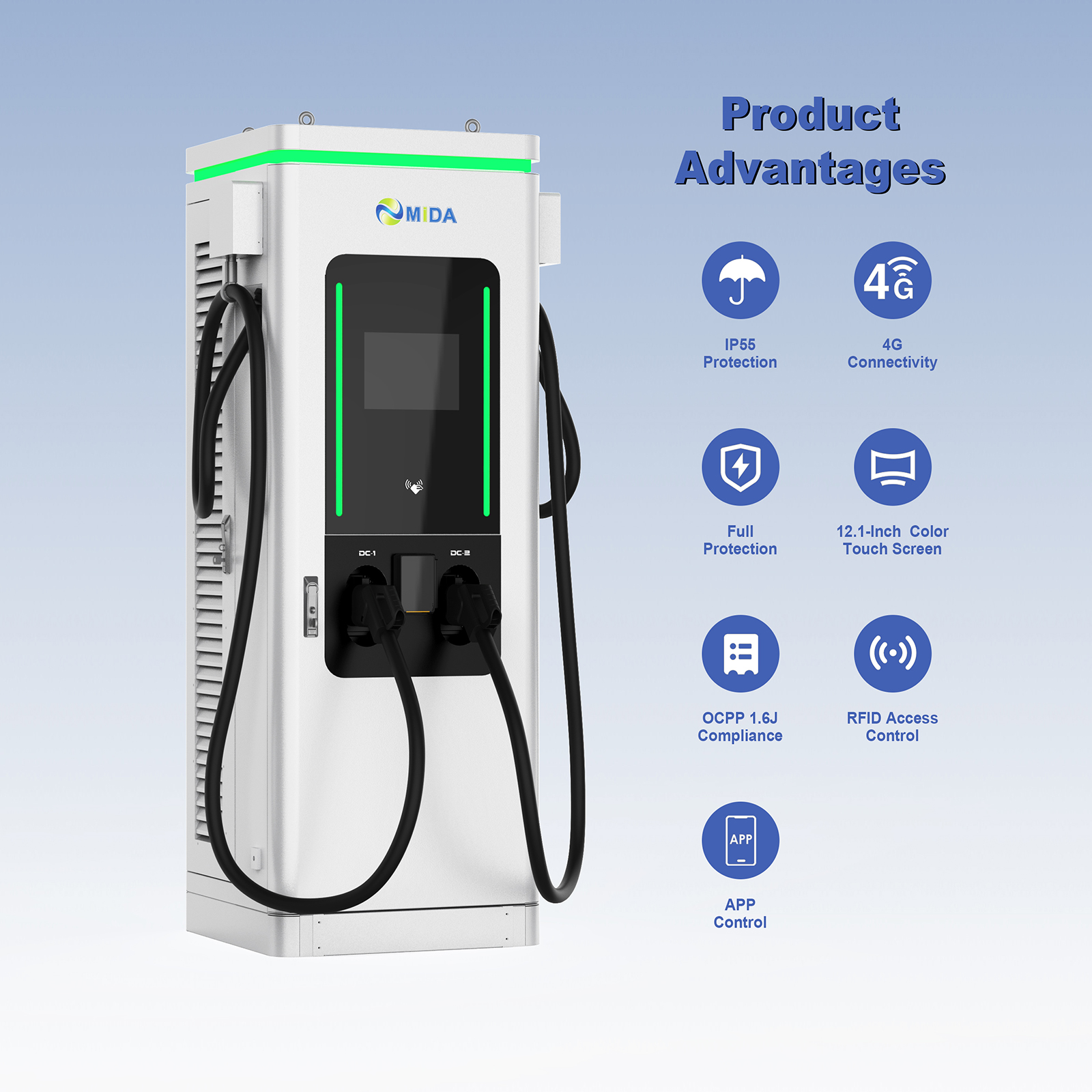

The 120kW DC fast charging station is a revolutionary fast and efficient charging method. It is the latest advancement in charging technology and has enormous potential to disrupt the electric vehicle industry. The electric vehicle (EV) market is booming, and the importance of DC fast chargers for charging infrastructure is becoming increasingly prominent.
With more and more electric vehicles entering the market, these charging stations are becoming increasingly popular due to their fast and efficient charging capabilities. They only take 20 minutes to fully charge an electric vehicle, making them an ideal solution for those seeking fast charging. In short, this new technology provides a faster charging experience and shortens the time it takes for vehicles to get back on the road.
Advantages of DC Fast ChargingInvesting in a 120kW DC electric vehicle fast charging station is a great way to save time and money. It is an economical, efficient, fast, and convenient way to charge electric vehicles. By using a fast charging station, you can fully charge your vehicle in just a few minutes, reducing the time spent waiting in line at gas stations.
High-Power 180kW Charging SolutionsThe 180kW DC electric vehicle charging solution is designed for ultra fast charging and is an ideal choice for commercial spaces, high traffic areas, and public charging stations. The 180kW DC fast charger provides high-power charging, enabling vehicles to quickly and efficiently charge batteries. This station can provide a range of up to 120 miles in just 15 minutes, depending on the specific electric vehicle being charged.
Built with cutting-edge technology to ensure reliable and high-speed charging, its stylish and compact design makes it suitable for various applications ranging from commercial charging stations to public charging infrastructure.
