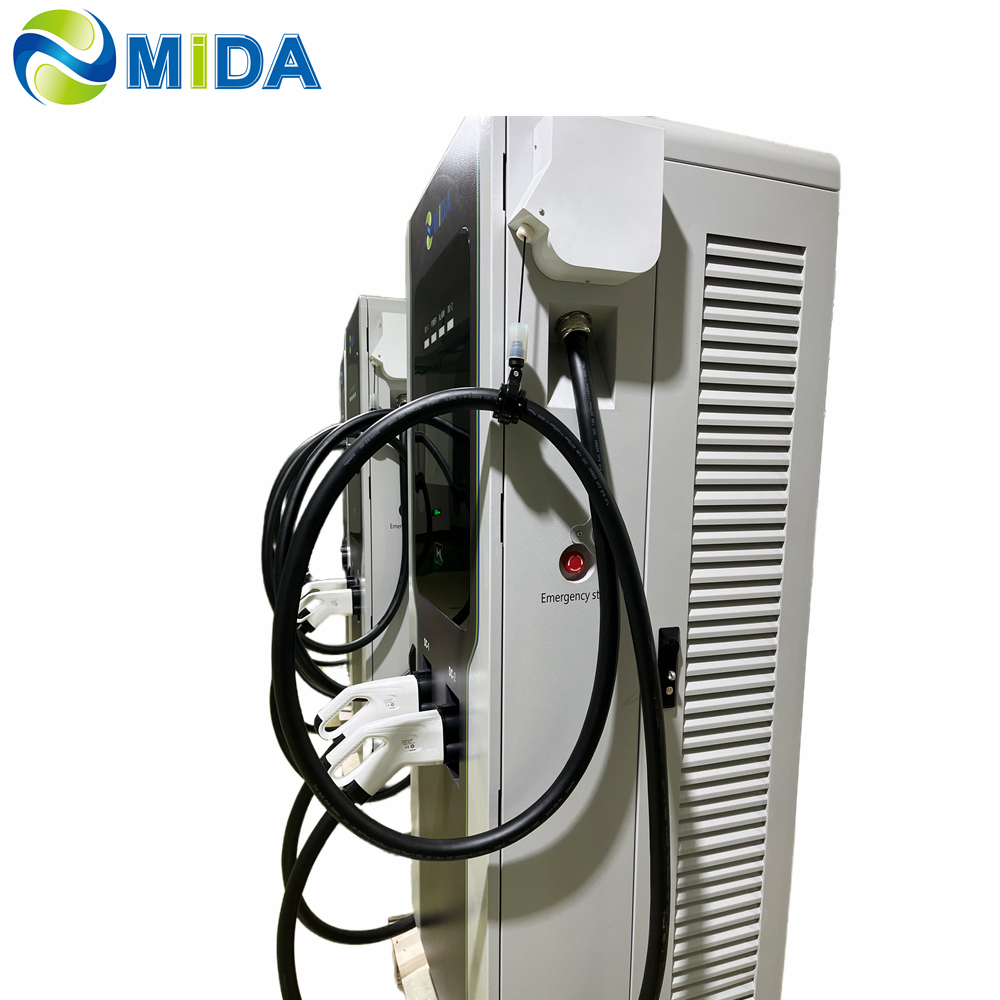

China 180kw 240kw 300kw DC Charging Station CCS GBT Chademo Plug with Credit Card Payment System Manufacturer, Factory

60kw 80kw 120Kw Outdoor Public Ccs2 Chademo Electric Car Bus Dc Ev Fast Charging Station Charger for electric vehicle

Send Inquiry

Product Description

Multi-standard DC EV Charging Station

Simultaneously charging up to 3 EVs with high efficiency

🔌

Multi-standard Charging

Supports CCS, CHAdeMO, GB/T, and AC connectors. Charging up to 3 vehicles at the same time
Triple outlet ports, two DC cables, one AC cable, and one 3.6kW schuko output
Flexible configurations: 60kW, 80kW, 100kW, 120kW, 160kW, 180kW, 240kW options

📱

Smart Interaction & Payment

8’’ LCD touch screen with multi-language interface (English, French, German, Spanish, Russian, etc.)
Secure authentication and payment through RFID, mobile Apps, or POS terminal
Ethernet, Wi-Fi, 4G connection with OCPP 1.6J & OCPP 2.0 support
Smart charging supports dynamic load balancing
Plug & Charge optional for seamless user experience

Item	DC 60kW; AC 22kW/44kW	DC 90kW; AC 22kW/44kW	DC 120kW; AC 22kW/44kW
Input	Input Voltage	3-phase 400V ±15% AC
	Input Voltage Type	TN-S (Three Phase Five Wire)
	Working Frequency	45~65Hz
	Power Factor	≥0.99
	Efficiency	≥94%
Output	Rated Voltage	DC: CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc AC: Type-2 400V; GBT 400V
Output	Max. Output Current	DC: CHAdeMO 125A; CCS 200A; GBT 250A	AC: Type-2 63A; GBT 32A
Interface	Display	8'' LCD Touchscreen
	Language	Chinese, English, French, German, Spanish, Russian, etc.
	Payment	Mobile APP/RFID/POS
Communication	Network Connection	4G(GSM or CDMA)/Ethernet
Communication	Protocols	OCPP1.6J or OCPP2.0
Environment	Working Temp.	-30°C ~ +55°C
	Storage Temp.	-35°C ~ +55°C
	Operating Humidity	≤95% Non-Condensing
	Protection	IP54
	Acoustic Noise	<60dB
	Cooling Method	Forced Air-Cooling
Mechanical	Dimension(WxDxH)	7001900650mm
	Charging Cable	Single	Dual
	Cable Length	5m or 7m
Regulation	Certificate	CE / IEC61851-1 / IEC61851-23 / IEC61851-21-2

Frequently Asked Questions

Q1: Which EV charging standards are supported by this station?

A: This station is a multi-standard charger that supports CCS (Combined Charging System), CHAdeMO, GB/T, and Type-2 AC connectors, making it compatible with almost all electric vehicles globally.

Q2: Can I charge more than one vehicle at the same time?

A: Yes, the system supports simultaneous charging for up to 3 vehicles using two DC ports and one AC port, with smart dynamic load balancing to optimize power distribution.

Q3: Is the charging station suitable for outdoor installation?

A: Absolutely. The station features an IP54 protection rating, designed to withstand various weather conditions with a working temperature range of -30°C to +55°C.

Q4: What payment and authentication methods are available?

A: Users can authenticate and pay through multiple methods including RFID cards, mobile applications, or integrated POS terminals. Plug & Charge functionality is also available as an option.

Q5: Does the station support remote management?

A: Yes, it supports OCPP 1.6J and OCPP 2.0 protocols via 4G, Ethernet, or Wi-Fi, allowing operators to monitor and manage the charging station remotely in real-time.

Q6: What are the available power output configurations?

A: We offer flexible power configurations ranging from 60kW to 240kW for DC charging, combined with 22kW or 44kW AC charging options to meet different site requirements.
