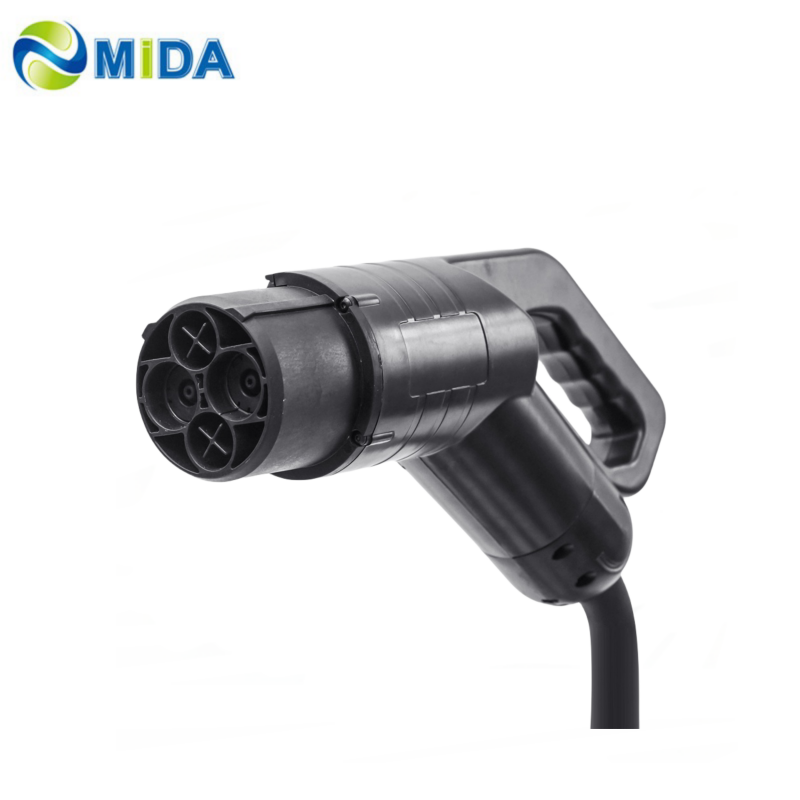

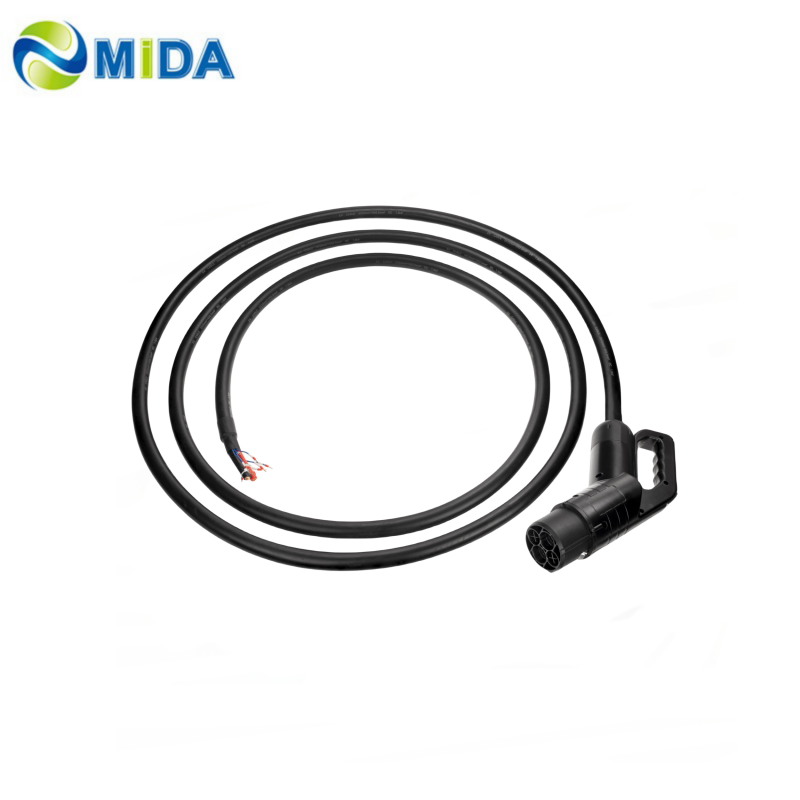

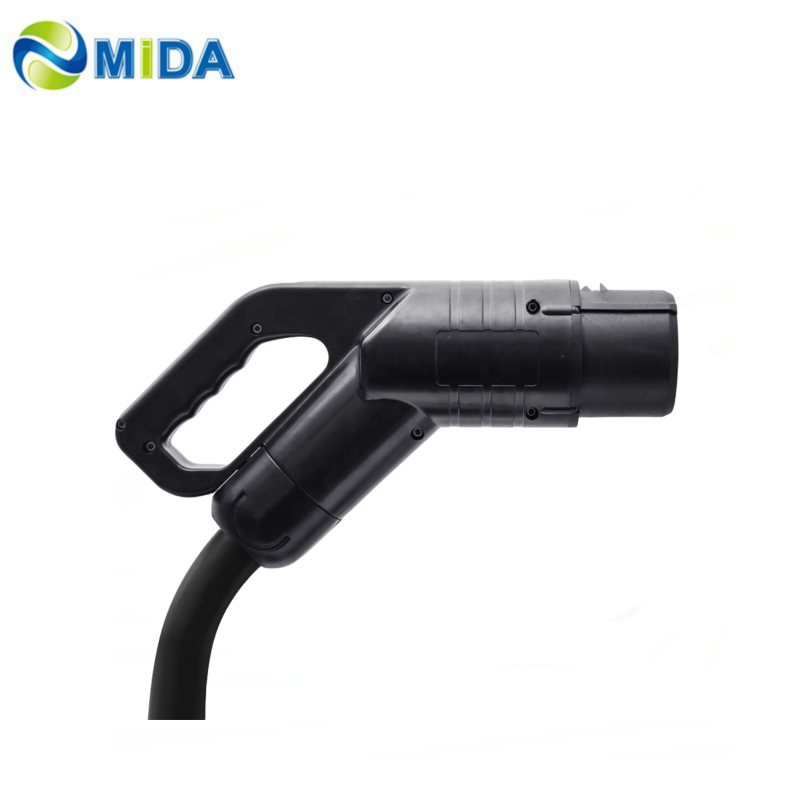

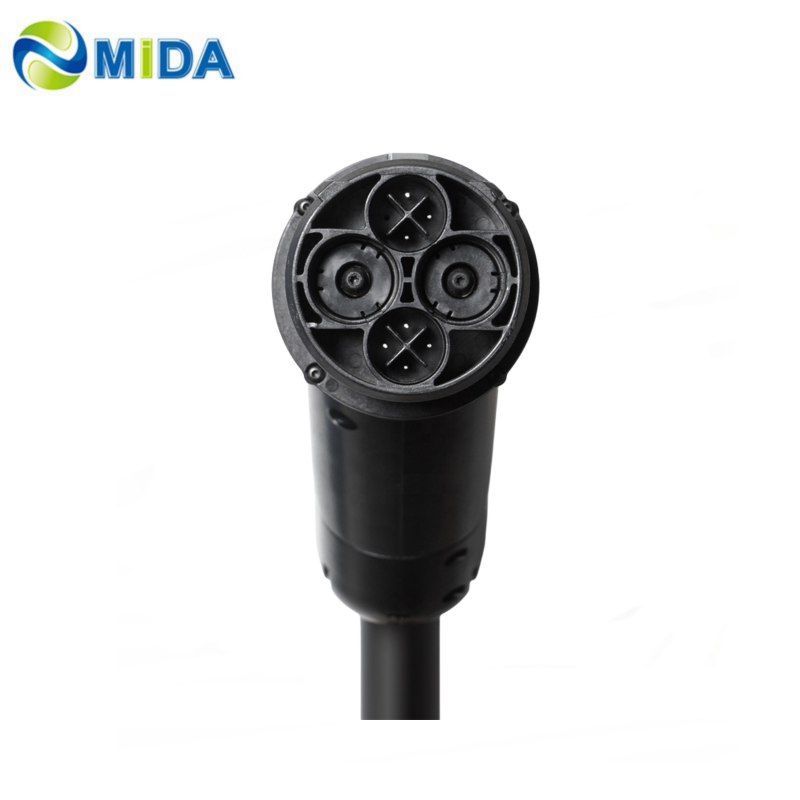

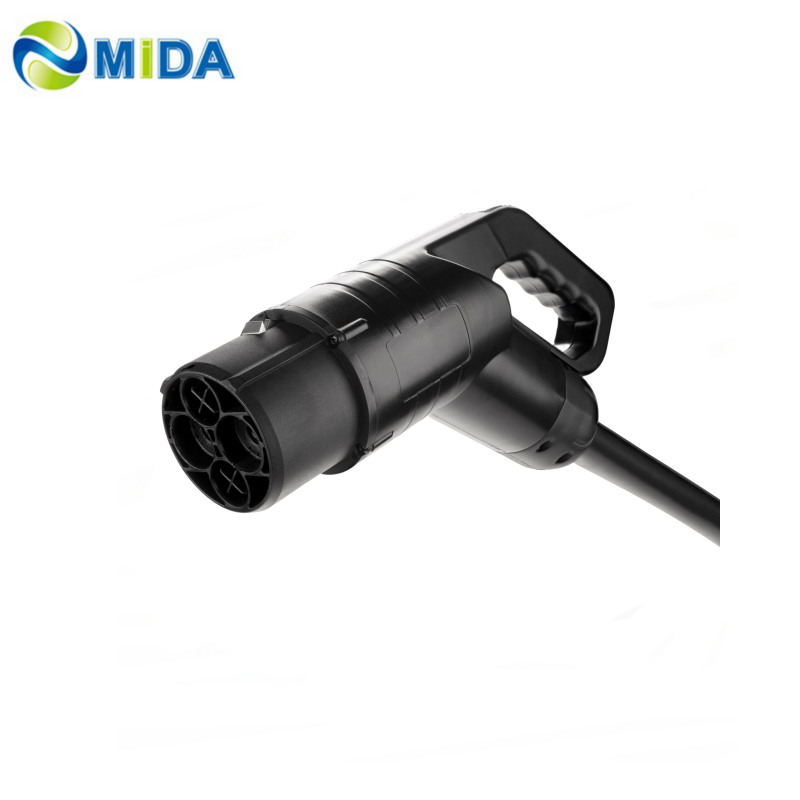

CHAdeMO Plug 80~200A Parameters
CHAdeMO is one of a selection of rapid charging standards which was created by a consortium of carmakers and industry bodies that now includes more than 400 members and 50 charging companies. Its name stands for Charge de Move, which is also the name of the consortium. The goal of the consortium was to develop a fast-charging vehicle standard that the whole automotive industry could adopt. Other fast-charging standards exist, like CCS.
| Model |
CHAdeMO Plug |
| Rated current |
DC+/DC-: 80A, 125A, 150A, 200A; PP/CP: 2A |
| Wire Diameter |
80A/16mm², 125A/35mm², 150A/70mm², 200A/80mm² |
| Rated voltage |
DC+/DC-: 750V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC |
| Withstand voltage |
3000V AC / 1min. (DC + DC- PE) |
| Insulation resistance |
≥ 100mΩ 750V DC (DC + / DC- / PE) |
| Electronic locks |
12V / 24V optional |
| Mechanical life |
10,000 times |
| Ambient temperature |
-40℃~50℃ |
| Degree of Protection |
IP55 (When not mated), IP44 (After mated) |
| Main Material |
| Shell |
PA |
| Insulation part |
PA |
| Sealing part |
Silicone Rubber |
| Contact part |
Copper alloy |
Introduction Of CHAdeMO DC Plug
EV CHARGING CHAdeMO Plug Features
⚡ Alternating Current
The GBT Plug EV standard has two types of connectors – one for slow charging and the other for fast charging. The slow-charging connector, also known as the AC connector, is a single-phase, three-pin connector. This connector is typically used for charging at home or in commercial areas where charging time is not a constraint. The AC connector can provide a maximum charging power of 27.7 kW with three-phase current. A one-phase wire provides a maximum of 8 kW charging power.
🛡️ Safe Charging
GBT EV sockets are designed with safety insulation on their pinheads to prevent accidental direct contact with human hands. This insulation is meant to ensure the highest level of safety when handling the sockets, protecting the user from potential electric shock.
Key Specifications & Benefits
- ✓Comply with IEC 62196.3-2022 standard
- ✓Rated voltage: 600V; Rated current: DC 125A
- ✓12V/24V electronic lock optional for secure connection
- ✓Meet TUV/CE certification requirements
- ✓Integrated anti-straight plug dust cover
- ✓Tested for 10,000+ plugging cycles with stable temperature rise
- ✓Cost-effective solutions with faster delivery and high-quality after-sales support
Investment Value & Market Analysis
Investment Value: This advanced charging system is also built to last, with a robust construction that ensures reliability and longevity. The GBT socket is designed to outlast its competitors, making it an excellent long-term investment for EV owners. Its multi-available current rating and easy installation make it a great choice for both residential and commercial applications.
Market Analysis: The socket is designed to be used with GBT charging connectors, which are becoming increasingly commonplace across the world. This makes it an ideal choice for those who want to charge their electric vehicles without having to worry about compatibility issues.
Frequently Asked Questions
What is the main advantage of the CHAdeMO standard?
CHAdeMO provides a fast-charging standard widely adopted by the global automotive industry, enabling rapid DC charging for compatible electric vehicles through a standardized consortium-backed protocol.
What current ratings are available for these plugs?
These plugs support a variety of DC current ratings including 80A, 125A, 150A, and up to 200A, allowing for different charging speeds based on system requirements.
Are the plugs waterproof and safe for outdoor use?
Yes, the plugs feature an IP55 protection rating when not mated and IP44 after being mated, ensuring they are protected against dust and water splashes.
How long is the expected mechanical life of the connector?
The connector is designed for high durability, with a mechanical life of over 10,000 plugging and unplugging cycles.
What safety certifications do these plugs meet?
They comply with IEC 62196.3-2022 standards and meet the necessary requirements for TUV and CE certifications.
What materials are used in the plug construction?
The shell and insulation parts are made of high-quality PA material, the contacts are a copper alloy, and the sealing components use durable silicone rubber.
