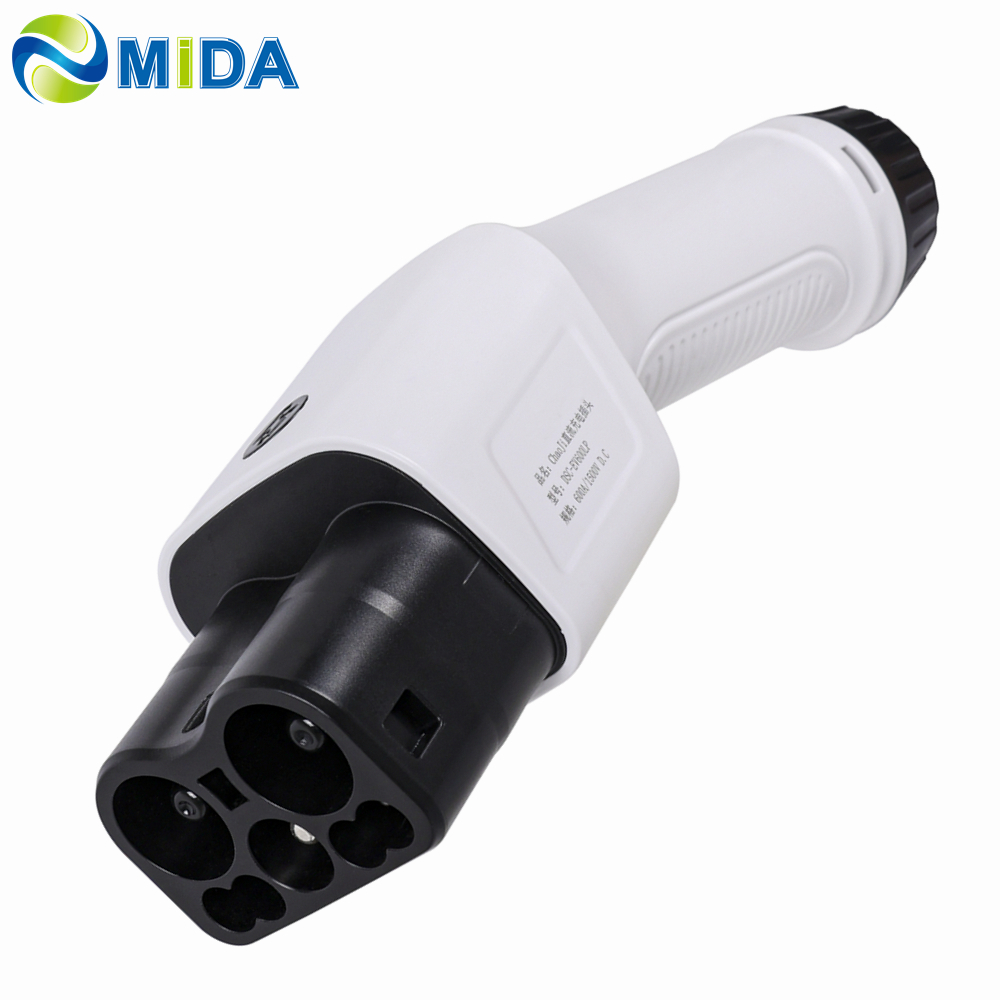

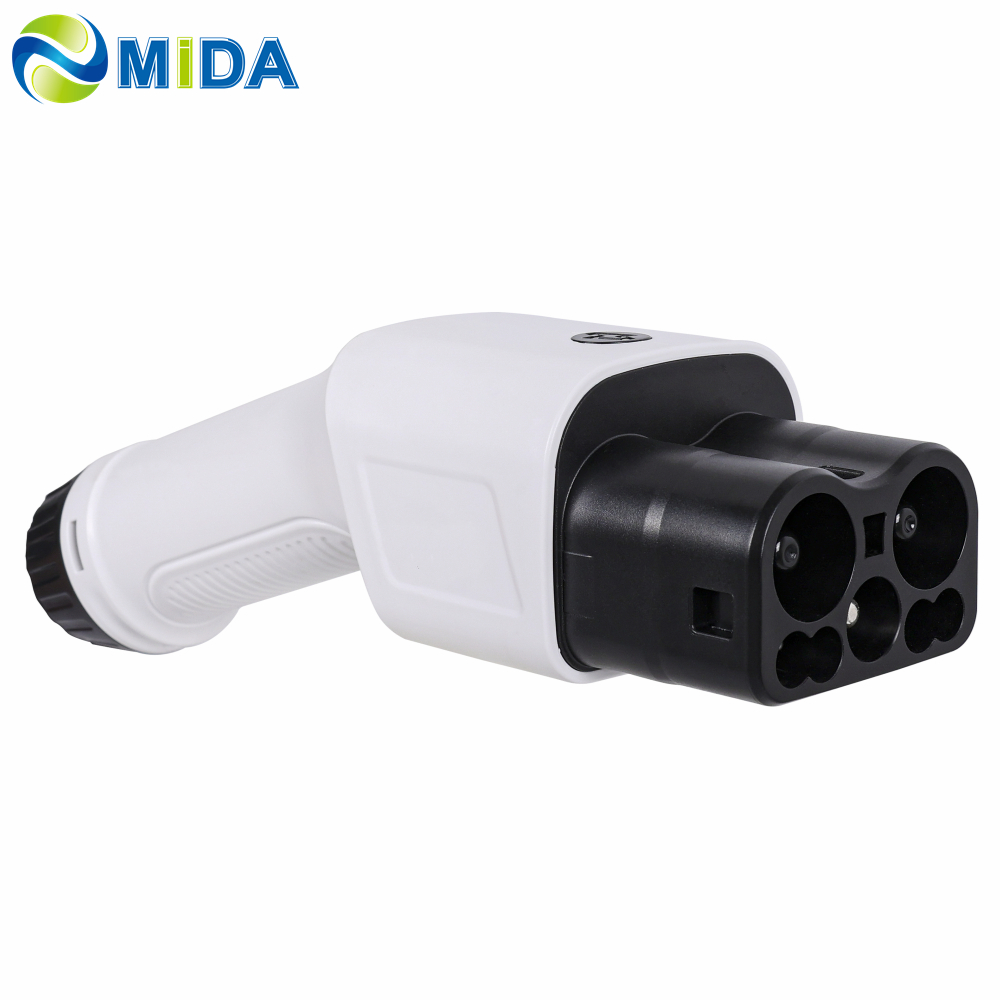

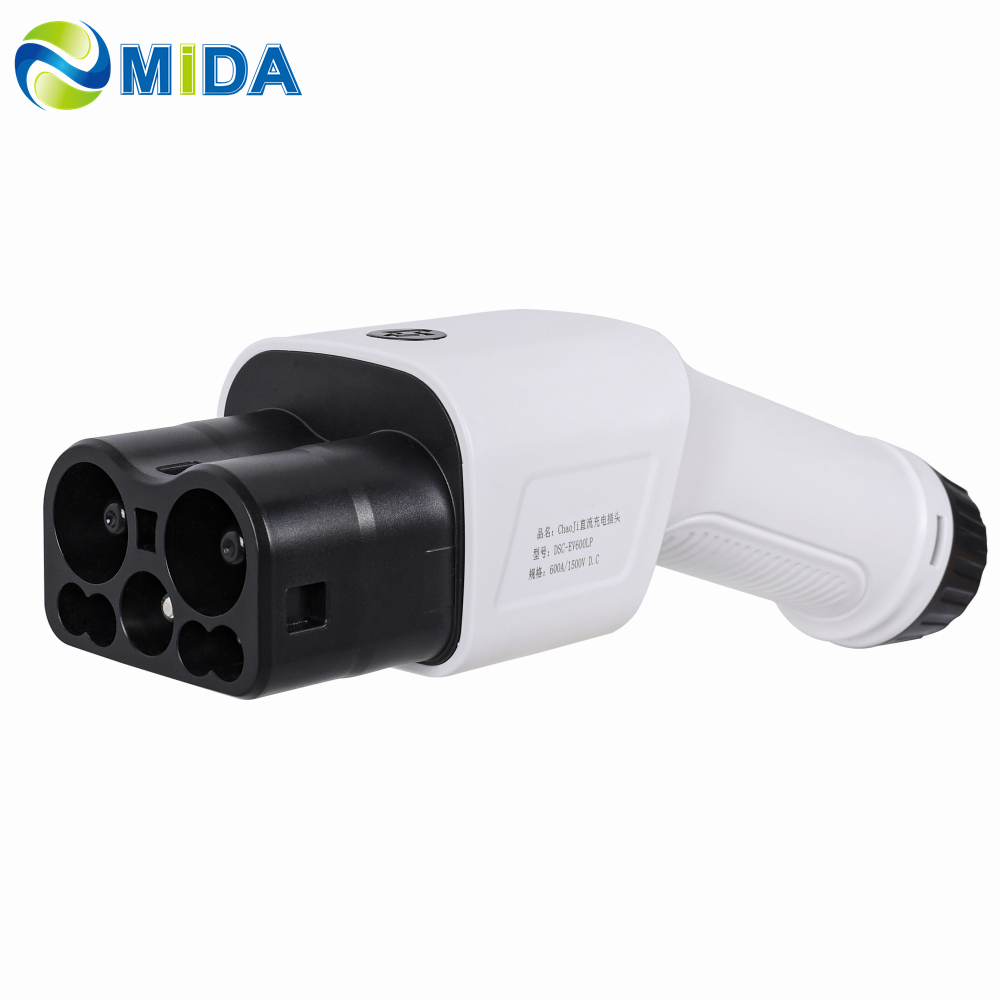

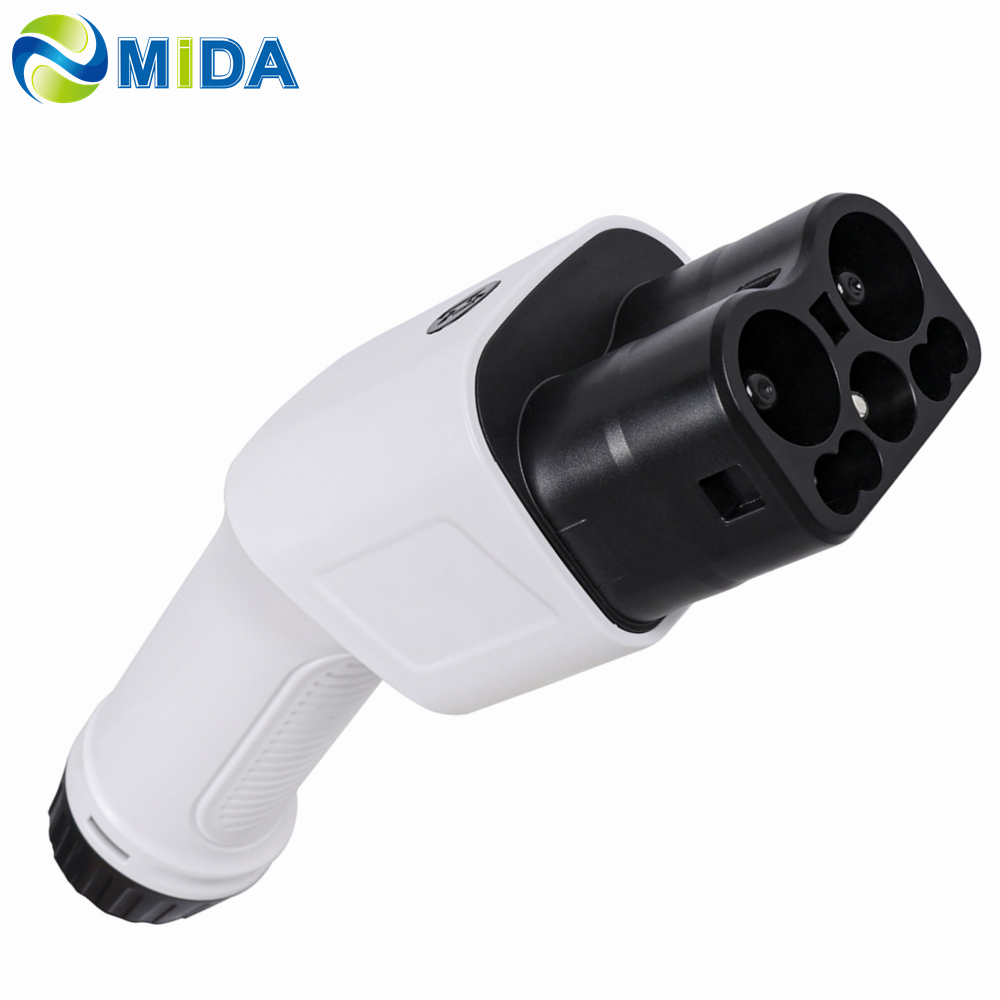

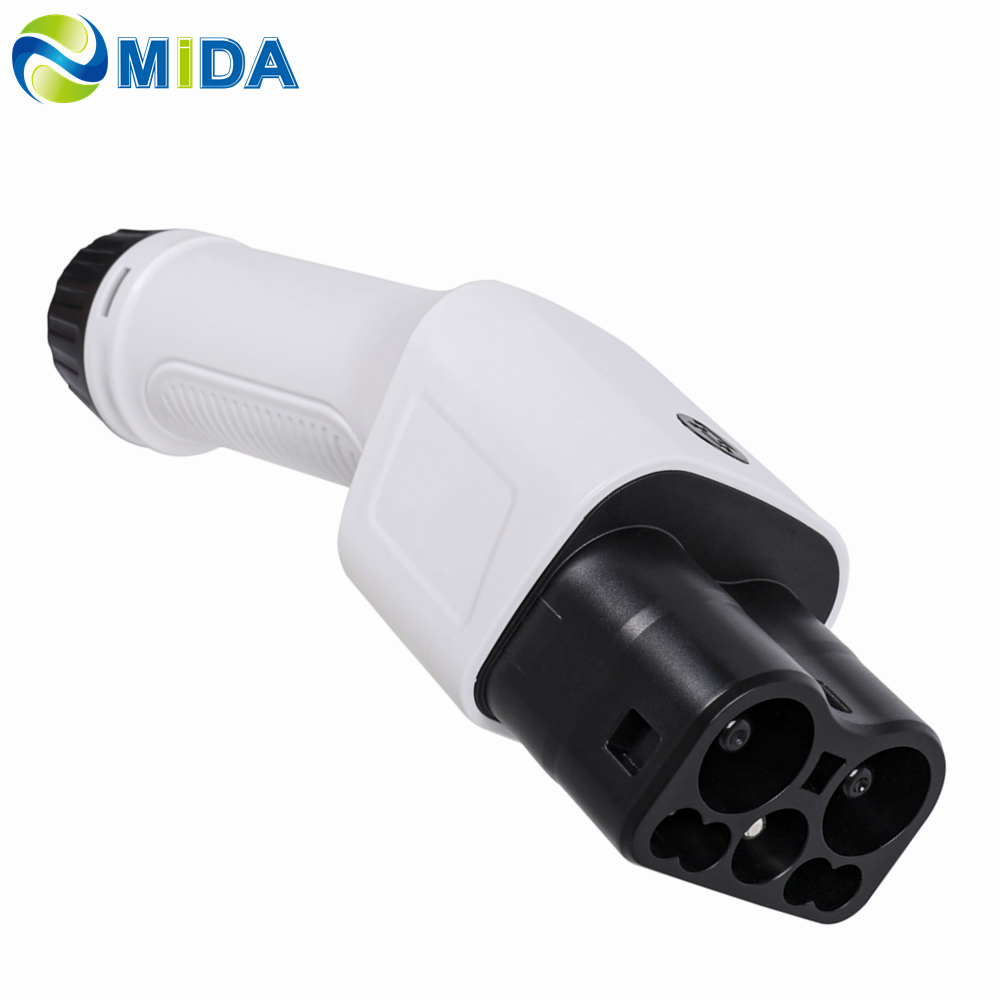

Ultra-High Power Charging: The 600A Chaoji EV plug is designed for DC fast charging systems, complying with IEC PAS 63454 ED1 standards. As the core of next-generation charging technology, it supports power ratings up to 600kW.
Global Compatibility: Chaoji technology ensures seamless interoperability between Chaoji, GB/T, CHAdeMO, and CCS standards, serving as a common language between vehicles and chargers worldwide.
Optimized for 400A to 600A applications, supporting both Air Cooling and Liquid Cooling technologies to maintain peak performance during ultra-fast charging.
Utilizes proprietary silver-plated contacts and ultrasonic welding technology to ensure resistance tends to zero, significantly reducing heat and extending product life.
Features a quick-change terminal design for efficient maintenance and supports over 10,000 plugging cycles.
Ideal for PHEVs and high-capacity EVs, including heavy trucks, buses, and commercial vehicles across Europe, Asia, and Australia.
| Features | Standard: IEC PAS 63454 ED1 |
| Max DC Power: 600kW | |
| Max AC Power: 45.36kW | |
| Protection: IP55 Class | |
| Mechanical Properties | Life: >10,000 mating cycles |
| Impact: 1m drop / 2t vehicle run over pressure | |
| Electrical Performance | DC Input: 600A 1000V DC MAX |
| Insulation Resistance: >2000MΩ (DC1000V) | |
| Withstand Voltage: 3200V | |
| Contact Resistance: 0.5mΩ Max | |
| Environment | Operating Temperature: -30°C to +50°C |
