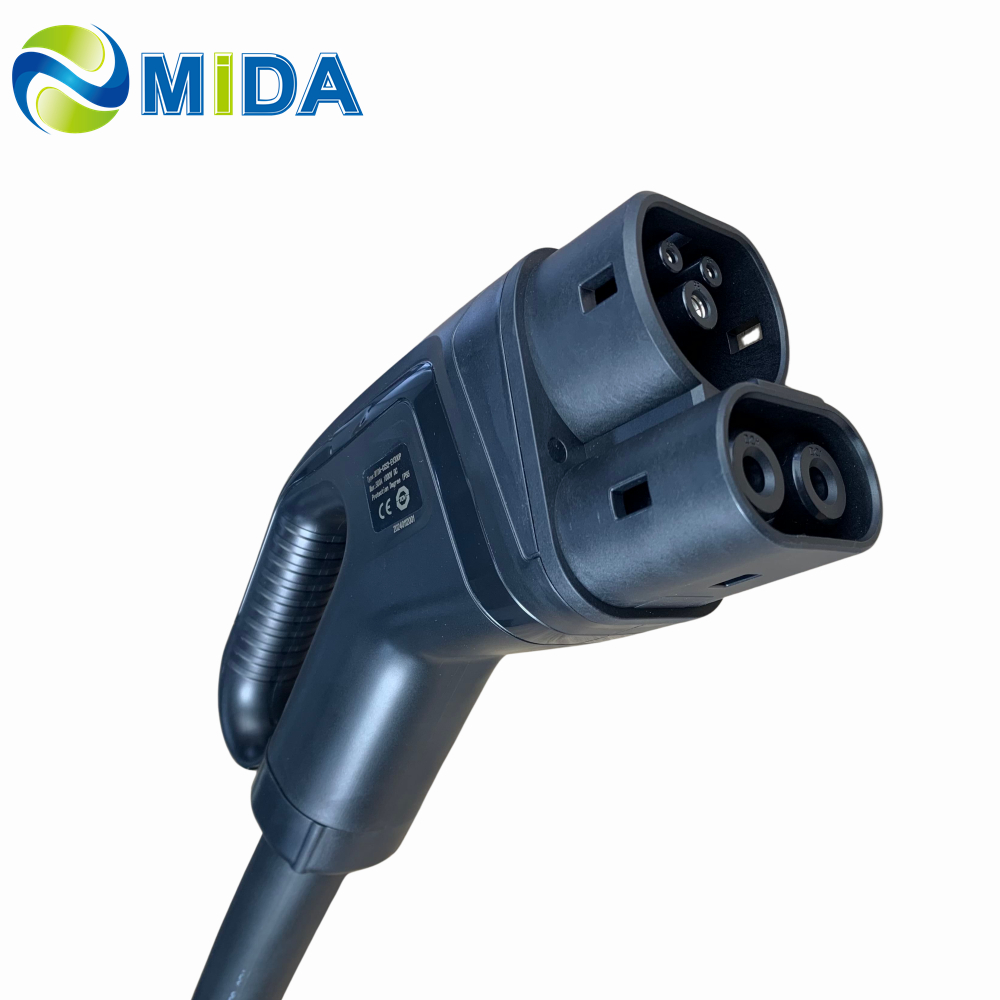

China DC 1000V 200A 250A CCS2 Charging Connector CCS2 Charging Cable Manufacturer, Factories

The Combined Charging System (CCS) is a standard for charging electric vehicles, which uses the 250A GBT Plug and 200A 250A 300A 350A CCS2 Plug connectors to provide power. CCS Type 2 connectors, with two additional direct current (DC) contacts to allow high-power DC fast charging. And the CCS2 Gun mainly use in Europe market.

Send Inquiry

Product Description

EV Charging Cable CCS2 Gun Features

1. 250A 300A 350A 375A CCS2 EV plug. It’s used in DC fast charging & comply with IEC 62196-3 (EN 62196-3).
2. Combined Charging System (CCS) is based on open and universal standards for electric vehicles. Our 350A CCS Type 2 plug is used for direct-current charging at a maximum of 350 kW. Universally compatible, high-quality 250A 350A CCS2 Gun EV plugs designed for 10000+ charging cycles.
3. 300A 350A CCS 2 Connector electric car charging plugs integrated temperature sensors (2pcs PT1000) for monitoring the temperature change at the power contacts (between DC+ and DC- terminals). Universally compatible, high-quality CCS2 Gun designed for 10000+ charging cycles. CCS2 Connector is Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001 standard.

Product Features & Overview

Versatile Charging 250A 300A CCS2 Plug is convenient for charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles.

Premium Contacts Utilises proprietary silver-plated contacts for long-life durability. Supporting AC & DC Charging standards of Europe, Asia, Australia and increasingly global standards.

Cooling Options Available in Air Cooling and Liquid Cooling CCS2 Gun configurations (250A to 350A).

High Power Capacity Liquid Cooling CCS Combo 2 Plug 400A 500A CCS2 Gun Terminal Quick-Change DC High Power EV Charging CCS2 Connector with EV Cable.

Technical Specifications

Features	1. Meet 62196-3 IEC 2011 SHEET 3-Im standard
	2. Concise appearance, support back installation
	3. Back Protection class IP55
	4. Max charging power: 300kW/350kW
	5. AC Max charging power: 45.36kW
Mechanical Properties	1. Mechanical life: no-load plug in/pull out ＞10000 times
Mechanical Properties	2. Impact of external force: can afford 1m drop and 2t vehicle run over pressure
Electrical Performance	1. DC input: 250A/300A /350A 1000V DC MAX
	2. AC input: 16A 32A 63A 240/415V AC MAX
	3. Insulation resistance: ＞2000MΩ (DC1000V)
	4. Terminal temperature rise: ＜50K
	5. Withstand Voltage: 3200V
	6. Contact resistance: 0.5mΩ Max
Applied Materials	1. Case Material: Thermoplastic, flame retardant grade UL94 V-0
Applied Materials	2. Pin: Copper alloy, silver + thermoplastic on the top
Environment	1. Operating temperature: -30°C~+50°C

Core Advantages

Physical Design Complies with IEC62196 standard. Compatible with both AC and DC charging using separate pins for each mode.

Ultrasonic Welding Technology Reduces resistance to near zero during charging, minimizing heat buildup during high-power DC sessions.

Voltage Rating Supports up to 1,000-volt DC, ideal for quick and efficient fast charging.

Safety Features Includes short circuit protection, ground fault detection, and real-time temperature monitoring.

Quality Assurance Withstands over 10,000 plugging cycles. Solid, durable, and wear-resistant for long-term power supply.

OEM & ODM Services Supports logo customization and full appearance or function tailoring with professional technical docking.

Frequently Asked Questions

What is the maximum charging power of this CCS2 connector?

The CCS2 connector supports a maximum DC charging power of up to 350kW and is rated for voltages up to 1000V DC.

Are the temperature sensors built-in?

Yes, the 300A and 350A connectors include two integrated PT1000 temperature sensors to monitor the DC+ and DC- terminals for safety.

Is the connector compatible with all electric vehicles in Europe?

Yes, it fully complies with the IEC 62196-3 standard, making it compatible with all CCS2-enabled electric vehicle models on the market.

What is the difference between air cooling and liquid cooling models?

Air cooling is standard for lower currents, while liquid cooling is used for high-power models (400A/500A) to keep the cable and handle cool during ultra-fast charging.

How many charging cycles can the plug withstand?

Our CCS2 Gun is designed for high durability and can withstand more than 10,000 cycles of no-load plugging and unplugging.

Can I customize the logo on the charging gun?

Yes, we support both simple logo customization and full OEM/ODM services for appearance and functionality.
