Product Introduction

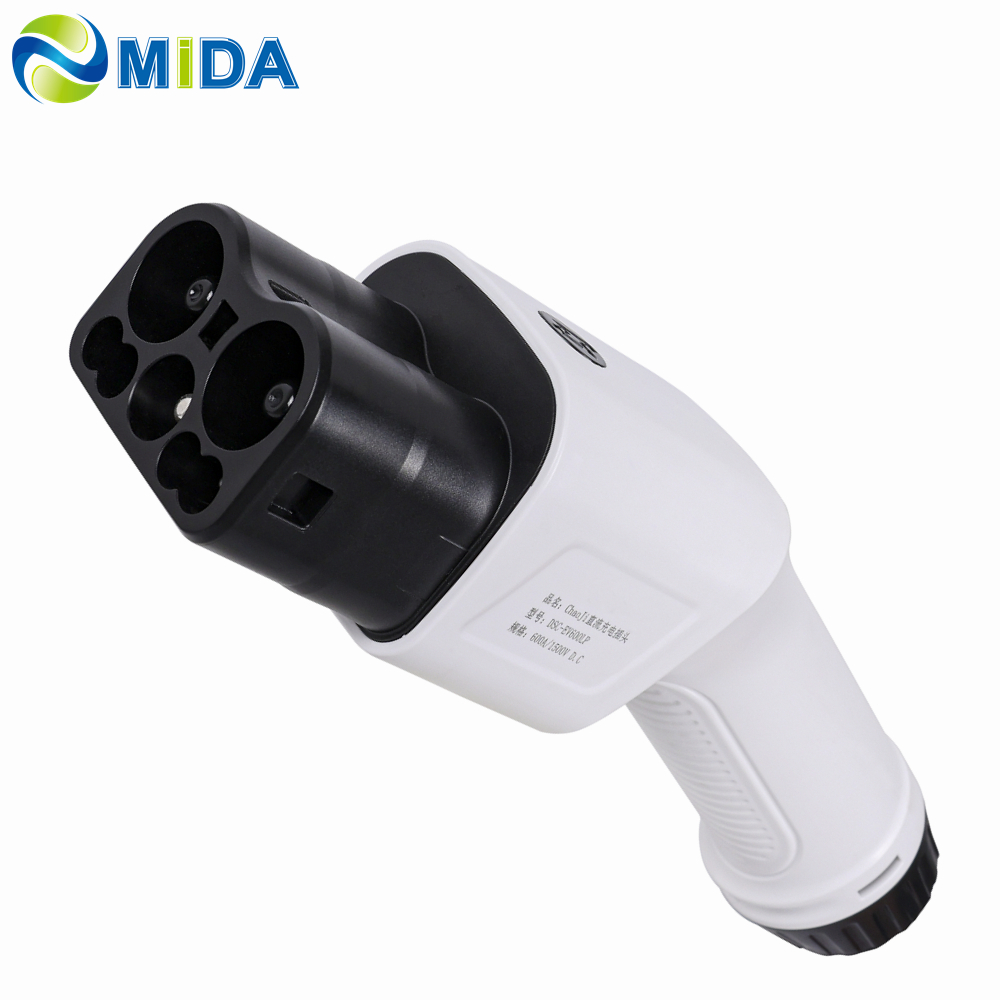

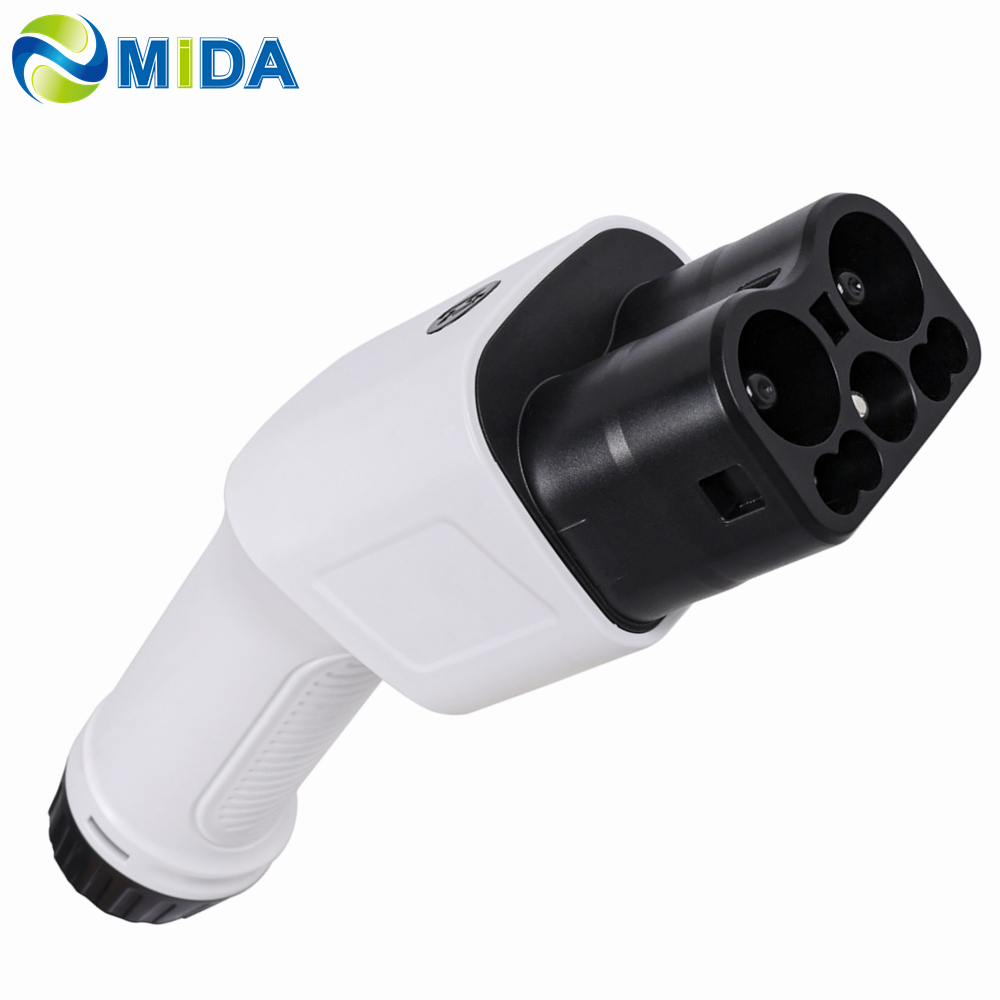

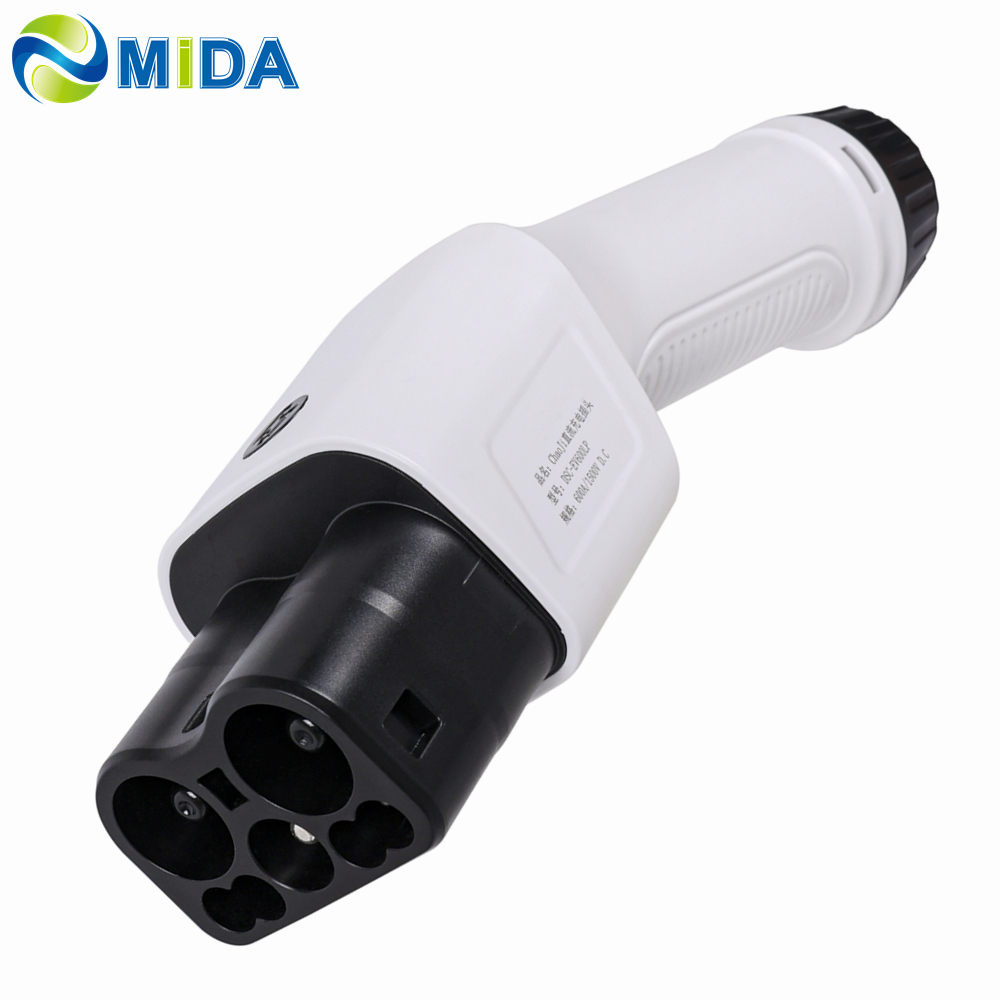

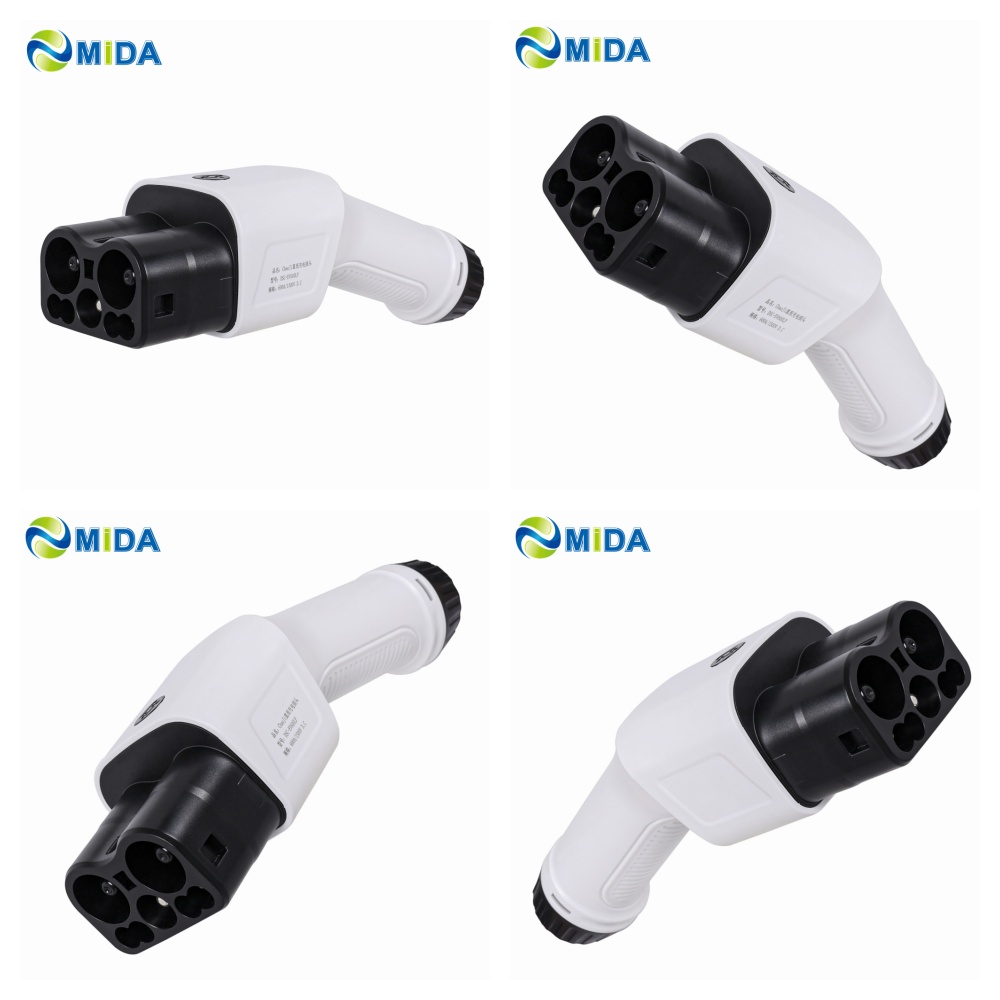

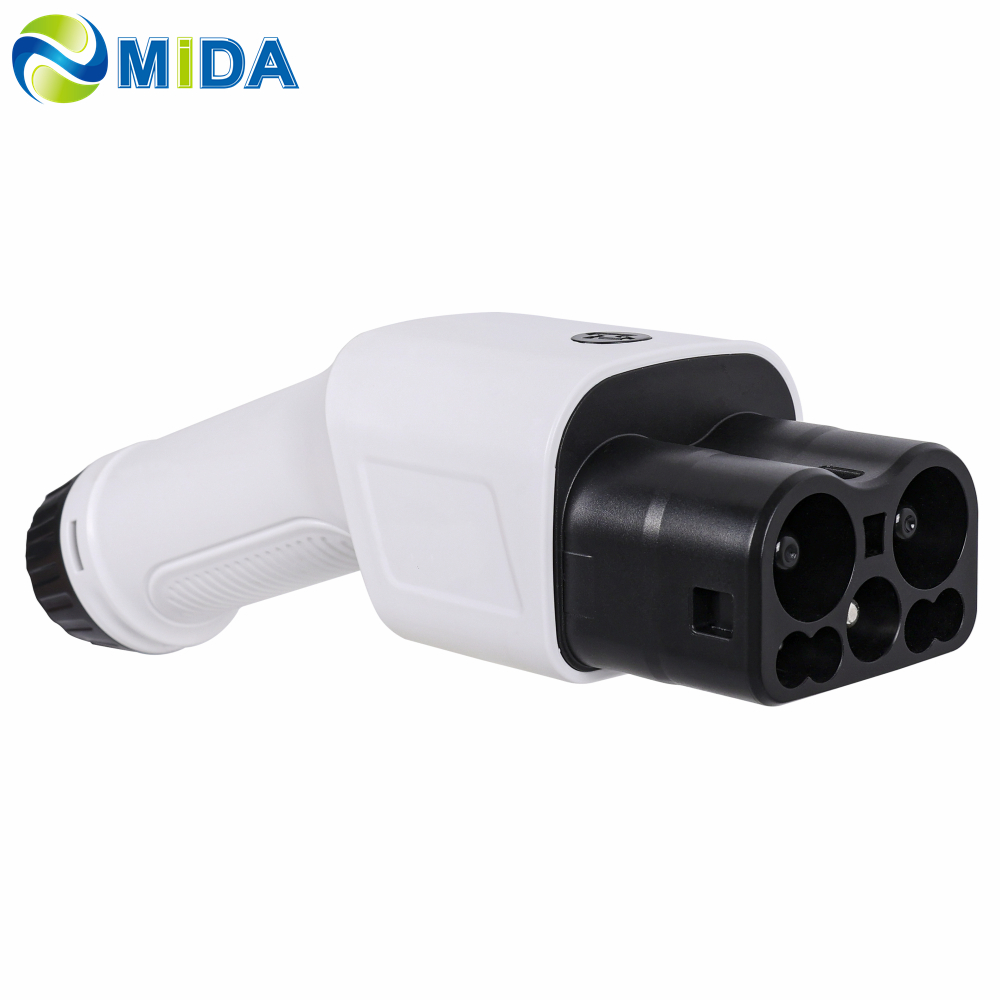

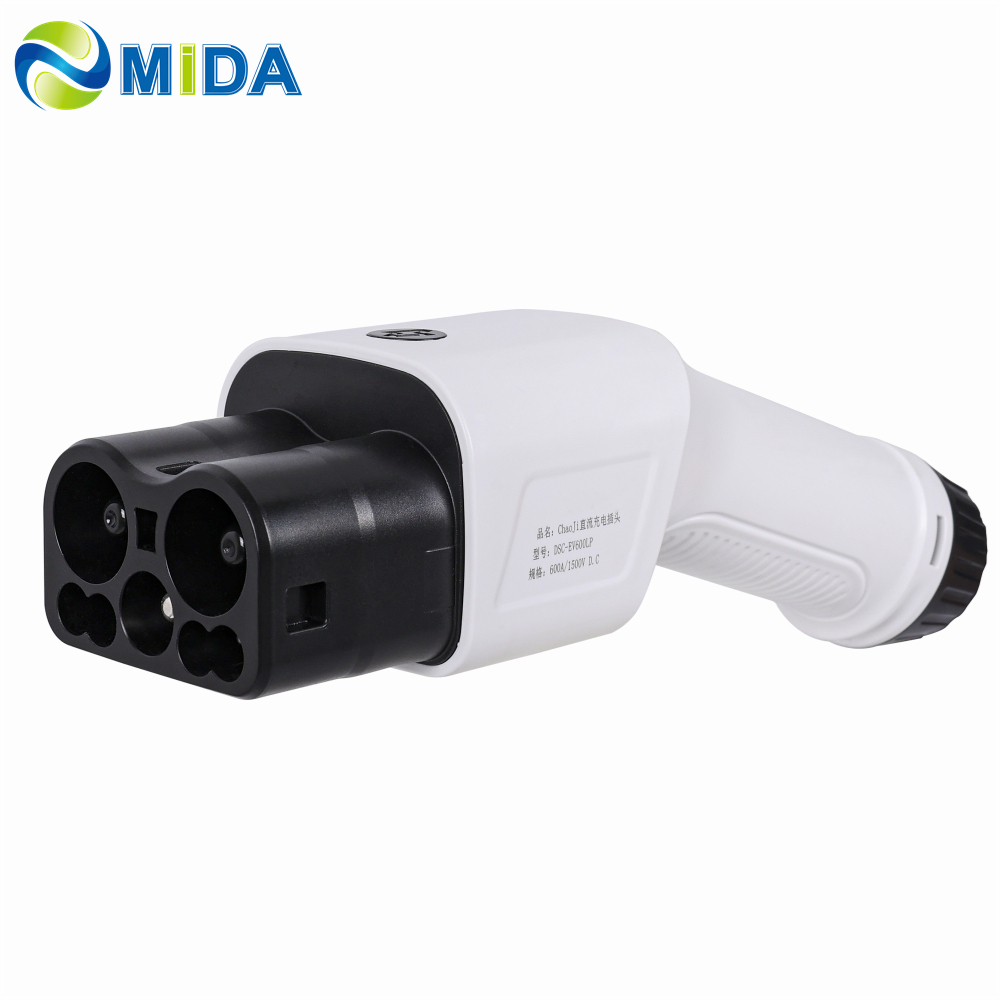

1. 600A Chaoji EV plug is designed for high-performance DC fast charging, fully complying with the IEC PAS 63454 ED1 standard.
2. This 600A Chaoji Connector HPC 600kW Plug DC Charging Cable offers cutting-edge technology for the next generation of electric mobility.
• ChaoJi Technology: Ensures seamless compatibility between ChaoJi and GB, CHAdeMO, and CCS standards.
• Common Language: Acts as a unified communication interface between the electric vehicle and the charger.
• Future Harmonization: Serves as the global base for future international charging standard harmonization.
• Ultra-High Power: Known as CHAdeMO 3.0, it is the premier ultra-high-power charging standard for electric cars.
1. High Compatibility: The 600A HPC Chaoji Plug allows for convenient charging of both Plug-in Hybrid Electric Vehicles (PHEV) and full Battery Electric Vehicles (BEV).
2. Global Standard Support: Designed for Combined Charging System applications, it utilizes proprietary silver-plated contacts for long-life durability. It supports AC & DC charging standards across Europe, Asia, Australia, and other global markets.
3. Cooling Options: Available in both Air Cooling and Liquid Cooling configurations to manage thermal loads in high-power 600A environments.
4. Quick-Change Terminal: Features a liquid-cooled 400A/500A/600A quick-change terminal design for high-power DC charging efficiency.
| Features | 1. Meet IEC PAS 63454 ED1 standard |
| 2. Concise appearance, support back installation | |
| 3. Back Protection class IP55 | |
| 4. Max charging power: 600kW | |
| 5. AC Max charging power: 45.36kW | |
| Mechanical Properties | 1. Mechanical life: no-load plug in/pull out > 10,000 times |
| 2. External force impact: withstands 1m drop and 2t vehicle run-over pressure | |
| Electrical Performance | 1. DC input: 600A 1000V DC MAX |
| 2. AC input: 16A 32A 63A 240/415V AC MAX | |
| 3. Insulation resistance: > 2000MΩ (DC1000V) | |
| 4. Terminal temperature rise: < 50K | |
| 5. Withstand Voltage: 3200V | |
| 6. Contact resistance: 0.5mΩ Max | |
| Applied Materials | 1. Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
| 2. Pin: Copper alloy, silver + thermoplastic on the top | |
| Environmental | Operating temperature: -30°C to +50°C |

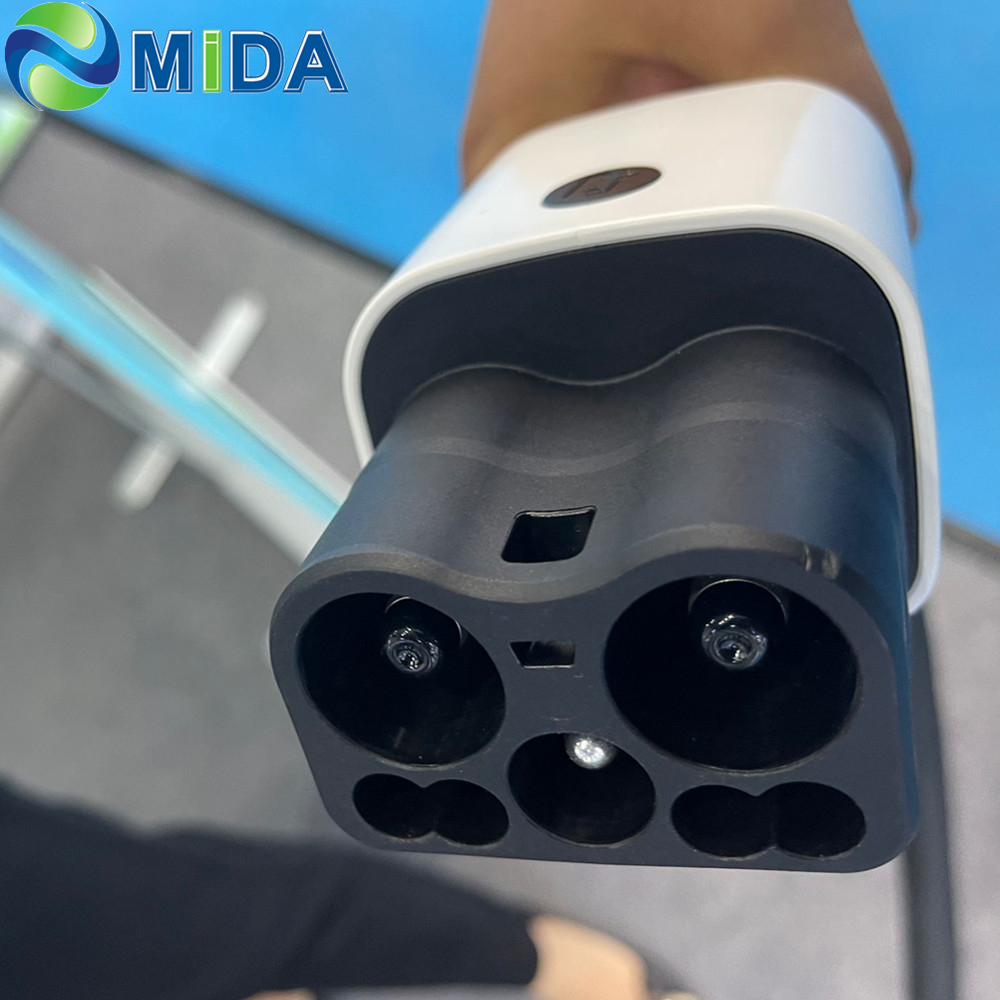

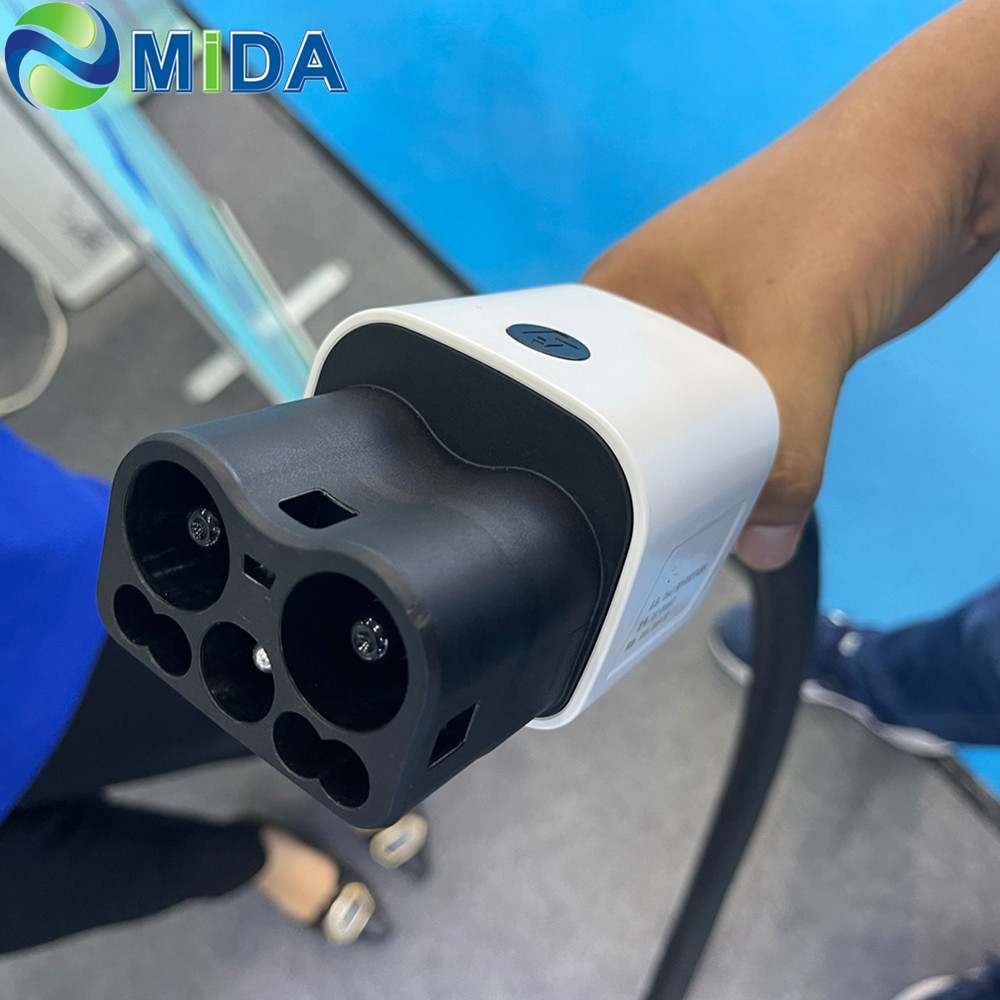

The 600A CHAOJI Gun complies with IEC PAS 63454 ED1. It features separate pins for different modes, ensuring full compatibility with DC Charging Plugs.
Utilizing ultrasonic welding between the conductive terminal and cable, the contact resistance is reduced to nearly zero. This minimizes heat generation during high-power DC charging and extends the product's service life.
With a 1,000-volt DC maximum rating, the Chaoji connector is optimized for ultra-fast charging. It supports 500A and 600A currents, significantly reducing waiting times at charging stations for all vehicle types, from compact cars to heavy trucks and buses.
Equipped with short circuit protection, ground fault detection, and integrated temperature sensors, the charging process is monitored constantly. The connector is rated for over 10,000 plugging cycles, ensuring durability and reducing long-term maintenance costs for charging operators.
The 600A CHAOJI Gun supports full customization, including simple LOGO placement as well as bespoke functional and appearance modifications to suit specific brand requirements.
