| Product Name | CHAdeMO TO NACS Adapter |
| Rated Voltage | 1000V DC |
| Rated Current | 250A |
| Application | For Cars with Chademo inlet to charge on CCS2 Superchargers |
| Terminal Temperature Rise | <50K |
| Insulation Resistance | >1000MΩ(DC500V) |
| Withstand Voltage | 3200Vac |
| Contact Impedance | 0.5mΩ Max |
| Mechanical Life | No-load plug in/pull out >10000 times |
| Operating Temperature | -30°C ~ +50°C |

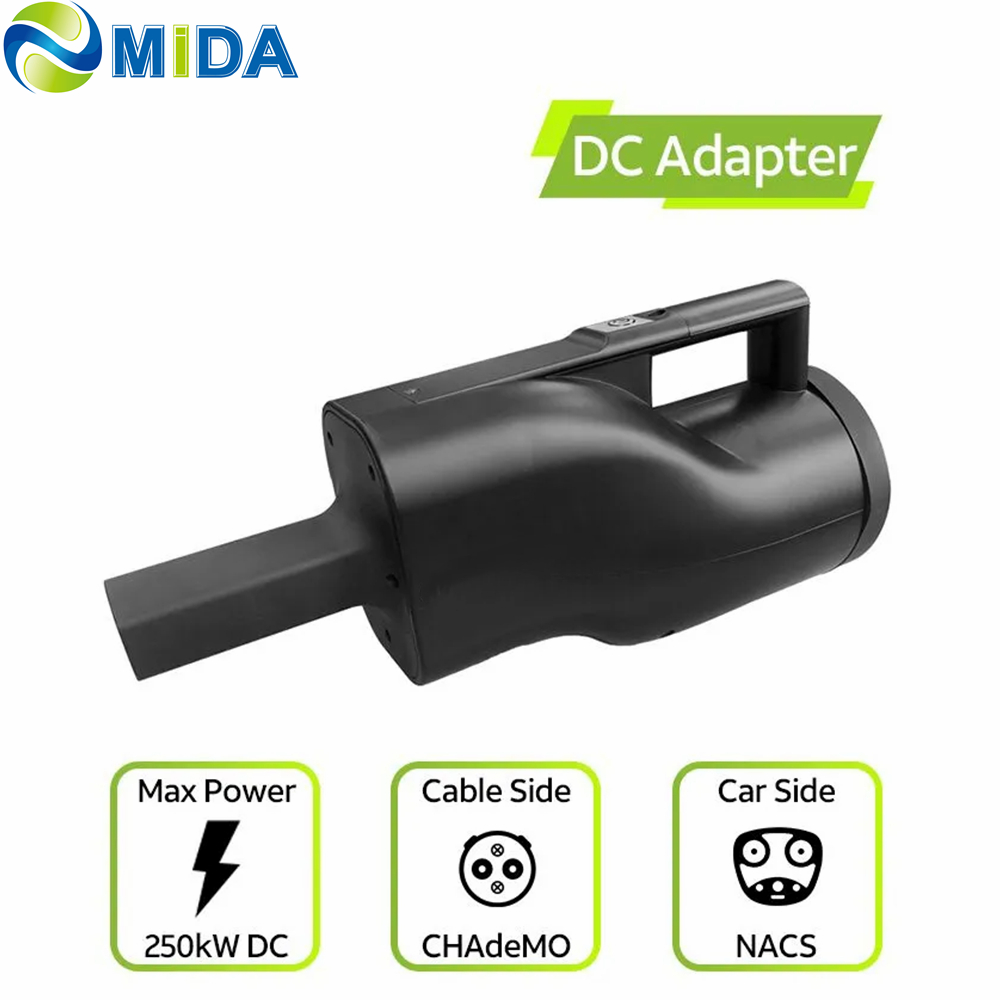

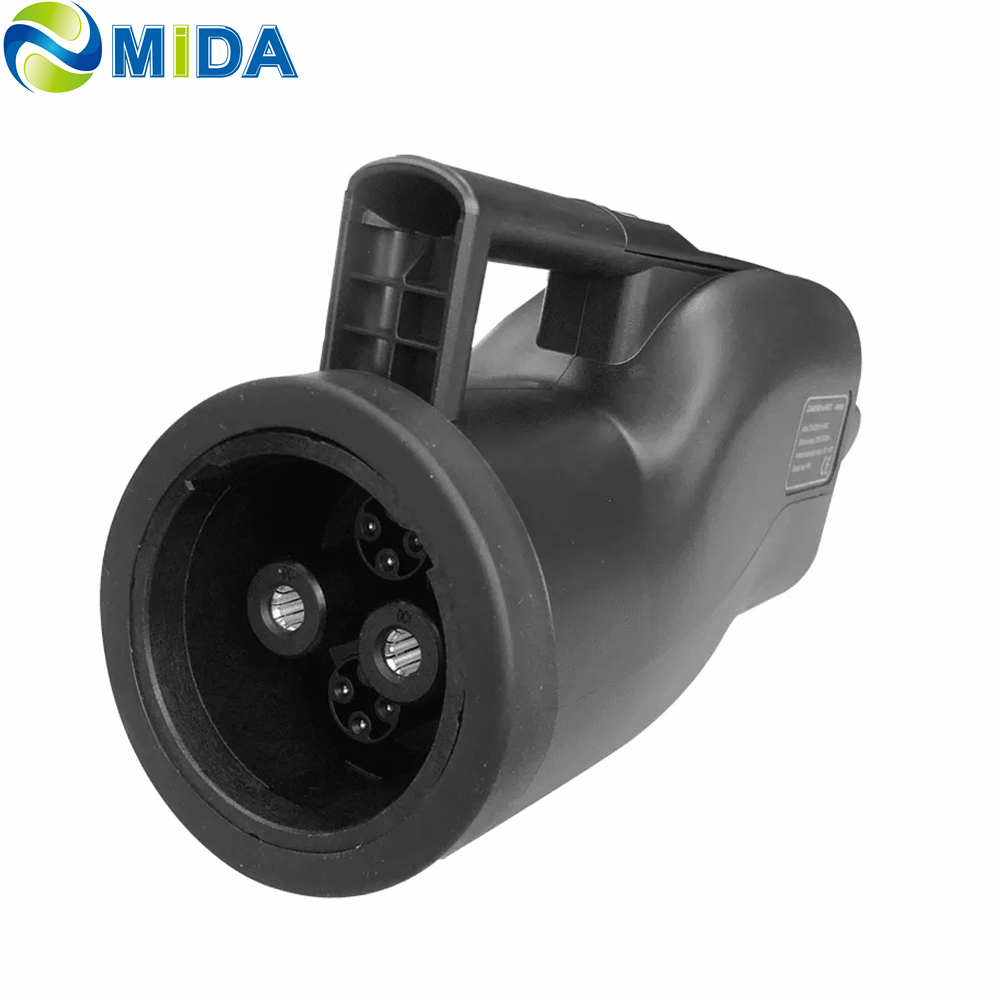

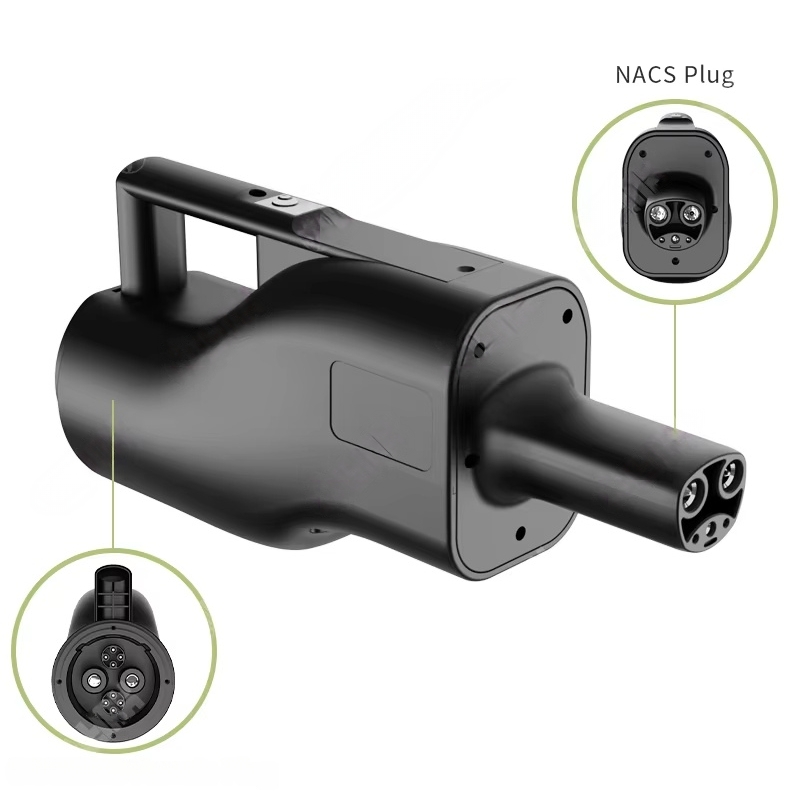

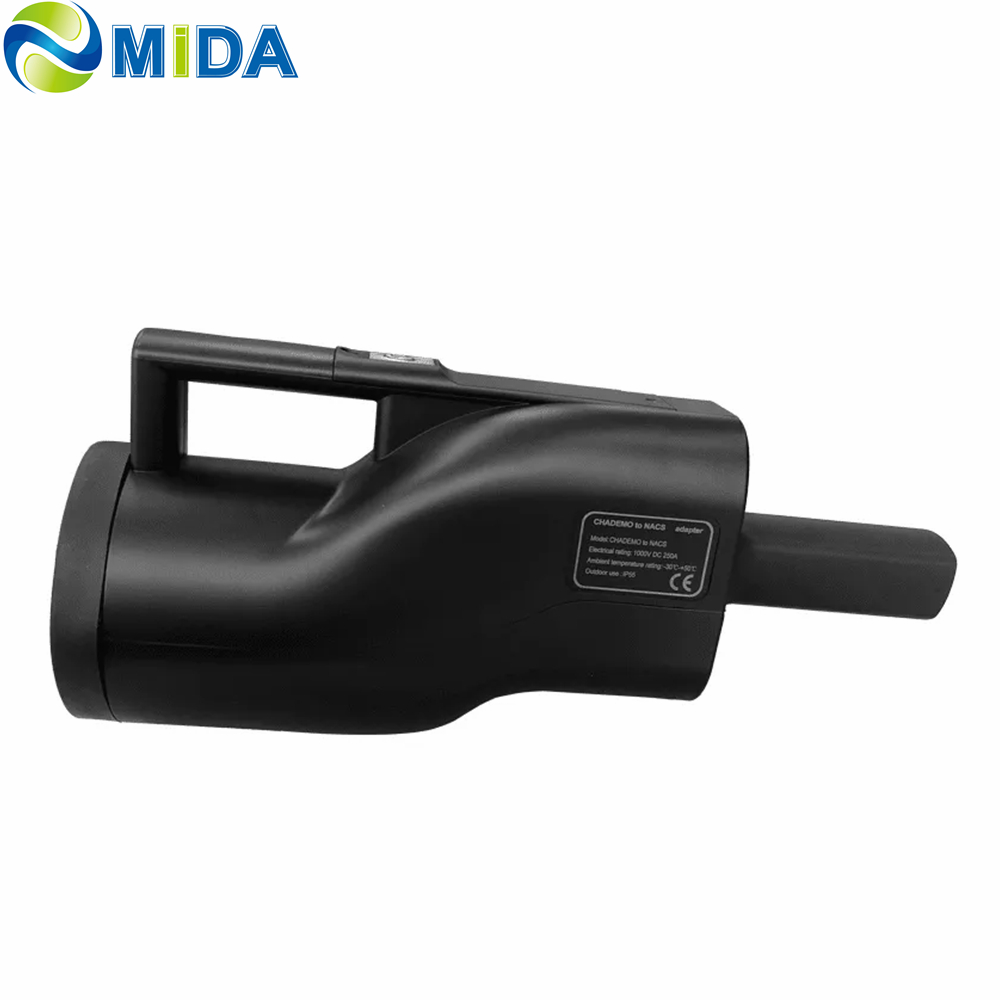

250A CHAdeMO to NACS Adapter / 250kw CHAdeMO to Tesla Adapter
By activating the in-vehicle hardware and purchasing an external adapter, you can take advantage of the global network of DC charging stations. CHAdeMO stations can charge at up to 43 kW or 108 km of range every half hour.
For Model S vehicles without Supercharging enabled, the in-vehicle hardware must be activated to use the CHAdeMO adapter. All new Model S or Model X vehicles are Supercharging enabled.

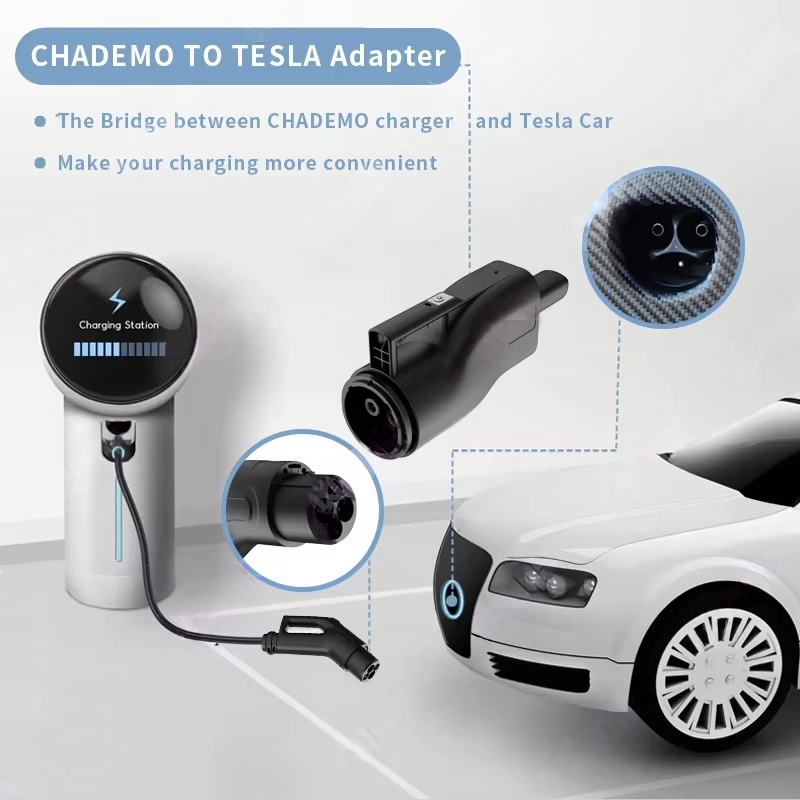

CHAdeMO to Tesla Adapter for Model 3 and Model Y. Model S and Model X CHAdeMO Adapter.
Many CHAdeMO stations require membership in a third-party billing network; access information is typically provided at the station. Power levels and charging rates may vary.
