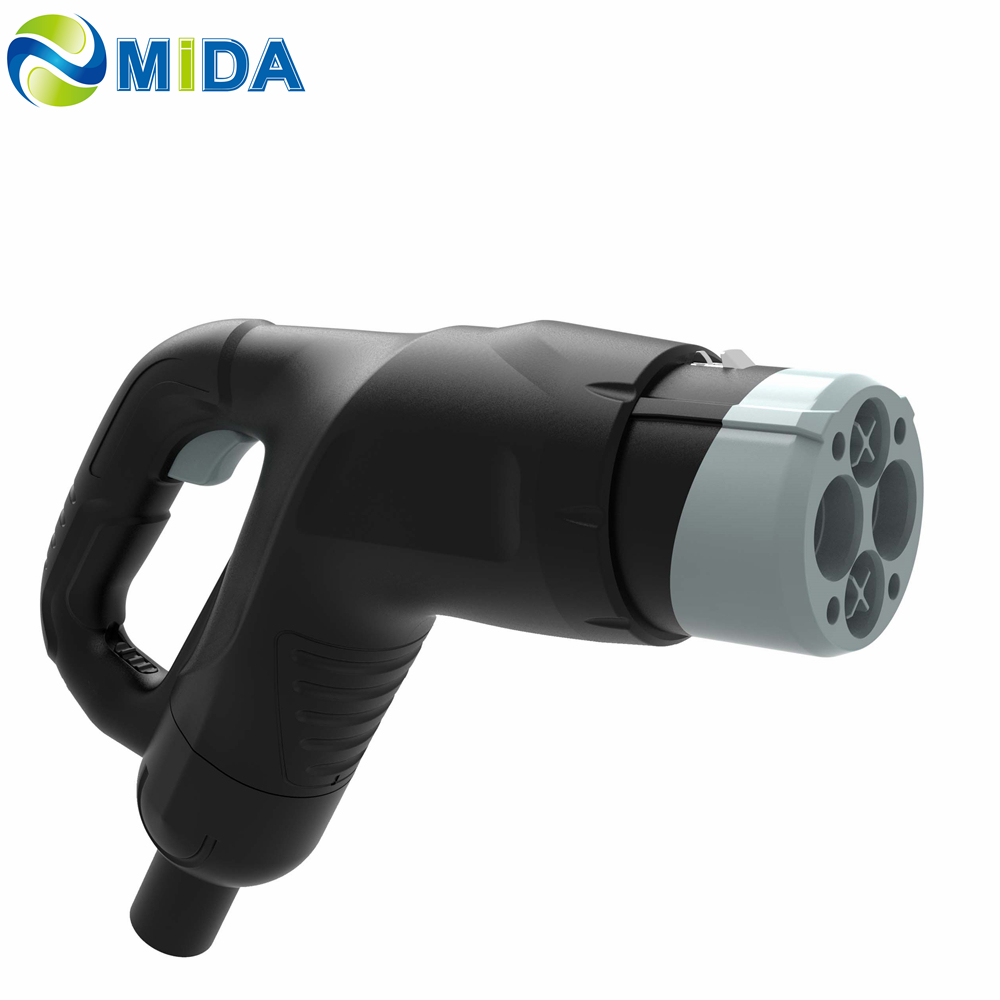

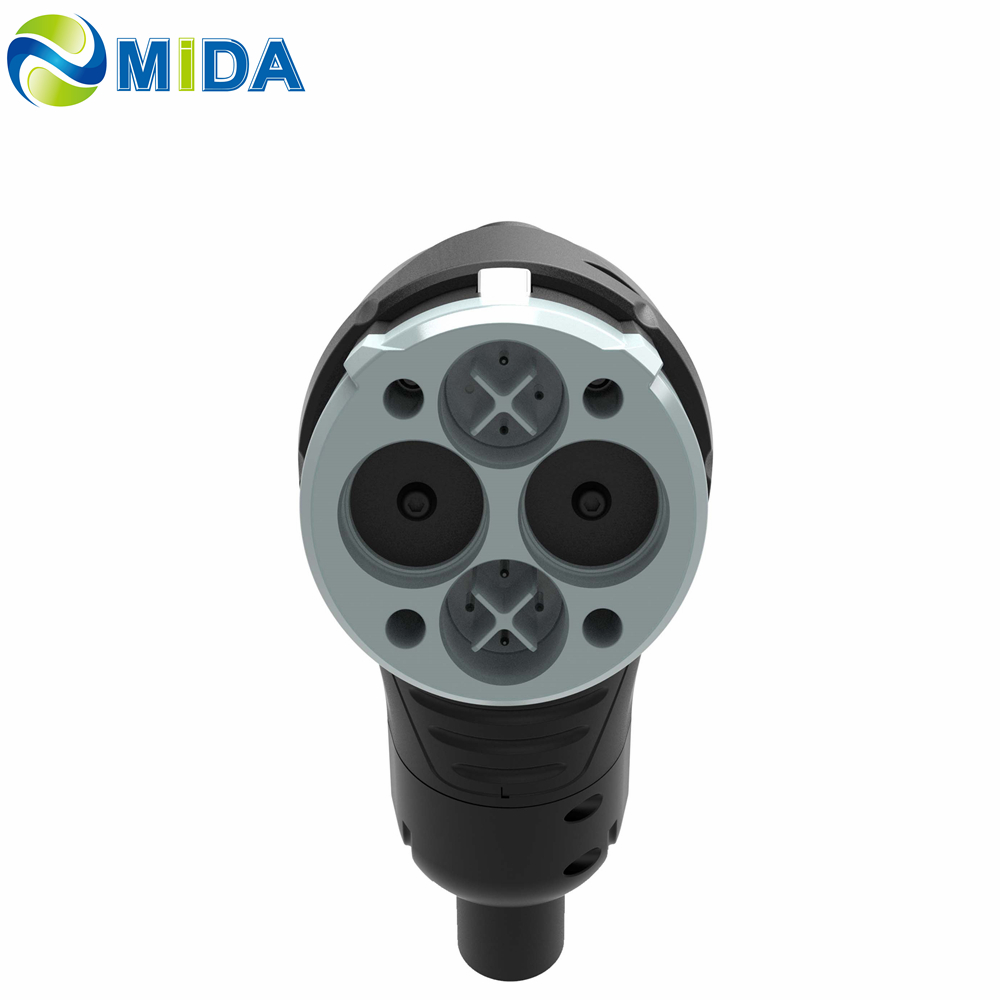

Japan CHAdeMO 2.0 Protocol 400kw Liquid Cooled CHAdeMO Plug 400A
Liquid Cooled CHAdeMO 2.0 Protocol is one of a selection of rapid charging standards which was created by a consortium of carmakers and industry bodies that now includes more than 400 members and 50 charging companies. Its name stands for Charge de Move, which is also the name of the consortium. The goal of the consortium was to develop a fast-charging vehicle standard that the whole automotive industry could adopt.
| Parameter |
Specifications |
| Model |
Liquid Cooled CHAdeMO Connector |
| Rated current |
DC+/DC-: 80A, 125A, 150A, 200A, 250A, 400A; PP/CP: 2A |
| Wire Diameter |
80A/16mm², 125A/35mm², 150A/70mm², 200A/80mm² |
| Rated voltage |
DC+/DC-: 750V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC |
| Withstand voltage |
3000V AC / 1min. (DC + DC- PE) |
| Insulation resistance |
≥ 100mΩ 750V DC (DC + / DC- / PE) |
| Electronic locks |
12V / 24V optional |
| Mechanical life |
10,000 times |
| Ambient temperature |
-40℃ ~ 50℃ |
| Degree of Protection |
IP55 (When not mated), IP44 (After mated) |
| Main Material |
| Shell / Insulation part |
PA |
| Sealing part |
Silicone Rubber |
| Contact part |
Copper alloy |
Liquid Cooled CHAdeMO 2.0 DC Plug Features
⚡
Alternating Current Performance
The 400A Liquid Cooled CHAdeMO Plug EV standard has two types of connectors – one for slow charging and the other for fast charging. The AC connector can provide a maximum charging power of 27.7 kW with three-phase current. A one-phase wire provides a maximum of 8 kW charging power.
🛡️
Safe Charging Design
400A CHAdeMO EV Connector are designed with safety insulation on their pinheads to prevent accidental direct contact. This ensures the highest level of safety when handling the sockets, protecting the user from potential electric shock.
Key Technical Highlights
- Comply with IEC 62196.3-2022 standard
- Rated voltage: 500V/1000V Support
- Rated current options: DC 200A, 250A, 400A
- 12V/24V electronic lock system optional
- Meet TUV/CE certification requirements
- Equipped with Anti-straight plug dust cover
- 10,000+ plugging cycles with stable temperature rise
- Cost-effective with high-quality construction
Investment Value & Market Analysis
This advanced charging system is also built to last, with a robust construction that ensures reliability and longevity. The socket is designed to outlast its competitors, making it an excellent long-term investment for EV owners. Its multi-available current rating and easy installation make it a great choice for both residential and commercial applications.
The socket is designed to be used with charging connectors which are becoming increasingly commonplace across the world. This makes it an ideal choice for those who want to charge their electric vehicles without having to worry about compatibility issues.
Frequently Asked Questions (FAQ)
What is the maximum current supported by the Liquid Cooled CHAdeMO Plug?
The connector supports a maximum DC current of 400A, with other options available at 80A, 125A, 150A, 200A, and 250A.
What safety certifications does this product meet?
The CHAdeMO 2.0 protocol plug meets TUV and CE certification requirements and complies with the IEC 62196.3-2022 standard.
Does the connector offer protection against environmental factors?
Yes, it has a protection rating of IP55 when not mated and IP44 after it is mated, along with an anti-straight plug dust cover.
What materials are used in the construction of the shell and contacts?
The shell and insulation parts are made of high-grade PA (Polyamide), the sealing parts are silicone rubber, and the contact parts are made of durable copper alloy.
Is there an electronic lock included?
Yes, the product supports an optional 12V or 24V electronic lock to ensure secure charging sessions.
What is the expected lifespan of the CHAdeMO connector?
The mechanical life of the plug is rated for over 10,000 plugging and unplugging cycles under normal conditions.
