Parameters of CCS Type 2 Socket / CCS 2 Inlet 80A~400A. European standard 250A 300A 400A 500A 600A CCS 2 socket are installed on electric vehicles, CCS type 2 inlet. By cooperating with CCS combo 2 DC charging cable, the DC charging function is realized. The products meet IEC 62196.3-2022 and RoHS requirements.

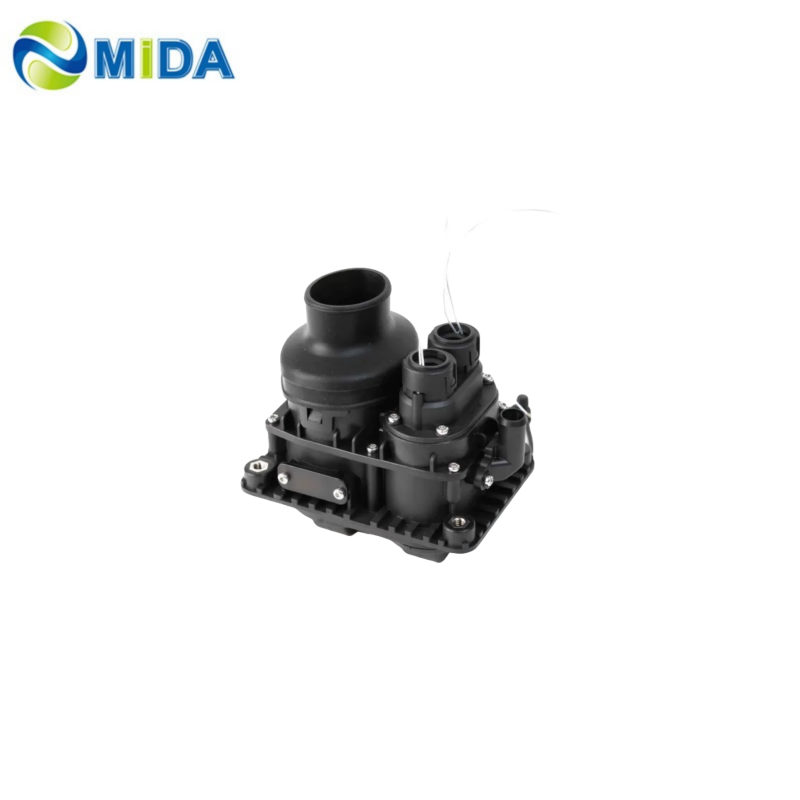

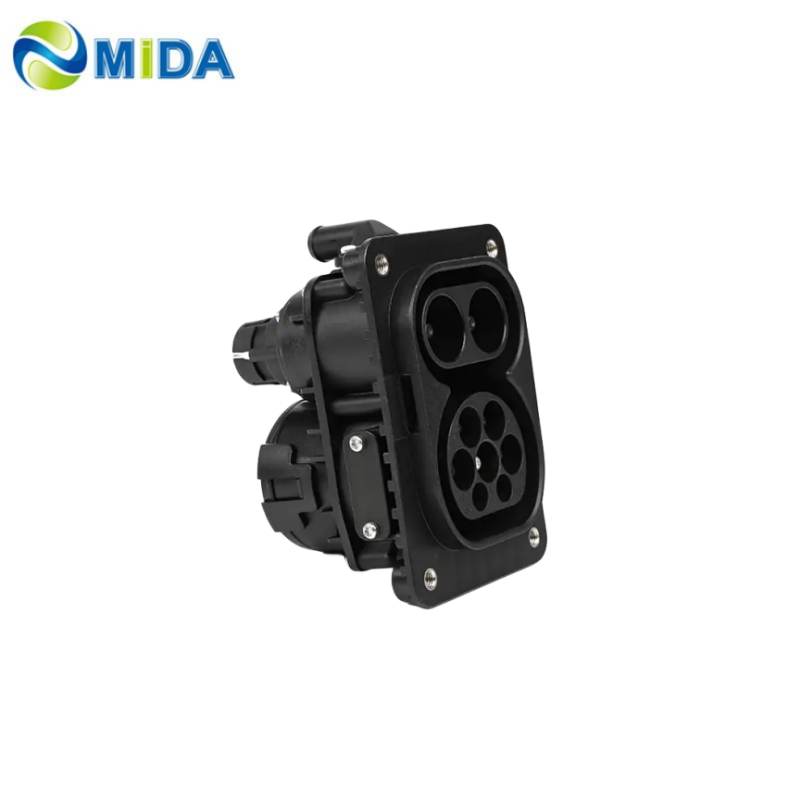

Introduction to CCS2 Electric Vehicle Charging Socket
The Combined Charging System (CCS) socket is the industry standard connector for electric vehicle charging, supporting fast charging for both AC and DC. CCS2 is the European Electric Vehicle Supply Equipment (EVSE) standard aimed at regulating DC fast charging for pure electric vehicles (BEVs) and plug-in hybrid electric vehicles (PHEVs).

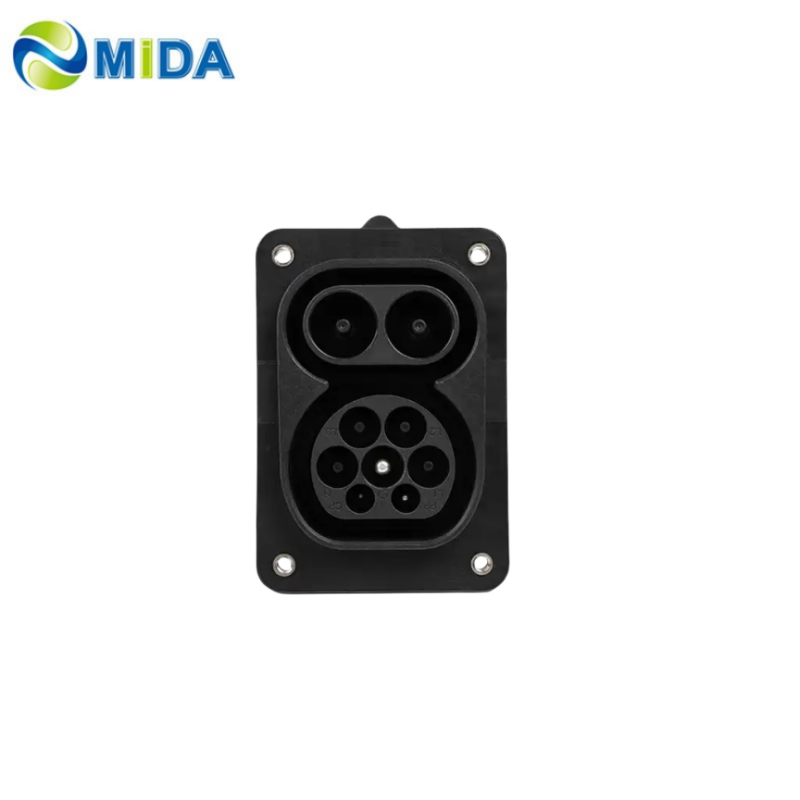

The CCS2 connector has 9 pins, including one Type 2 AC charging pin and two DC charging pins. This socket can be used in conjunction with AC and DC chargers, as well as vehicles that support this charging standard. It has been widely accepted by car manufacturers as the charging standard for electric vehicles. The CCS2 electric vehicle DC charging socket complies with the IEC 62196.3-2022 standard.
The maximum rated current of this electric vehicle charging socket is 500 amperes, and the maximum rated voltage can reach 1000 volts. The CCS2 EV socket is compatible with all vehicles that support Combined Charging Systems (CCS) and can be used in conjunction with portable Level 2 chargers.
| Model |
CCS 2 socket |
| Rated current |
DC+/DC-: 80A, 125A, 150A, 200A, 250A, 300A, 400A;
L1/L2/L3/N: 32A;
PP/CP: 2A |
| Wire Diameter |
80A/16mm²; 125A/35mm²; 150A/50mm²; 200A/70mm²; 250A/95mm²; 300A/95mm²; 400A/120mm² |
| Rated voltage |
DC+/DC-: 1000V DC;
L1/L2/L3/N: 480V AC;
PP/CP: 30V DC |
| Withstand voltage |
3000V AC / 1min. (DC + DC- PE) |
| Insulation resistance |
≥ 100mΩ 1000V DC (DC + / DC- / PE) |
| Electronic locks |
12V / 24V optional |
| Mechanical life |
10,000 times |
| Ambient temperature |
-40℃~50℃ |
| Degree of Protection |
IP55 (When not mated); IP44 (After mated) |
| Main Material |
| Shell / Insulation |
PA |
| Sealing part |
Silicone Rubber |
| Contact part |
Copper alloy |

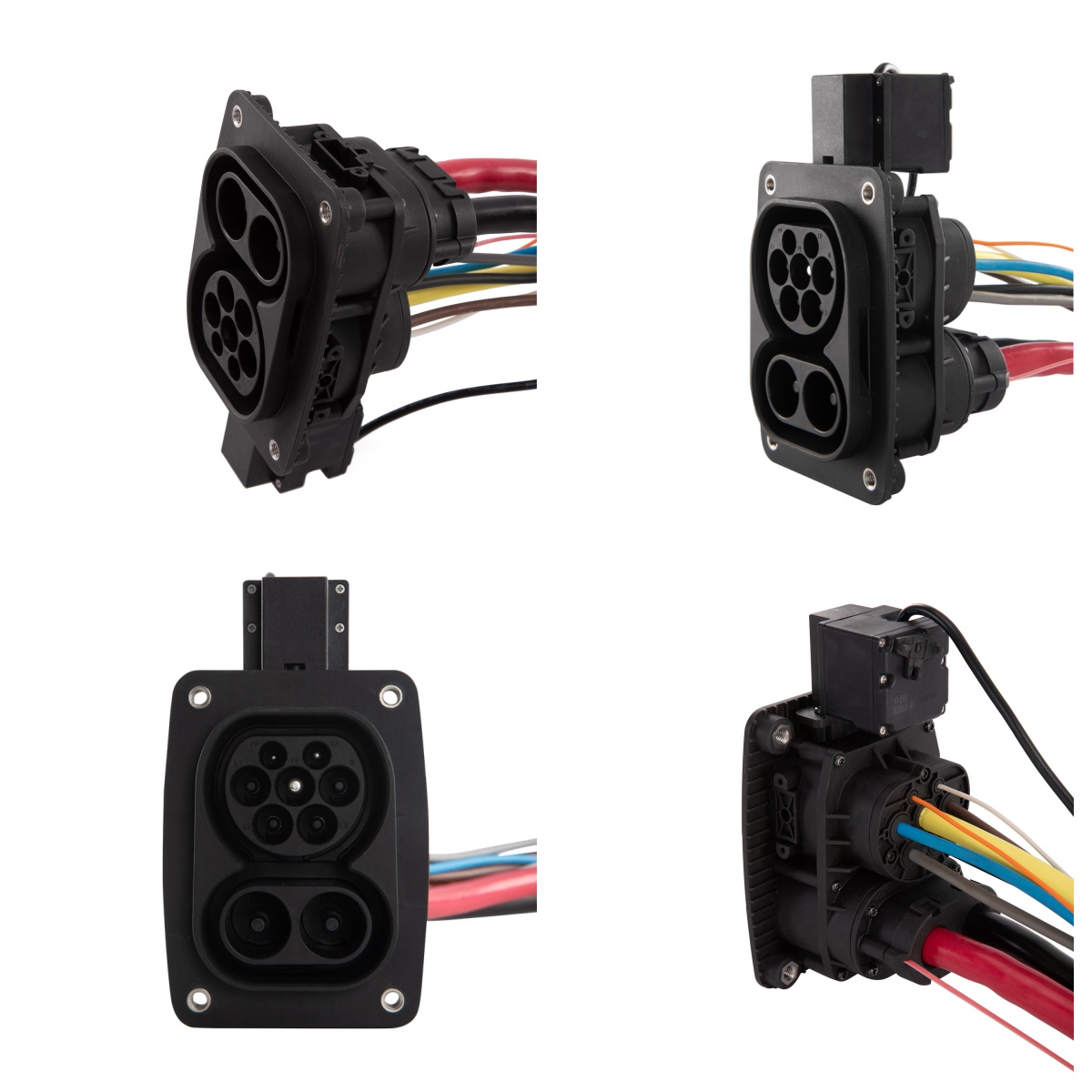

EV Charging Socket CCS2 Features
Alternating Current
The Combo CCS2 charging socket is available in 250A. It combines alternating current (AC) Type 2 charging and direct current (DC) CCS fast charge in one inlet.
Safe Charging
CCS2 EV sockets are designed with safety insulation on their pinheads to prevent accidental direct contact with human hands. This insulation is meant to ensure the highest level of safety when handling the sockets, protecting the user from potential electric shock.
Investment Value
This advanced charging system is also built to last, with a robust construction that ensures reliability and longevity. The Combo CCS2 socket is designed to outlast its competitors, making it an excellent long-term investment for EV owners. Its 250A rating and easy installation make it a great choice for both residential and commercial applications.
Market Analysis
The socket is designed to be used with type 2 charging connectors, which are becoming increasingly commonplace across Europe. This makes it an ideal choice for those who want to charge their electric vehicles without having to worry about compatibility issues.
Technical Highlights
- Comply with IEC 62196.3-2022 standards
- Rated voltage: 1000V DC / 480V AC
- Multiple current options: DC 80A to 400A; AC 16A to 63A
- Optional 12V/24V electronic lock system
- Meets TUV/CE certification requirements

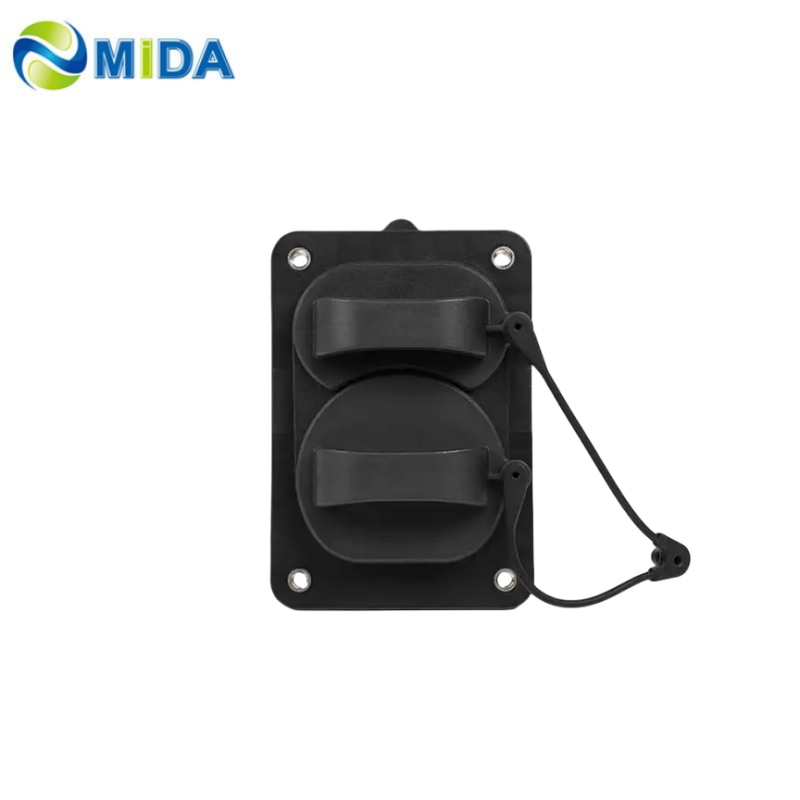

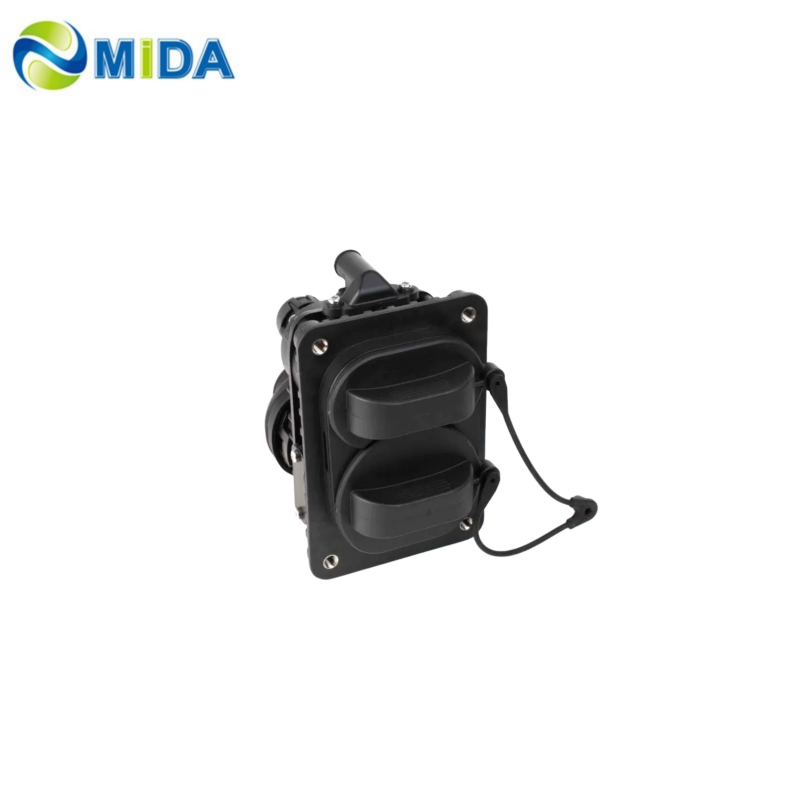

- Integrated anti-straight plug dust cover
- Tested for 10,000+ plugging cycles with stable temperature rise
- Superior quality and reliable performance for faster delivery
Frequently Asked Questions
Q: What is the primary standard for the CCS2 charging socket?
A: The CCS2 socket complies with the IEC 62196.3-2022 standard, which is the industry regulation for European electric vehicle DC fast charging.
Q: Does the CCS2 socket support both AC and DC charging?
A: Yes, it is a "Combo" socket that combines AC Type 2 charging and DC CCS fast charging in a single inlet.
Q: What is the maximum voltage and current rating?
A: The socket supports a maximum rated voltage of 1000V DC and currents ranging from 80A up to 500A or 600A depending on the specific model.
Q: How durable is the mechanical structure of the socket?
A: It is designed for high durability with a mechanical life of over 10,000 plugging and unplugging cycles.
Q: What is the water and dust protection rating?
A: It features an IP55 protection rating when not mated and IP44 when mated, ensuring safety in various environmental conditions.
Q: Are there safety features to prevent electric shock?
A: Yes, the pinheads are designed with safety insulation to prevent accidental direct contact, ensuring user safety during handling.
