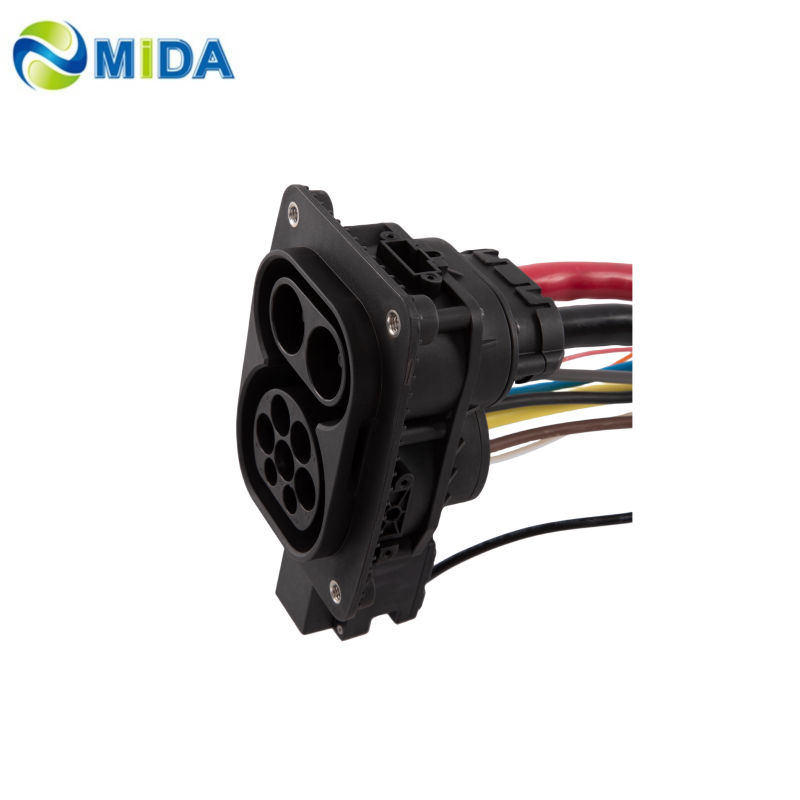

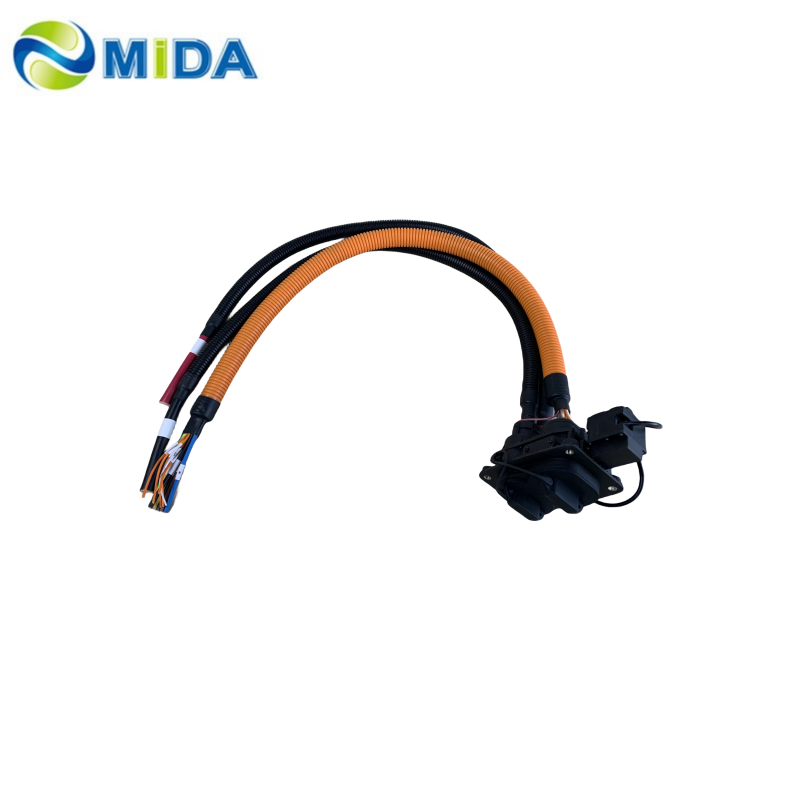

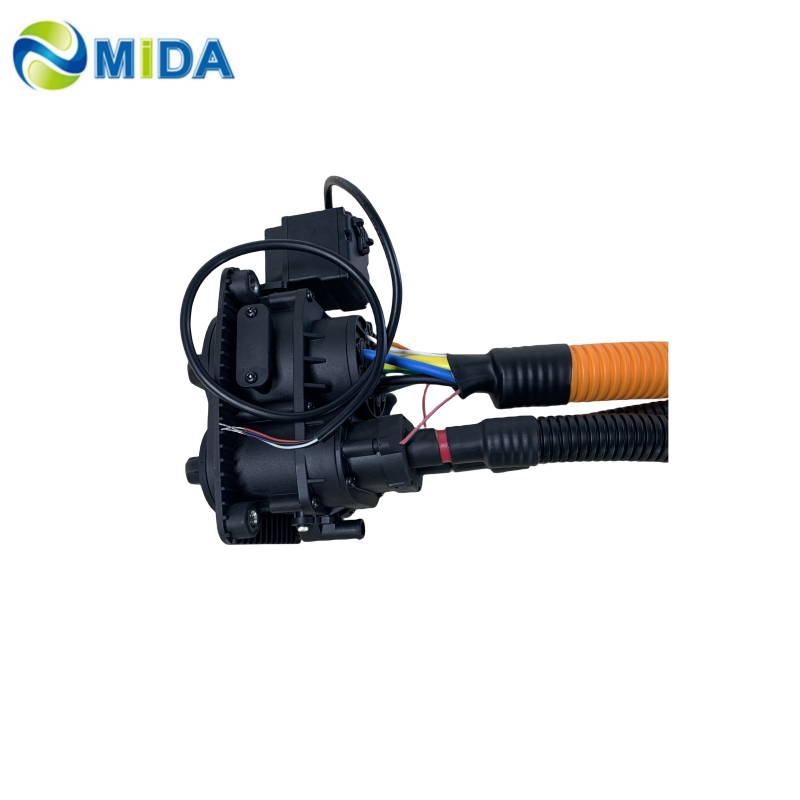

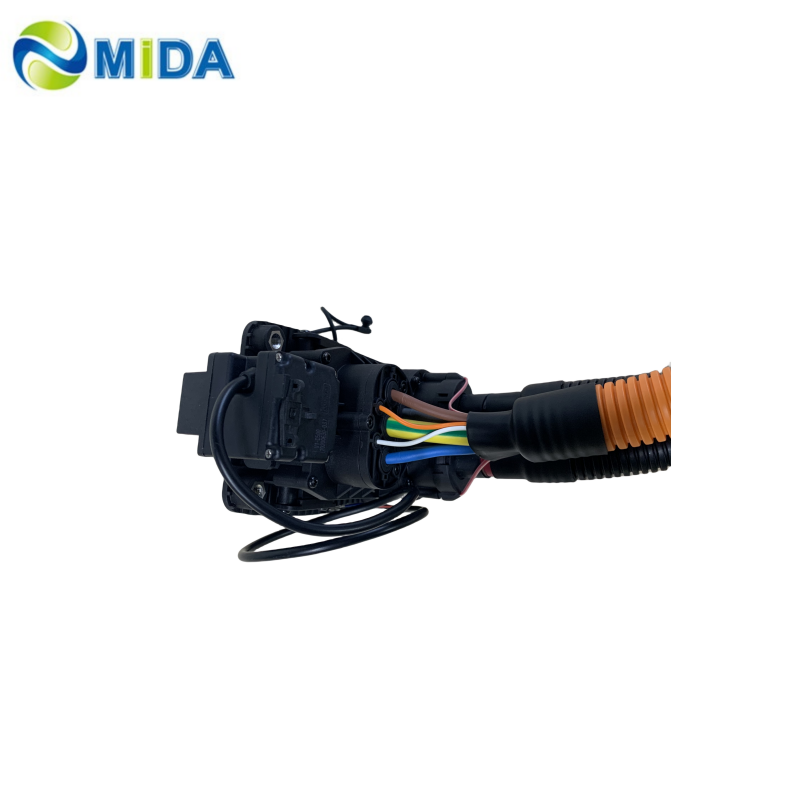

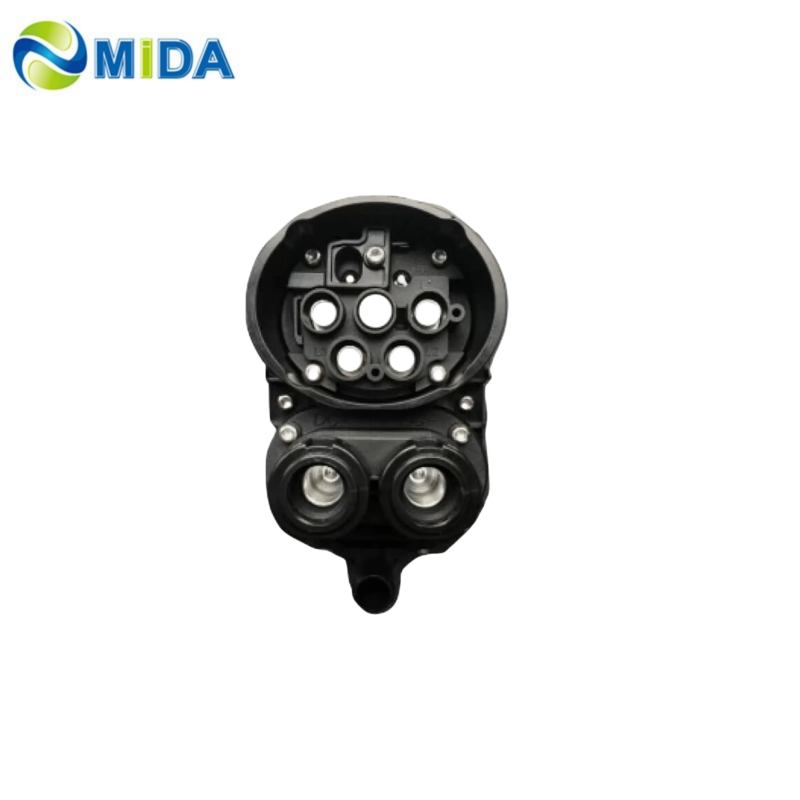

European standard 125A 150A 200A 250A 300A 350A 400A 500A CCS 2 socket are installed on electric vehicles, CCS type 2 inlet. By cooperating with CCS combo 2 DC charging cable, the DC charging function is realized. The products meet IEC 62196.3-2022 and RoHS requirements.
The Combined Charging System (CCS) socket is an industry-standard connector for electric vehicle charging, supporting both AC and DC fast charging. CCS2 is the European Electric Vehicle Power Supply Equipment (EVSE) standard, designed to regulate DC fast charging for battery electric vehicles (BEVs) and plug-in hybrid electric vehicles (PHEVs).
The 300A 350A 400A CCS2 connector has nine pins, including one Type 2 AC charging pin and two DC charging pins. This socket is compatible with both AC and DC chargers and vehicles that support this charging standard. It has been widely accepted by automakers as the charging standard for electric vehicles. The CCS2 electric vehicle DC charging socket complies with IEC 62196.3-2022.
This 200A 300A 400A 500A electric vehicle charging socket has a maximum rated current of 500 amps and a maximum rated voltage of 1000 volts. The CCS2 electric vehicle socket is compatible with all vehicles that support Combined Charging Systems (CCS) and can be used with portable Level 2 chargers.
| Parameter | Specification |
|---|---|
| Model | CCS 2 socket |
| Rated current | DC+/DC-: 80A, 125A, 150A, 200A, 250A, 300A, 400A; L1/L2/L3/N: 32A; PP/CP: 2A |
| Wire Diameter | 80A/16mm², 125A/35mm², 150A/50mm², 200A/70mm², 250A/95mm², 300A/95mm², 400A/120mm² |
| Rated voltage | DC+/DC-: 1000V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC |
| Withstand voltage | 3000V AC / 1min. (DC + DC- PE) |
| Insulation resistance | ≥ 100mΩ 1000V DC (DC + / DC- / PE) |
| Electronic locks | 12V / 24V optional |
| Mechanical life | 10,000 times |
| Ambient temperature | -40℃ ~ 50℃ |
| Degree of Protection | IP55 (When not mated), IP44 (After mated) |
| Main Material | |
| Shell / Insulation | PA |
| Sealing part | Silicone Rubber |
| Contact part | Copper alloy |
The Combo CCS2 charging socket is available in 200A. It combines alternating current (AC) Type 2 charging and direct current (DC) CCS fast charge in one inlet.
CCS2 EV sockets are designed with safety insulation on their pinheads to prevent accidental direct contact with human hands. This ensures the highest level of safety when handling the sockets, protecting the user from potential electric shock.
Built to last with a robust construction that ensures reliability and longevity. The Combo CCS2 socket is designed to outlast its competitors, making it an excellent long-term investment for EV owners. Its 200A rating and easy installation make it suitable for both residential and commercial applications.
Designed for use with type 2 charging connectors, which are becoming increasingly commonplace across Europe. This makes it an ideal choice for ensuring compatibility across different charging networks.
