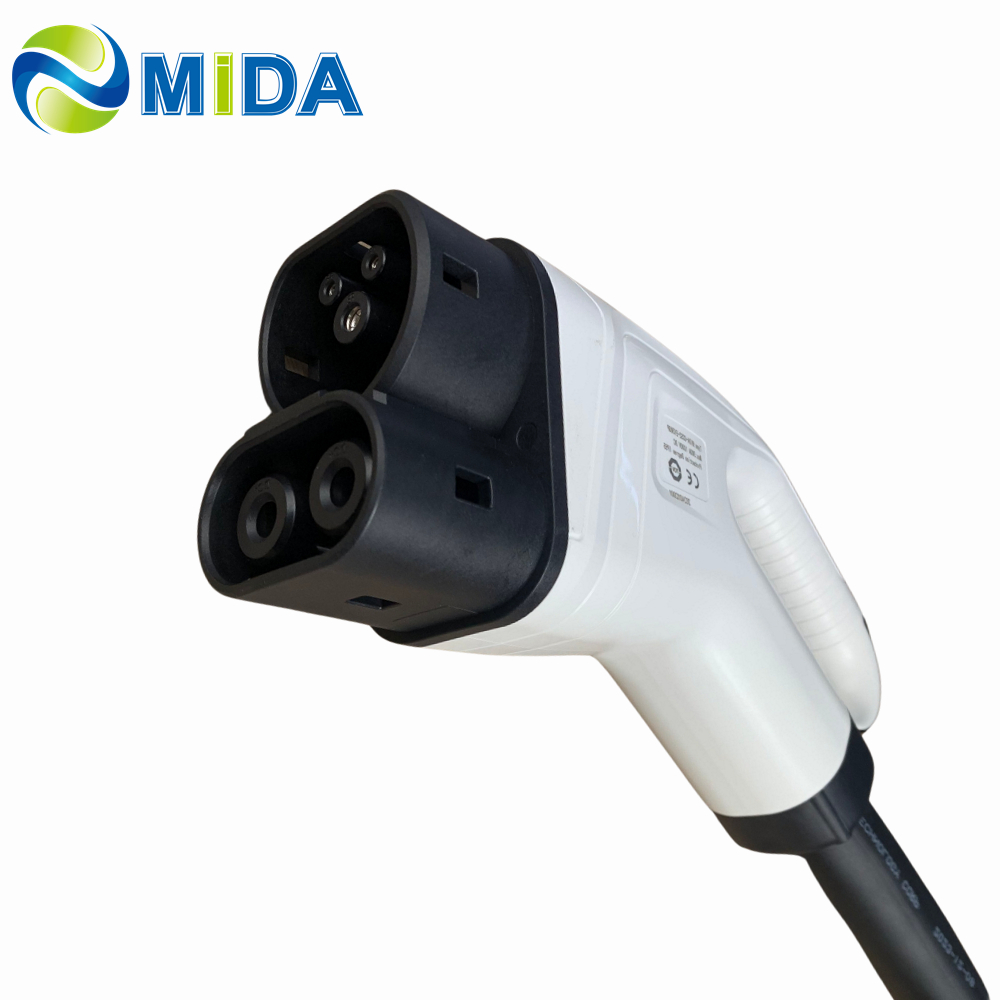

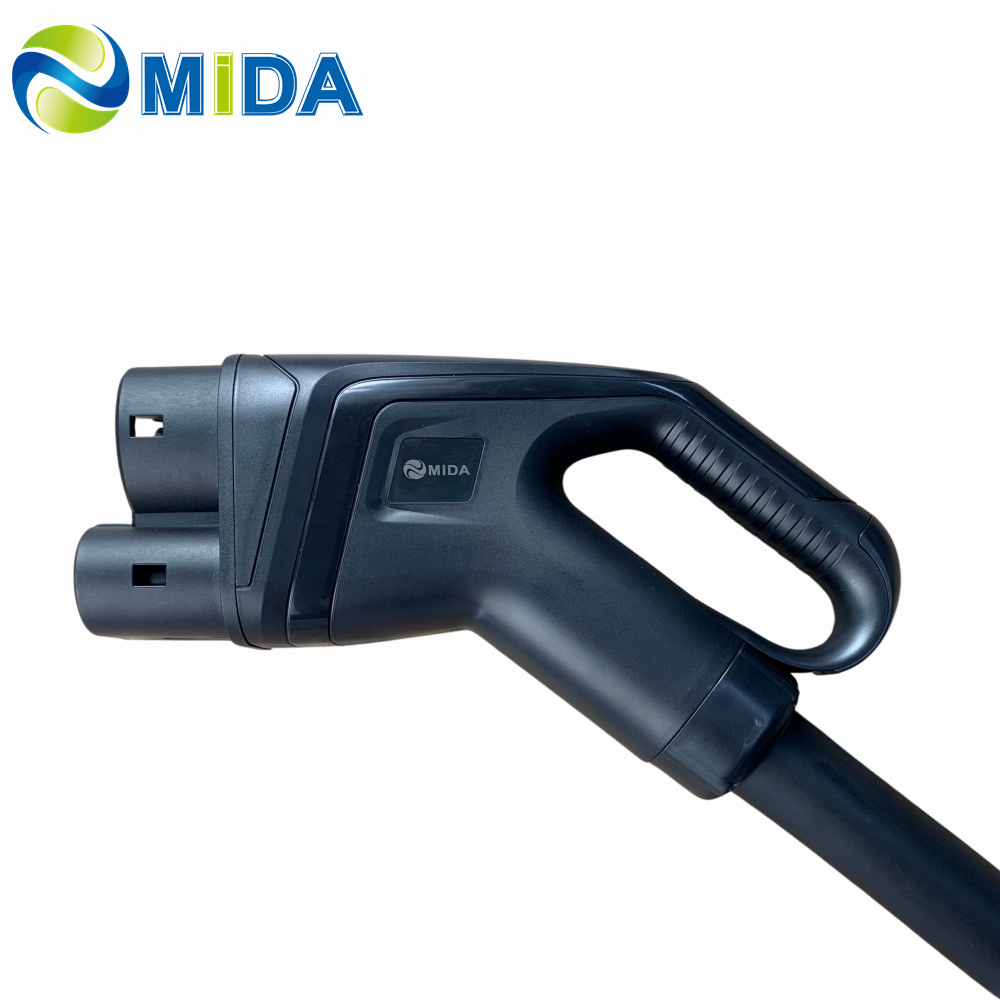

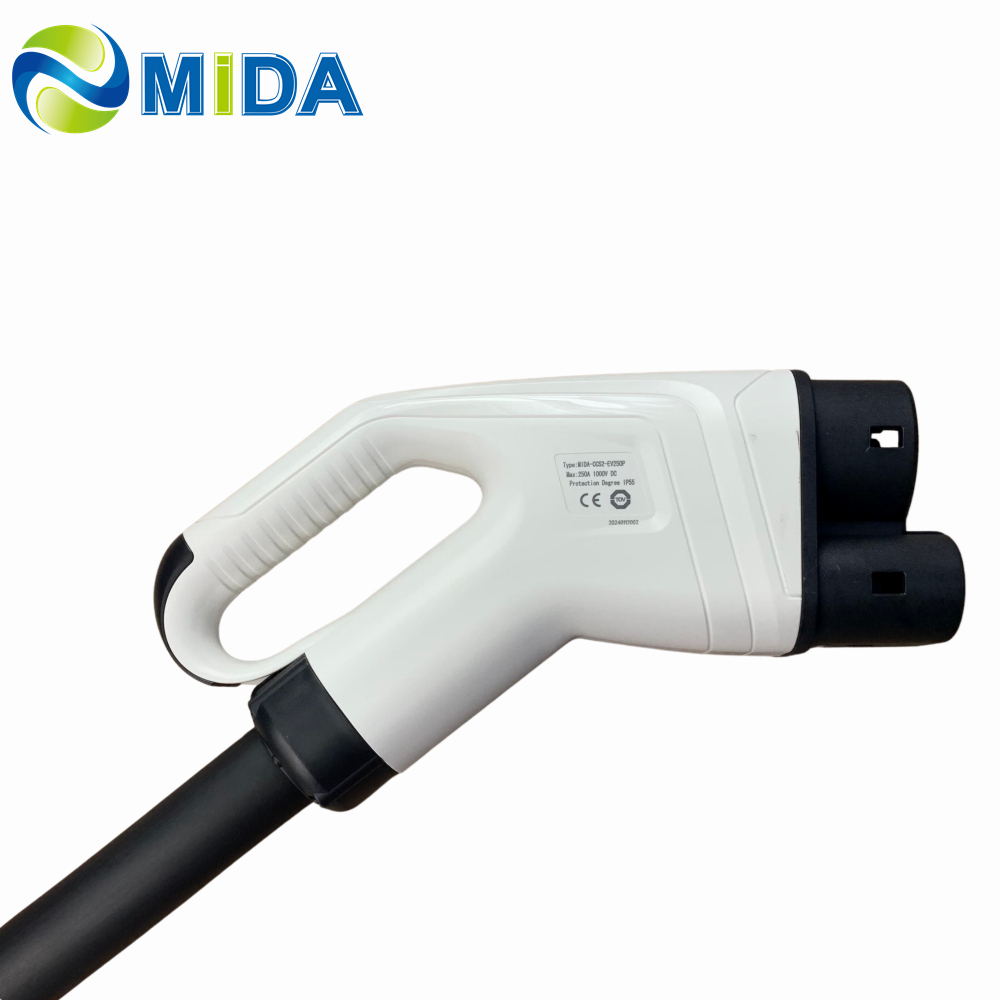

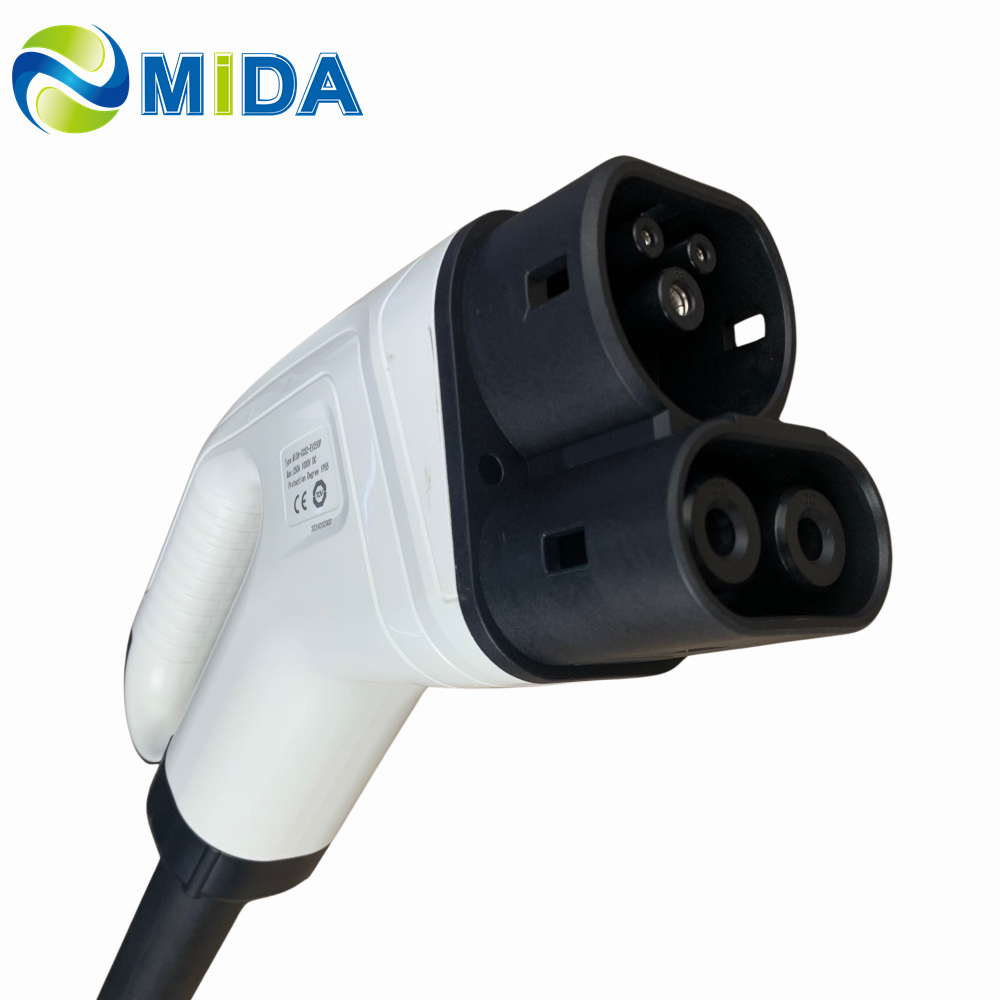

1. 250A 300A 350A 375A CCS2 EV plug. It’s used in DC fast charging & comply with IEC 62196-3 (EN 62196-3).
2. Combined Charging System (CCS) is based on open and universal standards for electric vehicles. Our 350A CCS Type 2 plug is used for direct-current charging at a maximum of 350 kW. Universally compatible, high-quality 250A 350A CCS2 Gun EV plugs designed for 10000+ charging cycles.
3. 300A 350A CCS 2 Connector electric car charging plugs integrated temperature sensors (2pcs PT1000) for monitoring the temperature change at the power contacts (between DC+ and DC- terminals). Universally compatible, high-quality CCS2 Gun designed for 10000+ charging cycles. CCS2 Connector is Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001 standard.
1. 250A 300A CCS2 Plug is convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles.
2. 300A 350A CCS 2 Gun design for use in Combined Charging System applications utilizes proprietary silver-plated contacts for long-life durability 375A CCS Type 2 supporting AC & DC Charging standards of Europe, Asia, Australia and increasingly global standards.
3. Air Cooling Liquid Cooling CCS2 Gun 250A CCS2 Connector, 300A CCS Combo 2 Plug, 350A CCS2 EV plug.
4. Liquid Cooling CCS Combo 2 Plug 400A 500A CCS2 Gun Terminal Quick-Change DC High Power EV Charging CCS2 Connector With EV Cable.
| Category | Detailed Parameters |
|---|---|
| Features | 1. Meet 62196-3 IEC 2011 SHEET 3-Im standard |
| 2. Concise appearance, support back installation | |
| 3. Back Protection class IP55 | |
| 4. Max charging power: 300kW/350kW | |
| 5. AC Max charging power: 45.36kW | |
| Mechanical Properties | 1. Mechanical life: no-load plug in/pull out > 10000 times |
| 2. Impact of external force: can afford 1m drop and 2t vehicle run over pressure | |
| Electrical Performance | 1. DC input: 250A/300A/350A 1000V DC MAX |
| 2. AC input: 16A 32A 63A 240/415V AC MAX | |
| 3. Insulation resistance: > 2000MΩ (DC1000V) | |
| 4. Terminal temperature rise: < 50K | |
| 5. Withstand Voltage: 3200V | |
| 6. Contact resistance: 0.5mΩ Max | |
| Applied Materials | 1. Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
| 2. Pin: Copper alloy, silver + thermoplastic on the top | |
| Environmental | Operating temperature: -30°C ~ +50°C |
