China CCS1 Inlet Socket for Electric Cars Inlet Manufacturer, Factories

CCS1 is the standard charging socket used in North America for electric vehicles, featuring a design that includes the DC pins and communication protocols. It is compatible with most EVs on the market, except for Tesla and Nissan Leaf, which use proprietary sockets. The CCS1 socket can deliver between 50 kW and 350 kW of DC power, making it suitable for fast charging.

Send Inquiry

Product Description

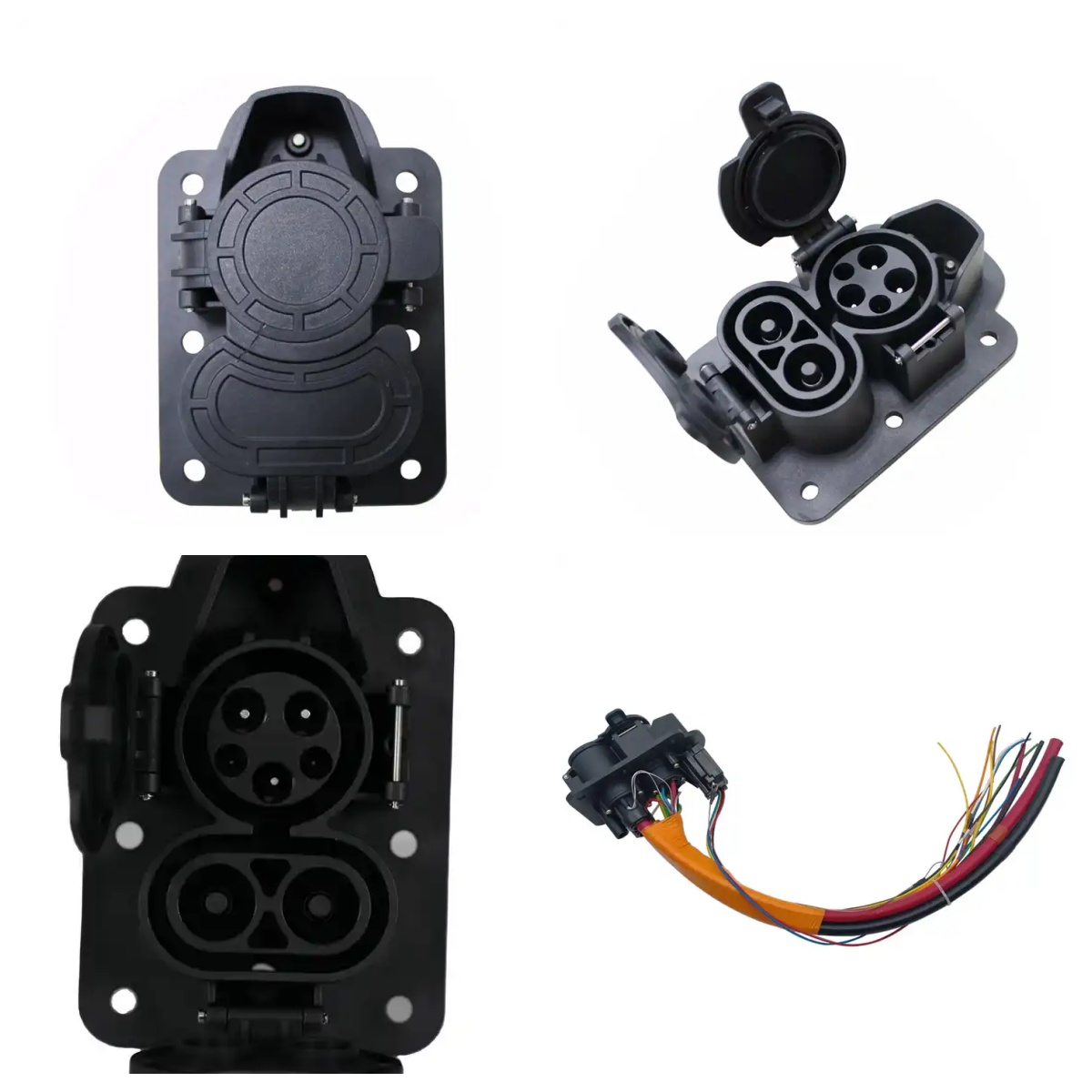

CCS Type 1 Socket Parameters (80A~350A)

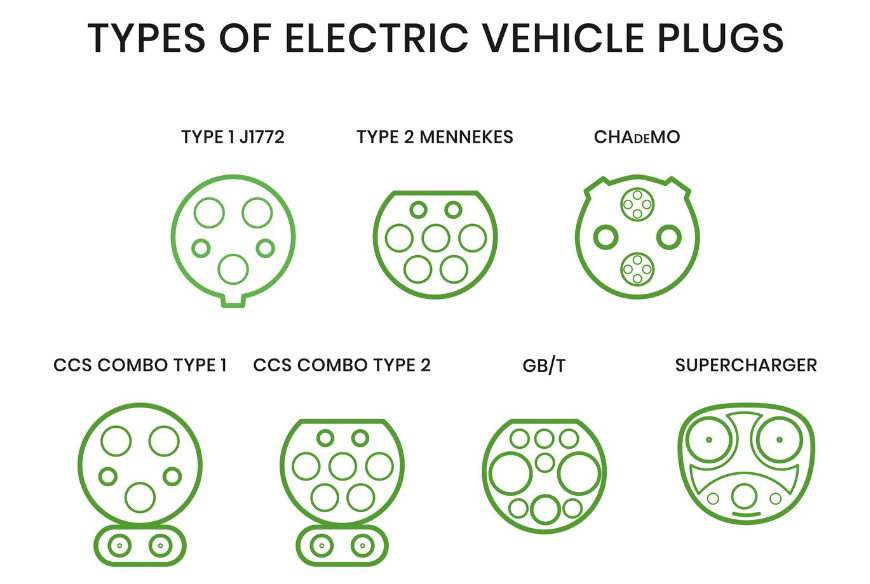

CCS 1 is the DC fast charging standard for North America. It can deliver up to 500 amps and 1000 volts DC, providing a maximum power output of 360 kW. The Combined Charging System utilizes the same communication protocol as the SAE J1772 Type 1 connector. It enables vehicle manufacturers to have one AC and DC charging port rather than two separate ports.

Model	CCS 1 socket
Rated current	DC+/DC-: 80A, 125A, 150A, 200A, 250A, 300A, 350A; L1/L2/L3/N: 16A, 32A, 40A, 50A, 80A; PP/CP: 2A
Wire Diameter	80A/16mm²; 125A/35mm²; 150A/50mm²; 200A/70mm²; 250A/95mm²; 300A/95mm²; 350A/120mm²
Rated voltage	DC+/DC-: 1000V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC
Withstand voltage	3000V AC / 1min. (DC + DC- PE)
Insulation resistance	≥ 100mΩ 1000V DC (DC + / DC- / PE)
Electronic locks	12V / 24V optional
Mechanical life	10,000 times
Ambient temperature	-40℃ ~ 50℃
Degree of Protection	IP55 (When not mated); IP44 (After mated)
Main Material
Shell / Insulation	PA
Sealing part	Silicone Rubber
Contact part	Copper alloy

Introduction & Core Features

🔌

Alternating Current

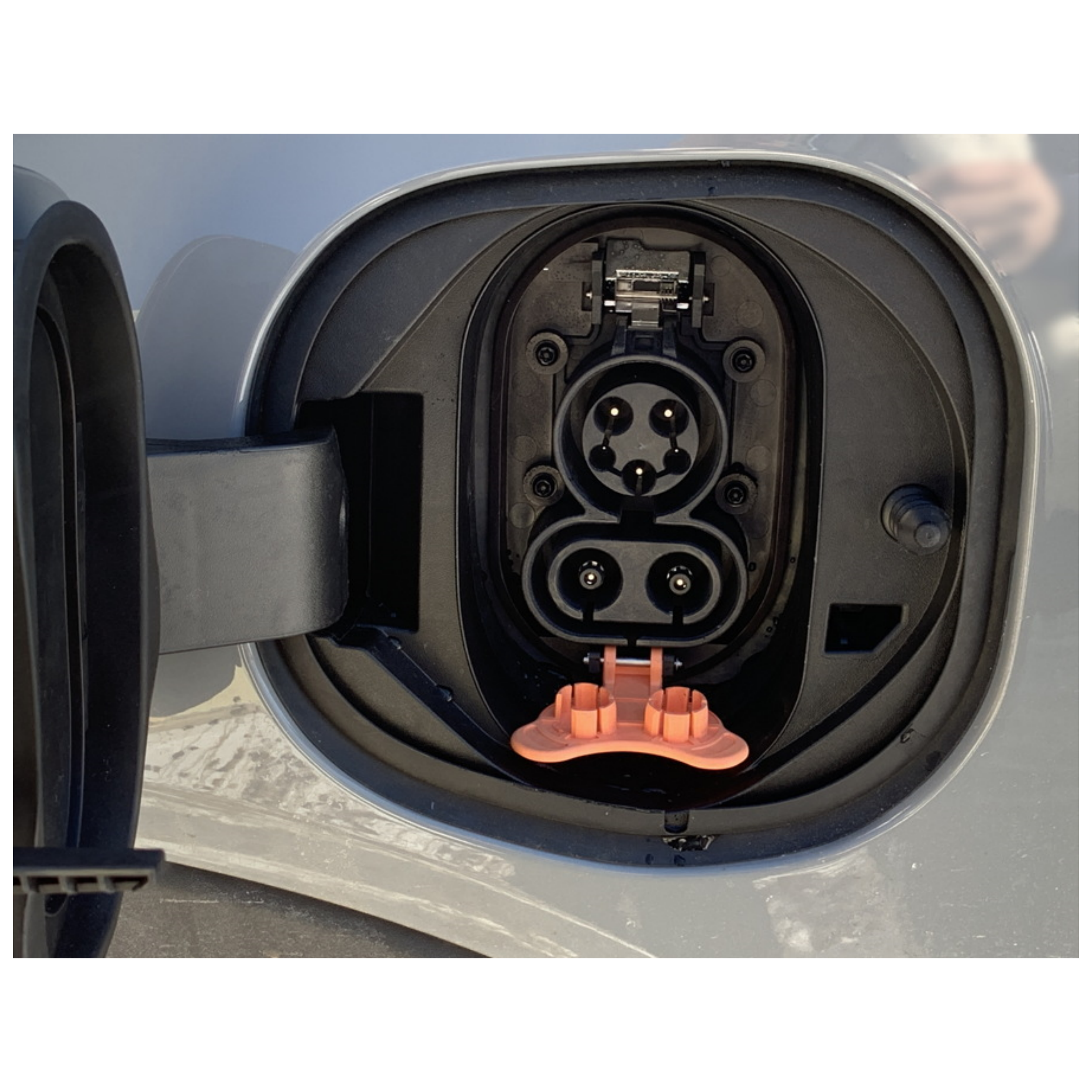

The Combo CCS1 charging socket combines alternating current (AC) Type 1 charging and direct current (DC) CCS fast charge in one inlet.

🛡️

Safe Charging

Designed with safety insulation on pinheads to prevent accidental direct contact, protecting users from potential electric shock.

💎

Investment Value

Built with robust construction to ensure longevity and reliability, making it an excellent long-term investment for residential and commercial use.

📊

Market Compatibility

Optimized for Type 1 connectors, ensuring seamless compatibility with the growing infrastructure across major markets.

Product Technical Advantages

Comply with IEC 62196.3-2022 standards
Rated voltage: 1000V DC; High power support
Rated current: DC 80A-350A optional; AC up to 80A 1-phase
Integrated 12V/24V electronic lock options for secure charging sessions
Meets TUV, CE, and UL certification requirements
Anti-straight plug dust cover for environmental protection
Engineered for 10,000+ plugging cycles with stable temperature rise performance
Optimized design for lower cost, faster delivery, and superior quality

Frequently Asked Questions (FAQ)

Q1: What is the primary standard for the CCS Type 1 socket?

A1: CCS Type 1 is the standard for DC fast charging primarily used in North America, combining AC Type 1 (J1772) and DC fast charging pins in a single inlet.

Q2: What is the maximum power output this socket can handle?

A2: It can support a maximum power output of up to 360 kW, with a maximum current of 500A (this specific model range covers 80A to 350A) and 1000V DC.

Q3: Is the socket protected against environmental factors?

A3: Yes, the socket features an IP55 protection rating when not mated and IP44 when mated, along with an anti-dust cover.

Q4: Does the CCS1 inlet support both AC and DC charging?

A4: Yes, the Combo CCS1 design allows for both AC Level 2 charging and DC Fast Charging through a single vehicle port.

Q5: How durable is the mechanical structure of the socket?

A5: The socket is designed for high durability, withstanding over 10,000 cycles of plugging and unplugging while maintaining stable temperature performance.

Q6: What certifications do these sockets meet?

A6: These sockets are designed to meet major international standards including IEC 62196.3-2022, as well as TUV, CE, and UL certification requirements.
