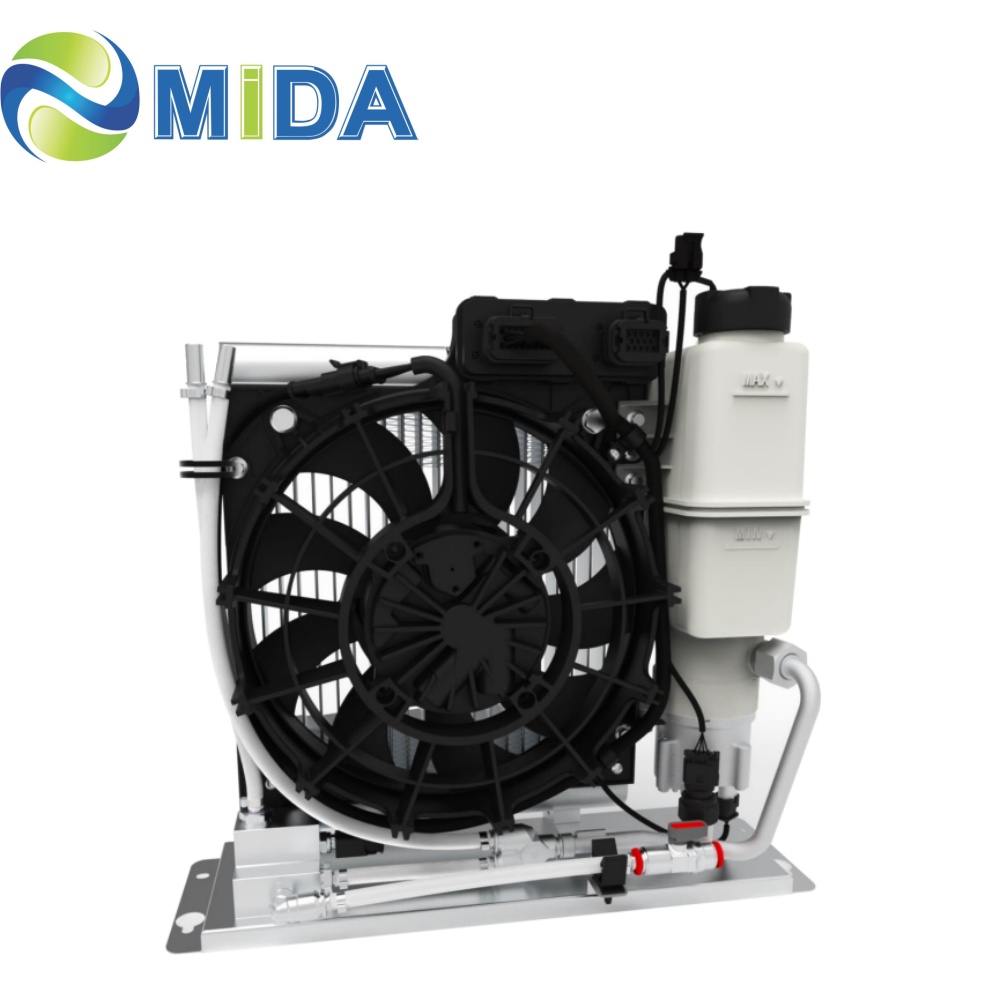

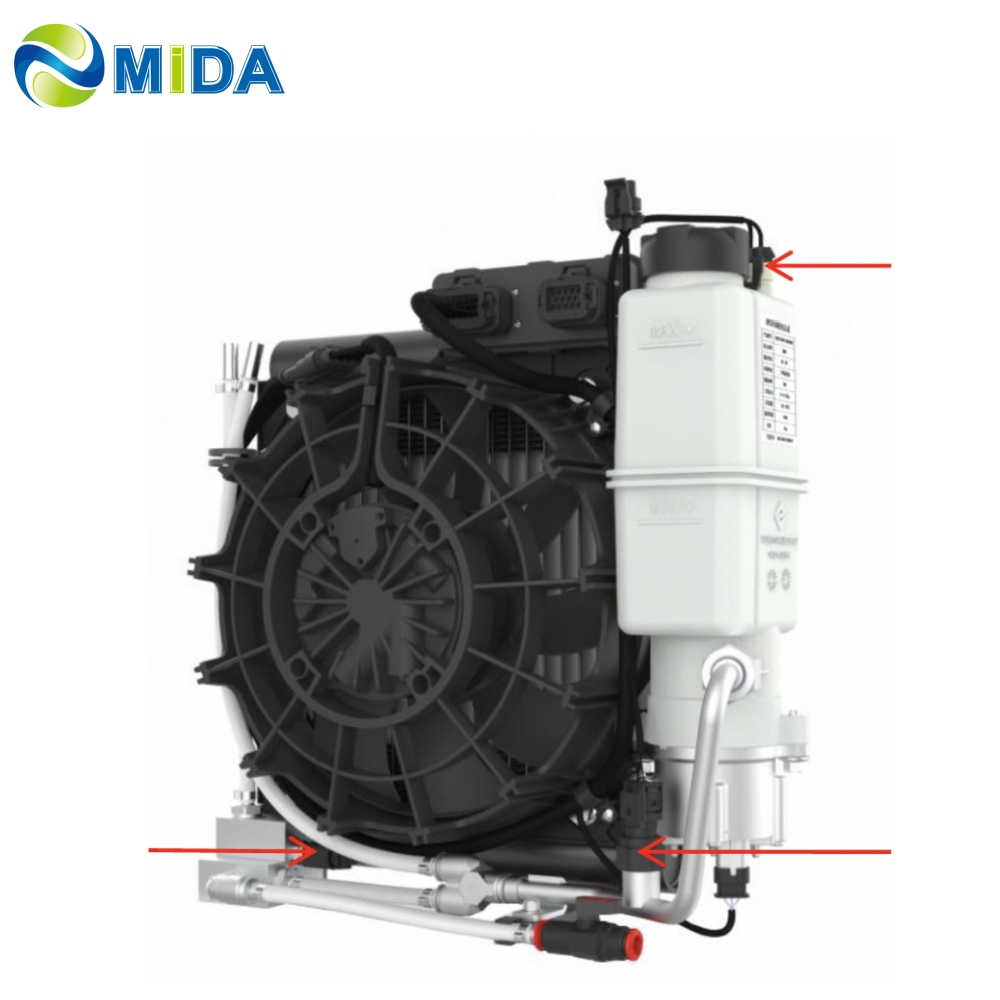

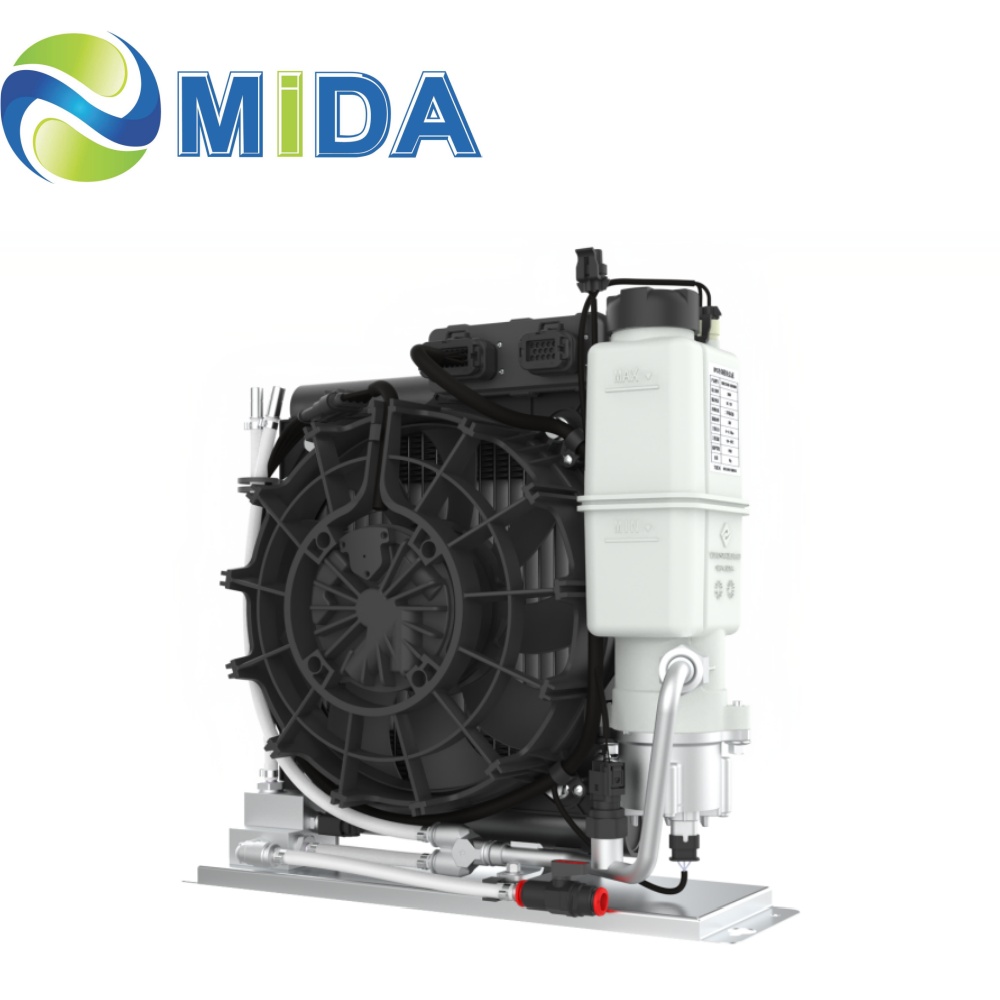

The EV-HPC-PCU-01 Cooling Unit HPC cooling module (TD8125010-XC01001) is used for intelligent high-power charging (HPC) technology, the radiating power is 3KW, the charging current can reach 500-800A (ambient temperature 50℃), and ensure the safe and stable operation of the high-power charging gun line. The core technology of the product is to provide coolant with appropriate temperature and flow rate to the high-power charging gun line under all working conditions to ensure that the temperature rise of the high-power charging gun line relative to the ambient temperature does not exceed 50K (ΔTmax = 50K) during the charging process.
| Model | EV-HPC-PCU-01 Cooling Unit Liquid Cooling System |
| Radiating power | 3000W @ 4L/min, 700m³/h |
| Rated Current | 500A ~ 800A |
| Rated Voltage | 12V/DC |
| Noise | ≤ 60dB(A) |
| Maximum Pressure | 0.7MPa |
| Flow medium | 4L/min @ 450Kpa |
| Communication Mode | MODBUS Based 485 |
| Ambient temperature | -30℃ ~ 50℃ |
| Degree of Protection | IP68 |
| Main material | |
| Lifetime | 25000h |

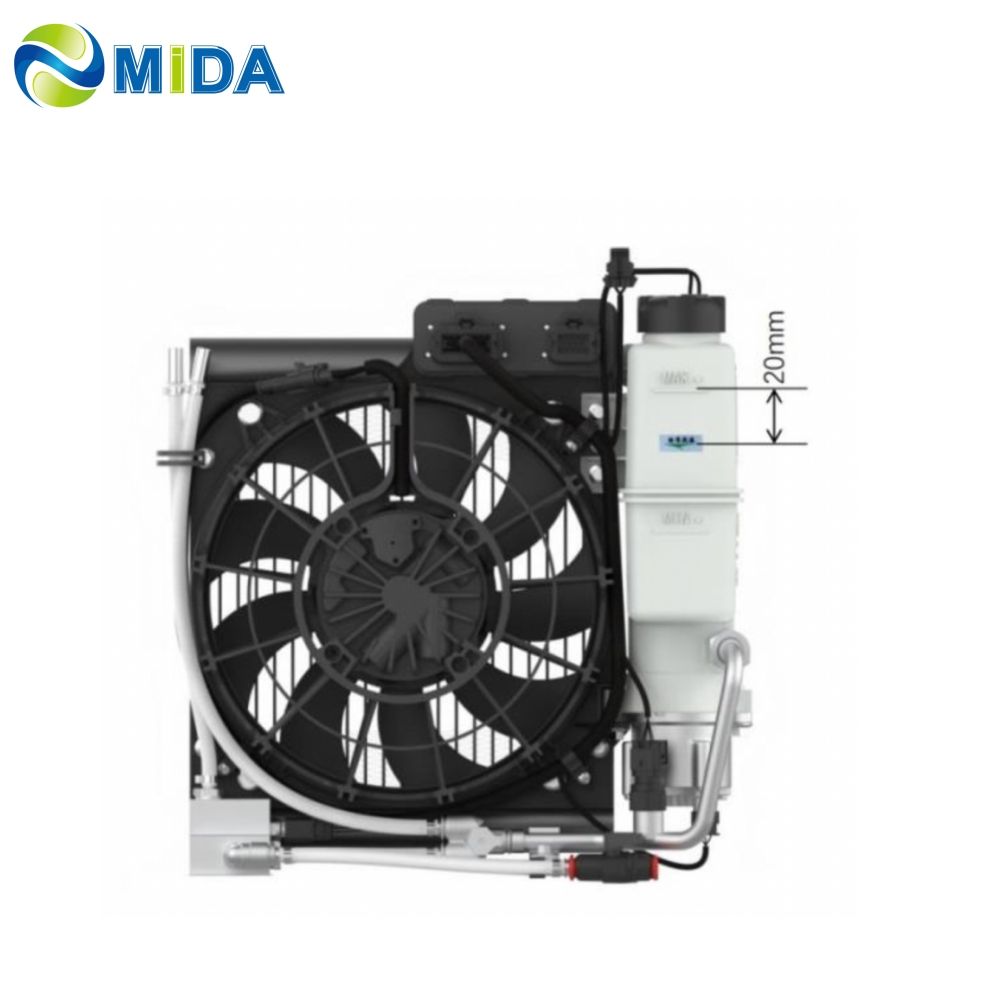

| Volume of oil can | 1.5L |
| Cooling Medium | Dimethyl silicone oil |

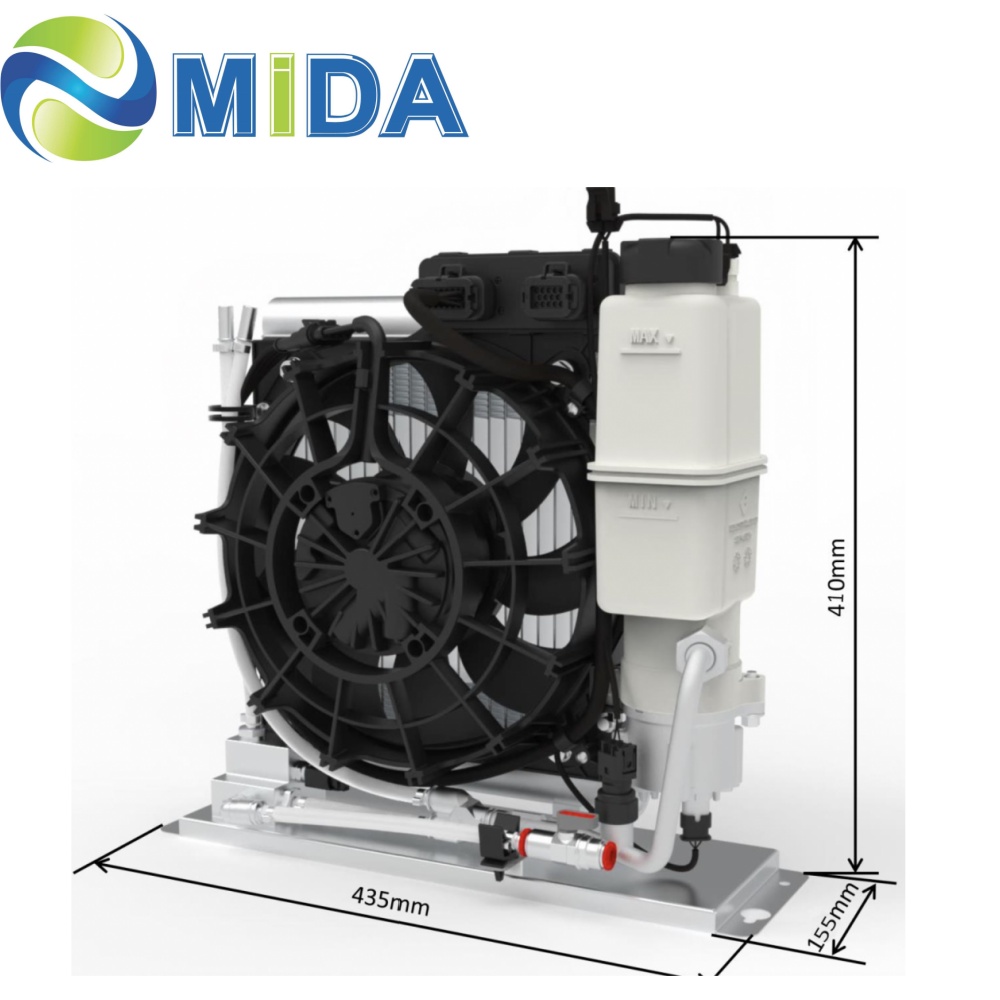

| Dimensions | 435 × 155 × 410mm |
A1: It is designed for intelligent high-power charging (HPC) technology. It provides coolant at the proper temperature and flow rate to high-power charging gun lines, ensuring safe and stable operation under various working conditions.
A2: The system supports a rated charging current of 500A to 800A at an ambient temperature of 50℃.
A3: The cooling system utilizes dimethyl silicone oil as its cooling medium, with a oil can volume of 1.5L.
A4: The system has a designed lifetime of 25,000 hours and features an IP68 protection rating to guard against environmental entry.
A5: The system communicates via MODBUS Based 485 and maintains low-noise operation with noise levels less than or equal to 60dB(A).
A6: The core technology ensures that the temperature rise of the high-power charging gun line relative to the ambient temperature does not exceed 50K (ΔTmax = 50K).
