1. Versatile Charging: 500A 600A HPC CCS2 Plug enables convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles.
2. Advanced Durability: Uses proprietary silver-plated contacts for long-life durability. Supports AC & DC charging standards of Europe, Asia, Australia, and global markets.
3. Cooling Options: Available in Air Cooling and Liquid Cooling configurations to handle extreme currents up to 500A/600A.
4. Quick-Change System: Liquid Cooling CCS Combo 2 Plug features terminal quick-change technology for efficient maintenance of high-power EV charging connectors.
| Features |
• Meet 62196-3 IEC 2011 SHEET 3-Im standard • Concise appearance, support back installation • Back Protection class IP55 • Max DC charging power: 400kW/500kW • AC Max charging power: 45.36kW |
| Mechanical Properties |
• Mechanical life: no-load plug in/pull out > 10000 times • Impact resistance: 1m drop and 2t vehicle run over pressure |
| Electrical Performance |
• DC input: 400A/500A/600A 1000V DC MAX • AC input: 16A 32A 63A 240/415V AC MAX • Insulation resistance: > 2000MΩ (DC1000V) • Terminal temperature rise: < 50K • Withstand Voltage: 3200V • Contact resistance: 0.5mΩ Max |
| Applied Materials |
• Case Material: Thermoplastic, flame retardant UL94 V-0 • Pin: Copper alloy, silver plating + thermoplastic on top |
| Environment | Operating temperature: -30°C to +50°C |
The 200A 250A 300A CCS2 Gun is an EV connector complying with the IEC62196 standard. Compatible with both AC and DC charging using separate dedicated pins for each mode.
This technology ensures the resistance of the EV connection tends to zero during charging, significantly reducing heat generation during high-current DC sessions.
With a 1,000-volt DC maximum rating, these connectors are ideal for ultra-fast charging. Safety features include short circuit protection, ground fault detection, and real-time temperature monitoring to protect against overvoltage and overcurrent.
Supports simple logo customization as well as full function and appearance design. Professional sales and technical personnel provide docking for brand agency requirements.

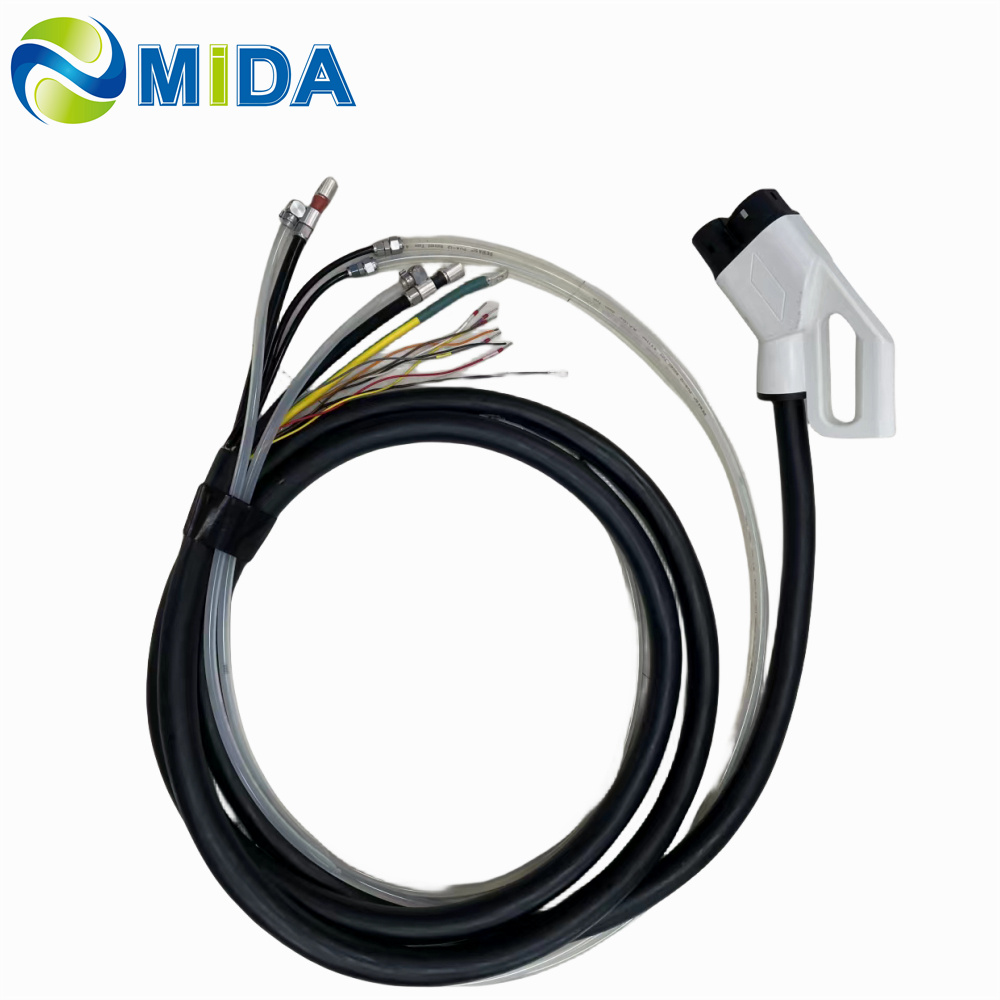

The liquid-cooled 500A CCS2 charging cable utilizes a dedicated circulation channel. It is a 1000V DC 500A system suitable for high-power electric vehicle infrastructure.
Step 1: Validation - Check if the charging cable and the vehicle's port comply with the 500A CCS2 standard and are free of debris.
Step 2: Connect Cooling - Ensure the liquid-cooled cable is properly connected to the charging station's cooling device (pump). Verify the fluid connector is sealed to prevent leaks.
Step 3: Locate Port - Find the CCS2 combo port on your vehicle. The DC interface consists of the two large pins at the bottom.
Step 4: Insertion - Remove the protective cover and firmly insert the connector until fully engaged.
