| Electrical Parameter | 32A Max / 16A 32A Max One phase input: nominal voltage 1×230VAC 50-60 Hz 7.2 kW at 1x230VAC | 11 kW / 22KW / 44kW at 3x 400 VAC |
| Input Cord | Hard wired by licensed electrician |
| Output Cable & Connector | 16.4FT/5.0 m cable (26.2FT/8.0m optional) IEC62196-2 standard compliance |
| Smart Grid Connectivity | Built-in Wi-Fi (Optional) (802.11 b/g/n/2.4GHz) / Bluetooth Connectivity |
| Firmware | Over-the-air (OTA) upgradeable firmware |
| User Interface & Control | Dynamic LED lights show charging status (standby, charging, fault, network) 4.3" x 7.0" LCD Screen |
| Environmental Parameter | Protection Class IP65: Weatherproof, dust-tight IK08: Resistant polycarbonate case Operating Temperature: -22°F to 122°F (-30°C to 50°C) |
| Dimension & Installation | Main enclosure: 9.7in x 12.8in x 3.8in (300mm x 160mm x 120mm) Quick-release wall mounting bracket included |
| Codes & Standards | IEC 61851-1 / IEC 61851-21-2 / IEC 62196-2 compliance, OCPP 1.6 |
| Certification | FCC ETL CE compliance |
| Energy Management | Home power balancing (Optional) |
| Optional Modules | RFID, 4G Module, Socket type available |
| Warranty | 2 years limited product warranty |
Perfect for homeowners with a single electric vehicle seeking a reliable, high-power charging solution for home use with a compact design.
Ideal for offices or factories, providing employees with a convenient way to charge EVs during working hours.
Suitable for public parking lots or roadside installations, offering essential charging infrastructure for EV owners on the go.
Optimized for businesses operating EV fleets. With up to 44kW power, it ensures rapid turnaround to keep the fleet productive.

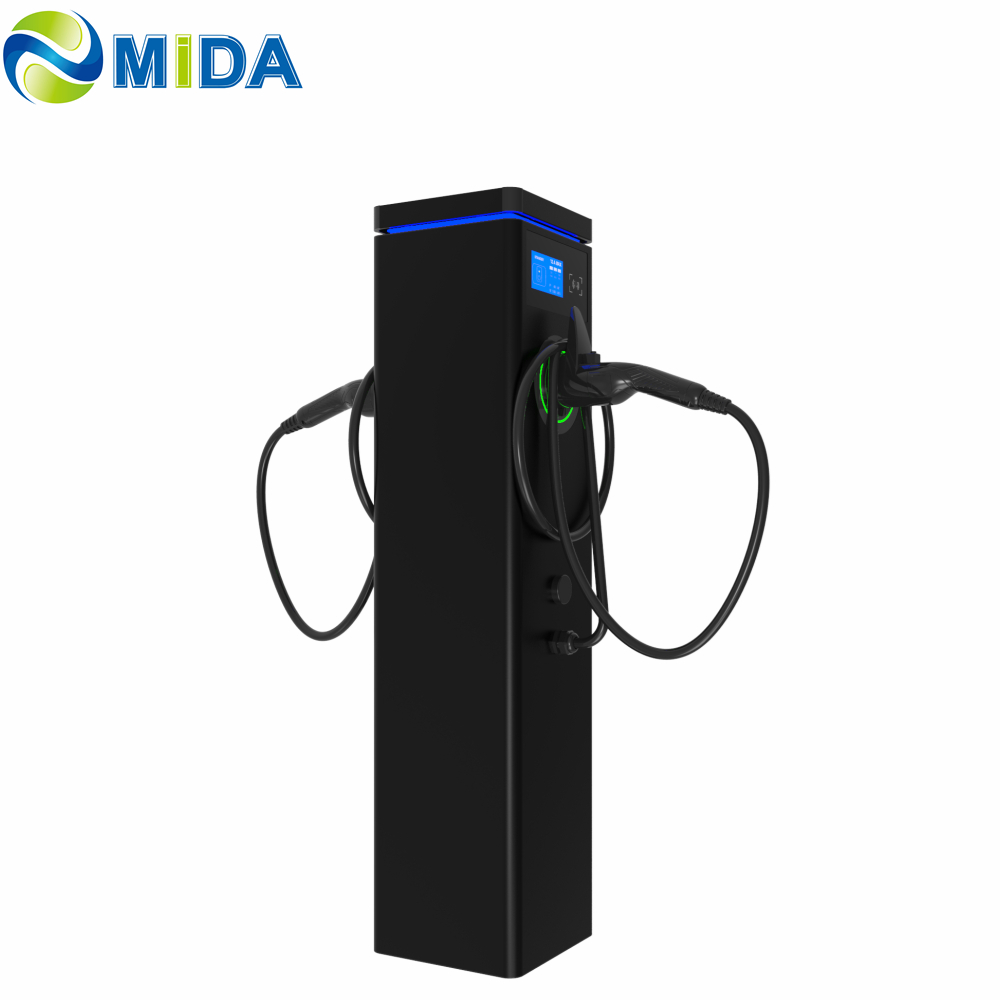

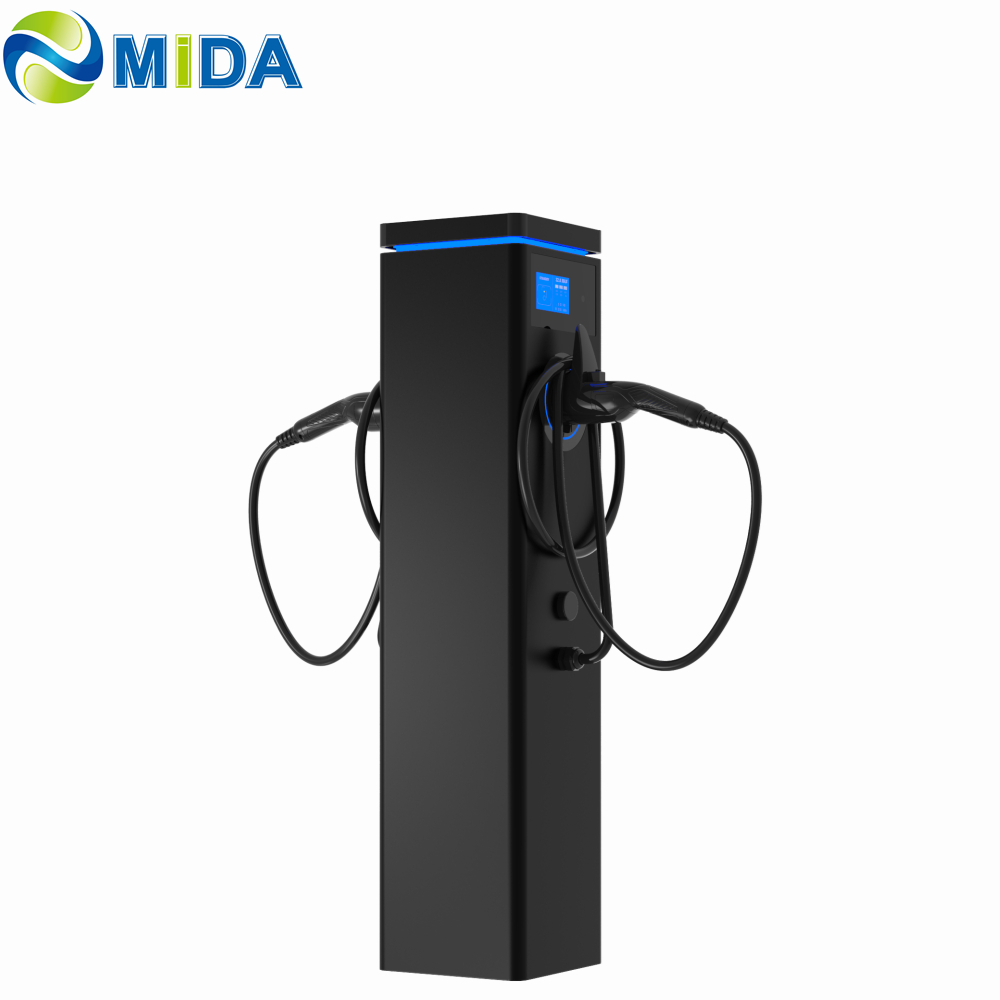

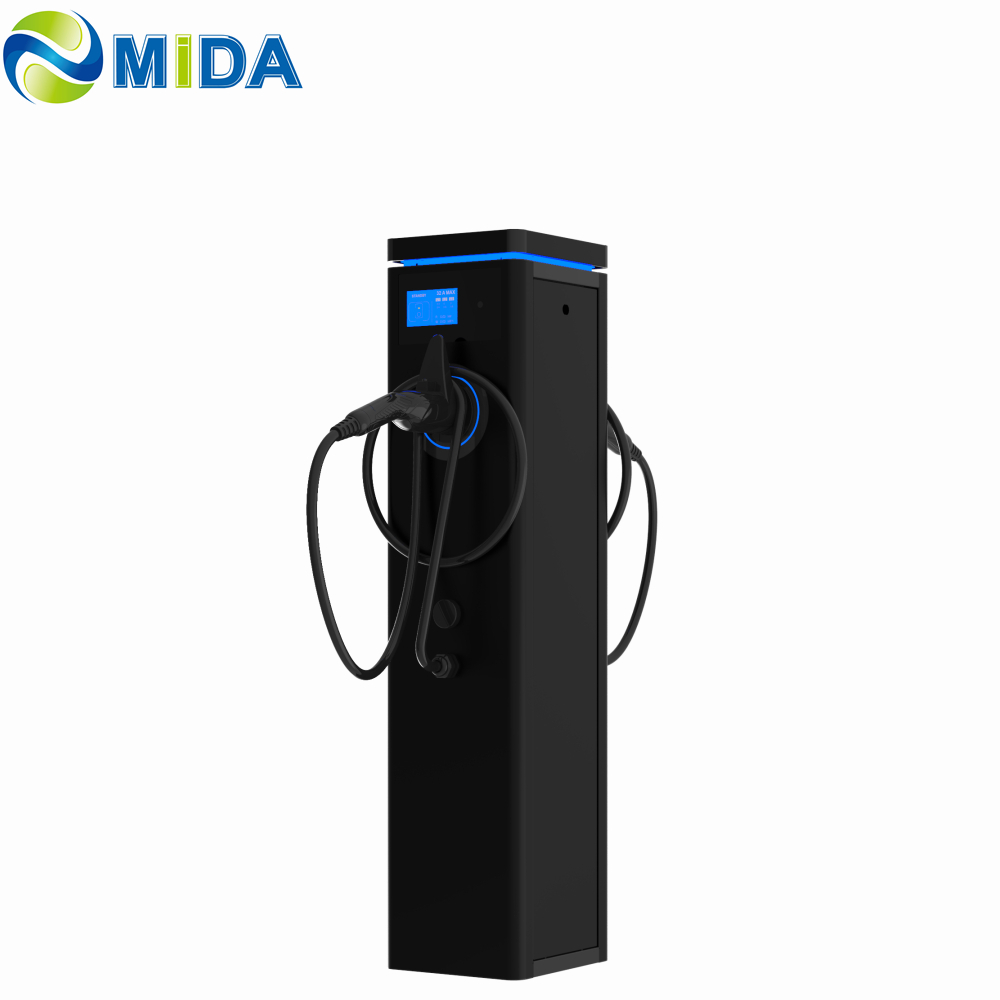

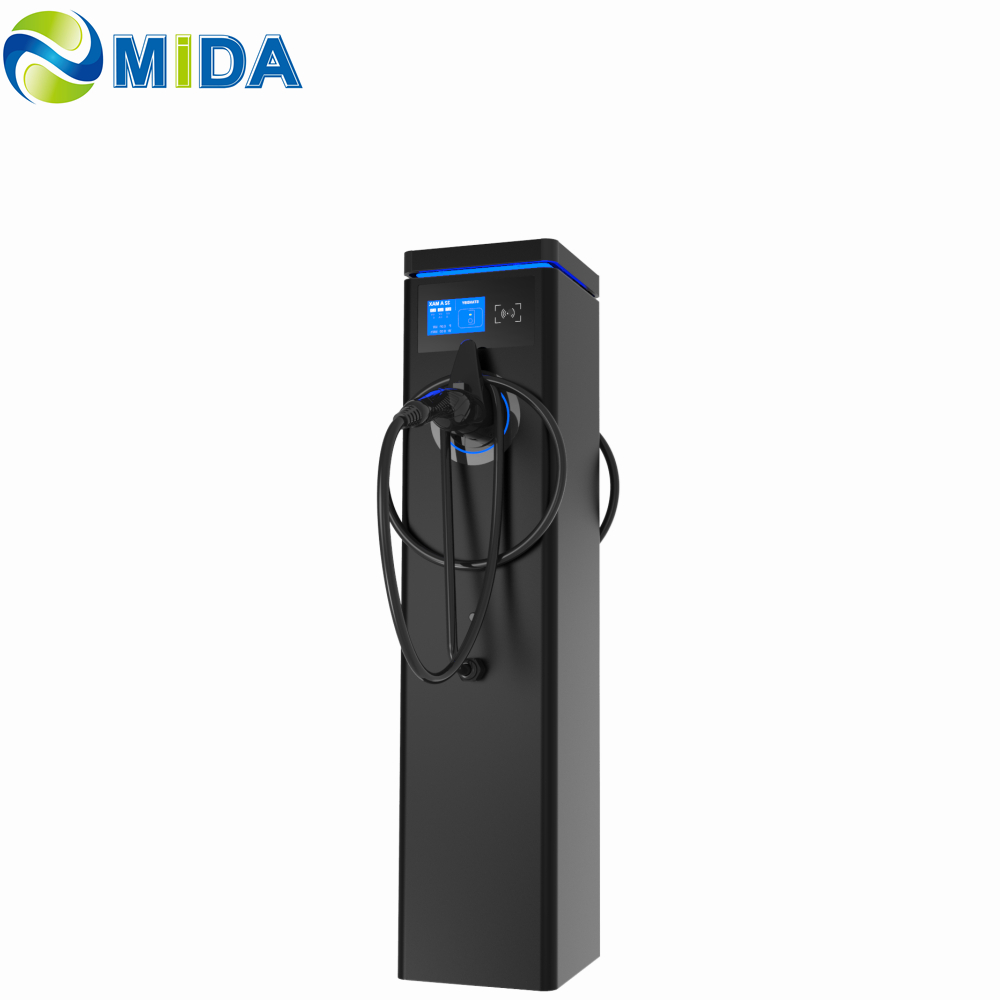

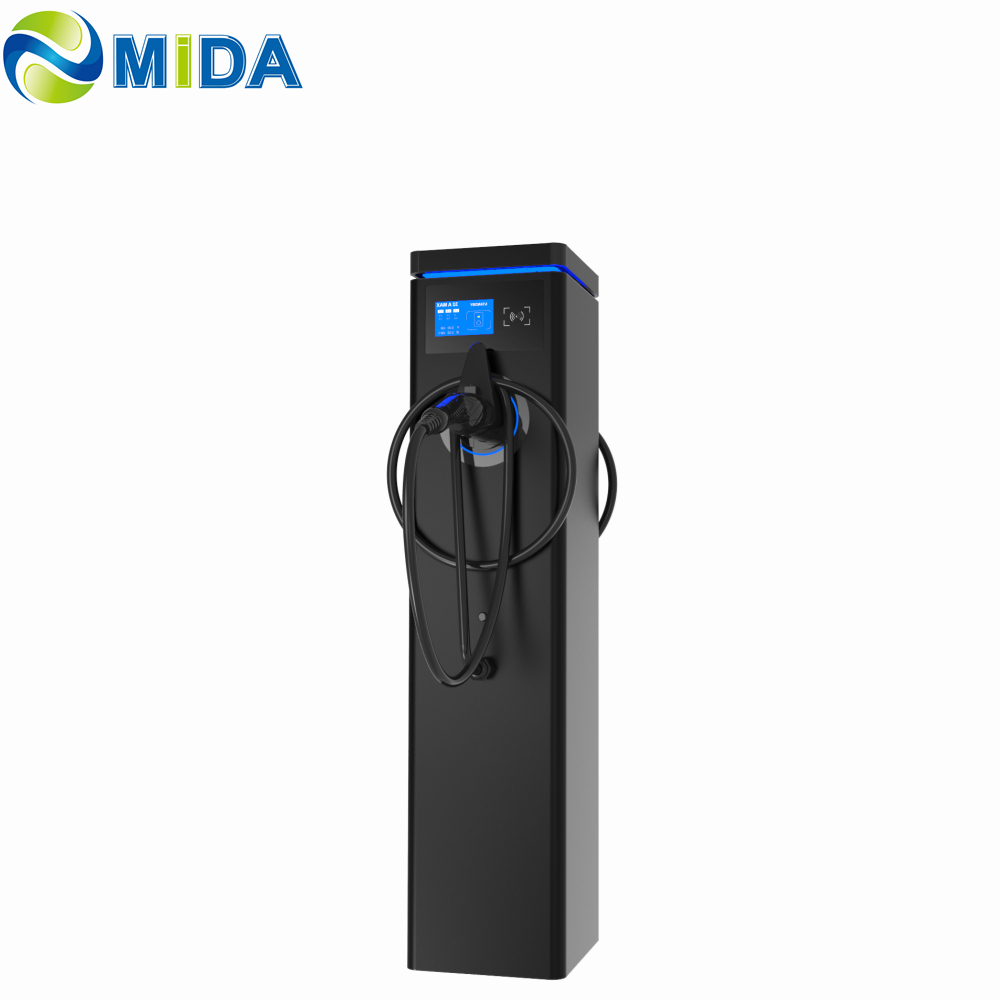

The AC type 2 cable 44kw EV charger station is a piece of artwork designed to improve the charging experience by breaking away from traditional appearances.
LED lights show charging status via color changes and adopt a breathing light effect to avoid direct glare at human eyes.
User-friendly design ensures straightforward installation, easy maintenance, and simple daily operation.
Equipped with Type 2 cables, this 44kw station is compatible with virtually every electric vehicle currently on the market.
