China 800A GBT Connector Oil Cooling Charging Cable for 800kw DC Fast Charger Station Manufacturers, Factories

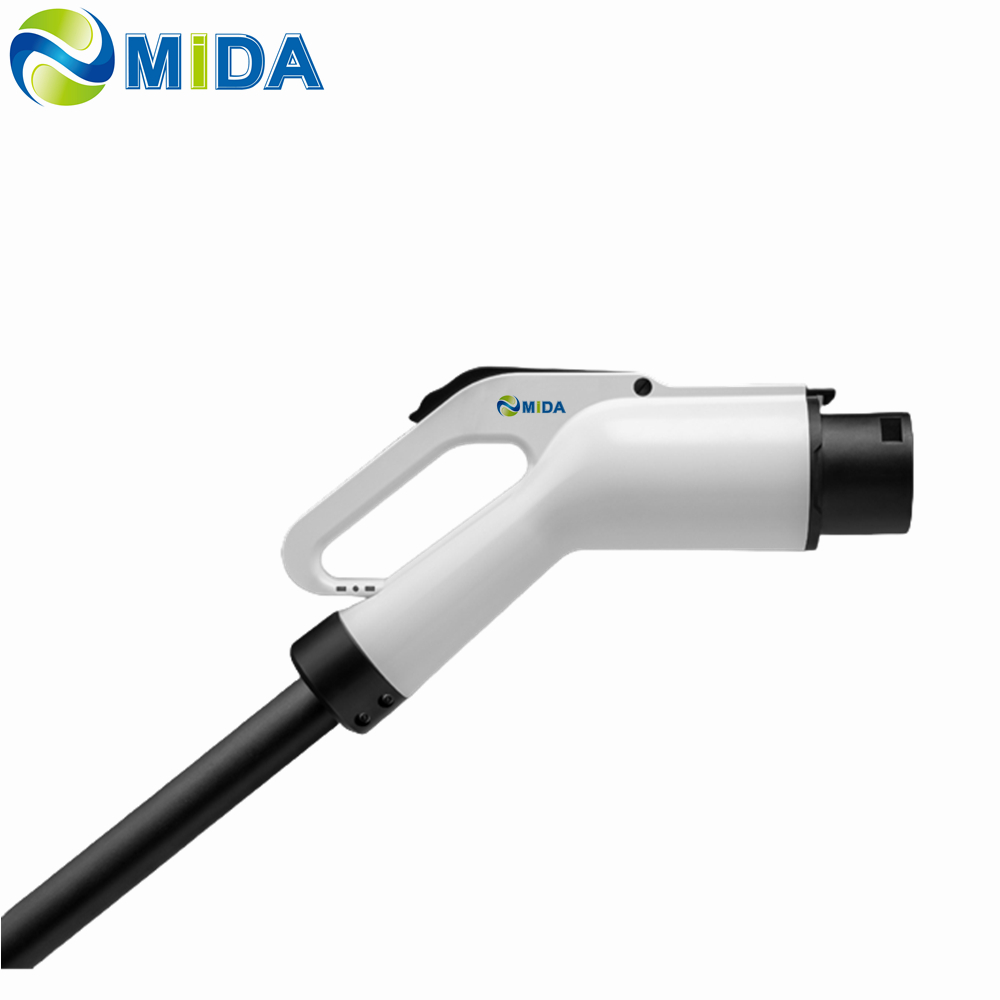

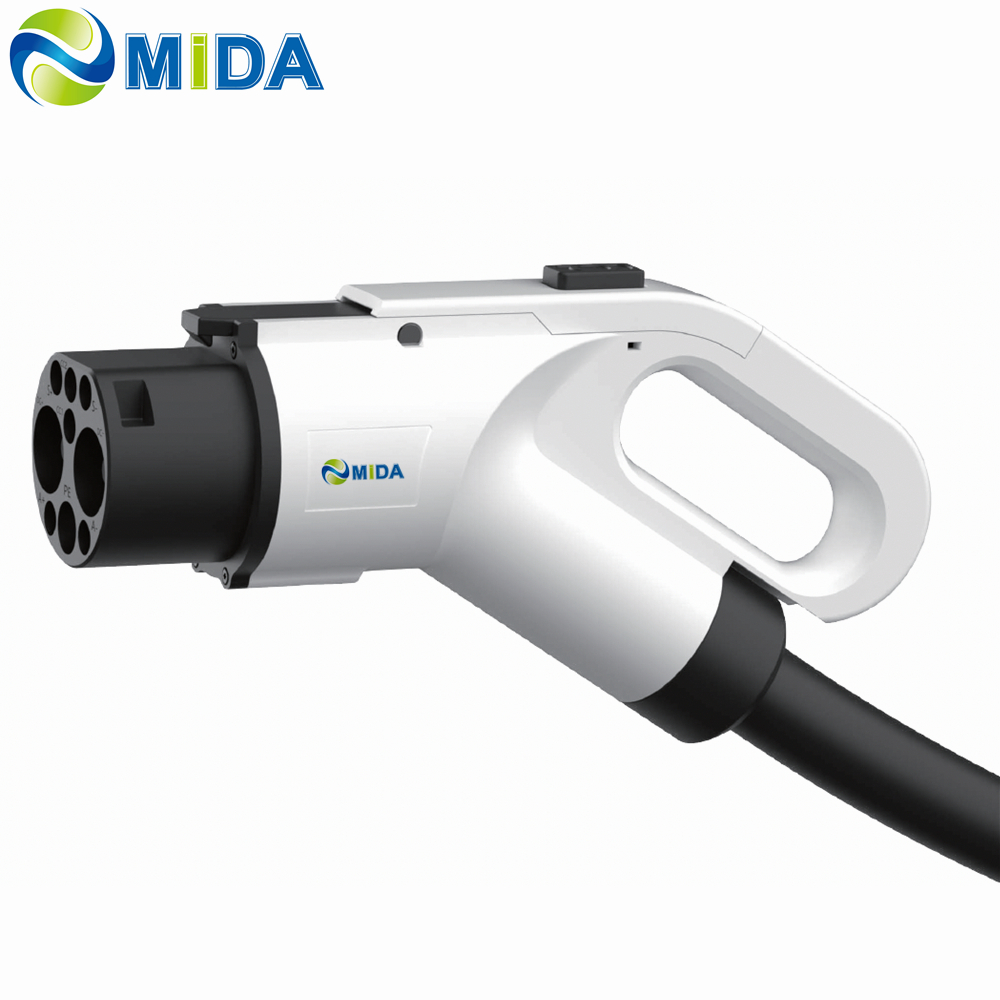

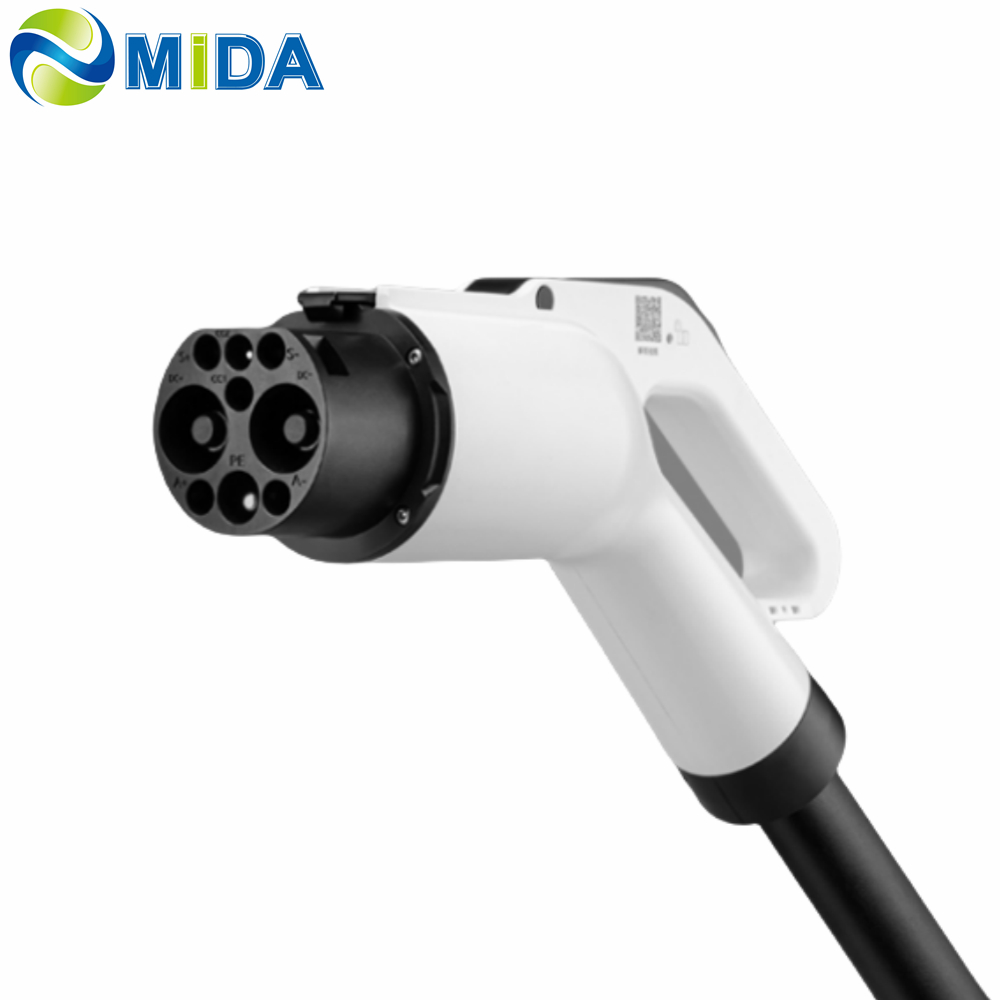

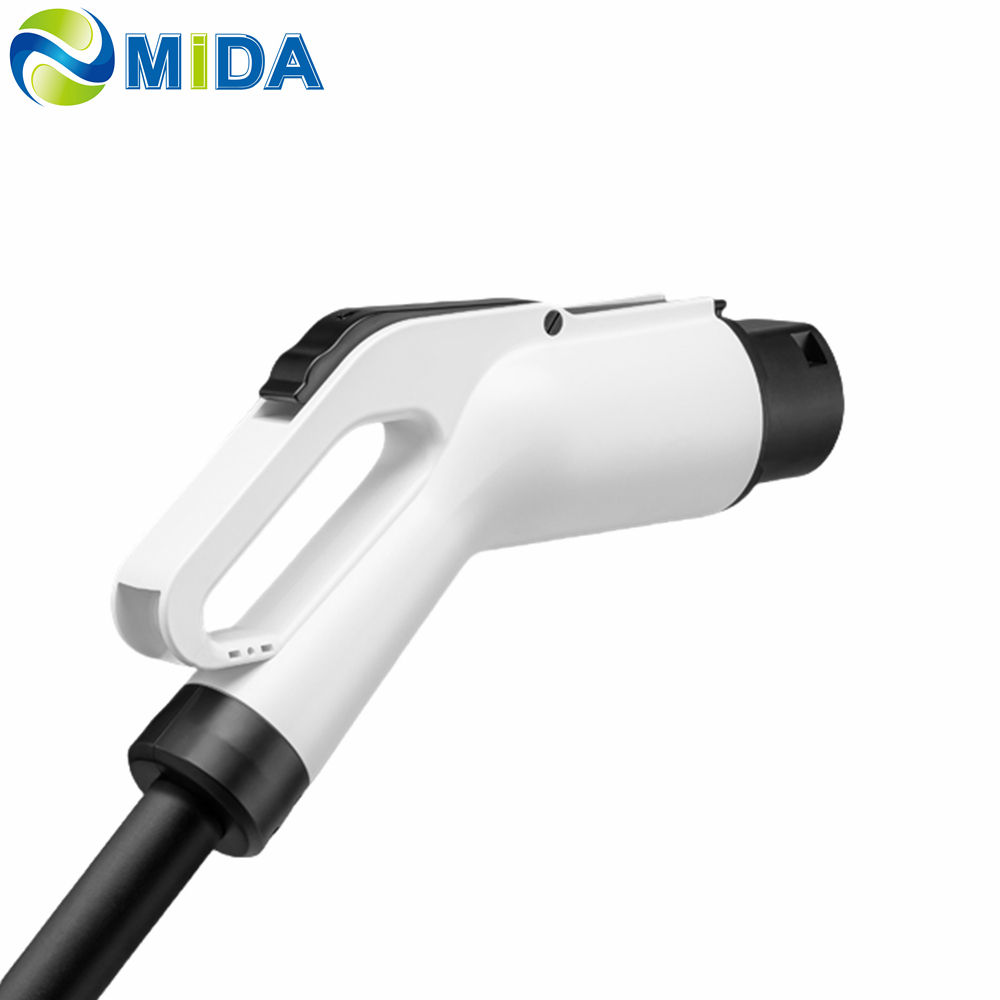

An 800A GBT Connector DC 1000V refers to a high-power DC charging connector that adheres to the GB/T standard, Oil Cooling HPC Charging Cable specifically designed for 800kw Liquid Cooled EV Charging Station in China.
The HPC 800A GB/T EV plug is specifically engineered for high-power DC fast charging applications, strictly complying with the GB/T 20234.3 standard.
Based on universal open standards, this 800A HPC GB/T plug supports direct-current charging up to a maximum of 800 kW. It offers high compatibility and durability, tested for over 10,000 charging cycles.
Safety is prioritized with two integrated PT1000 temperature sensors that monitor thermal changes at the power contacts (DC+ and DC-). Manufactured under IATF 16949 and ISO 9001 automotive standards, ensuring premium quality for 800A and 1000A configurations.
Product Features
1. Conveniently designed for rapid charging of Plug-in Hybrid Electric Vehicles (PHEV) and full Electric Vehicles (EV).
2. Features a sophisticated Liquid Cooling system for high-current applications, utilizing proprietary silver-plated contacts to ensure long-term durability and efficiency across global standards.
3. Broad portfolio includes 800A GB/T connectors, 125A-250A GB/T options, and 200A CCS2 plugs, including the 1000A Liquid Cooled GBT cable solution.
4. Quick-change terminal design facilitates high-power DC charging with integrated robust EV cabling.
Technical Specifications
Standard Features
Meet GB/T 2023.3-2015 standard
Concise appearance, support back installation
Back Protection class IP55
Max charging power: 800kW
Mechanical Properties
Mechanical life: no-load plug in/pull out > 10000 times
Impact resistance: 1m drop and 2t vehicle run-over pressure
Electrical Performance
DC input: 800A 1000V DC MAX
Insulation resistance: > 2000MΩ (DC1000V)
Terminal temperature rise: < 50K
Withstand Voltage: 3200V
Contact resistance: 0.5mΩ Max
Applied Materials
Case Material: Thermoplastic, flame retardant grade UL94 V-0
Pin: Copper alloy, silver + thermoplastic on the top
Environment
Operating temperature: -30°C ~ +50°C
High power 600A 800A 1000A GBT Gun DC Liquid Cooling charging connector complying with GB/T 20234.3-2023 1000V HPC 800KW GBT Plug Cable for Supercharger Fast Charging Stations.
Frequently Asked Questions
What is the maximum charging capacity of this connector?
The HPC 800A GB/T connector is designed for high-power DC fast charging with a maximum output of 800kW at 1000V.
How does the liquid cooling system work?
The connector utilizes an advanced liquid cooling design to manage heat during high-current delivery, allowing for sustained high-speed charging without overheating the cables or terminals.
Is the GB/T plug compatible with international standards?
Yes, it complies with GB/T 20234.3 standards and is designed to support AC & DC charging standards in Asia, Europe, Australia, and regions adopting global high-power standards.
What safety sensors are integrated into the plug?
The plug features two integrated PT1000 temperature sensors that monitor the heat levels at the DC+ and DC- terminals in real-time to ensure safe operation.
What is the durability rating for this charging gun?
The connector is built for longevity, with a mechanical life rating of over 10,000 no-load plug-in and pull-out cycles, and it can withstand a 2-ton vehicle run-over pressure.
What materials are used for the contact pins?
The pins are made from a high-grade copper alloy with silver plating to ensure maximum conductivity and minimize contact resistance.
