China Movable 7KW GB/T EVSE Portable GBT EV Charger Manufacturer, Manufacturers

1 / 5

China Movable 7KW GB/T EVSE Portable GBT EV Charger Manufacturer, Manufacturers

The 7KW portable charger produced by our company, with input voltage of 380V,rated output power of 7KW,it is supporting CCS and CHAdeMO,GBT only by replace the cable.

Send Inquiry

Product Description

Product Introduction

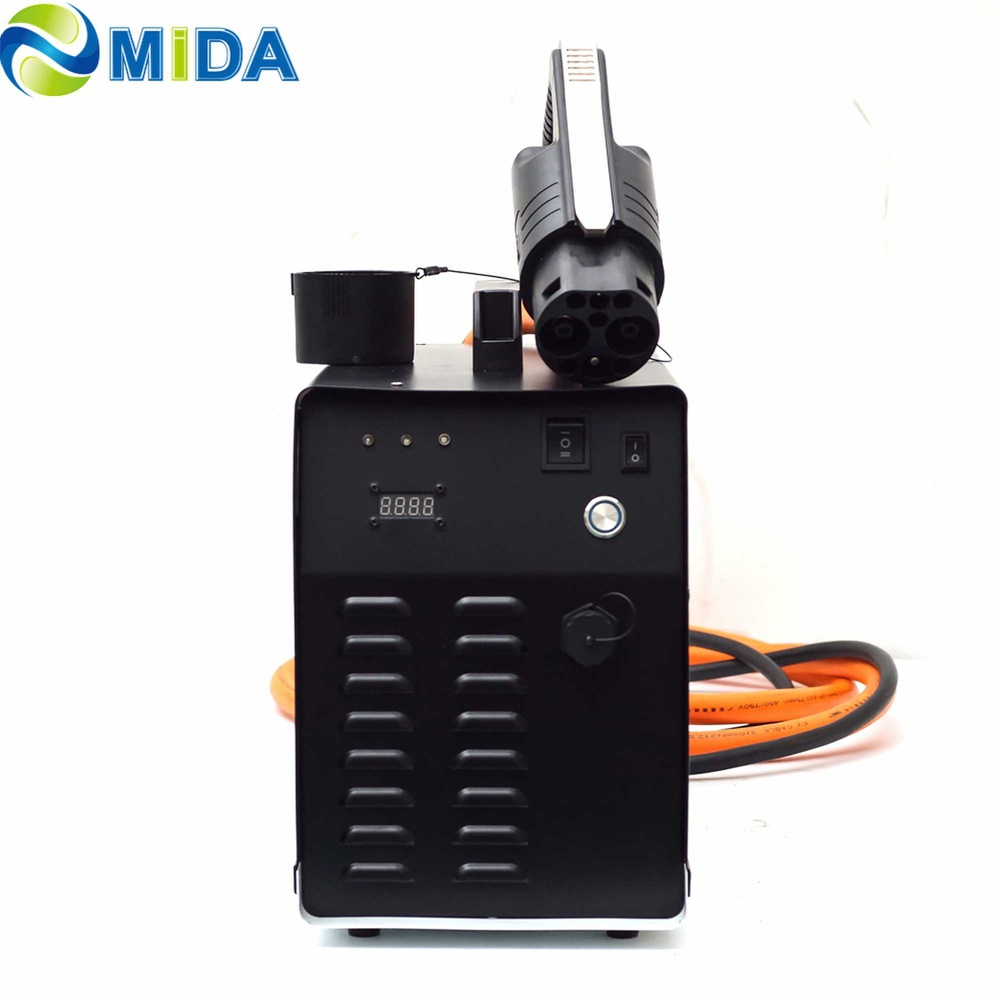

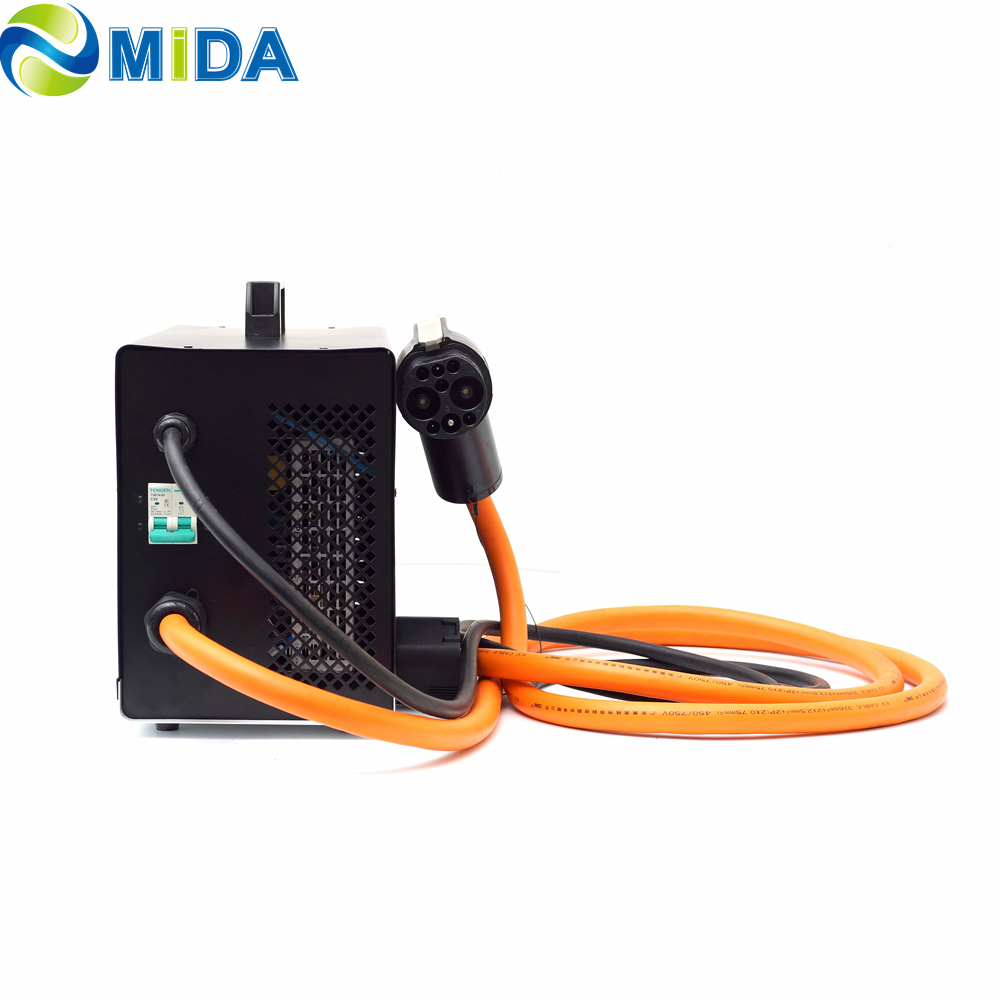

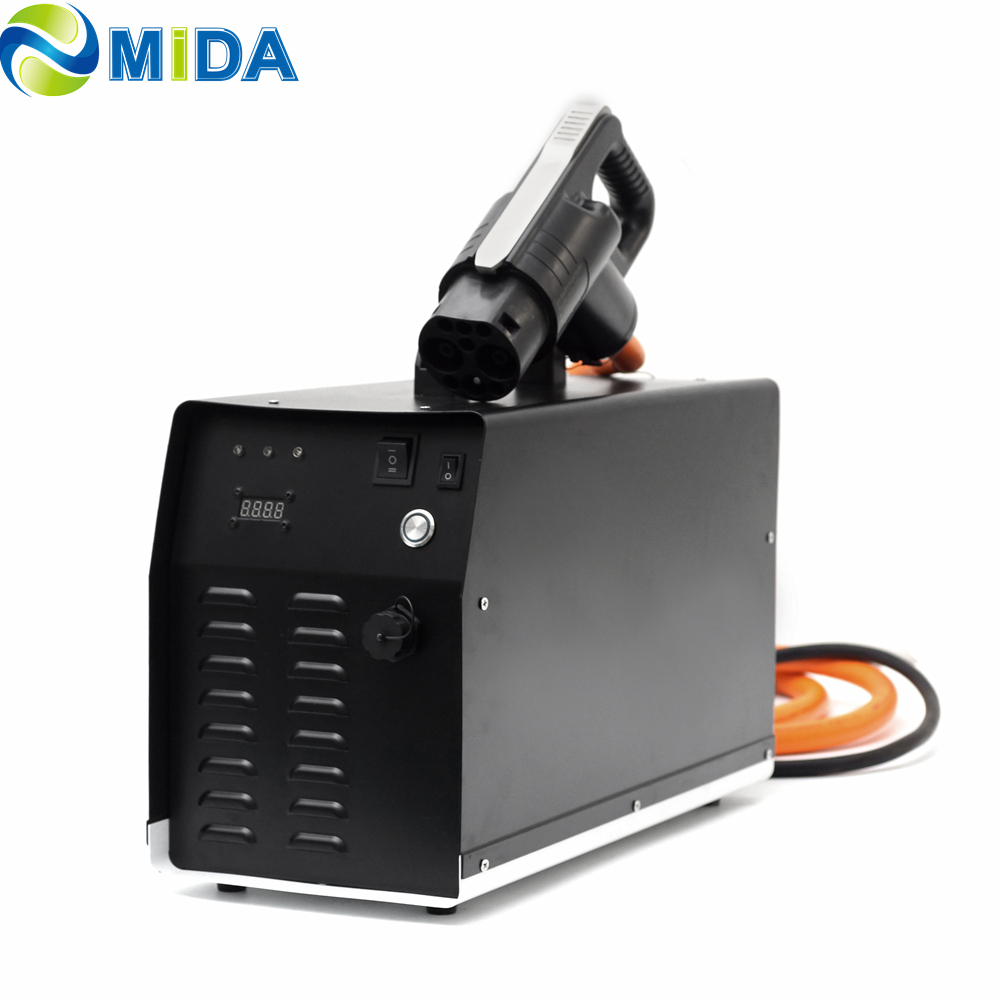

Portable quick charger supports CCS and CHAdeMO only by replace the cable. USB for firmware update and RJ45 port for internet connect(optional). Open door design, it is convenient to replace power module. This charger is perfect to install for charging electric vehicle at maximum speed as well as many EV cars take in road trips through rural areas with RV or industrial areas being the main power sources for ev travelers.

Product Features

✔ Small size and compact design, easy for portable

✔ Supporting CCS and CHAdeMO connector

✔ Certification: CE / IEC / ROHS

✔ Protection Degree: IP54

✔ Open door design for convenient power module replacement

Technical Specifications

AC Input	1. Input Rating: 380Vac ± 15%
	2. AC Input Connection: 3P+N+PE (Wye connection)
	3. Max. Input Current: 100A
	4. Efficiency: 95%
DC Output	1. Output Voltage Range: 50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T)
	2. Max. Output Power: 7KW
	3. Max. Output Current: 150A@400V, 120A@500V, 80A@750V
User Interface	1. TFT-LCD Touch Panel: 4.3' touch display
	2. Push Buttons: Emergency Stop
	3. Interface: USB, RJ45
Packing	1. Dimension: 690680300mm
Packing	2. Weight: 20KGS
Environment	1. Operating Temp: -20°C ~ +50°C (derating above +50°C)
	2. Humidity: 5% ~ 90% RH, non-condensing
	3. Altitude: 2000m
	4. IP Level: IP23
Regulation	1. Regulation: IEC61851-1
	2. Certification: CE, ROHS
	3. Charging protocol: CHAdeMO 2.0 / DIN 70121 / ISO15118 / IEC61851-23

Our Services

Warranty Protection Warranty time: 12 months.

Trade Assurance Secure deals guaranteed for money, quality, and service through established trade platforms.

Pre-Sales Consultation Professional advice on generator set choice, configurations, installation, and investment analysis.

Production Tracking Keep tracking the progress of production to stay informed on the manufacturing status.

Customized Solutions Support for customized design, samples, and packing according to client requirements.

After-Sales Support Free instructions for installation and troubleshooting; parts available within warranty.

Frequently Asked Questions

Which charging standards does this portable charger support?

The charger supports CCS and CHAdeMO connectors, which can be easily switched by replacing the cable.

How long is the warranty period for the charger?

We provide a comprehensive 12-month warranty including technical support and parts replacement.

Is the charger easy to maintain?

Yes, the open-door design makes it extremely convenient to access and replace the power module if necessary.

Can I update the charger's software?

Yes, the device features a USB port specifically designed for firmware updates to ensure compatibility with new EV models.

What safety certifications does this product hold?

The portable charger is fully certified under CE, IEC, and ROHS standards, ensuring high safety and quality.

Can the charger handle extreme temperatures?

The unit operates efficiently between -20°C and +50°C, with a power derating mechanism for temperatures above 50°C.
