1 / 4
| Electrical Parameter | 32A Max | 16A 32A Max |
| One phase input: nominal voltage 1×230VAC 50-60 Hz | ||
| 7.2 kW at 1x230VAC | 11 kW 22KW at 1x 400 VAC | |
| Input Cord | Hard wired by licensed electrician | |
| Output Cable & Connector | 16.4FT/5.0 m cable (26.2FT/8.0m optional) | |
| IEC62196-2 standard compliance | ||
| Smart Grid Connectivity | Built-in Wi-Fi (Optional)(802.11 b/g/n/2.4GHz) / Bluetooth Connectivity | |
| Firmware | Over-the-air (OTA) upgradeable firmware | |
| Environmental Parameter | Dynamic LED lights show charging status: standby, charging in progress, fault indicator, network connectivity | |
| 4.3" x 7.0" LCD Screen | ||
| Protection Class IP65: Weatherproof, dust-tight | ||
| IK08: Resistant polycarbonate case | ||
| Quick-release wall mounting bracket included | ||
| Operating Temperature: -22°F to 122°F (-30°C to 50°C) | ||

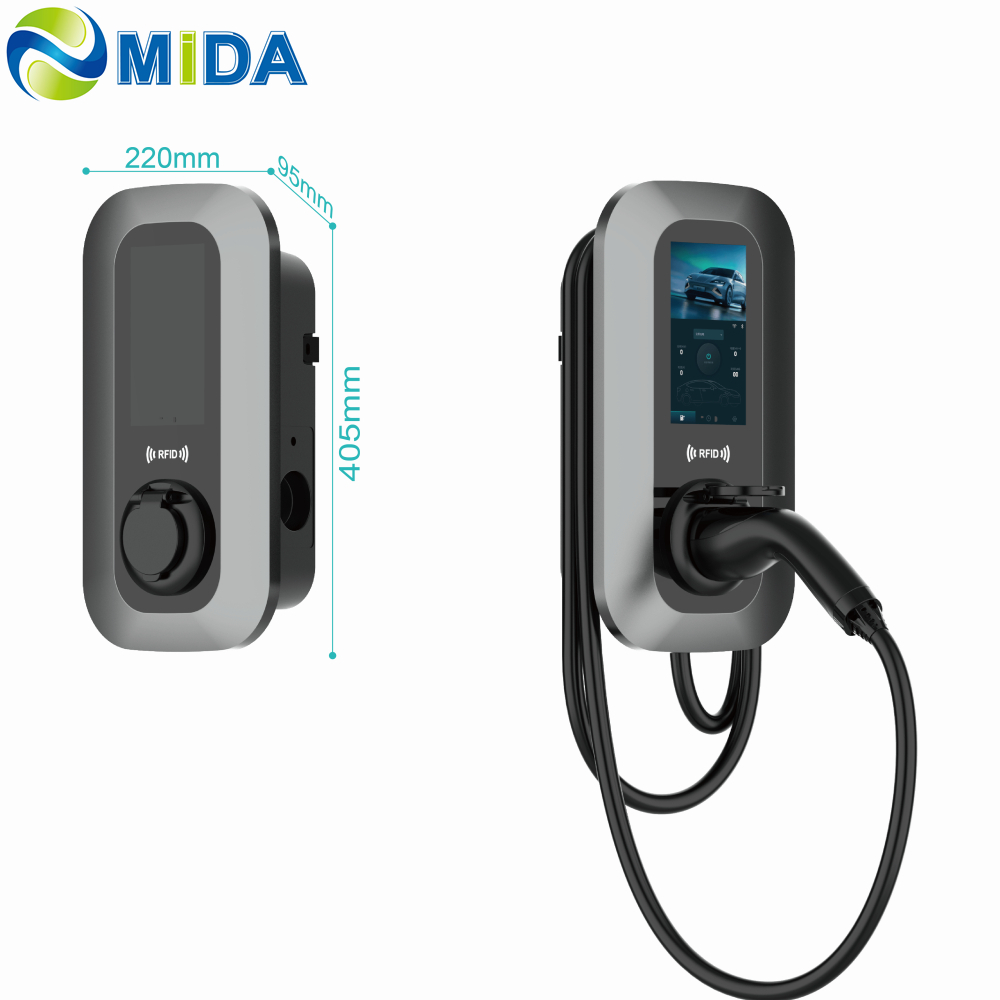

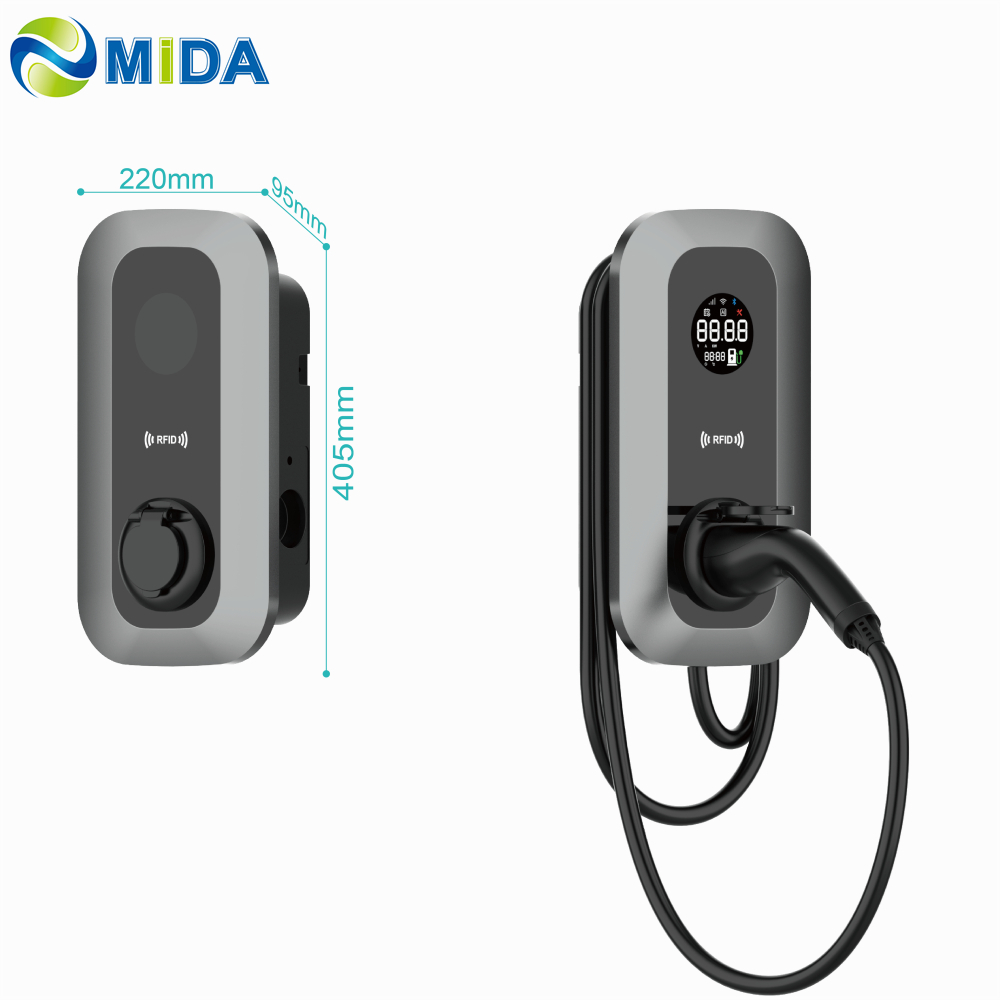

| Dimension | Main enclosure: 9.7in x 12.8in x 3.8in (300mm x 160mm x 120mm) | |
| Codes & Standards | IEC 61851-1 / IEC61851-21-2 / IEC62196-2 compliance, OCPP 1.6 | |
| Certification | FCC ETL CE compliance | |
| Energy Management | Home power balancing (Optional) | |
| RFID | Optional | |
| 4G Module | Optional | |
| Socket | Optional | |
| Warranty | 2 years limited product warranty | |
Perfect for homeowners with a single electric vehicle seeking a reliable and convenient way to charge at home. Compact design and high power make it an excellent choice.
Can be installed at offices or factories, providing employees with a convenient way to charge their electric vehicles while they work.
Suitable for public areas like roadsides or parking lots, offering electric vehicle owners a convenient charging option while on the go.
Ideal for businesses operating EV fleets. High charging power (7kW, 11kW, 22kW) ensures quick turnarounds to keep your fleet productive.
Overall, this single gun smart AC EV wall box charger is a versatile and reliable charging solution that can be used in various applications, making it an excellent investment for electric vehicle owners and businesses alike.

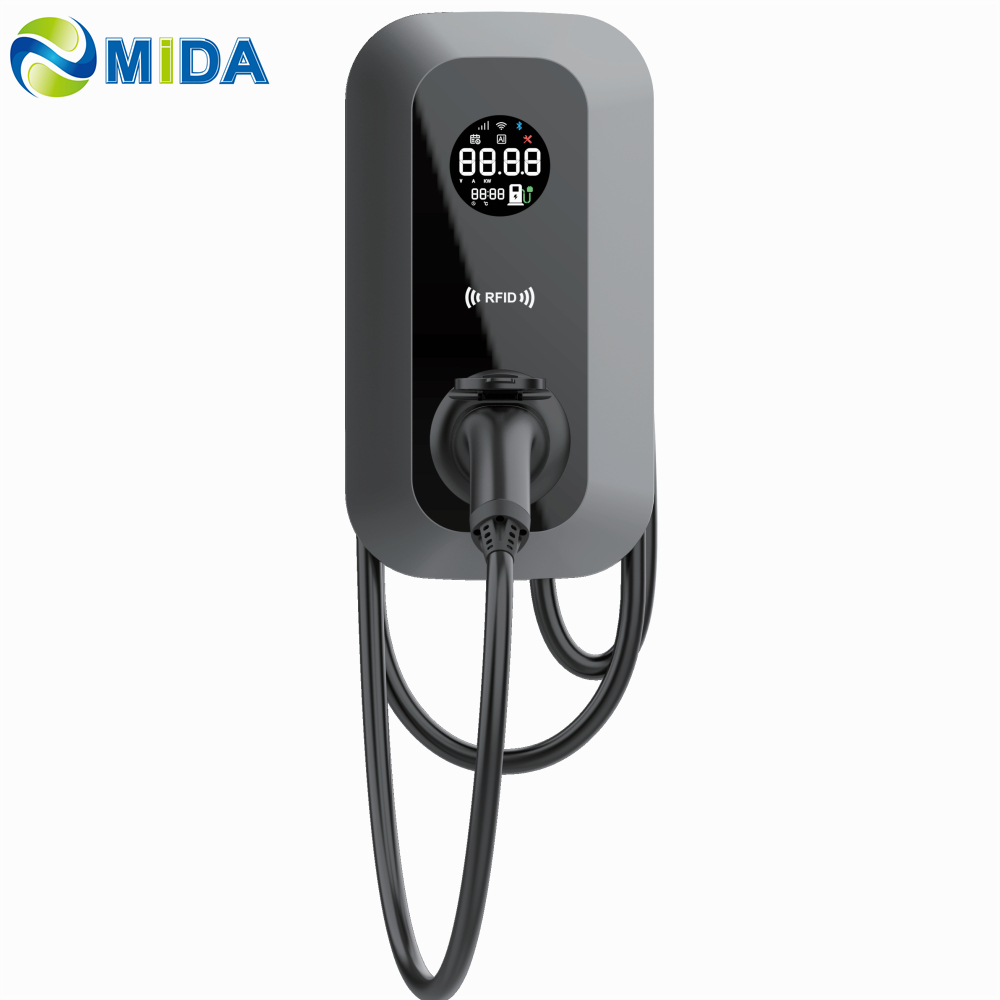

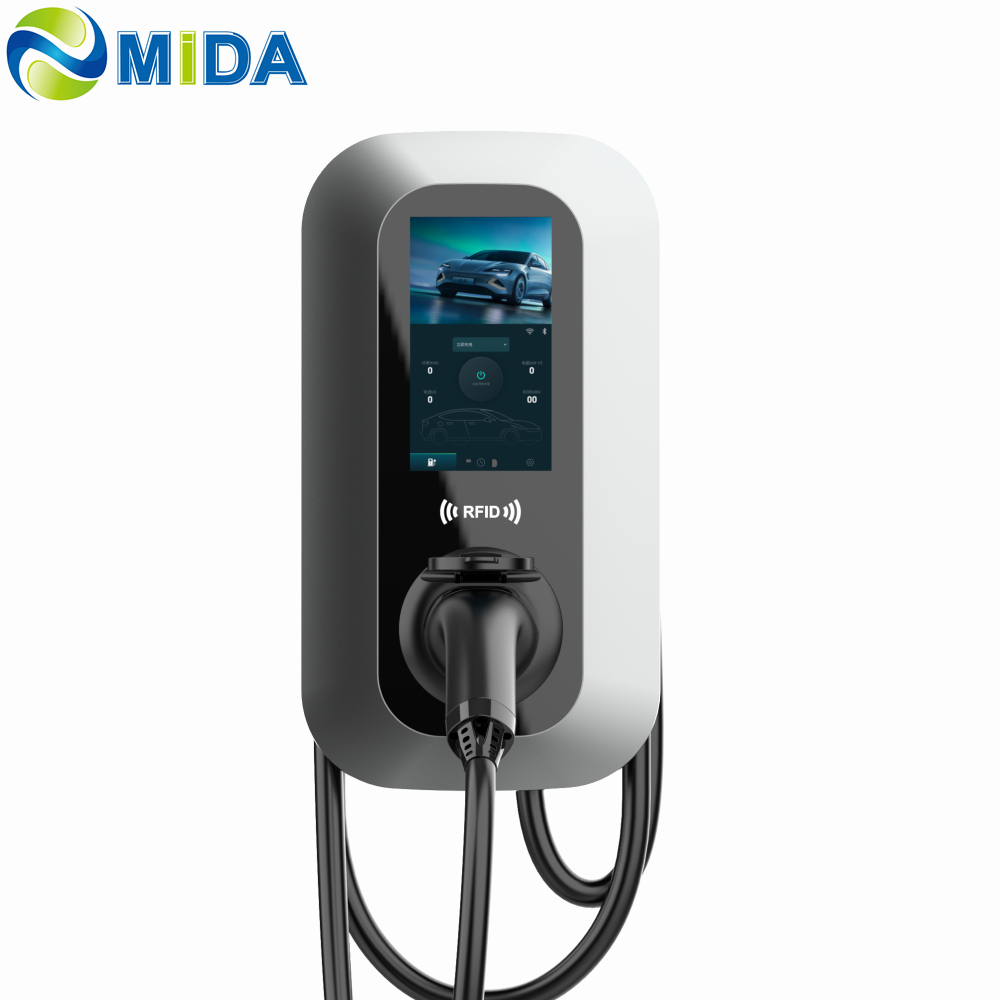

The AC EV charger is an artwork designed to improve the charging experience with a breakthrough from traditional appearances.
The LED light shows charging status through color changes. It adopts a breathing light effect to avoid direct glare at human eyes.
User-friendly design makes it simple for installation, maintenance, and daily operation.
Uses J1772/Type 2 connectors, enabling it to charge any electric vehicle currently on the market.
