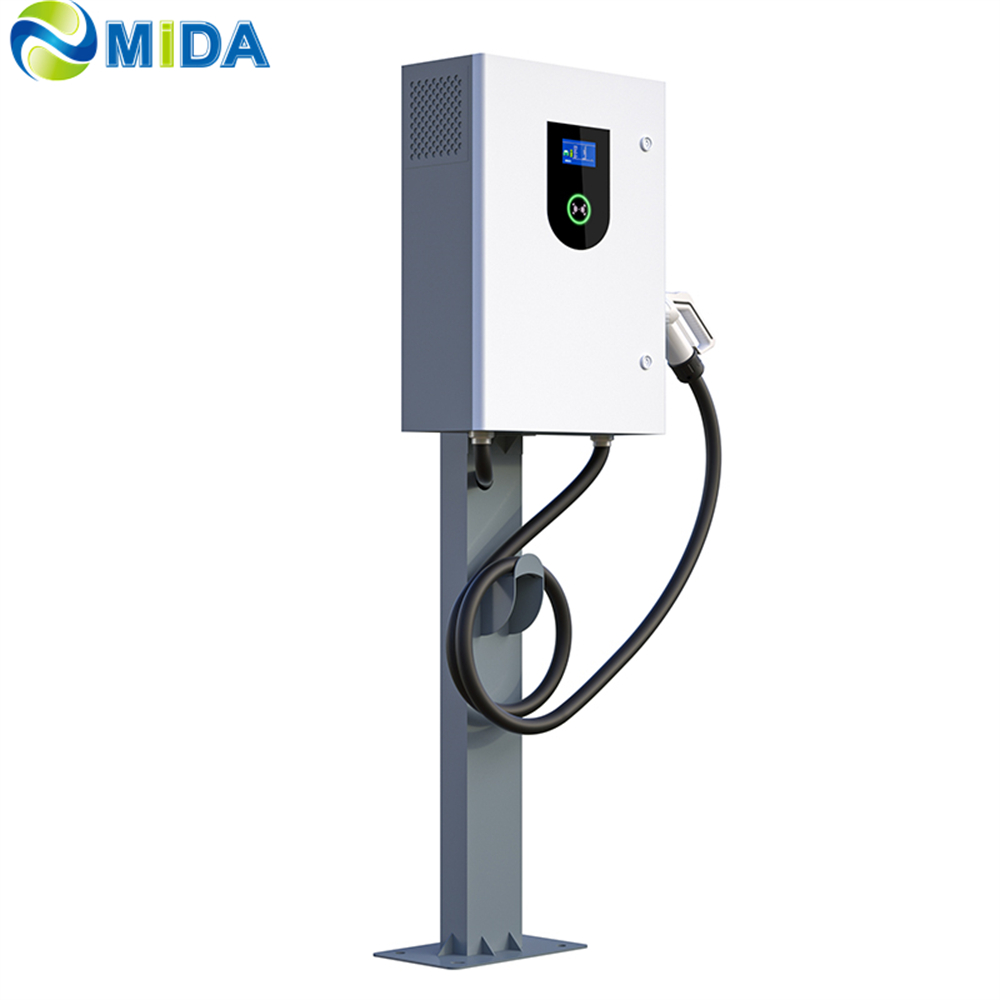

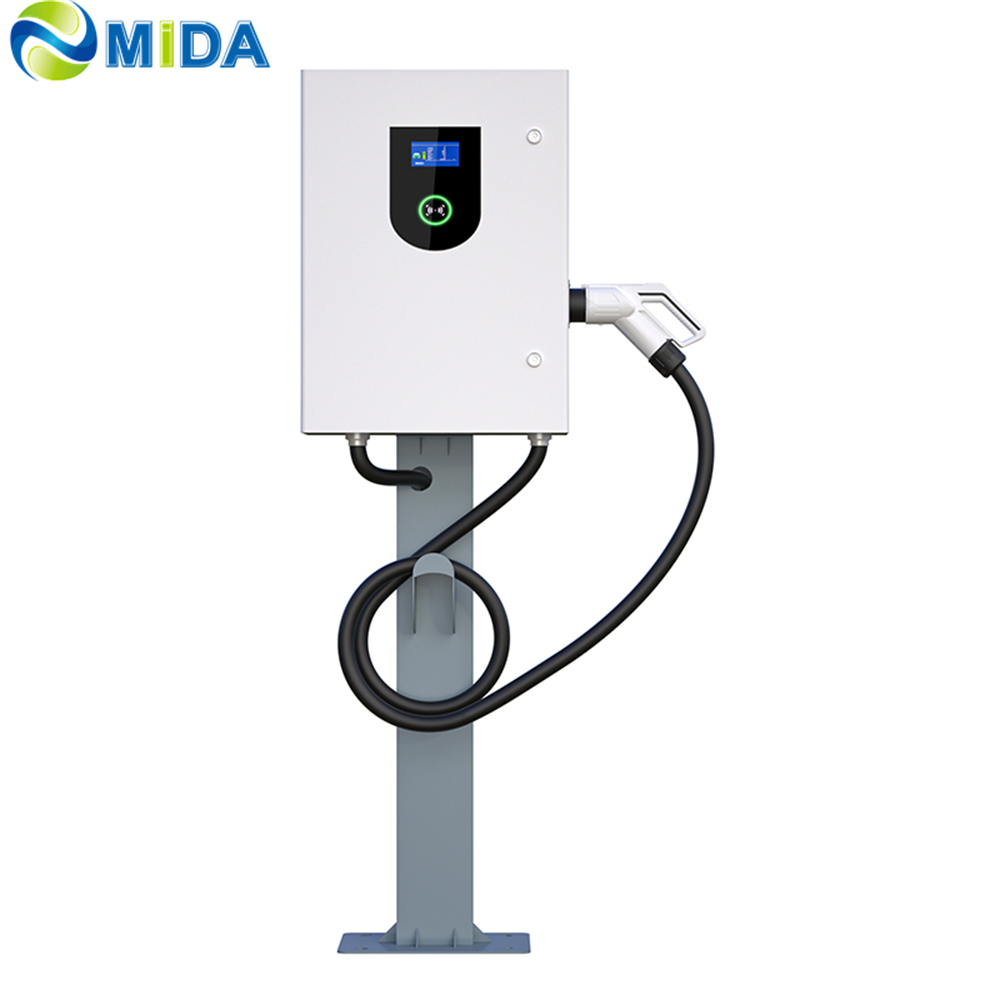

OCPP1.6 Integrated Wall Mounted DC Fast CCS and CHAdeMO EV Charger 150-750V 0-75A 40KW Output with RFID Ethernet and CE is the most advanced Electric Vehicle Charging Station currently available. The CHR-40S quick charger was developed for electric vehicles with CHAdeMo or CCS Combo DC charging sockets and is designed for semi-mobile use. Its modular design construction allows for free configuration of power modules and electrical components - increase the output power to 40kW, application of a Ethernet/WiFi/3g/4g communication or RFID card reader. This series chargers can be operated stably in various application scenarios and environments, even if low or high temperatures.

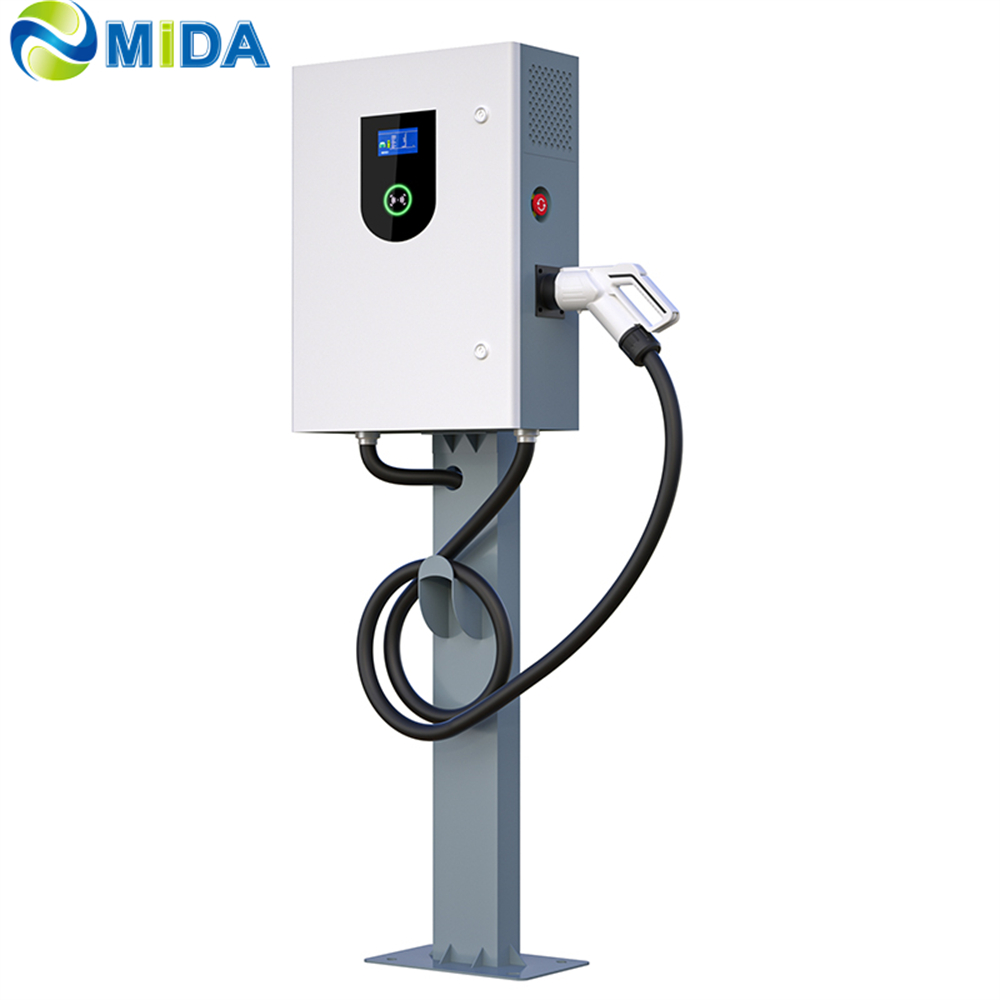

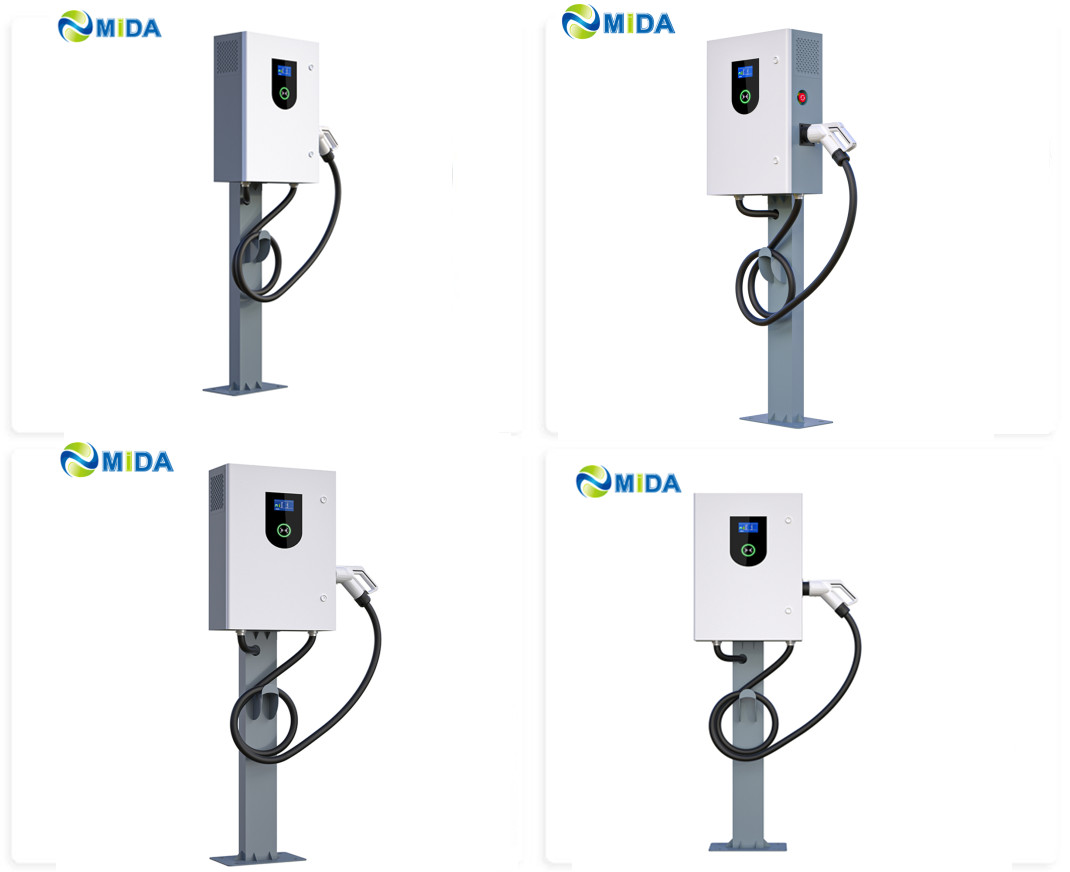

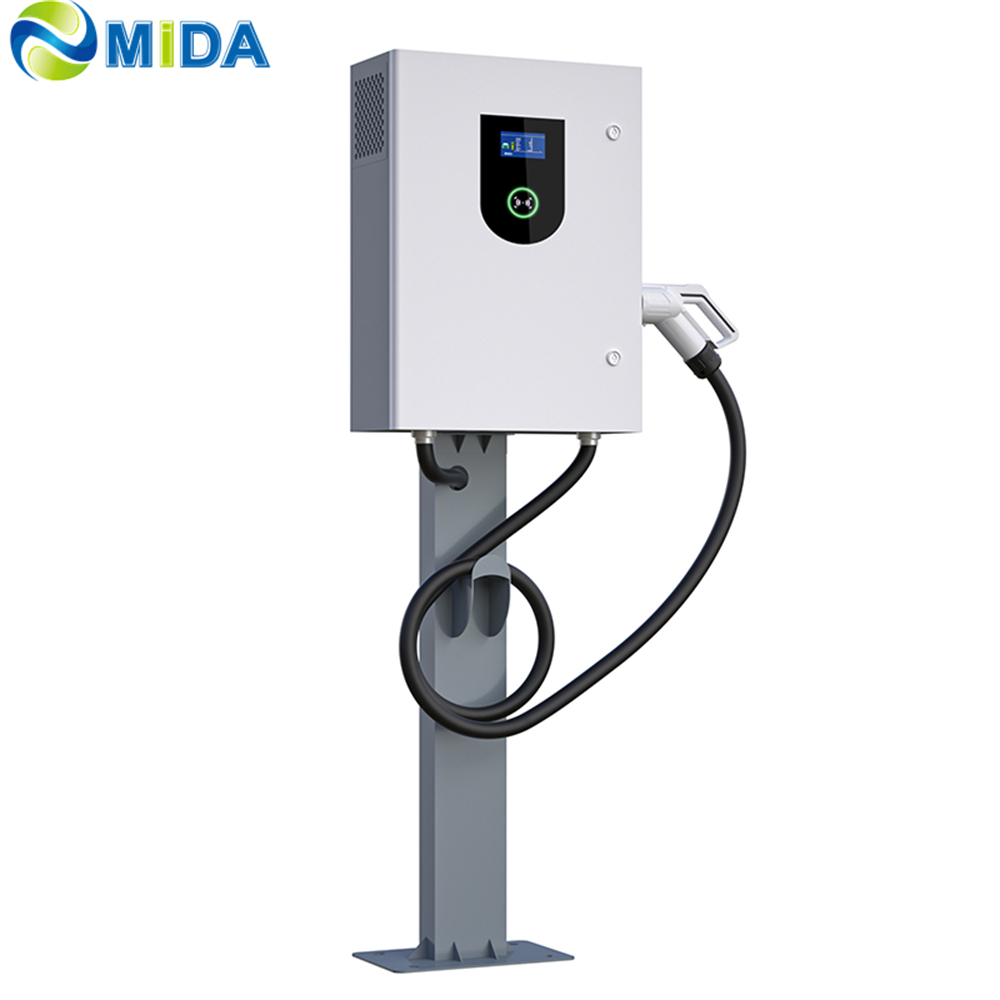

Product Presentation
Product Features
High Speed Charging
Mobile charging with up to 200km/h performance boost.
Dual Standard
Developed for electric vehicles with both CHAdeMo or CCS Combo DC charging sockets.
Industrial Compatibility
Compatible with all popular industrial sockets and can be used with CEE63 plug sockets.
Compact & Flexible
Especially suitable for use with vehicle pools, workshops or at motoring events due to compact dimensions.
Technical Specification
| AC Input |
1. Input Rating: 380Vac ± 15% |
| 2. AC Input Connection: 3P+N+PE (Wye connection) |
| 3. Max. Input Current: 65A |
| 4. Efficiency: 96% |
| DC Output |
1. Output Voltage Range: 150V-750V |
| 2. Max. Output Power: 40KW |
| 3. Max. Output Current: 120A@333V, 53A@750V |
| User Interface |
1. TFT-LCD Touch Panel: 4.3' touch display |
| 2. Push Buttons: Emergency Stop |
| 3. Communication: VPN/DNS/Cloud, WiFi, RJ45, 3/4G (GSM/CDMA), Modbus TCP, PLC |
| Packing |
1. Dimension: 645*220*450mm |
| 2. Weight: 240KGS |
| Environment |
1. Operating Temp: -20°C ~ +50°C (derating above +50°C) |
| 2. Humidity: 5% ~ 90% RH, non-condensing |
| 3. Altitude: 2000m |
| 4. IP Level: IP54 |
| Regulation |
1. Regulation: IEC61851-1 |
| 2. Certification: CE, ROHS, TUV, CSA, UL, IEC |
| 3. Protocol: CHAdeMO 2.0 / DIN 70121 / OCPP 1.6 / ISO 15118 |
Support & Professional Services
1
Warranty: 12 months comprehensive warranty time.
2
Secure Purchase: Guaranteed trade-assurance for money, quality, and service.
3
Pre-sales Service: Professional advice on configurations, installation, and investment.
4
Production Tracking: Keep tracking the progress and transparency of the production process.
5
After-sales: Free instructions for installation and trouble shooting with available spare parts.
6
Customization: Support for customized design, samples, and packing per requirements.
Frequently Asked Questions
Q1: What charging standards does the CHR-40S support?
The charger supports both CCS Combo and CHAdeMO DC charging standards, making it compatible with a wide range of electric vehicles.
Q2: Can the power output be increased?
Yes, the modular design allows for the free configuration of power modules, enabling an output power of up to 40kW.
Q3: Is this charger suitable for outdoor use?
Yes, it has an IP54 rating and can operate in temperatures ranging from -20°C to +50°C, suitable for various environments.
Q4: What communication options are available for the station?
It supports multiple communication protocols including Ethernet (RJ45), WiFi, 3G/4G, and Modbus TCP, as well as RFID card access.
Q5: What is the warranty period for the charger?
The product comes with a standard 12-month warranty, including free instructions for troubleshooting and available spare parts.
Q6: Does the unit feature a user-friendly interface?
Yes, it is equipped with a 4.3-inch TFT-LCD touch panel for easy operation and an emergency stop button for safety.
