Product Introduction

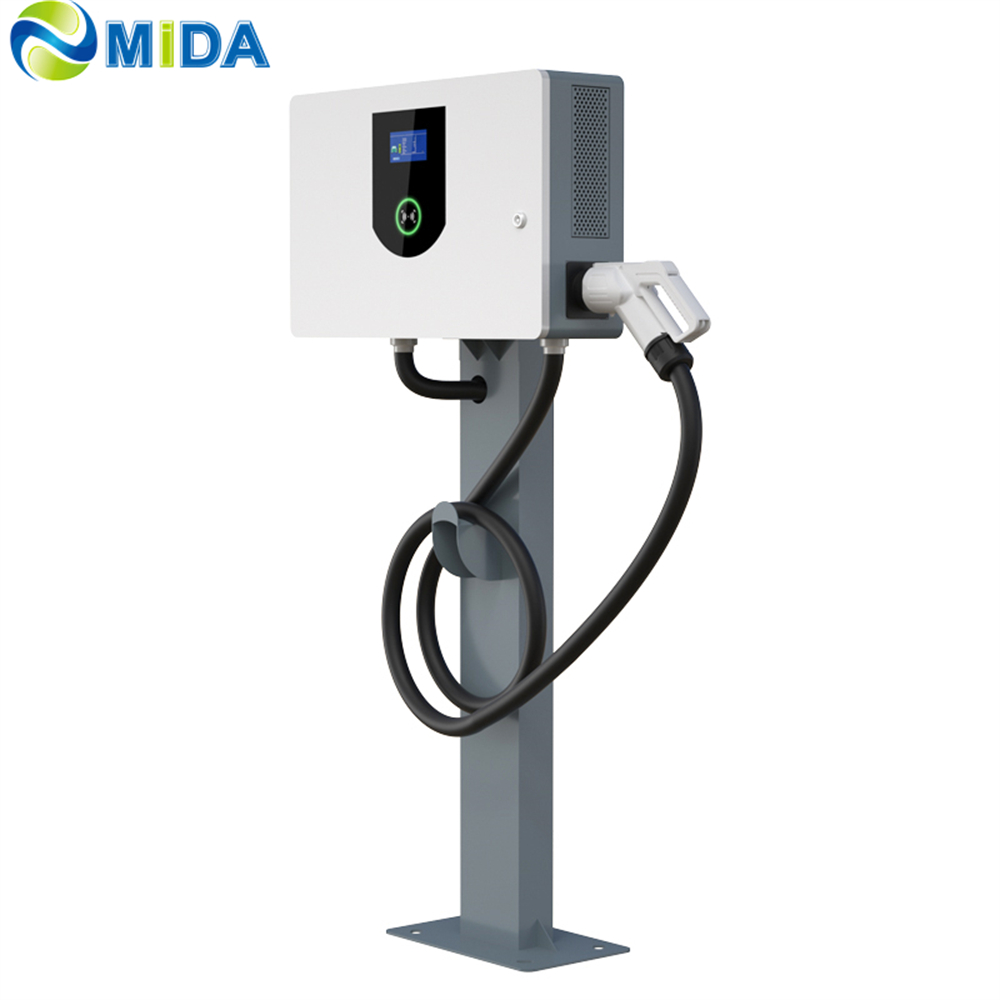

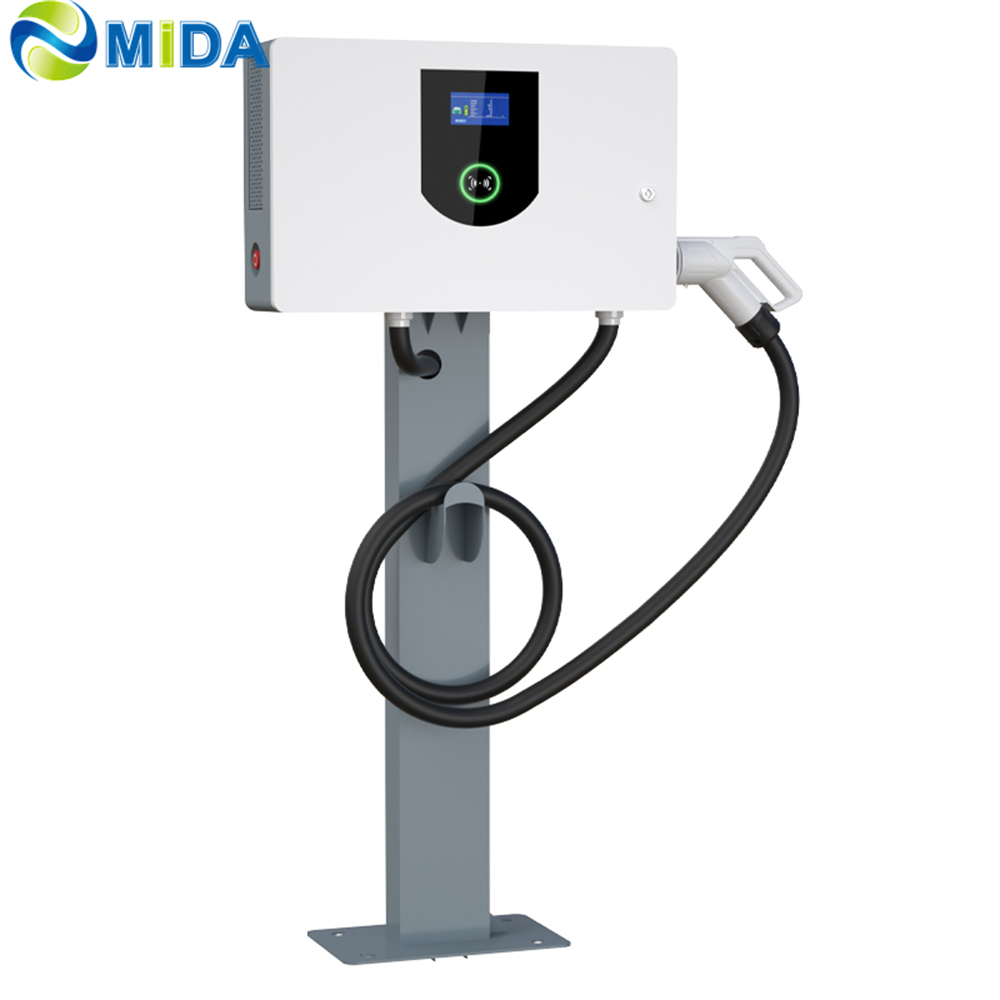

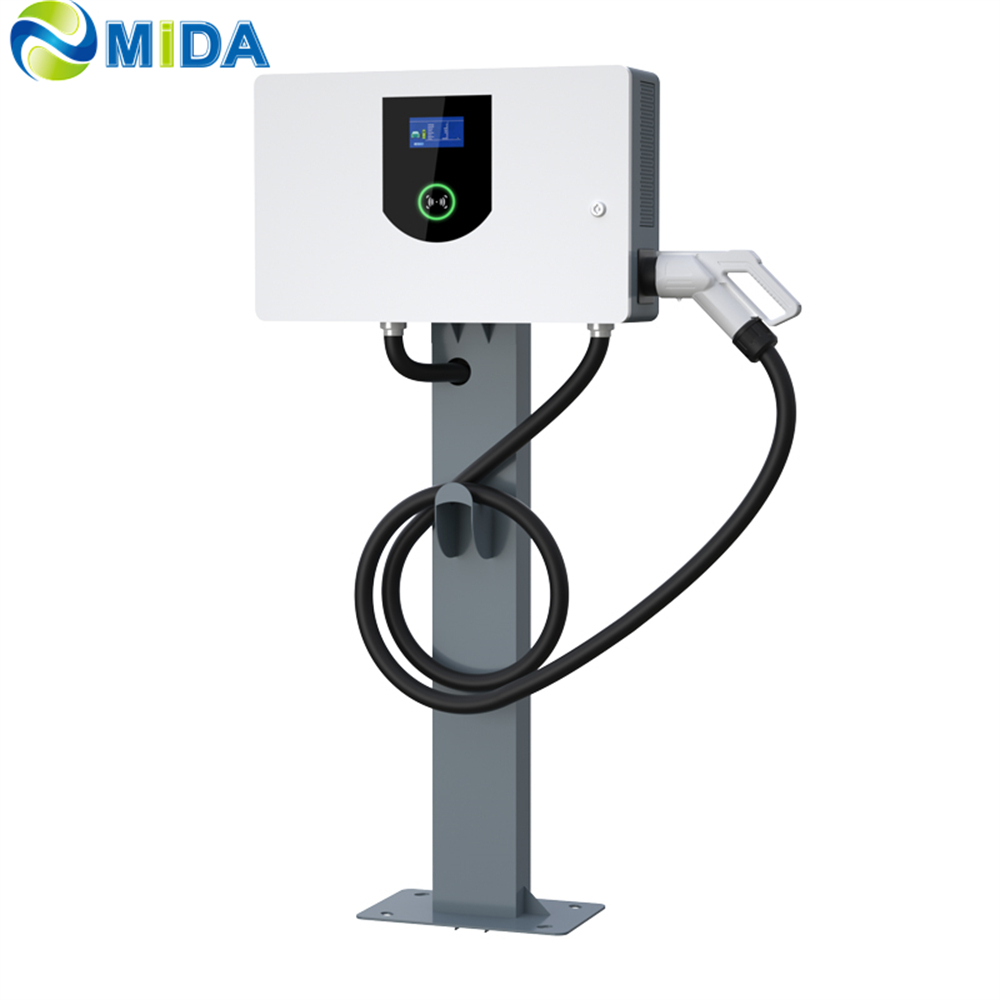

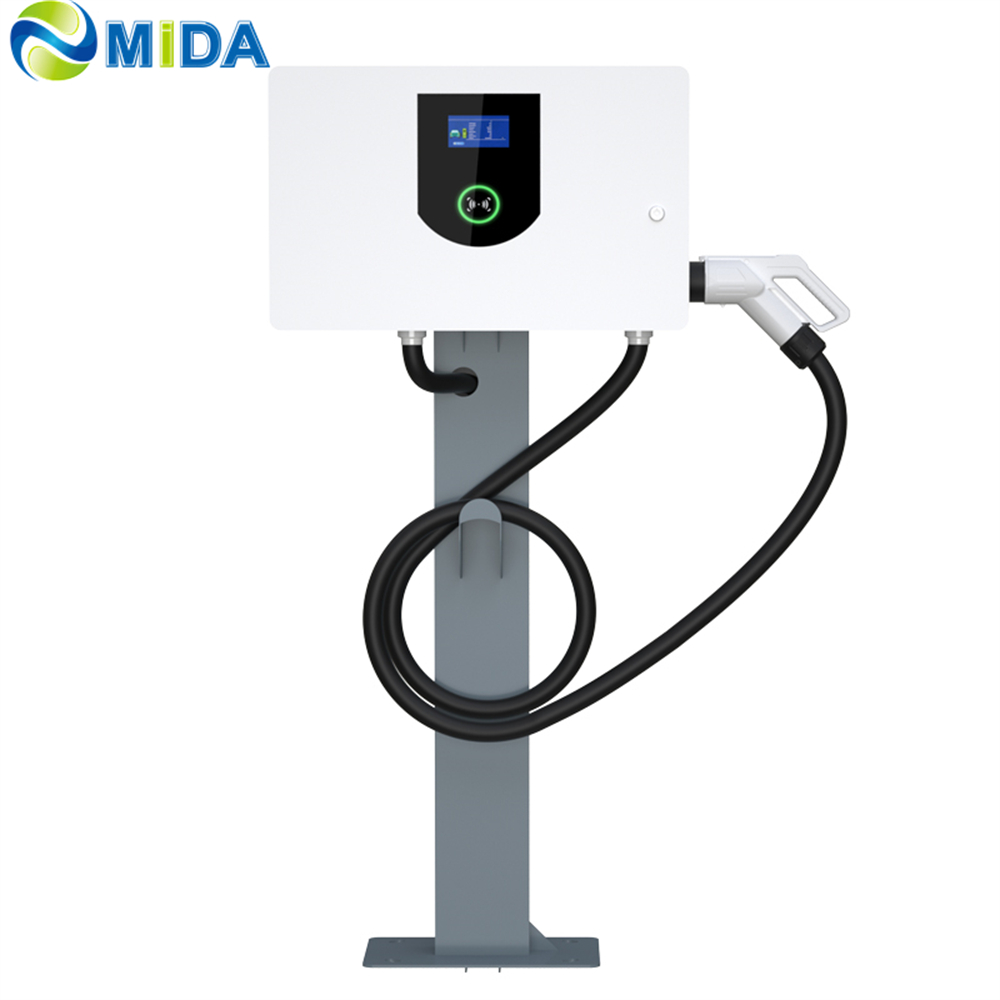

The Multiple output of 30KW Wall-mounted Fast Charger can choose different connectors, such as CCS1, CCS2, CHAdeMO, GB/T. It can Fast-charge any CCS, CHAdeMO, GB/T vehicle. With high charging efficiency charging less than 1 hour. The charger is safe and intuitive to use with emergency stop button. Optional network integration (OCPP or proprietary protocol) for customer to choose, so it is very convenient for you to charging.
Product Features
⚡
Dynamic power share (only suitable for 40KW)
🌐
Stand alone or network integrated charger
🖥️
Local or remote monitoring and control
🔋
DC power up to 30kw
Specification
| AC Input |
1. Input Rating: 380Vac ± 15% |
| 2. AC Input Connection: 3P+N+PE (Wye connection) |
| 3. Max. Input Current: 60A |
| 4. Efficiency: 96% |
| DC Output |
1. Output Voltage Range: 200V-750V |
| 2. Max. Output Power: 20KW |
| 3. Max. Output Current: 60A@350V, 28A@750V |
| User Interface |
1. TFT-LCD Touch Panel: 4.3' touch display |
| 2. Push Buttons: Emergency Stop |
| 3. Communication: VPN/DNS/Cloud, WiFi, RJ45, 3/4G, Modbus TCP, PLC |
| Packing |
1. Dimension: 645*220*450mm |
| 2. Weight: 240KGS |
| Environment |
1. Operating Temperature: -20°C ~ +50°C |
| 2. Humidity: 5% ~ 90% RH, non-condensing |
| 3. Altitude: 2000m |
| 4. IP Level: IP54 |
| Regulation |
1. Regulation: IEC61851-1 |
| 2. Certification: CE, ROHS, TUV, CSA, UL, IEC |
| 3. Protocol: CHAdeMO 2.0/DIN 70121/OCPP 1.6/ISO 15118 |
Service & Support
1) Warranty: 12 months quality guarantee.
2) Trade Assurance: Safe transactions ensuring quality and service standards.
3) Pre-sales Service: Professional advice on generator sets, configurations, and installation.
4) Production Tracking: Real-time progress monitoring of your order.
5) After-sales Support: Free installation instructions and troubleshooting.
6) Customization: Support for customized designs, samples, and packing.
Frequently Asked Questions
🔹 Which EV connectors are compatible with this charger?
The 30KW wall-mounted charger supports multiple output options including CCS1, CCS2, CHAdeMO, and GB/T connectors, making it compatible with almost all fast-charging electric vehicles.
🔹 How fast can it charge an electric vehicle?
With its high efficiency and 30KW DC output, it can typically complete a fast charge in less than 1 hour, depending on the vehicle's battery capacity.
🔹 Does the charger support remote management?
Yes, it features optional network integration via OCPP or proprietary protocols, allowing for both local and remote monitoring and control.
🔹 What is the protection rating for outdoor use?
The charger is rated IP54, providing protection against dust and water splashes, making it suitable for various environmental conditions.
🔹 What safety features are included?
The unit includes a prominent emergency stop button and complies with international regulations such as IEC61851-1, ensuring a safe charging process.
🔹 Is there a warranty for this product?
Yes, we provide a 12-month warranty period along with free technical instructions for installation and troubleshooting.
